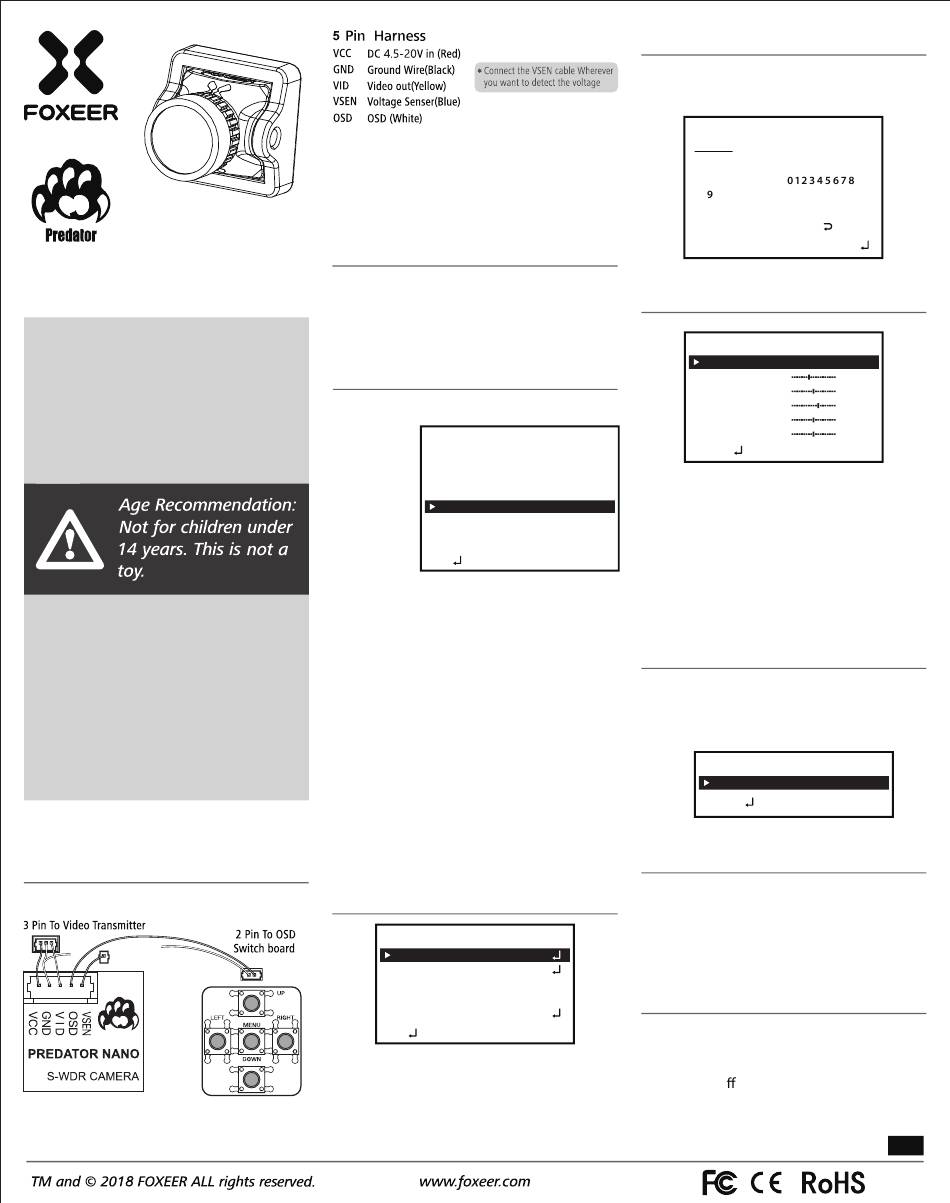

FOXEER PREDATOR NANO Instruction Manual

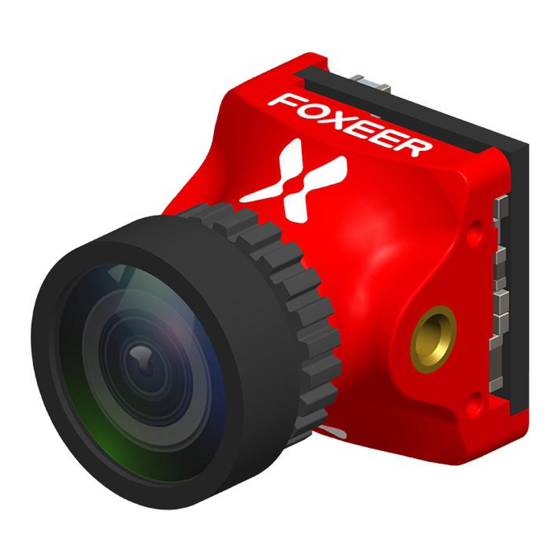

PREDATOR NANO
*Bracket is added from the front
WARNING: Read the ENTIRE instruction
manual to become familiar with the
features of the product before operating.
Failure to operate the product correctly
can result in damage to the product,
personal property and cause serious
injury.
NOTICE: This product is only intended for
use with unmanned, hobby- grade,
remote-controlled vehicles and aircraft.
FOXEER disclaims all liability outside of
the intended purpose and will not
provide warranty service related thereto.
SUPPORT: Visit www.foxeer.com/ to get
more information.
CAMERA-OSD SWITCH
CONNECTION
VBAT+
Camera Back
CAUTION: If you are using ESC's with active
braking, we recommend powering the
camera system through a BEC or voltage
regulator.
CAMERA-VIDEO
TRANSMITTER CONNECTION
To connect the camera directly to the video
transmitter, plug the 3 pin wiring harness from
the video transmitter into the camera leaving
the OSD pin open.
FPV OSD Setup
Press top button for 3s, you can access OSD
menu.
1. TIME: ON/OFF
2. POWER: ON/OFF
3. VOL ALARM: You can setup a bat boundary
(single), click LEFT/RIGHT button to decrease/
increase the value, 3.6V default.
4. V CAL: Voltage calibration, range -0.5~0.5.
5. MODE: DAY/ NIGHT/ LED/ B&W.
Quick switch:
button on OSD board, it can fast change the MODE,
the current mode will show once at the TIMER place.
6. N/P: NTSC/PAL switchable.
7. SIZE: 4:3/16:9 switchable.
8. VER: FOXEER_V4.0.
9. EXIT
Main MENU
MENU: Push MENU(center button) to go to
the main menu.
UP/DOWN: Move up and down through the
OSD Switch Front
menu.
Left/Right: Modify the menu parameters.
DISPLAY
TIME
POWER
VOL ALARM
V CAL
MODE
N/P
SIZE
VER: FOXEER_V4.0
EXIT
At standby status, long press the right
SETUP MENU
CAMERA ID ON
PICT ADJUST
DAY / NIGHT AUTO
LANGUAGE ENGLISH
CAMERA RESET YES
EXIT

1. Camera ID

Camera ID: ON/OFF. You can setup pilot
name and position.
CAMERA ID
FOXEER
A B C D E F G H I J K L M N O P Q
R S T U V W X Y Z
- ! " # $ % & ( ) _ ˋ , ￥ : ; <=> ? @
\ ˆ﹡﹣×＋／
←→↑↓ CLR POS
RETURN

2. PICT ADJUST

PICT ADJUST
FLIP
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
COLOR GAIN
RETURN
ON
ON
3.6
1. FLIP: OFF/ H-FLIP/ V-FLIP/ HV-FLIP
0.0
2. BRIGHTNESS
DAY
PAL
3. CONTRAST
4:3
4. SHARPNESS
5. HUE
6. COLOR GAIN

3. DAY/NIGHT

DAY/NIGHT include "AUTO" and "MANUAL" ,
click "MANUAL" , you can setup permanent
"COLOR" or "B/W" .
DAY/NIGHT
DAY/NIGHT
RETURN

4. LANGUAGE

7 Languages: ENGLISH/ DEUTSCH/ FRANCAIS/
PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 .

5. Camera reset

6. EXIT

Save All: Save all setup.
Not Save: Can save the value temporary, but
once power o , the value won't save.
cancel: Cancel Setup.
00 : 00 00 : 0
OFF
122
136
160
090
136
COLOR
V3.0
