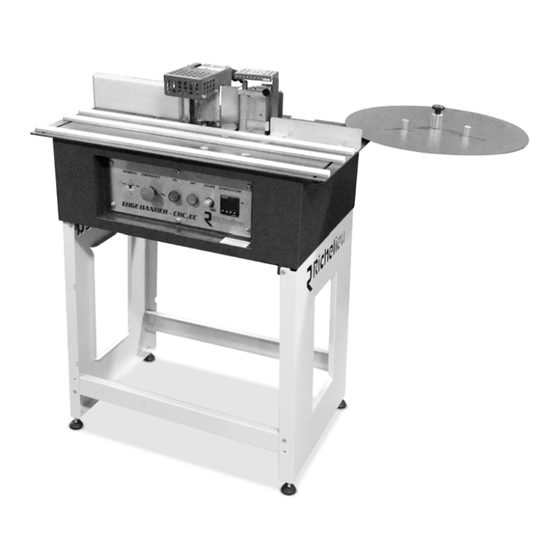

Summary of Contents for Richelieu MAKSIWA Portable EdgeBander
- Page 1 CBC.E Portable EdgeBander ____________________________________________________________________ INSTRUCTION MANUAL ____________________________________________________________________ ATTENTION: READ THIS MANUAL BEFORE USING YOUR MACHINE.
- Page 2 Keep all tools in order. Keep tools sharp and clean INSTRUCTION MANUAL better safer performance. Follow Important information you should know: instructions for lubricating and changing accessories. The images in this manual are illustrative and are Unplug the machine before servicing or changing meant to demonstrate the correct operation of your accessories such as scissors, cutters etc.
- Page 3 Additional safety rules for Edgebander: Electrical connection CAUTION: FAILURE TO ATTEND THESE The Edgebander CBC.E MAKSIWA has engine 1-phase WARNINGS MAY RESULT IN PERSONAL 110V. To avoid burning risk, check the voltage of your INJURY AND SERIOUS DAMAGE TO THE MACHINE. outlet before starting the machine.
-
Page 4: Unpacking And Assembly
Dispose the packaging in a friendly way 4. Remove the packing materials around the parts and with the environment. take all the loose packing pieces. The Edgebander is designed to operate indoors and 5. Mount tape support, position the pin tape support on should be placed on a firm, stable and level surface. - Page 5 Do not put too much glue, because when it melt and - Loosen (without removing) the two screws shown in during operation of the machine may overflow and cause the following figure, using a wrench 13: leaks. Let also not miss glue in the glue pot because this can cause failures in the collage.
- Page 6 - Position the tape to the zero point, in other words, at 3. On Button (3) (green): This button turns the machine, the point where the wood touches the tape, taking it with activates other commands and starts the process of a little left over to be cutted.
-
Page 7: Maintenance
Your Edgebander is ready to start the first tests. At this GLUE THICKNESS point it is important to use pieces of wood just for testing, According to the first tests you will find an ideal amount until you are acquainted with all functions of the of glue that must pass the panel. - Page 8 This section covers the service adjustments or common The fact that the glue axis is out of bracket causes procedures that may need to be made during the life of incorrect application of glue in the wood paneling, your machine. applying impartial glue or not even applying any glue on Verify following...
-
Page 9: Technical Assistence
Weekly: 9. The warranty does not cover problems caused by • Clean dust accumulation inside the back cover, around mistreatment, carelessness, misuse or inappropriate use the glue axis and glue pot of the machine. of the functions designed for this equipment in this •... - Page 10 SOLUTION GUIDE PROBLEM CAUSE SOLUTION Plug disconnected or connected Check the connection and the voltage of your improperly. power supply. Main switch off. Turn on the Main switch. ON switch off. Turn on the ON switch (green). Machine is not turn on Emergency switch activated.
