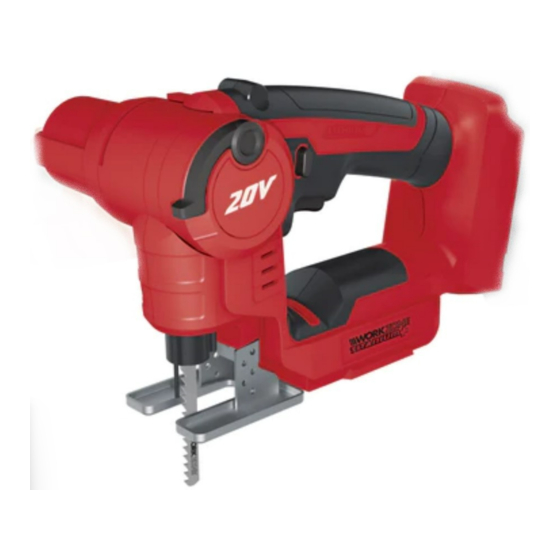

  • Page 1 Xfinity Li-ION 20V Multi-PURPOSE saw Instruction Manual MODEL NUMBER CSJ18LDA.9 Version number: 002 IMPORTANT Read carefully before use Keep for future reference...
  • Page 2 Failure to do so could result in serious personal injury. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 3 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 4: Table Of Contents

    Package Content List Parts description Description of symbols General safety warnings Important information – Product care Assembly Operation Maintenance Warranty Environmental protection FAQ/Troubleshooting Technical specifications AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 5: Package Content List

    Plus battery packs. Other type of battery packs may burst causing personal injury and damage. The battery pack must be recharged only with an ALDI 20V Li-Ion Xfinity Plus battery charger. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 6: Parts Description

    13. LED work light (See Fig. G) Base plate Foot plate * Battery and charger shown only for illustrative purposes. Battery and Charger not included with this saw. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 7: Description Of Symbols

    Warning Wear ear protection Wear eye protection Wear breathing protection Conforms to relevant standards for electrical safety and electromagnetic compatibility. 60 Months Warranty AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 8: General Safety Warnings

    Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 9 This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 10 If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 11 Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 12 Holding the work by hand or against your body leaves it unstable and may lead to loss of control. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 13: Important Information - Product Care

    In Position I (0°), this multi purpose saw can be used as a reciprocating saw. In Position VI (90°), this multi purpose saw can be used as a jigsaw. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 14 To avoid the multi purpose saw being turned on accidentally, remove the battery pack (6) from the saw. • Before operation, make sure the pivot release lever (2) is locked into position. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 15 3) Release the blade holder (11) and it will self-rotate back to clamp the blade (10) tightly. Push the blade (10) to ensure it is locked in position. (See Fig. C2) AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 16 Restore the pivot release lever (2) to lock (See Fig. D1). 2) Rotate the blade holder (11) anti-clockwise and hold in position. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 17 (11) anti-clockwise, remove the blade (10) from the blade holder (11) slot and then release the blade holder (11). (See Fig. D4) AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 18: Operation

    For starting operation, press the lock-off button (4) and hold in position, then press and hold the on/off switch (7). To switch off the machine, release the on/off switch (7). AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 19 An LED work light (13) is built-in near the end of the protection finger (12). The LED work light (13) will automatically come on each time the on/off switch (7) is depressed. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 20 Failure to do so may result in explosion, property damage, electric shock, and/or serious personal injury. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 21: Maintenance

    For transportation in vehicles, remove the battery pack and the blade, secure the product against movement or falling to prevent injury to persons or damage to this multi-purpose saw. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 22: Warranty

    If you have any issues with the operation of your product, please call us on 1300 889 028 for advice, or email us at info.aldi@positecgroup.com AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 23: Environmental Protection

    3) Any movement of the material may affect the quality of the cut. The blade cuts on the upward stroke and may chip the uppermost surface. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 24 Blade Holder. For further inquiries or issues associated with your tool, call our Customer Service on 1300 889 028 or email us at info.aldi@positecgroup.com AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
  • Page 25 This 20V Lithium-Ion Multi Purpose Saw complies with the following Standards: Safety: IEC 62841-1 IEC 62841-2-11 AS/NZS 62841.1 AS/NZS 62841.2.11 EMC: EN 55014-1 EN 55014-2 AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: CSJ18LDA.9 • 11208 • 10/2019...
