Summary of Contents for UWE CS Series

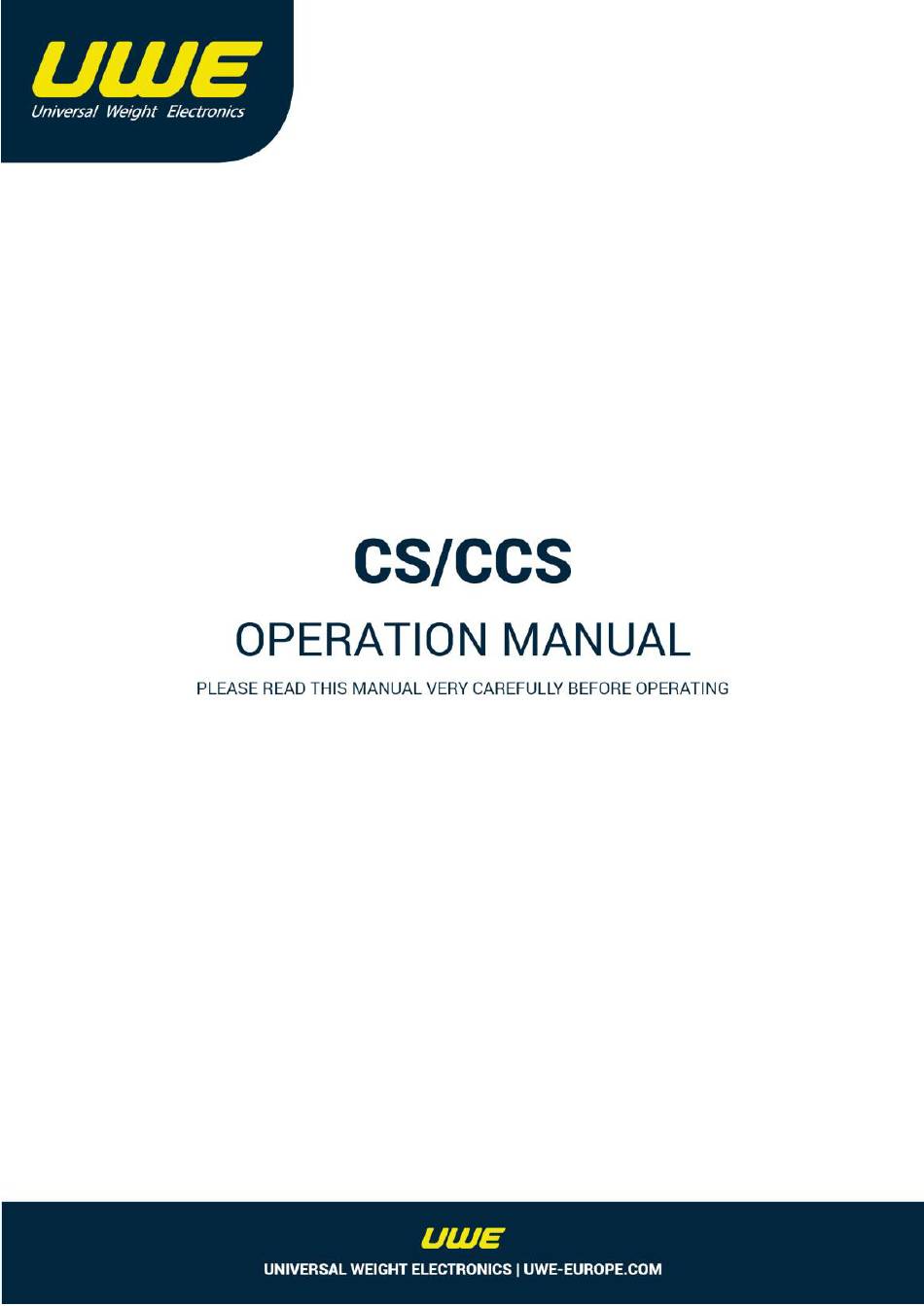

  • Page 2: Table Of Contents

    CONTENT CAUTION INSTALLATION INSTRUCTIONS SPECIFICATIONS KEYBOARD LAYOUT KEYS AND INDICATORS INTERNAL FUNCTIONS OPERATING INSTRUCTIONS TROUBLESHOOTING WARRANTY 10 DAILY CARE AND MAINTENANCE 11 SAFETY INSPECTION AND MAINTENANCE 12 TÜV CERTIFICATES 12 PROOF TEST REPORT CS-1T CS-2T CS-3T CS-5T CS-7.5T CCS-60K CCS-150K CCS-300K CCS-600K...
  • Page 3 1. Never attempt to open this scale, no user serviceable parts inside. 2. Remove all loads from hook when not in use. 3. Do not remove the wire rope stopper. For safety reasons, always apply it. 4. Before weighing, check and make sure that all hanging /load- receiving elements/ devices are in good condition.
  • Page 4 10. Prevent jolts, torsion and oscillation (e.g. by sloping appending) of all kinds. Be sure to prevent overloading the scales in excess of the stated maximum load, minus any tare weight that may possible exist. This could damage the scale (risk of breakage). Do not use the crane scale to transport loads (e.g.

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS 2.1 UNPACK this scale very carefully. Check and make sure that the following items are included: a. This operation manual b. CS/CCS series scale x 1 c. AC adaptor x 1 d. Wireless remote control x 1 (option) e.
  • Page 6 included. An external battery pack is available as option. b. Check and make sure that the voltage of the AC adaptor supplied matches with the voltage of the main output. c. Insert the output plug of AC adaptor firmly into the DC input jack of scale. The DC input jack is located underneath the back of the scale.

  • Page 7: Specifications

    SPECIFICATIONS Recommended Model Capacity Division Min. Number Pound* Pound* Load Applied CS-500 1000 10lb CS-1T 1000 2000 10kg 20lb CS-2T 2000 4400 20kg 40lb CS-3T 3000 6600 20kg 40lb CS-5T 5000 11000 40kg 100lb CS-7.5T 7500 16000 100kg 200lb CS-10T 10000 20000 100kg 200lb...
  • Page 8 DIMENSIONS FOR CS (mm)
  • Page 9 DIMENSIONS FOR CCS (mm)

  • Page 10: Keyboard Layout

    KEYBOARD LAYOUT...

  • Page 11: Keys And Indicators

    KEYS AND INDICATORS 1. POWER/*ON KEY Press this key to turn scale on/off. For CCS models, press this key to turn the scale on. 2. HOLD KEY Press this key to hold/release the current weight being displayed/held. 3. MODE KEY Press this key to switch between measurement units, or to convert a weight reading into the other unit of measurement.
  • Page 12 6. ZERO INDICATOR When the weight detected is at true zero, an arrow will appear and point at this sign. 7. TARE INDICATOR When the tare function is being employed, an arrow will appear and point at this sign. 8. METRIC/*LOW BATTERY INDICATOR When this indicator is on, the metric weight unit is being employed.
  • Page 13 11. TARE KEY Press this key to tare off the weight of a container. 12. MODE KEY Press this key to shift between weight units. 13. HOLD KEY Press this key to hold/release the current weight being displayed/ held. 14. POWER KEY Press this key to turn the scale on/off.

  • Page 14: Internal Functions

    INTERNAL FUNCTIONS 6.1 INTERNAL FUNCTION TABLE(CCS, CS-500~7.5T) Function Symbol Description NOTE Fun-1 Scale configuration setting and dealer Calibration. Fun-2 Display segment check. Fun-3 Off set value and span value reading. Fun-4 Auto power off setting NOTE **: For dealer and authorized personnel only. Inappropriate setting(s) will cause system failure.
  • Page 15 e. Press MODE until the required setting appears. f. Press TARE to confirm. g. Repeat step c to f for other function setting, h. Press ZERO to save settings and return to normal operation. 6.3 INTERNAL FUNCTIONS DESCRIPTION Fun-1 Contact your dealer for more information.

  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS 7.1 PLACING THE SCALE Hang this scale with a strong enough media where is free from RF interference, vibration, fire, direct sunlight and excessive moisture. For safety reasons and best weighing result, always hang this scale and lift a load vertically.
  • Page 17 7.4.2 To Clear the Weight of a Container from memory Remove the container from hook then press TARE. The tare indicator will go off indicating no container weight is resided in memory. 7.5 PLACING A LOAD Always apply a load to hook gently. Sudden shock, excessive force or overloading the scale may cause damage to the weight sensor inside.
  • Page 18 7.7 HOLDING THE WEIGHT BEING DISPLAYED a. Press HOLD to hold the weight being display. For accuracy considerations, only press HOLD when weight is stable. b. After HOLD is pressed, the flashing weight value appears. c. To release weight value being held, press HOLD again.
  • Page 19 7.9 SHIFT BETWEEN DIFFERENT WEIGHT UNITS Press MODE to shift different weight units. NOTE: The pound unit may be not available in certain countries. 7.10 SWITCHING BACKLIGHT ON/OFF Method 1: During operating process, the backlight switched ON/OFF pressing the MODE key to shift to the desired status.
  • Page 20 Scale shows LOBAT after self-test down count but displaying zero weight. 7.11.2.2 Low battery is detected during operation Weight display flashes once every seconds. 7.12 REMOTE CONTROL a. Pressing the corresponding key on the remote control can attain same control results. NOTE: All internal function settings can only be achieved through scale panel keys.

  • Page 21: Troubleshooting

    TROUBLESHOOTING SCALE CANNOT BE TURNED ON  CHECK: Is the built-in rechargeable battery charged? ACTION: Recharge the battery for at least 8 hours during first time use or utilize the AC adaptor. ZERO WEIGHT CANNOT BE ATTAINED WHEN TURNED ON ...
  • Page 22 RATED CAPACITY CANNOT BE ATTAINED  CHECK: Is TARE function being utilized? ACTION: Remove all loads from hook, press TARE and try again. 00000 SCALE DISPLAYS  CHECK: Is the scale overloaded? ACTION: Remove all loads from hook immediately and check again. SCALE DOES NOT WEIGH CORRECTLY ...
  • Page 23  CHECK: Is the scale affected by airflow, vibration or RF interference? ACTION: Place scale away from disturbances.  CHECK: Does the scale have the correct calibration? ACTION: Contact your dealer. SCALE TURNED OFF AUTOMATICALLY  CHECK: Is the AUTO POWER OFF function being utilized? ACTION: Disable the AUTO POWER OFF...
  • Page 24 WIRELESS REMOTE CONTROL DOES NOT FUNCTION  CHECK: Is the distance between the scale and the wireless remote control exceeding maximum transmission range? ACTION: Try again in a shorter distance.  CHECK: Is the battery of the wireless remote control low? ACTION: Change the battery with a new one.

  • Page 25: Warranty

    WARRANTY Warranty varies from country to country. In general, all products carry a one-year warranty from factory shipment. If other consumer protection laws are applied, please refer to your local dealer/representative for more information. The warranty only applies to product failures due to defective materials and/or workmanship.

  • Page 26: Daily Care And Maintenance

    DAILY CARE AND MAINTENANCE a. Do not open scale for any reason. Contact your dealer for servicing. b. Avoid exposing scale to direct sunlight or excess moisture. c. Do not submerge scale in water or drop scale. d. Remove loads from hook before...
  • Page 27 h. If the hanging hook or the hanging ring wears down due to attrition or appears defective, such as cracks or a change in shape, stop the use immediately and send it to an authorized dealer for repairs or for the replacement of the part, before resuming usage.

  • Page 28: Safety Inspection And Maintenance

    SAFETY INSPECTION AND MAINTENANCE For safety purposes, please refer to the information below: 1. Please use the diagram provided to perform the safety inspection and maintenance. The inspection should be documented using the checklists provided. 2. Regular inspection and maintenance should be performed by trained users who have knowledge of working with crane scales.
  • Page 29 4. Crane scales parts should only be replaced by trained professionals authorized by UWE. 5. It is strictly prohibited to disassembling and repairing of the crane scale by any personnel other than trained professionals authorized by UWE. Procedure: 1. Crane...
  • Page 30 3. All inspection and maintenance results must be documented on the checklist 1. 4. Inspection and maintenance carried out by trained professionals must be documented on yearly row in checklist 1. 5. All parts replaced by trained professionals must be documented on checklist 2. 6.
  • Page 31 Results: If the dimension of the part inspected does not conform to the values in Checklist 1, or if there are any other discrepancies, remove scale from operation immediately. The scale must be sent to be repaired ONLY by trained professionals authorized by UWE.
  • Page 32 Every year or every 40,000 weighings: The crane scale must be inspected by trained professionals authorized by UWE for full inspection, including safety inspections for wear, fractures, deformation, tightness of bolts and nuts, and test of accuracy of the scale (sending scale to an accredited lab (CNLA) for evaluation if necessary).
  • Page 33 Remark: When performing regular inspection, please use the Checklist 1 provided for inspection categories and record keeping. *The next diagram represents the most important points for safety inspection. Please inspect these parts carefully. Other parts not represented in the diagram still need to be inspected regularly.
  • Page 34 Diagram...
  • Page 35 Checklist 1...
  • Page 36 Checklist 1...
  • Page 37 Checklist 2:...

  • Page 38: 12 Tüv Certificates

    TÜV CERTIFICATES We, at UWE, value quality and safety above all for our scales. Therefore, each of our CS and CCS models has undergone rigorous TÜV test No. Z1A 06 03 54086 002 to ensure its safety and reliability before it is shipped from the factory.

  • Page 41: Proof Test Report Cs-1T

    CS-1T PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Safe Proof load Serial No: Description Working Applied Load (Kg) (Kg) 1,000 2,000 CS-1T 1,000 2,000 (1,000kg, 0.5kg) 1,000 2,000 The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.
  • Page 42 CS-2T PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) 2,000 5,000 CS-2T 2,000 5,000 (2,000kg, 1.0kg) 2,000 5,000 The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.
  • Page 43 CS-3T PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) 3,000 5,000 CS-3T 3,000 5,000 (3,000kg, 1.0kg) 3,000 5,000 The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.
  • Page 44 CS-5T PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) 5,000 10,000 CS-5T 5,000 10,000 (5,000kg, 2.0kg) 5,000 10,000 The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.
  • Page 45 CS-7.5T PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) 7,500 10,000 CS-7.5T 7,500 10,000 (7,500kg, 5.0kg) 7,500 10,000 The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.

  • Page 46: Ccs-60K

    CCS-60K PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Safe Proof load Serial No: Description Working Applied Load (Kg) (Kg) CCS-60K (60kg, 0.02kg) The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.

  • Page 47: Ccs-150K

    CCS-150K PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) CCS-150K (150kg, 0.05kg) The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.

  • Page 48: Ccs-300K

    CCS-300K PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) CCS-300K (300kg, 0.1kg) The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.

  • Page 49: Ccs-600K

    CCS-600K PROOF TEST REPORT REFERENCE NO:UCS- ISSUE DATE: Description of Safe Proof load Serial No: item (Make, Model Working Applied & capacity) Load (Kg) (Kg) 1,200 CCS-600K 1,200 (600kg, 0.2kg) 1,200 The above test was conducted by Universal Weight Enterprise Co., Ltd.’s Quality Control Department in accordance with TUV Certificate No.
  • Page 50 X0CS0032000...
