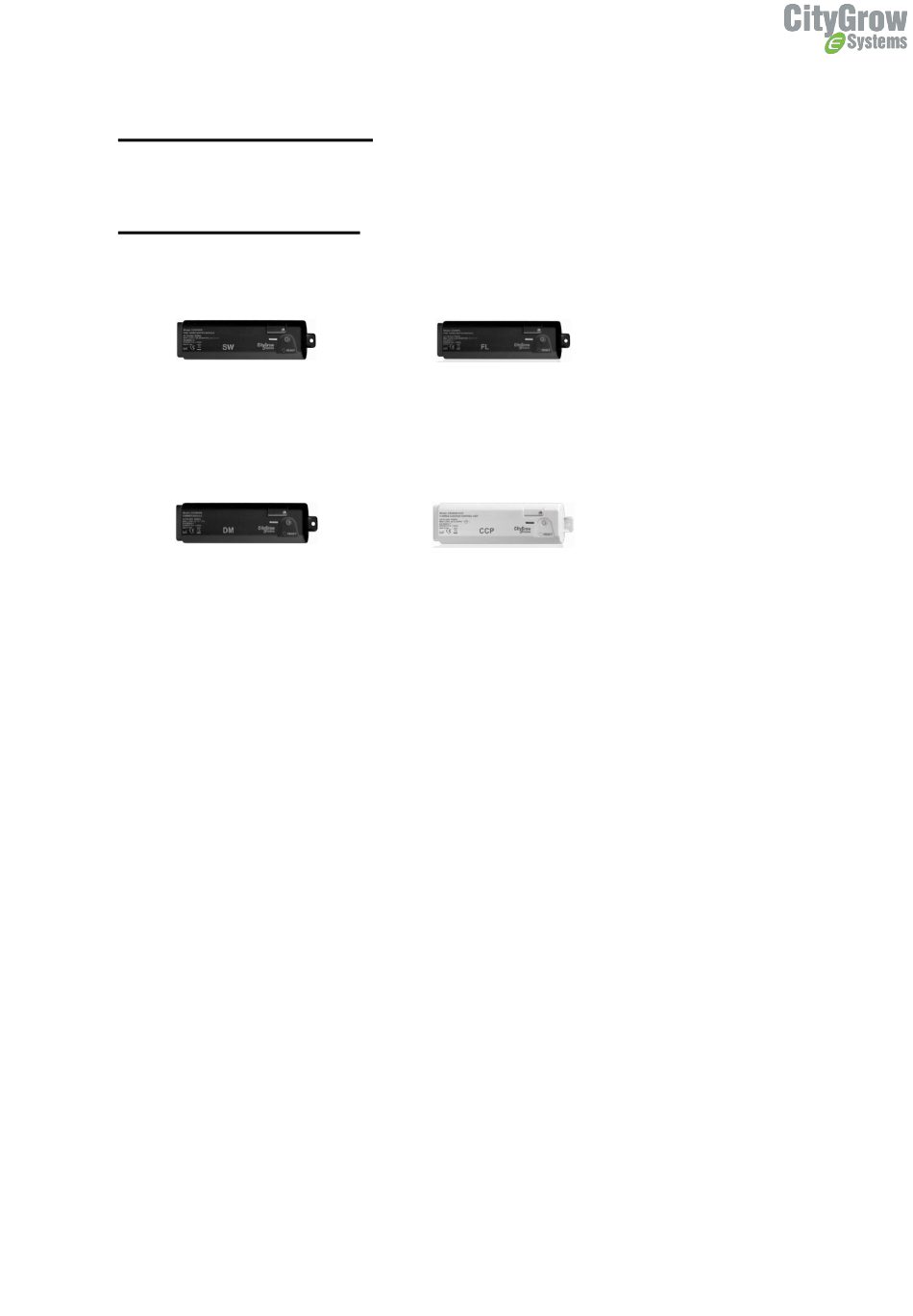

CityGrow Systems CG400 Series User Manual

Zigbee wireless module

Advertisement

CG400 S
ERIES
ZIGBEE WIRELESS MODULE
U
M
SER
ANUAL
CG400SW
CG400FL
One-Gang Switch Module
0-10V Dimming Module
CG400DM
CG400S2-CCP
One-Gang Dimmer Module
One-Gang Curtain Control Switch
Module
V
1.5
ERSION
11 M
, 2020
ARCH
Disclaimers and Copyright
Nothing contained in this publication is to be construed as granting any right, by implication or otherwise, for the manufacture,
sale, or use in connection with any method, apparatus, or product covered by letters patent, or as insuring anyone against liability
for infringement of letters patent.
Efforts have been made to ensure the accuracy and reliability of the data contained in this publication; however, CityGrow Energy
Systems Limited makes no representation, warranty, or guarantee in connection with this publication and hereby expressly
disclaims any liability or responsibility for loss or damage resulting from its use or from the use of any product or methodology
described herein; for any violation of any federal, state, or municipal regulation with which this publication may conflict; or for
the infringement of any patent from the use of this publication. Nothing contained in this publication should be viewed as an
endorsement by CityGrow Energy Systems Limited of any particular manufacturer's products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for CityGrow Systems CG400 Series

  • Page 1 CG400 S ERIES ZIGBEE WIRELESS MODULE ANUAL CG400SW CG400FL One-Gang Switch Module 0-10V Dimming Module CG400DM CG400S2-CCP One-Gang Dimmer Module One-Gang Curtain Control Switch Module ERSION 11 M , 2020 ARCH Disclaimers and Copyright Nothing contained in this publication is to be construed as granting any right, by implication or otherwise, for the manufacture, sale, or use in connection with any method, apparatus, or product covered by letters patent, or as insuring anyone against liability for infringement of letters patent.
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3: Table Of Contents

    Table of content Introduction ....................1 Understanding the product ................2 2.1. CG400SW ..................2 2.2. CG400DM ..................4 2.3. CG400FL.................... 6 2.4. CG400S2-CCP ..................8 Dimensions ....................10 3.1. CG400SW ..................10 3.2. CG400DM ..................10 3.3. CG400FL..................11 3.4.
  • Page 4: Introduction

    LED lighting fixtures. A powerful unique feature - default ON / OFF / Last Status after power-up options of the CG400 Series products, makes the modules are applicable to most different situations and fulfill various operation requirements.
  • Page 5: Understanding The Product

    2. Understanding the product 2.1. CG400SW Model: CG400SW ONE GANG SWITCH MODULE AC120-240V, 50Hz/60Hz MAX. LOAD: 6.3A (RESISTIVE) EN 60669-2-1 IEEE802.15.4, 2.4GHz MA DE IN CHI NA RoH S RESET LABEL Description Mounting hole AC input wire clip Output wire clip AC input / output wire cover AC input / output wire cover Output wire terminal (Open the AC input / output wire cover)
  • Page 6 INPUT OUTPUT Open the AC input / output wire cover LABEL Description Output Live terminal Output Neutral terminal Input Live terminal Input Neutral terminal...
  • Page 7: Cg400Dm

    2.2. CG400DM Model: CG400DM DIMMER MODULE AC120-240V, 50Hz/60Hz MAX. LOAD: 400VA EN 60669-2-1 IEEE802.15.4, 2.4GHz MA DE IN CHI NA RoH S RESET LABEL Description Mounting hole AC input wire clip Output wire clip AC input / output wire cover AC input / output wire cover Output wire terminal (Open the AC input / output wire cover) AC input wire terminal (Open the AC input / output wire cover)
  • Page 8 INPUT OUTPUT Open the AC input / output wire cover LABEL Description Output Live terminal Output Neutral terminal Input Live terminal Input Neutral terminal...
  • Page 9: Cg400Fl

    2.3. CG400FL Model: CG400FL ONE GANG SWITCH MODULE AC120-240V, 50Hz/60Hz MAX. LOAD: 6.3A (RESISTIVE) EN 60669-2-1 IEEE802.15.4, 2.4GHz MA DE IN CHI NA RoH S RESET - 0-10VDC + 25mA OUTPUT LABEL Description Mounting hole AC input wire clip Output wire clip AC input / output wire cover AC input / output wire cover Output wire terminal (Open the AC input / output wire cover)
  • Page 10 INPUT OUTPUT Open the AC input / output wire cover LABEL Description Output Live terminal Output Neutral terminal Input Live terminal Input Neutral terminal...
  • Page 11: Cg400S2-Ccp

    2.4. CG400S2-CCP Model: CG400S2-CCP 3 WIRES CURTAIN CONTROL UNIT AC120-240V, 50Hz/60Hz MAX. LOAD: 2A X 2 EN 60669-2-1 IEEE802.15.4, 2.4GHz MA DE IN CHI NA RoH S RESET LABEL Description Mounting hole AC input wire clip Output wire clip AC input / output wire cover AC input / output wire cover Output wire terminal (Open the AC input / output wire cover) AC input wire terminal (Open the AC input / output wire cover)
  • Page 12 INPUT OUTPUT L1 L2 LABEL Description Output curtain open control terminal Output curtain close control terminal Input Live terminal Input Neutral terminal...
  • Page 13: Dimensions

    3. Dimensions 3.1. CG400SW Model: CG400SW ONE GANG SWITCH MODULE AC120-240V, 50Hz/60Hz MAX. LOAD: 6.3A (RESISTIVE) EN 60669-2-1 IEEE802.15.4, 2.4GHz MA DE IN CHI NA RoH S RESET 36mm 36mm 115mm 121mm 140mm 3.2. CG400DM Model: CG400DM DIMMER MODULE AC120-240V, 50Hz/60Hz MAX.
  • Page 14: Cg400Fl

    3.3. CG400FL Model: CG400FL ONE GANG SWITCH MODULE AC120-240V, 50Hz/60Hz MAX. LOAD: 6.3A (RESISTIVE) EN 60669-2-1 IEEE802.15.4, 2.4GHz MA DE IN CHI NA RoH S RESET - 0-10VDC + 25mA OUTPUT 36mm 36mm 115mm 121mm 140mm 3.4. CG400FL Model: CG400S2-CCP 3 WIRES CURTAIN CONTROL UNIT AC120-240V, 50Hz/60Hz MAX.
  • Page 15: Wiring

    4. Wiring Before getting started WARNING! It must be installed by a qualified electrician in accordance with all applicable regulations and building codes. Improper wiring can result in personal injury or damage to control units or other equipment. Always turn off circuit breaker or remove main fuse from power line before doing any work.
  • Page 16: Cg400Sw / Cg400Dm

    4.1. CG400SW / CG400DM Neutral Neutral Load Live Load Distribution Panel...
  • Page 17: Cg400Fl

    4.2. CG400FL Neutral Neutral Live Load DC - DC + Driver Distribution Panel Load...
  • Page 18: Cg400S2-Ccp

    4.3. CG400S2-CCP Neutral Neutral Load Live Distribution Panel...
  • Page 19: Installation

    5. Installation Please follow the instructions to install the product. STEP 1: IMPORTANT! Turn off main power at the main switch board. STEP 2: Loosen the wire cover screw and remove the wire cover. Wire cover Wire cover screw STEP 3: Remove the light fixture from the ceiling and cut the original wiring going to the light, approximately 10 to 15 cm from the light fixture.
  • Page 20 STEP 4: Connect the main power cable to the Live and Neutral terminals. Connect the load cable to the Load terminals at the back cabinet of the product. INPUT OUTPUT *** For CG400FL, connect 1-10V DC dimming voltage output to the corresponding input of the lamp/ lamp driver.
  • Page 21 Step 5: Fasten the screws of all wire connectors and secure the in and out wires properly. Place the wire cover back to the module. Step 6: Turn the main power on at the main switch board again. The module is now powered up and the orange LED will blink. Pressing the test button to test the module.
  • Page 22: Programming The Travelling Time Of The Motorized Curtain

    6. Programming the travelling time of the motorized curtain The default travelling time of the CG400S2-CCP is 20 seconds. User may use the TEST button to re-program the travelling time. Please refer to the following instructions. Follow the below procedures to program travel time of CG400S2CCP: 1.
  • Page 23: Application Notes

    7. Application notes CG400 Series is specially designed for to be used with CityGrow’s home automation system. 1. CG100H4-MD is a wall mounted control plate which can transmit signal to CG400 Series modules to drive the loading of ON/OFF/DIMMING of the lighting.
  • Page 24: Adding The Product To Your Home Wireless Zigbee Network

    Adding the product to your Home Wireless ZigBee Network STEP 1 Open the front cover, you will see an USB socket. STEP 2 Plug the CG101UTU cable into the USB socket of the product, and then plug the other end of the CG101UTU cable into the mini USB end of the CG101UTC cable.
  • Page 25: Specification

    9. Specification CG400SW CG400DM CG400FL CG400S2-CCP Description One-Gang Switch One-Gang Dimmer Two-Gang Dimmer One-Gang Curtain Module Module Module Control Switch Module Operating voltage AV 220-240V, 50Hz Function 1. Built-in relay to 1. One-gang Leading- 1. DC 1-10V output to 1. To control control lighting edge dimmer.
  • Page 26 Specifications - Loads CG400SW CG400DM CG400FL CG400S2-CCP Description One-Gang Switch One-Gang Dimmer Two-Gang Dimmer One-Gang Curtain Module Module Module Control Switch Module Resistive load (Per Gang) 1. Incandescent 2. Halogen 1000W 400W 3. Electronic low voltage – ELV transformer Inductive load (Per Gang) 1.
