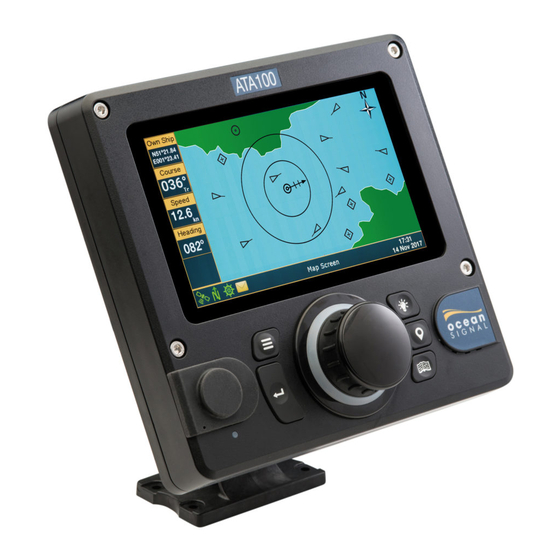

Ocean Signal ATA100 Manual

Class a ais transceiver, inland waterways supplement
Hide thumbs Also See for ATA100:
Table of Contents

Advertisement

Quick Links

Download this manual
Inland Waterways
Supplement
ATA100
Class A AIS
Transceiver
English
www.oceansignal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATA100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ocean Signal ATA100

Summary of Contents for Ocean Signal ATA100

  • Page 1 Inland Waterways Supplement ATA100 Class A AIS Transceiver English www.oceansignal.com...
  • Page 2 The technical data, information and illustrations contained in this manual were believed to be correct at the time of print. Ocean Signal Ltd reserve the right to change specifi cations and other information contained in this manual as part of our continual improvement process.

  • Page 3: Table Of Contents

    ATA100 INLAND WATERWAYS GENERAL INTRODUCTION Operating Modes Selecting Inland Waterways Mode Blue Sign switch VESSEL DATA Inland Static Data Inland Voyage Data INLAND WATERWAYS MESSAGES Incoming Messages Send Message Message Boxes 21/04/2020 912S-03334-01.05...

  • Page 4: General Introduction

    ATA100 INLAND WATERWAYS GENERAL INTRODUCTION Operating Modes The ATA100 AIS Transceiver can be operated either in SOLAS or Inland Waterways mode. The default operating mode is SOLAS and the Inland Waterways mode must be selected via the menu system. Selecting Inland Waterways Mode 1.2.1...

  • Page 5: Blue Sign Switch

    1.3.1 Installing the Blue Sign Switch See the ATA100 Installation Manual Section 2.3.6 (page 15) for wiring details. A latching switch must be connected to the Blue Sign terminals in the rear of the ATA100. 1.3.2 Activating a Blue Sign switch For the Blue Sign switch to operate it must be activated in the system’s Advanced Settings.

  • Page 6: Vessel Data

    ATA100 INLAND WATERWAYS VESSEL DATA Different static and voyage data is required for operating in Inland Waterways. Once Inland Waterways mode is selected the data can be entered directly. Inland Static Data Settings Inland Static <password> ENI Number Unique European Vessel Identifi cation Number Beam of Ship BS (X.Xm)

  • Page 7: Inland Voyage Data

    ATA100 INLAND WATERWAYS Inland Voyage Data Settings Inland Voyage Inland Ship Type (ERI) Electronic Reporting International Blue cones 0, 1, 2, 3, B-Flag Number of Assisting 0, 1, 2, 3, 4, 5, 6, Tugboats Unknown Loaded Status Loaded, Unloaded Max Draught (X.XXm)

  • Page 8: Inland Waterways Messages

    ATA100 INLAND WATERWAYS INLAND WATERWAYS MESSAGES Incoming Messages On receipt of an Inland Waterways Message a pop-up will appear Pressing Read Now will open the message for reading. Pressing Read Later will remove the pop-up leaving the message icon in the bottom panel.

  • Page 9: Send Message

    ATA100 INLAND WATERWAYS Additional Menu items are added to the system for Inland Waterways operation. Send Message - Messages Inland Waterways Send Message... 21/04/2020 912S-03334-01.05...
  • Page 10 ATA100 INLAND WATERWAYS Message RFM21 - ETA* The type of message you wish to send RFM55 - POB IFM16 - POB* Type Broadcast Whether you wish to send a message to Addressed a specifi c recipient or to everybody within...
  • Page 11 ATA100 INLAND WATERWAYS displays the keyboard pop-up to enter the required message content. Information required for the different messages is: RFM21 - ETA UN Country UN Location Fairway Number Terminal Code Fairway Hectometre ETA at Lock/Termina/Bridge Number of Assisting Tugboats...

  • Page 12: Message Boxes

    ATA100 INLAND WATERWAYS Message Boxes 3.3.1 Addressed Inbox Messages Inland Waterways Addressed Inbox to select then to read a message. e.g. 912S-03334-01.05 21/04/2020...
  • Page 13 ATA100 INLAND WATERWAYS e.g. e.g. 21/04/2020 912S-03334-01.05...
  • Page 14 ATA100 INLAND WATERWAYS 3.3.2 Addressed Outbox Messages Inland Waterways Addressed Outbox 3.3.3 Message Setup Messages Inland Waterways Message Setup To allow for a swift response to a request for information it is possible to pre-populate information for the RFM21 - ETA and RFM55 - POB messages.
  • Page 15 ATA100 INLAND WATERWAYS Select the message and use and the pop-up keyboard to enter the required data. e.g. Select and press Save to enter the data. 21/04/2020 912S-03334-01.05...
  • Page 16 Ocean Signal Ltd. Unit 4, Ocivan Way Margate CT9 4NN United Kingdom info@oceansignal.com www.oceanginal.com...
