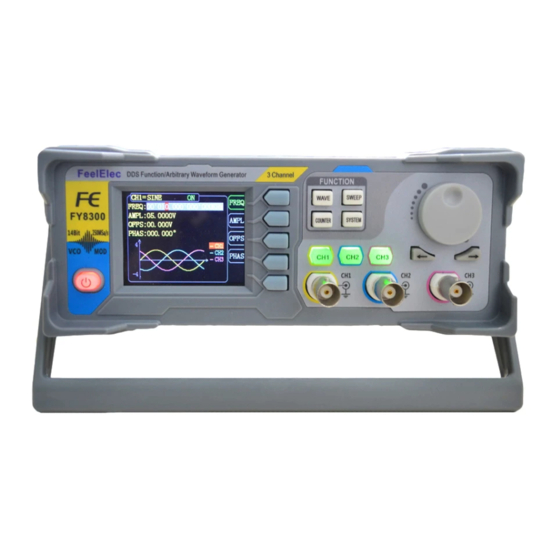

FeelElec
FY8300 Series Fully Numerical Control
Three Channel Function/Arbitrary Waveform
Generator
User's Manual
Rev1.0
May,2019

Advertisement

Table of Contents
loading

Summary of Contents for FeelElec FY8300 Series

  • Page 1 FeelElec FY8300 Series Fully Numerical Control Three Channel Function/Arbitrary Waveform Generator User’s Manual Rev1.0 May,2019...
  • Page 3: Guaranty And Declaration

    FeelElec Guaranty and Declaration Copyright © 2019 FeelElec Technology Co. Ltd. All Rights Reserved. Declaration ● FeelElec reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. ● Information in this publication replaces all previously corresponding material.
  • Page 4: Table Of Contents

    Enable Sweep Function ....................35 System Configuration and Auxiliary Functions ..........36 Save and Load ........................37 Configuration ........................38 Uplink ..........................39 Synchronization ........................ 40 Troubleshooting ......................41 Technical Specification ....................42 Appendix ........................45 FY8300 Series User’s Manual...
  • Page 5: Product Introduction

    FeelElec Product Introduction This manual applies to each model of FY8300 series Function/Arbitrary Waveform Signal Generator. The last three characters of the model indicate the up limit output of Sine Wave (MHz). For example, the “60M” of the Model Number “FY8300-60M”...
  • Page 6 ◆ 30M Frequency meter function: It can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 30MHz and Min. frequency workable is 0.01 Hz. ◆ Channel SYNC Function: Support waveform copy and state copy between channels. FY8300 Series User’s Manual...
  • Page 7 ◆ Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply. ◆ Can choose our FYA2000S series or FPA2000 series power amplifier to output 20W~100W signal in DC-10MHz width without any distortion. FY8300 Series User’s Manual...
  • Page 8: Quick Start

    FeelElec Quick Start General Inspection Please follow the items below when you receive a new FY8300 series Function/Arbitrary Waveform Generator. 1. Inspect the shipping container for damage Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has passed both electrical and mechanical tests.
  • Page 9: Front Panel Overview

    — Both DC and AC are workable. — Gate Time can be 1S, 10S or 100S. — Three channels output and measurement function FY8300 Series User’s Manual...
  • Page 10 Control CH3 output. Press it to switch to CH3 parameter setting interface. — Press it to turn on CH3 output with current configuration. The indicator will illuminate. — Press it again to turn off CH3 output and the indicator will extinguish. FY8300 Series User’s Manual...
  • Page 11 When CH2 channel activates (indicator illuminates), CH2 outputs connector signal with parameters set. CH3 connector, output impedance is 50Ω. CH3 channel When CH3 channel activates (indicator illuminates), CH3 outputs output signal with parameters set. connector FY8300 Series User’s Manual...
  • Page 12: Back Panel Overview

    ⚫ Tx: Transmit Data. 3. USB Device interface It’s for communication with PC (This is a USB-TTL serial port and driver is needed). Can programming by host computer. 4. Power switch and Power input socket(voltage range AC100V-AC240V). FY8300 Series User’s Manual...
  • Page 13 FeelElec Warning To avoid instrument damage, voltage of signal input from EXT.IN CANNOT exceed ±20Vac+dc.Voltage of signal input from Trig IN CANNOT exceed DC5V. Note To ensure the normal work, please use 100-240V AC power supply. FY8300 Series User’s Manual...
  • Page 14: Power On And Inspection

    If the generator cannot work normally, please check the Chapter “Troubleshooting” for solution. Set the System Language FY8300 series Function/Arbitrary Waveform Generator supports Chinese and English system languages. You can press SYS→CONF to switch the system language.
  • Page 15: User Interface

    ADJ Knob when waveform switch function is activated. Output status of current channel. Display On/Off status of current channel. It can be switched by Press CH1 or CH2or CH3. Manu Bar Display current operable options . FY8300 Series User’s Manual...
  • Page 16 Note: Rising edge parameters are only valid for trapezoidal waves. DESCENDING EDGE. Show the time of the current selected channel waveform drop FY8300 Series User’s Manual...
  • Page 17 When the "drop" display value is highlighted, the parameter will be changed by the direction key and knob. Note: The descent edge parameters are only valid for trapezoidal waves. FY8300 Series User’s Manual...
  • Page 18: Appearance And Dimensions

    FeelElec Appearance and Dimensions FY8300 Series User’s Manual...
  • Page 19: Front Panel Operations

    Front Panel Operations Waveform Output FY8300 series can output waveforms (Sine, Square, Triangle/Ramp, Pulse and Noise etc.) from Three channels at the same time. The default configuration of the three channels is a sinusoidal wave with a frequency of 10 kHz, an amplitude of 5 Vpp and a phase difference of 120 degrees.
  • Page 20: Select Waveform

    √ √ √ Frequency √ √ √ √ √ √ Amplitude √ √ √ √ √ √ Offset √ √ √ √ √ √ Phase Parameters √ √ Duty Cycle √ Rising edge √ Descending edge FY8300 Series User’s Manual...
  • Page 21 FeelElec Note: Arbitrary waveforms can be edited and downloaded from PC software provided by FeelElec. The relevant software and driver can be downloaded from our website: www.feelelec.com FY8300 Series User’s Manual - 19 -...
  • Page 22: Set Frequency

    ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. Under setting frequency status, press ADJ Knob to change frequency units among MHz, KHz, Hz, mHz, μHz. FY8300 Series User’s Manual...
  • Page 23: Set Amplitude

    According to the figure above, the conversion relation between Vpp and Vrms fulfills the following equation: Vpp = 2 2 Vrms For example, if the current amplitude is 5Vpp, For sine waveform, the converted value is 1.768Vrms. FY8300 Series User’s Manual...
  • Page 24: Set Offset

    ADJ Knob to set the value. The offset accuracy is 1mV. i.e. 0.001V. When frequency output is lower than 20MHz, the offset can be adjusted during -12V~+12V. When frequency output is higher than 20MHz, the offset can be adjusted during -2.5V~+2.5V. FY8300 Series User’s Manual...
  • Page 25: Set Duty Cycle (Rectangle)

    (Note: Do not set the length of the positive pulse width greater than or equal to the cycle time of the output waveform). FY8300 Series User’s Manual...
  • Page 26: Set Phase

    Then press PHAS button to highlight phase value. Then use Arrows button and ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. FY8300 Series User’s Manual...
  • Page 27: Enable Output

    CH3, then press CH3 to switch between output ON/OFF. 2) Generator is in other working status or current channel selected is not CH3, then press CH3 to make CH3 as channel selected and press CH3 again to switch between output ON/OFF. FY8300 Series User’s Manual...
  • Page 28: Example:output Sine Waveform

    Press CH1 button to turn CH1 output on. The [CH1] connector outputs the configured waveform. 8. Observe the output waveform Connect the [CH1] connector to the oscilloscope with BNC cable. The waveform is as shown below. FY8300 Series User’s Manual...
  • Page 29 FeelElec FY8300 Series User’s Manual...
  • Page 30: Frequency Meter/Counter

    ZERO button to reset. Key Point: FY8300 Series Generator Frequency Meter Input Signal High Level is greater than 2V,Maximum safe voltage inputted from Input and Trig IN is 5V. The Uplink function need to be turned off when using Counter/Meter.
  • Page 31: Set The Counter

    Set the Counter Gate Time Press GATE button to select gate time. The default is “1S”. It’s better to use “10S” or “100S” as gate time for low frequency signal. Gate Time Frequency Resolution 0.1Hz 100S 0.01Hz FY8300 Series User’s Manual...
  • Page 32: Sweep

    ⚫ In Offset Sweep Mode, the generator will output signal variably from start offset to end offset within the specified sweep time. ⚫ In Duty Cycle Sweep Mode, the generator will output signal variably from start duty cycle to end duty cycle within the specified sweep time. FY8300 Series User’s Manual...
  • Page 33: Sweep Start Position

    Arrow buttons and rotate the ADJ Knob to set the specified value. For example: START:00.00V ⚫ Duty Cycle Sweep: Press STAR button to highlight start duty cycle parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. For example: START:50.0% FY8300 Series User’s Manual...
  • Page 34: Sweep End Position

    Arrow buttons and rotate the ADJ Knob to set the specified value. For example: END:10.00V ⚫ Duty Cycle Sweep: Press END button to highlight end duty cycle parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. For example: END:80.0% FY8300 Series User’s Manual...
  • Page 35: Sweep Time

    TIME and external sweep (VCO Sweep). Press the Arrow buttons and rotate the ADJ Knob to set the specified value of weep time. The default is “10S”. The work range is 10mS~999.99S. For Example: SOUR: TIME 999.99S FY8300 Series User’s Manual...
  • Page 36 P and T could be current expressed as shown below by the above-mentioned parameters: lg(F P=10 stop sweep T=t+lg(F )/lg(P) start Wherein, t is the time from the start of the sweep and its range is from 0 to sweep. FY8300 Series User’s Manual...
  • Page 37: Enable Sweep Function

    100mHz to 25MHz~60MHZ (Varies according to different model) Square: 100mHz to 25MHz Ramp: 100mHz to 10MHz Arbitrary:100mHz to 10MHz The generator will restart sweep (according to the current new configuration) from the specified “start frequency” after start or end frequency is changed. FY8300 Series User’s Manual...
  • Page 38: System Configuration And Auxiliary Functions

    The default CH3 channel is on to turn on the output state, can press the [ F3 ] button to set the default output status of the CH3 channel. FACTORY DEFAULTS:OFF According to user's requirement, factory settings can be restored by pressing F3 key and OK key. FY8300 Series User’s Manual...
  • Page 39: Save And Load

    ⚫ In the waveform parameter setting interface, press OK button for 1 second. The system saves the current waveform parameter in the storage location 01. The next time the system starts, the system loads automatically. FY8300 Series User’s Manual...
  • Page 40: Configuration

    ⚫ Press M/S button to set uplink mode: Master/Slave. Master is the default. ⚫ Press UPLI button to turn on/off uplink function. Off is the default. FY8300 Series User’s Manual...
  • Page 41: Uplink

    When the setting above has been finished, all machines in network will work synchronously according to the start phase of master machine. When outputting signal with same frequency, multi channels output can be executed with phase adjustable. FY8300 Series User’s Manual...
  • Page 42: Synchronization

    When FALL is highlighted, the Decline edge time of CH2,CH3 will vary according to variation of CH1. points: The synchronization function of FY8300 series generators will be automatically saved after each setup, and the system will still be valid after restart. When the user can not correctly change the system parameters, please confirm whether the step function has been opened.
  • Page 43: Troubleshooting

    4) Check whether the indicators of CH1, CH2 or CH3 is turned on. If not press corresponding button to turn it on. 5) If the problem is still, please contact FeelElec. FY8300 Series User’s Manual...
  • Page 44: Technical Specification

    64 sets customer-defined waveform. Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64 Non-Volatile Storage Waveform Length 8192 points * 14bits Sampling Rate 250MSa/s Vertical Resolution 14 bits Harmonic ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz); Suppression Sine Total Harmonic <0.5% (20Hz~20kHz,0dBm) Distortion FY8300 Series User’s Manual...
  • Page 45 CMOS Output Low Electric Level <0.3V High Electric Level 1V~12V ≤18ns Rise/Fall Time External Measurement Function Frequency, Period, Positive/Negative Pulse Width, Duty Cycle Input Voltage Range 1Vpp~20Vpp Resolution 0.01Hz (Gate Time = 100S) Frequency Meter Range 0.01Hz~100MHz FY8300 Series User’s Manual...
  • Page 46 Temp.: 0~40℃, Humidity: ﹤80% Environment Size 200mm * 190mm * 90mm (L * W * H) Weight 700g Package Size 25cm * 21cm * 10cm (L * W * H) Package Weight 1.1kg(Main engine, accessories and packing materials) FY8300 Series User’s Manual...
  • Page 47: Appendix

    (including all the costs, expenses, attorney fees etc.) that may result in. Appendix C:Accessories and Options Description Quantity Model FY8300 Series DDS Signal Generator Power Cable USB Data Cable Standard BNC-Clip Cable Accessories BNC-BNC Cable...
