PB-MIXER-TR-MECH

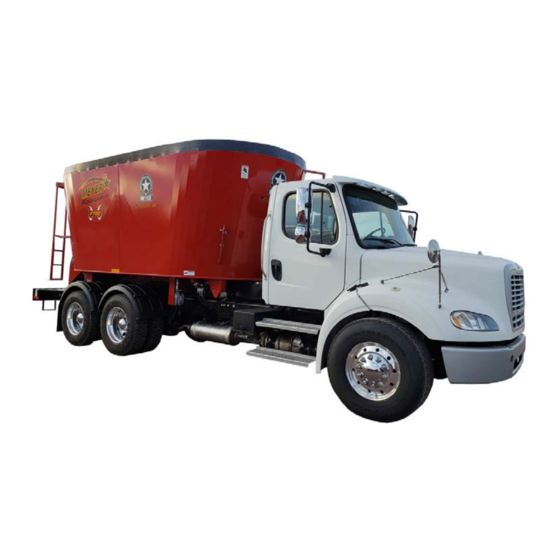

FORMULA MIXER
Models F585 • F700
Mechanical Truck Mount
Owner / Operator's Manual
& Parts Book
2018 Model Year & Later
1 / 2020
6990633 (1-13)
Printed in U.S.A.
© Bobcat Company 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Formula and is the answer not in the manual?

Questions and answers

Summary of Contents for Meyer Formula

  • Page 1 PB-MIXER-TR-MECH FORMULA MIXER Models F585 • F700 Mechanical Truck Mount Owner / Operator’s Manual & Parts Book 2018 Model Year & Later 1 / 2020 6990633 (1-13) Printed in U.S.A. © Bobcat Company 2013...
  • Page 2: Important Information

    Always use your serial number when requesting information or when ordering parts. HOW TO READ YOUR SERIAL NUMBER MIXER EXAMPLE: 18VM0700201 Model Year / Vertical Mixer / Model / Sequence Of Build 0700 Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone: 1-800-325-9103 Fax: 715-654-5513 Email: sales@meyermfg.com Website: www.meyermfg.com...
  • Page 3: Pre-Delivery & Delivery Check List

    Owner’s Registration Form. PRE-DELIVERY CHECK LIST DELIVERY CHECK LIST After the New Meyer Mixer has been completely set-up, The following check list is an important reminder of check to be certain it is in correct running order before valuable information that MUST be passed on to the delivering it to the customer.
  • Page 4 Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone: 1-800-325-9103 Fax: 715-654-5513 Email: sales@meyermfg.com Website: www.meyermfg.com Meyer Manufacturing Corporation - 4 - Formula Mixer Check List...
  • Page 5: Introduction

    Meyer products the finest in the farm equipment industry today. There is no substitute for quality. That is why thousands of people like you have purchased Meyer farm equipment. They felt it was the best equipment to serve their farming needs, now and in years to come. We ask that you follow our policy of “safety first”, and we strongly suggest that you read through the Operator’s...
  • Page 6 2-Speed (Electric Shift) Straight Drive Heavy -Duty Gearboxes OPTIONS DESCRIPTION F585 F700 Side Discharge Door Right/Left Rear Discharge Door Slide Tray Magnets Hay-Retention Ring Capacity Belt Extension Hardened Knives (Additional) Tank Liner Baffle Liner Meyer Manufacturing Corporation - 6 - PB-MIXER-TR-MECH...
  • Page 7: Table Of Contents

    TABLE OF CONTENTS 1.0 IMPORTANT INFORMATION ........... 2 2.0 PRE-DELIVERY &...
  • Page 8 DOOR ..............58 OPTIONAL REAR OR REAR SIDE DOOR HYDRAULIC SCHEMATIC ....60 Meyer Manufacturing Corporation - 8 -...
  • Page 9 DOOR HYDRAULIC SCHEMATIC LEFT DOOR ............. . . 61 AUGER .
  • Page 10 Meyer Manufacturing Corporation - 10 - PB-MIXER-TR-MECH...
  • Page 11: Manufacturer's Warranty

    Except as stated above, Meyer Mfg. Corp. shall not be liable for injuries or damages of any kind or nature, direct, consequential, or contingent, to persons or property. This warranty does not extend to loss of crop or for any other reasons.
  • Page 12 Meyer Manufacturing Corporation - 12 - PB-MIXER-TR-MECH...
  • Page 13: Safety

    5.0 SAFETY Meyer Mfg. Corp. equipment is manufactured with operator safety in mind. Located on the equipment are various safety signs to aid in operation and warn of hazardous areas. Pay close attention to all safety signs on the equipment.
  • Page 14: Safety Precautions

    Keep truck in a lower gear at all times when traveling down steep grades. • Stay away from overhead power lines. Electrocution can occur without direct contact. • Use only properly rated undercarriage and tires. Meyer Manufacturing Corporation - 14 - PB-MIXER-TR-MECH...
  • Page 15 Safety Precautions For Truck Mounted Units: • Comply with state and local laws governing highway safety and movement of machinery on roadways. Safety Precautions For Hydraulic System: • Check hydraulic tubes, hoses and fittings for damage and leakage. Never use hands to check for leaks. Hydraulic tubes and hoses must be properly routed and have adequate support and secure clamps.
  • Page 16: Safety Signs

    Do Not remove any safety signs. Safety signs are for operator protection and information. FRONT OF MIXER PART NO. 46-0001-211 Meyer Manufacturing Corporation - 16 - PB-MIXER-TR-MECH...
  • Page 17 FRONT OF MIXER PART NO. 46-0001-213 PART NO. 46-8500-7 PART NO. 46-0001-35 PART NO. 46-0001-22 1-800-325-9103 PB-MIXER-TR-MECH - 17 - www.meyermfg.com...
  • Page 18 REAR OF MIXER PART NO. 46-0001-210 WARNING OIL INJECTION HAZARD RELIEVE PRESSURE BEFORE SERVICING. DO NOT CHECK WITH HANDS. IF INJURED SEEK EMERGENCY MEDICAL ATTENTION. 46-8500-7 PART NO. 46-8500-7 PART NO. 46-0001-213 PART NO. 46-0001-208 Meyer Manufacturing Corporation - 18 - PB-MIXER-TR-MECH...
  • Page 19 UNDER MIXER PART NO. 46-0001-211 (Located under mixing tub) PART NO. 46-0001-212 (Located under mixer belting) 1-800-325-9103 PB-MIXER-TR-MECH - 19 - www.meyermfg.com...
  • Page 20: Shutoff & Lockout Power

    It is important that everyone who works on this equipment is properly trained to help ensure that they are familiar with this procedure and that they follow the steps outlined above. THIS MANUAL WILL REMIND YOU WHEN TO SHUTOFF & LOCKOUT POWER. Meyer Manufacturing Corporation - 20 - PB-MIXER-TR-MECH...
  • Page 21: Pre-Operation

    6.0 PRE-OPERATION DO NOT allow anyone to operate, service, inspect or otherwise handle this equipment until all operators have read and understand all of the instructional materials in this Operator’s And Parts Manual and have been properly trained in its intended usage. Verify that the equipment is securely fastened to the truck.
  • Page 22: Truck Mount Specifications

    Check to see that the discharge door is closed. Verify the two speed gearbox is engaged in low gear. Slowly engage the PTO at idle speed. Bring engine RPM up to 3/4 to full RPM. Meyer Manufacturing Corporation - 22 - PB-MIXER-TR-MECH...
  • Page 23: Shut-Down

    6.4.2 Shut-Down Disengage the PTO. Fully lower all doors. Raise slide trays or conveyors, if equipped. Park the mixer on a flat, level surface. Engage the parking brake, stop the engine and exit the truck. Check drive components to be sure components are not abnormally hot. 6.5 OPERATIONAL CHECKS Shutoff and lockout power before performing machine service, adjusting, maintaining, or clearing an obstruction from this machine.
  • Page 24: Controls

    NOTE: The mixer PTO MUST be stopped before shifting the 2-speed gearbox to prevent damage to the gearbox. 5($5 '225 )5217 +,*+ '225 '2 127 67$57 ,1 +,*+ &+87( &219(<25 212)) -2<67,&. %87721 0 Meyer Manufacturing Corporation - 24 - PB-MIXER-TR-MECH...
  • Page 25: Transporting

    NOTE: For Truck Mounted models, an Optional Highway Lighting Package is available to assist in meeting these requirements. See your Meyer Dealer for Details. 6.6.1 Brake Information Check that the braking and lighting systems are in good condition. Be sure that the truck has adequate brakes to stop the mixer.
  • Page 26: Optional Equipment

    NOTE: Some scale drift may occur after the scale is turned on but should level out within 10 to 15 minutes. Temperature changes may also cause some drifting. See your Digi-Star manual for additional scale information. Meyer Manufacturing Corporation - 26 - PB-MIXER-TR-MECH...
  • Page 27: Operation

    7.0 OPERATION DO NOT allow anyone to operate, service, inspect or otherwise handle this mixer until all operators have read and understand all of the instructional materials in this Operator’s And Parts Manual and have been properly trained in its intended usage. Before operating the mixer, look in all directions and make sure no bystanders, especially small children are in the work area.
  • Page 28: Cutout Clutch

    NOTE: Always remove any twine, net, or plastic wrap from bales before loading into mixer. NOTE: It is highly recommended that after loading the mixer, the process continues until the material is fully unloaded. Meyer Manufacturing Corporation - 28 - PB-MIXER-TR-MECH...
  • Page 29: Loading

    NOTE: Overloading can have detrimental effects on the integrity of the implement and it’s safe use. Overloading will void warranty and increase risk to the operator's safety. Always be aware of your gross weight. MAXIMUM FORMULA MIXER GROSS WEIGHT MATERIAL ESTIMATED WEIGHT...
  • Page 30: Loading Steps

    RATED PTO SPEED. If the mixer is operated faster than the rated PTO speed the strain on the drive train and mixer is greatly increased. Do not force hay into the auger with loader or any other device. Meyer Manufacturing Corporation - 30 - PB-MIXER-TR-MECH...
  • Page 31: Unloading

    7.4 UNLOADING Shutoff and lockout power before performing machine service, adjusting, maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. DO NOT ENTER MIXER CHAMBER WHILE MIXER IS RUNNING! Shutoff and lockout power before performing machine service, adjusting, maintaining, or clearing an obstruction from this machine.
  • Page 32: Mixer Troubleshooting Guide

    The load size may need to be reduced until the unit is polished inside. • The auger scraper may need to be adjusted. (See Section 8.2.1) Digital Scale Indicator • Refer to scale manufacturer’s operator manual for operation and maintenance. • See Section 6.7.1 Meyer Manufacturing Corporation - 32 - PB-MIXER-TR-MECH...
  • Page 33: Maintenance

    8.0 MAINTENANCE 8.1 LUBRICATION Shutoff and lockout power before performing machine service, adjusting, maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. Fluid such as hydraulic fluid, grease, etc. must be disposed of in an environmentally safe manner.
  • Page 34: Monthly

    Grease all driveline bearings (Item 1). 8.1.3 Every 40 hours: Oil Door Pivots (Item 2). Rear Discharge Door 8.1.4 50 hours: First oil change in the planetaries, 2-speed gearbox and front gearboxes. (See pages 37 & 38). Meyer Manufacturing Corporation - 34 - PB-MIXER-TR-MECH...
  • Page 35: Annually Or Every 500 Hours (Whichever Is First)

    Grease all PTO driveline zerks. All Automotive Drivelines 118-VM-0014-55 Grease all universal joints (Item 3) and the slide (Item 4). Double Universal Joint 8.1.5 Annually or Every 500 hours (Whichever Is First): Change oil in the 2-speed gearbox. (See page 38) Check condition of the external seals and make sure there are no leaks on planetaries.
  • Page 36: Annually Or Every 2000 Hours (Whichever Is First)

    8.1.6 Annually or Every 2000 hours (Whichever Is First): Change oil in the planetaries. (See page 37). 8.1.7 Every 5000 hours Replace all planetary bearings. Change external planetary O-rings. Check the extent of wear on all planetary gears. Meyer Manufacturing Corporation - 36 - PB-MIXER-TR-MECH...
  • Page 37: Gearbox Oil Change

    8.1.8 Gearbox Oil Change Shutoff and lockout power before performing machine service, adjusting, maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. Fluid such as hydraulic fluid, grease, etc. must be disposed of in an environmentally safe manner.
  • Page 38: 2-Speed Gearbox

    Disconnect drive shafts. Left PTO Drive: U-joint will slide off gearbox shaft while removing lower gearbox. Right PTO Drive: Remove chain coupler between both gearboxes. Unbolt bottom gearbox and remove. Unbolt upper gearbox support. Meyer Manufacturing Corporation - 38 - PB-MIXER-TR-MECH...
  • Page 39: Adjustments

    8.2 ADJUSTMENTS Shutoff and lockout power before performing machine service, adjusting, maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. If work must be done inside the mixer put a protective cover over the auger knives to avoid injury.
  • Page 40: Knives

    When knives become worn and rounded on the leading edge their efficiency is greatly reduced. This results in longer processing times and increased horsepower requirements. Refer to your parts manual and contact your Meyer MFG dealer for replacement part ordering.
  • Page 41: Hay Stop Adjustment

    8.2.5 Hay Stop Adjustment Do not adjust the hay stops while the mixer is running. Moving feed inside the mixer can make the hay stop move suddenly causing injury to the person making the adjustment. Never operate the mixer without the hay stop lock bolt installed. 8.2.5.1 Hay Stop Lock Bolt The hay stop lock bolt (Item 1) prevents the hay stop from rotating past the intended range of operation.
  • Page 42: Storing The Mixer

    LOCKOUT / TAGOUT the machine / mixer. (See 5.3 SHUTOFF & LOCKOUT POWER on page 20.) Extended Storage Sometimes it may be necessary to store your Meyer mixer for an extended period of time. Below is a list of items to perform before storage.
  • Page 43: Replacement Parts

    8.5 REPLACEMENT PARTS Before servicing this equipment, ensure that all personnel, including family members are familiar with the equipment and the safety hazards that are present, along with the safety practices that should be observed while working in this equipment. Inspect the truck chassis, all safety shielding, safety signs and safety lighting regularly.
  • Page 44 Meyer Manufacturing Corporation - 44 - PB-MIXER-TR-MECH...
  • Page 45: Parts

    9.0 PARTS ELECTRICAL TAIL LIGHTS KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 56-0082 6" Oval Grommet 585/700 56-0115 6" Oval Red LED Light 585/700 56-0130-2 Right/Left Light Pigtail Lead 585/700 56-0130-1 Y-Harness Less Light Plug Leads 585/700 56-0037 16GA 4-Wire Trailer Cable (By The Foot) 585/700 156-C-6FL-TO-1 6 Contact Connector...
  • Page 46: Scale System

    SCALE SYSTEM PBMTR-007 Meyer Manufacturing Corporation - 46 - PB-MIXER-TR-MECH...
  • Page 47 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 58-0002-407120 EZ2500V Scale Indicator Monitor With Serial Port 585/700 58-0002-281023 EZ2810 Scale Indicator Monitor 585/700 M9-1-5-0005 Front Mixer Mount 585/700 M9-1-12-0002 Truck Frame Mount 585/700 58-0020 6 Point Mobil J-Box 585/700 58-0008 6 Point Mobil J-Box With Monitor Cable 585/700 M9-1-8-0001 DB Bar Mount...
  • Page 48: 2-Speed Electrical System Prior To Sn 18Vm(0585235, 0700212)

    2-SPEED ELECTRICAL SYSTEM PRIOR TO SN 18VM(0585235, 0700212) , & < 7 & < & & & & & & & & & & < & & Enclosure Wiring Layout FM-165-B1 Meyer Manufacturing Corporation - 48 - PB-MIXER-TR-MECH...
  • Page 49 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 56-0400-3 Joystick Power & Rear Door Harness Assembly 585/700 156-M-0001 Mounting Panel Plug 585/700 56-0400-2 12V Power Cord Assembly 585/700 156-M-0006 Rocker Switch 585/700 56-0406 12V Hydraulic Pump Black Battery Cable Assembly 585/700 56-0400-1 2-Speed &...
  • Page 50: 2-Speed Electrical System Sn 18Vm(0585235, 0700212) & Later

    2-SPEED ELECTRICAL SYSTEM SN 18VM(0585235, 0700212) & LATER & & & & < & & & & & & Enclosure Wiring Layout FM-165-B2 Meyer Manufacturing Corporation - 50 - PB-MIXER-TR-MECH...
  • Page 51 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 56-0400-3 Joystick Power & Rear Door Harness Assembly 585/700 156-M-0001 Mounting Panel Plug 585/700 56-0400-2 12V Power Cord Assembly 585/700 156-M-0006 Rocker Switch 585/700 56-0406 12V Hydraulic Pump Black Battery Cable Assembly 585/700 56-0400-1 2-Speed &...
  • Page 52: Hydraulic Power Pack

    Plastic Reservoir Tank 585/700 155-M-0007-4 Hose Clamp 585/700 155-M-0007-2 12V DC Motor 585/700 155-M-0007-6 12V DC Solenoid Switch 585/700 155-M-0007-7 Motor-Solenoid Connecting Strap 585/700 155-M-0007-8 Control Wire Assembly 585/700 155-M-0007-9 Breather/Filler Plug 585/700 Meyer Manufacturing Corporation - 52 - PB-MIXER-TR-MECH...
  • Page 53: Hydraulic Power Pack To Valve Bank

    HYDRAULIC POWER PACK TO VALVE BANK KEY PART NUMBER QTY DESCRIPTION MIXER MODEL See Page 52 12V DC Hydraulic Power Pack 585/700 155-6400-06-06 Straight Connector 585/700 155-04R17-19-1 1/4” x 19” Hose Assembly 585/700 155-6500-06-06 90 Degree Connector 585/700 955-0009 Hollow Hex Plug 585/700 155-M-0006 Standard Outlet Valve Bank...
  • Page 54: Mixer

    MIXER MIXER 585-700 Meyer Manufacturing Corporation - 54 - PB-MIXER-TR-MECH...
  • Page 55 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL M3-1-5-0072 Rear Door Chute Extension 585/700 M7-1-8-0002 Hay Stop 585/700 M7-1-8-0003 Hay Stop Handle 585/700 851-3816-1.75Z 3/8-16 x 1-3/4” Machine Bolt 585/700 815-3816-Z 3/8-16 Nylon Insert Lock Nut 585/700 851-2520-.75Z 1/4-20 x 3/4” Machine Bolt 585/700 810-2520-Z 1/4”...
  • Page 56: Rear Bumper

    M13-1-7-0001 Rear Bumper 585/700 M13-1-12-0005 Bumper Drop Step 585/700 M13-1-12-0006 Bumper Step 585/700 M13-1-12-0004 Rear Bumper Step Insert 585/700 M13-1-12-0003 Right Rear Bumper Mount Weldment 585/700 M13-1-12-0002 Left Rear Bumper Mount Weldment 585/700 Meyer Manufacturing Corporation - 56 - PB-MIXER-TR-MECH...
  • Page 57 1-800-325-9103 PB-MIXER-TR-MECH - 57 - www.meyermfg.com...
  • Page 58: Door

    DOOR FM-100 Meyer Manufacturing Corporation - 58 - PB-MIXER-TR-MECH...
  • Page 59 PART NUMBER QTY DESCRIPTION MIXER MODEL 155-2.5-12-1.125-1 2-1/2” x 12” x 1-1/8” Hydraulic Cylinder 585/700 M6-1-7-0004 Rear Door Weldment 585/700 M6-1-7-0007 Left Side Door Weldment 585/700 M6-1-7-0009 Right Side Door Weldment 585/700 M6-1-7-0005 Door Arm 585/700 M6-1-8-0006-2 Spring Bushing 1” ID x 1-1/4” OD x 3/4” 585/700 M6-1-8-0002 Right Door Frame Guide Assembly...
  • Page 60: Optional Rear Or Rear Side Door Hydraulic Schematic

    1/4” x 251" Hose Assembly 585/700 155-2.5-12-1.125-1 2-1/2” x 12" x 1-1/8” Hydraulic Cylinder 585/700 155-6400-6-8 Straight Adapter 585/700 155-6801-6-8 90 Degree Adapter 585/700 155-M-0001 Closed Center Section Door Cylinder Valve Bank 585/700 Meyer Manufacturing Corporation - 60 - PB-MIXER-TR-MECH...
  • Page 61: Door Hydraulic Schematic

    DOOR HYDRAULIC SCHEMATIC LEFT DOOR '225 83 '225 '2:1 ,167$// '(876&+ ,167$// '(876&+ 3/8* :,7+ :+,7( :,5( 3/8* :,7+ %52:1 :,5( )520 -2<67,&. )520 -2<67,&. +$51(66 $66(0%/< +$51(66 $66(0%/< KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-04R17-121-1 1/4’ x 121” Hose Assembly 585/700 155-04R17-102-1 1/4”...
  • Page 62: Auger

    AUGER PB-19_004 Meyer Manufacturing Corporation - 62 - PB-MIXER-TR-MECH...
  • Page 63 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL M5-1-5-0001 Auger Assembly, Complete With Knives, Backer & Hardware M5-1-7-0001 Auger Assembly, Complete With Knives, Backer & Hardware M5-1-8-0002 Auger Top Cap Weldment 585/700 851-3118-1.25SS 6 per 5/16”-18 x 1-1/4” Stainless Steel Bolts 585/700 805-0031-Z 6 per 5/16”...
  • Page 64: Driveline

    DRIVELINE FM-160-A Meyer Manufacturing Corporation - 64 - PB-MIXER-TR-MECH...
  • Page 65 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 119-2SP-1.8-2.7-3 2-Speed Shifting Gearbox 1.80:1/2.70:1 1.75-20 SPL 585/700 56-0123 12V Linear Actuator With Plug 585/700 M11-2-0001-4 2-Speed Top Cylinder Mount 585/700 M11-2-0005 2-Speed Shift Mount Weldment 585/700 See Page 76 1800 Series Planetary Gearbox 585/700 118-VM-0016-55 Double Universal Joint W/Integral Auto Clutch...
  • Page 66: Right Side Pto Gearbox Driveline Mount

    RIGHT SIDE PTO GEARBOX DRIVELINE MOUNT Meyer Manufacturing Corporation - 66 - PB-MIXER-TR-MECH...
  • Page 67 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL See Page 70 Gearbox Prior to SN 18VM0585230 Call 1-800-325-9103 Gearbox Prior to SN 18VM0700212 119-R160-1.35-1 Gearbox SN 18VM(0585230, 0700212) & Later 585/700 937-0010-1 60B18 1-3/4” Bore Coupler Sprocket 3/8” Keyway 585/700 10-0108 60B18 1-3/4-20 Spline Bore Coupler Sprocket 3/8”...
  • Page 68: Left Side Pto Gearbox Driveline Mount

    LEFT SIDE PTO GEARBOX DRIVELINE MOUNT Meyer Manufacturing Corporation - 68 - PB-MIXER-TR-MECH...
  • Page 69 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL See Page 70 Gearbox Prior to SN 18VM0585230 Call 1-800-325-9103 Gearbox Prior to SN 18VM0700212 119-R160-1.35-1 Gearbox SN 18VM(0585230, 0700212) & Later 585/700 618-0002 2400 Joint 585/700 623-0020-S-4 Connector Shaft 585/700 See Page 71 Gearbox Prior to SN 18VM0585230 Call 1-800-325-9103 Gearbox Prior to SN 18VM0700212...
  • Page 70: Lower Gearbox Prior To Sn 18Vm0585230

    Bearing Cup 19-0029-16 Bearing Cone 19-0029-9 Seal 1-3/4” 19-0029-11 Retaining Ring 1-3/4” 19-0016-11 Bolt, 3/8-16 x 2-1/4” SHCS 19-0016-5 Plug 1/2” NPT 19-0024-17 Bushing 1/2” to 1/8” NPT 19-0002-17 5 PSI Vent Plug Meyer Manufacturing Corporation - 70 - PB-MIXER-TR-MECH...
  • Page 71: Upper Gearbox Prior To Sn 18Vm0585230

    UPPER GEARBOX PRIOR TO SN 18VM0585230 Use 75W90 Synthetic Oil Only. Capacity 125 oz. KEY PART NUMBER DESCRIPTION 619-0010-SYN Gearbox 619-0010-1 Casting, Machined (Tapped Hole) 1.35:1 619-0010-2 Casting, Machined (Thru Holes) 1.35:1 619-0010-3 Pinion Shaft Gear Assembly 1.35:1 619-0010-4 Cross Shaft Gear Assembly 1.35:1 19-0029-7 Bearing Cone 1-3/4”...
  • Page 72: Lower Gearbox Sn 18Vm(0585230, 0700212) & Later

    LOWER GEARBOX SN 18VM(0585230, 0700212) & LATER 12-15 12-15 26-29 26-29 Meyer Manufacturing Corporation - 72 - PB-MIXER-TR-MECH...
  • Page 73 KEY PART NUMBER QTY DESCRIPTION 119-R160-1.35-1 Gearbox 119-B-01 Casing 119-B-02 Oil Level / Drain Plug 119-B-03 Breather Plug 119-B-04 119-B-05 119-B-06 M12-30 Bolt 119-B-07 Round Shaft 119-B-08 Spacer 119-B-09 Spacer 10 119-B-10 Bevel Gear 11 119-B-11 Taper Bearing 12 119-B-12 Shim 13 119-B-13 Shim...
  • Page 74: Upper Gearbox Sn 18Vm(0585230, 0700212) & Later

    UPPER GEARBOX SN 18VM(0585230, 0700212) & LATER 12-15 12-15 26-29 26-29 Meyer Manufacturing Corporation - 74 - PB-MIXER-TR-MECH...
  • Page 75 KEY PART NUMBER QTY DESCRIPTION 119-R160-1.35-2 Gearbox 119-B-01 Casing 119-B-02 Oil Level / Drain Plug 119-B-03 Breather Plug 119-B-04 119-B-05 119-B-06 M12-30 Bolt 119-B-07 Round Shaft 119-B-08 Spacer 119-B-09 Spacer 10 119-B-10 Bevel Gear 11 119-B-11 Taper Bearing 12 119-B-12 Shim 13 119-B-13 Shim...
  • Page 76: 1800 Series Planetary (119-18-13.92-1)

    1800 SERIES PLANETARY (119-18-13.92-1) FM-175 Meyer Manufacturing Corporation - 76 - PB-MIXER-TR-MECH...
  • Page 77 KEY PART NUMBER QTY DESCRIPTION 119-P-RR-1 Oil Seal 119-P-RR-5 O-Ring 119-P-RR-6 Oil Seal 119-P-RR-7 O-Ring 119-P-RR-13 Shaft Protection Shield 119-P-RR-14 Thickness Kit 119-P-RR-15 Cover 119-P-RR-16 Thickness Kit 119-P-RR-17 Cover 10 119-P-RR-18 Snap Ring 11 851-M5-.8-10-YZ Cap Screw 12 851-M10-1.5-25-Z Machine Bolt 1-800-325-9103 PB-MIXER-TR-MECH - 77 -...
  • Page 78: Hose Fitting Hydraulic System

    HOSE FITTING HYDRAULIC SYSTEM Planetary Gearbox FRONT REAR Use #48-0081 Synthetic ISO220 or Equivalent For Planetary Gearboxes. Meyer Manufacturing Corporation - 78 - PB-MIXER-TR-MECH...
  • Page 79 KEY PART NUMBER DESCRIPTION MIXER MODEL 55-0404 1/2” x 3/8” BRS 90° Elbow Barb 585/700 155-2231-08 108” 1/2 ID x 3/4” OD Push On Hose, Rear (2 Places) 585/700 155-2231-08 121” 1/2 ID x 3/4” OD Push On Hose 585/700 155-2231-08 130”...
  • Page 80: Optional Equipment

    Hay Retention Ring End Weldment M4-1-7-0002 Hay Retention Ring Side Weldment 585/700 NS 851-5013-1.25Z AR 1/2”-13 x 1-1/4” Bolt 585/700 NS 805-0050-Z AR 1/2” Flat Washer 585/700 NS 810-5013-Z AR 1/2” Spin Lock Nut 585/700 Meyer Manufacturing Corporation - 80 - PB-MIXER-TR-MECH...
  • Page 81: 8" Capacity Extension

    8” CAPACITY EXTENSION FM-245 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL VA-0585-CE-8 8” Capacity Extension Assembly VA-0700-CE-8 8” Capacity Extension Assembly M11-5-0001 8” Capacity Extension .453” x 8” x 45 FT M11-7-0001 8” Capacity Extension .453” x 8” x 46 FT 805-0038-Z 3/8 Flat Washer 585/700...
  • Page 82: Side Discharge Slide Tray

    SIDE DISCHARGE SLIDE TRAY FM-125A Meyer Manufacturing Corporation - 82 - PB-MIXER-TR-MECH...
  • Page 83 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL M3-1-12-0006 42” Slide Tray Weldment 585/700 M11-1-0009 18-1/2” Discharge Magnet 585/700 802T-3118-.75Z 5/16-18 x 3/4” Screw 585/700 810-3118-Z 5/16-18 Spin Lock Nut 585/700 M3-1-12-0008 Chute Pivot Rod 1” x 47-3/4” 585/700 155-2-8-1.125-1 2” x 8” x 1-1/8” Hydraulic Cylinder #8 SAE Ports 585/700 33-0309 Cylinder Pin Spacer...
  • Page 84: Slide Tray Hydraulic Schematic

    585/700 155-2-8-1.125-1 2” x 8” x 1-1/8” Hydraulic Cylinder 585/700 155-04R17-173-1 1/4” x 173” Hose Assembly 585/700 155-04R17-185-1 1/4” x 185” Hose Assembly 585/700 155-6400-6-8 Straight Adapter 585/700 155-M-0002 Cylinder Valve Bank 585/700 Meyer Manufacturing Corporation - 84 - PB-MIXER-TR-MECH...
  • Page 85: Dual Slide Tray Hydraulic Schematic

    DUAL SLIDE TRAY HYDRAULIC SCHEMATIC )5217 /()7 6/,'( 75$< &</,1(5 < & < & & < & < & < < < < KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-6801-6-8 90 Degree Adapter 585/700 155-2-8-1.125-1 2” x 8” x 1-1/8” Hydraulic Cylinder 585/700 155-04R17-59-1 1/4”...
  • Page 86: Remote Scale Mount

    REMOTE SCALE MOUNT FM-255-A Meyer Manufacturing Corporation - 86 - PB-MIXER-TR-MECH...
  • Page 87 KEY PART NUMBER DESCRIPTION MIXER MODEL VMSCM-405180 Remote Display Kit RD400 With TR Kit & 33’ Cable/Visor 585/700 VMSCM-405200 Remote Display Kit RD400 With 33’ Cable/Visor 585/700 VMSCM-407227 Remote Display Kit RD250 With 25’ Cable 585/700 M9-1-10-0001 Remote Scale Mount Bracket Weldment 585/700 M9-1-10-0002 Remote Scale Mount Bracket...
  • Page 88: Tank Magnet

    QTY DESCRIPTION MIXER MODEL VAM-TM-KIT Tank Magnet Install Kit 585/700 33-0028 1/2-13 Handle Nut 585/700 M11-10-0012-2 Tank Magnet Door Weldment 585/700 826-5013 1/2-13 Jam Nut 585/700 850-5013-1.75Z 1/2-13 x 1-3/4" Carriage Bolt 585/700 Meyer Manufacturing Corporation - 88 - PB-MIXER-TR-MECH...
  • Page 89: Specifications

    10.0 SPECIFICATIONS 10.1 MODELS F585, F700 DIMENSIONS F585 F700 Overall Length - side door 270” 288” Mixing Chamber Length 212” 217” Max Discharge Reach - Side Slide Tray 21” 21” Max Discharge Height - Side Slide Tray 15” 15” SPECIFICATIONS F585 F700 Mixing Capacity - no extensions...
  • Page 90 Meyer Manufacturing Corporation - 90 - PB-MIXER-TR-MECH...
  • Page 91: Maintenance Record

    MAINTENANCE RECORD MODEL NO. ____________________________________ SERIAL NO. ____________________________________ DATE SERVICE PERFORMED DATE SERVICE PERFORMED Manufactured by: Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone: 1-800-325-9103 Fax: 715-654-5513 Email: sales@meyermfg.com Website: www.meyermfg.com...
  • Page 92 Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone: 1-800-325-9103 Fax: 715-654-5513 Email: sales@meyermfg.com Website: www.meyermfg.com...
