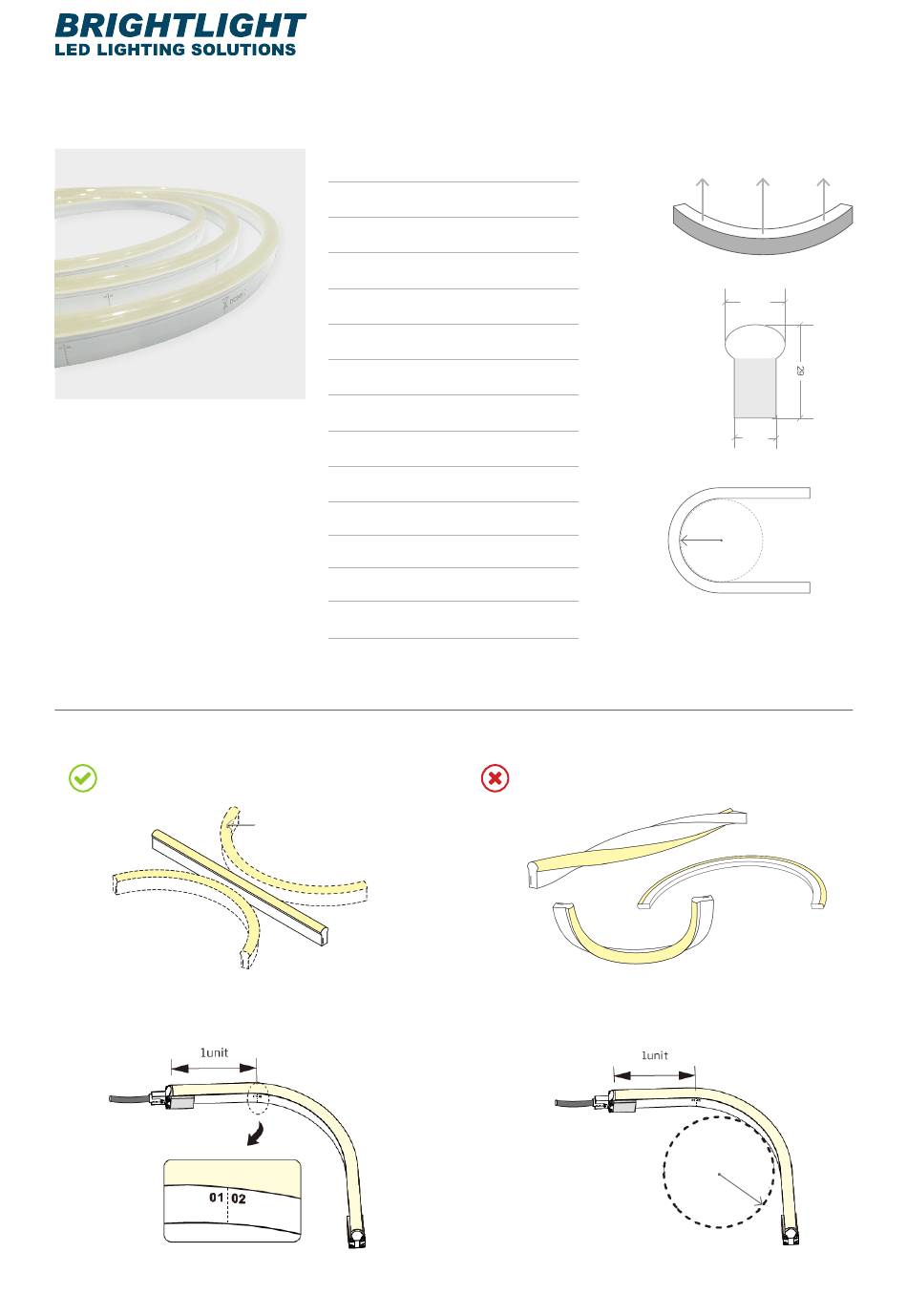

NEON CLASSIC | ELECTRICAL AND PHYSICAL INSTALLATION GUIDE
BENDING PARAMETERS
NEON CLASSIC CAN BE CURVED
AS SHOWN BELOW
Avoid bending LED Neon within the first unit (units are
–
clearly marked with dashed lines on the sides of the product)
Actual product characteristics may vary. Bright Light reserves the right to improve, modify or update the product designs without prior notice.
COLOUR
WARM WHITE
2700K
+/- 145K
WARM WHITE
3000K
+/- 175K
NATURAL WHITE
4000K
+/- 275K
COOL WHITE
5700K
+/- 300K
2500 - 5000K
TUNEABLE
RED
615–625nm
GREEN
520–530nm
BLUE
465–475nm
YELLOW
580nm
RGB
RGBW
RGB CHASING
RGBW CHASING
ELECTRICAL & OPTICAL DATA VARIANCE +/- 10%
SOLD BY THE METRE
IES FILES AVAILABLE
LIGHT SURFACE
CODE
BL-LS-4580-27
BL-LS-4580-30
BL-LS-4580-40
BL-LS-4580-57
BL-LS-4900
BL-LS-4530-R
BL-LS-4500-G
BL-LS-4500-B
BL-LS-4530-Y
BL-LS-4600-RGB
BL-LS-4650-RGBW
BL-LS-4700-RGBC
BL-LS-4700-RGBWC
DO NOT TWIST THE LIGHT OR BEND
AGAINST THE LIGHT SURFACE
LED Neon can be bent up to the defined
–
"minimum bend radius" (60mm for Neon Classic)
0800 952 000 | www.brightlight.co.nz | BRIGHTLIGHT
INSTALLATION GUIDE
HORIZONTAL BENDING
LIGHT DIRECTION
16.5
11.5
MINIMUM
BEND RADIUS
60mm
60mm
Advertisement
Summary of Contents for BRIGHTLIGHT NEON CLASSIC
- Page 1 INSTALLATION GUIDE NEON CLASSIC | ELECTRICAL AND PHYSICAL INSTALLATION GUIDE HORIZONTAL BENDING COLOUR CODE LIGHT DIRECTION WARM WHITE BL-LS-4580-27 2700K +/- 145K WARM WHITE BL-LS-4580-30 3000K +/- 175K NATURAL WHITE BL-LS-4580-40 4000K +/- 275K COOL WHITE 16.5 BL-LS-4580-57 5700K +/- 300K...
-
Page 2: Wiring Diagrams
INSTALLATION GUIDE NEON CLASSIC | ELECTRICAL AND PHYSICAL INSTALLATION GUIDE WIRING DIAGRAMS WHITE / SINGLE COLOUR red wire: + POWER SUPPLY DIMMER 24V DC optional black wire: - TUNEABLE WHITE red wire: + yellow wire: Warm White connection (-) 2-CHANNEL... - Page 3 INSTALLATION GUIDE NEON CLASSIC | ELECTRICAL AND PHYSICAL INSTALLATION GUIDE PROFILE INSTALLATION REQUIREMENTS ACCESSORY BL-LS-4003 SELF-LOCKING ALUMINIUM V2 PROFILE 2m REFER TO BL-LS-4004 MOUNTING ACCESSORIES PDF SELF-LOCKING ALUMINIUM V2 MOUNTING CLIP 35mm FOR PROFILE DETAILS & DIMENSIONS BL-LS-4005 PLASTIC PROFILE 2m...
- Page 4 INSTALLATION GUIDE NEON CLASSIC | ELECTRICAL AND PHYSICAL INSTALLATION GUIDE PROFILE INSTALLATION REQUIREMENTS >> FOR SLEEVE / SNAP / DUAL INJECTION MOULDING CONNECTORS Ensure the supply cord is not subject to mechanical stress – Keep 10–20mm distance between the end of the profile and the end mounting piece –...
- Page 5 INSTALLATION GUIDE NEON CLASSIC | ELECTRICAL AND PHYSICAL INSTALLATION GUIDE PROFILE INSTALLATION REQUIREMENTS >> FOR SLIMLINE INJECTION MOULDING CONNECTOR TOP END FEED End cap is within the profile Top end feed is within profile END CAP Top End Feed (Slimline injection moulding only) & end cap are both fitted within the profile –...
