Telguard VIRALERT 3 User Manual

Integrated human body temperature screening system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INTEGRATED HUMAN
BODY TEMPERATURE
SCREENING SYSTEM
SAFE
|
EASY
F R O M T E L G U A R D A N D A M E T E K L A N D
THE LATEST TECHNOLOGY – AVAILABLE AT
LEADING SECURITY INDUSTRY DISTRIBUTORS
IN THE U.S. AND CANADA
|
ACCURATE
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIRALERT 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telguard VIRALERT 3

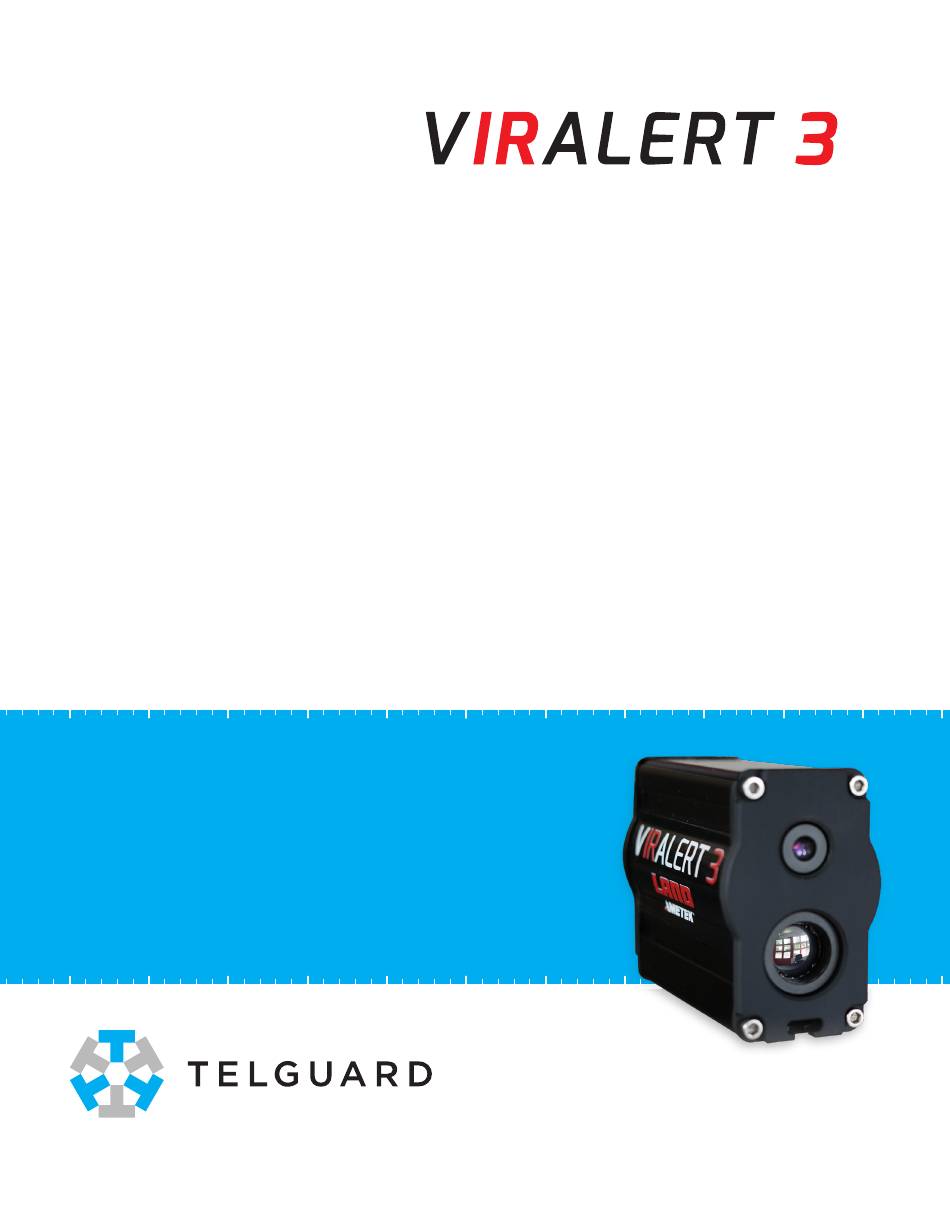

  • Page 1 SAFE EASY ACCURATE F R O M T E L G U A R D A N D A M E T E K L A N D USER GUIDE INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM THE LATEST TECHNOLOGY – AVAILABLE AT LEADING SECURITY INDUSTRY DISTRIBUTORS IN THE U.S.
  • Page 2 Use of this instrument in a manner not specified by AMETEK Land may be hazardous. Read and Use of this instrument in a manner not specified by Telguard/AMETEK Land may be hazardous. Read and understand the understand the user documentation supplied before installing and operating the equipment.
  • Page 3 Copyright This guide is provided as an aid to owners of Telguard/AMETEK Land’s products and contains information proprietary to Telguard/AMETEK Land. This manual may not, in whole or part, be copied or reproduced without the expressed written consent of Telguard/AMETEK Land.

  • Page 4: Table Of Contents

    VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM Table of Contents Introduction About VIRALERT 3 What’s in the box? Optional Accessories System Overview System Setup Measurement Location System Connections Start the Software Network Adapter Settings Starting the Software Software Settings Accessing the Settings menu...

  • Page 5: Introduction

    VIRALERT 3 is a screening tool. It has not been cleared or approved by the FDA or any other regulatory agency. It should not be relied on solely or primarily to diagnose or exclude a diagnosis of COVID-19 or any other disease.

  • Page 6: Optional Accessories

    VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM 1.3 Optional Accessories Surface-Wall Mount Part Number 814266 An adjustable mounting bracket that can be screwed to a wall, ceiling or any other flat surface - Connecting hardware included Clamp-Desk Mount Part Number 814267 A mounting bracket with a clamp to connect to a desk or a table Tripod...

  • Page 7: System Overview

    2 SYSTEM OVERVIEW 2 SYSTEM OVERVIEW Measurement VIRALERT 3 Camera and Subject Blackbody Reference Source Camera Cable Laptop/PC running VIRALERT 3 Software (requires Windows 10) Power Cable Clamp Mount Bracket 3ft/1m Fig. 2-1 VIRALERT 3 Typical System Overview USER GUIDE...

  • Page 8: System Setup

    Also avoid locations where the camera may pick up reflections from windows, mirrors, etc. VIRALERT 3 is designed to scan one person at a time. The measurement location should not be a high-traffic area where people other than the subject will be in the field of view.
  • Page 9 VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM Laptop/PC Connections Connect the Laptop/PC to the AC power supply. Connect the two connectors on the other end of the power and signal cable to the Laptop/PC. The power (USB) connector on the cable looks like this.

  • Page 10: Start The Software

    4.1 Network Adapter Settings The correct Network Adapter Settings must be specified so that your PC can communicate with the VIRALERT 3 Camera. In the bottom left corner of your PC screen, there is a ‘Windows’ icon Click on the icon so that it turns blue The Windows Start menu is displayed.
  • Page 11 VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM Click on the Change adapter options link. (See Fig. 4-2) Fig. 4-2 Status screen The Network Connections screen is displayed. See Fig. 4-3 below. Move your mouse cursor over the icon for your Network (Ethernet in the example below).
  • Page 12 VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM The Networking Properties screen is displayed. See Fig. 4-4. Click to highlight the Internet Protocol Version 4 (TCP/IPv4) option and click the Properties button. Fig. 4-4 Network status search The Internet Protocol Version 4 (TCP/IPv4) Properties screen is displayed. See Fig.

  • Page 13: Starting The Software

    • 64 GB Hard disk • Windows 10* If your Laptop/PC is running Windows 10 in S mode, then VIRALERT 3 will not run on this machine. S mode runs only applications from the Microsoft Store, and requires Microsoft Edge for Internet browsing.
  • Page 14 Fig. 4-6. Measurement Area Blackbody Reference Source Reference Area Fig. 4-6 VIRALERT 3 Software Normal Body Temperature display Subjects with a high body temperature are indicated by a red screen, as shown in Fig. 4-7. Measurement Area Blackbody Reference Source...
  • Page 15 VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM CAUTION (REFER TO FIG 4-6 AND FIG 4-7): The VIRALERT 3 system is supplied with the Blackbody Reference Source installed so that it is visible in the right hand portion of the images from the camera and thermal imager.

  • Page 16: Software Settings

    INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM 5 SOFTWARE SETTINGS NOTE: Before changing any settings in your VIRALERT 3 system, make sure that you read and understand the information given in this section of the User Guide. 5 .1 Accessing the Settings menu To access the Settings, first unlock the settings menu by clicking on the padlock and entering your password.

  • Page 17: System Settings

    VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM 5.2 System Settings To access the System Settings screen, select the System option from the Settings menu. The System Settings screen contains four ‘Tabs’. These are: • General • Alarm • Workflow • Logging 5.2.1 General (System Settings) The General tab is shown in Fig.
  • Page 18 Supported Label Printer: Brother QL-700 VIRALERT 3, when used in conjunction with a Brother QL-700 Label Printer, allows you to print a label for each person who is screened by VIRALERT 3 and whose temperature is below the alarm level. To set up the printer, follow the Quick Start Guide supplied with the Brother QL-700 label printer.
  • Page 19 In the Auto power-off time setting area change the Time field to 0 and click Apply. Exit all the printer properties screens. Your label printer is now configured to work with VIRALERT 3. You may need to restart VIRALERT 3 for these settings to take effect. USER GUIDE...
  • Page 20 Fig. 5-5 System Settings - Alarms WARNING: The threshold for an elevated body temperature alarm is a critical parameter for use of VIRALERT 3. You should consult a medical advisor for assistance in determining the appropriate alarm point. The factory default value is 100.4 °F (38 °C).
  • Page 21 The Workflow tab is shown in Fig. 5-6. The standard messages are displayed above each text input box. There are four stages in the workflow of the VIRALERT 3 system: • System Idle - This is when there is nobody in the field of view of the camera.
  • Page 22 INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM 5.2.4 Logging The Logging tab allows you to select whether or not images and data (such as temperature readings) are saved from the VIRALERT 3 system to your computer/ network. The logging tab is shown in Fig. 5-7.
  • Page 23 VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM Option Description • No image saving Image Logging No images are saved by the system. • Save image when a person is detected This option saves an image each time a person is detected in front of the camera, irrespective of their temperature reading.

  • Page 24: Camera Settings

    These values define the upper and lower limits of the temperature range being measured by the system. As the VIRALERT 3 is designed to measure human body temperature, the factory-set scale of 20 to 40 °C / 68 to 104 °F should be adequate for your system.
  • Page 25 VIRALERT INTEGRATED HUMAN BODY TEMPERATURE SCREENING SYSTEM 5.3.2 IP Address NOTE: In the majority of systems, it should not be necessary to change the IP Address of the camera. You should only change the IP Address if you have knowledge of how IP Addresses work and your system installation requires the IP Address to be in a certain format.

  • Page 26: Communication

    IO Modules and/or creating Data Pairs via Modbus. The Communication menu contains two options: • Modules - this screen allows you to configure IO Modules to work with your VIRALERT 3 system. • Pairs - this screen provides an interface for creating Modbus data pairs. 5.4.1 Modules The I/O modules supported by VIRALERT are listed below: •...
  • Page 27 5.4.3 Pairs (IO Module Data Pairing) When you have configured your Modules, you can then assign a data source in VIRALERT 3 to the output of a module. This is called ‘configuring pairs.’ From the Settings menu, select Communication then Pairs.

  • Page 28: Changing The Password

    • The MaxTemp signal sends the maximum temperature value registered within the detection area. This is the same temperature as that which can be displayed at the top of the screen in VIRALERT 3. To configure a data pair: Select the required output from the Available Data Sources table (for example “Alarm”).

  • Page 29: Specifications

    6 SPECIFICATIONS 6.1 System Specifications Item Description Contents • VIRALERT 3 Combined thermal and visual imaging camera with 4 m connection cable. • VIRALERT 3 Blackbody temperature reference source with power adaptor and 3 m connection cable. • Preinstalled single point mounting bracket.

  • Page 30: Dimensional Information

    32 to 95 °F / 0 to 35 °C Warm-up rate 23 °F / 13 °C per minute Software Features VIRALERT 3 Software: • Continuous live picture in thermal and visual image. • On-screen and audible alarm status. • Simple traffic light display. • Automatic face detection.

  • Page 31: Disclaimer

    VIRALERT systems are not intended, nor designed, to diagnose or detect medical conditions including, but not limited to, viruses or other illnesses. Telguard/AMETEK Land thermal imaging products should only be used to detect variations of surface temperature. If elevated skin temperature is detected, the finding should be confirmed by other means, for example, an approved medical thermometer.
  • Page 32 Continuous product development may make it necessary to change these details without notice. 800.229.2326 | 3225 Cumberland Blvd SE • Suite 300 • Atlanta, GA 30339 • USA | telguard.com © 2020 Telguard. Telguard and the Telguard Logo are registered trademarks of Telular Corporation.
