P A G E R 2 M A N U A L
2 0 1 6 0 9 0 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pager 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daza Pager 2

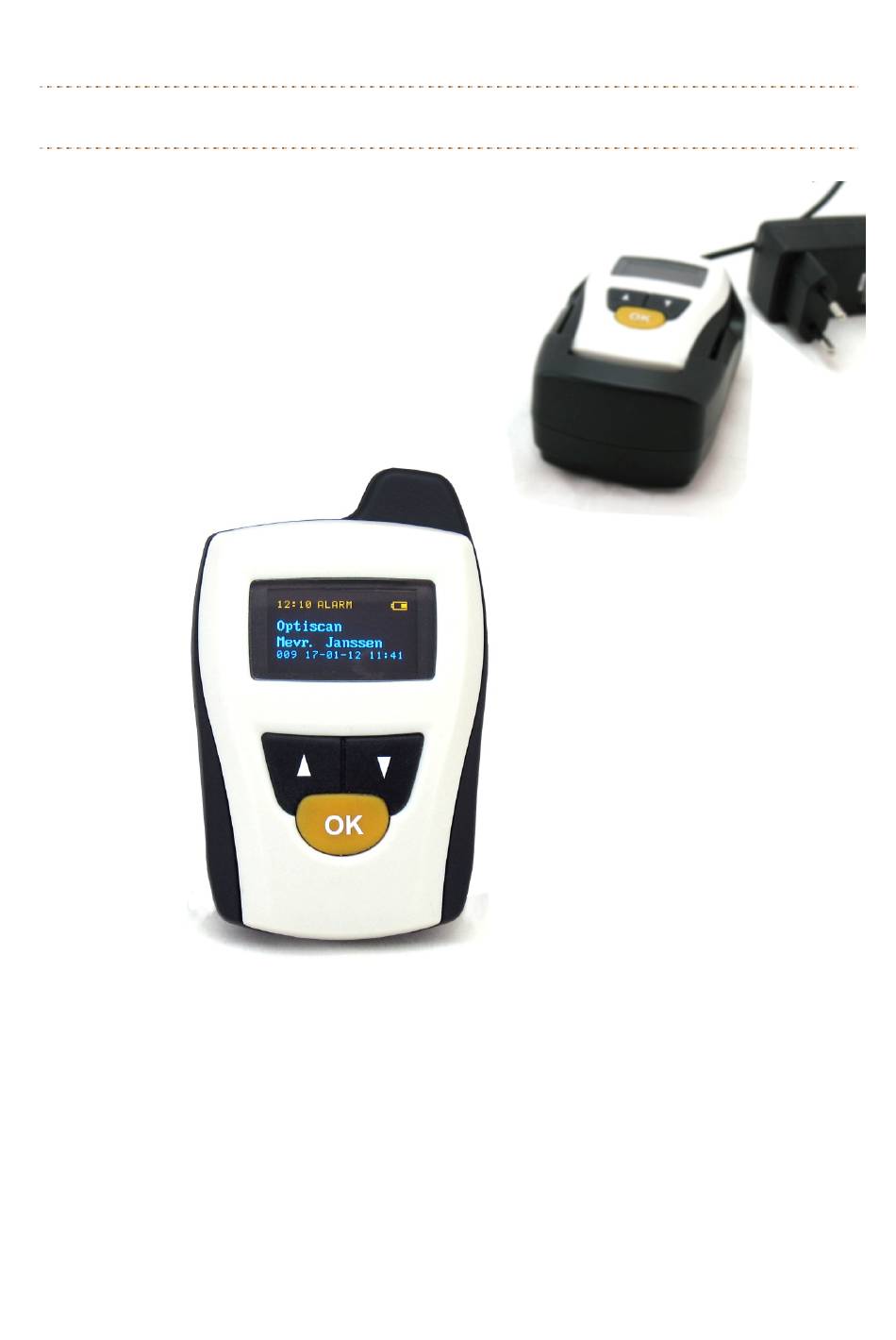

  • Page 1 P A G E R 2 M A N U A L 2 0 1 6 0 9 0 5...

  • Page 2: Table Of Contents

    C O N T E N T S WHAT'S IN THE BOX ........................1 The pager ..........................1 Cradle .............................1 USB Cable ..........................1 BEFORE YOU BEGIN........................2 DazaTools software for the Pager ..................2 INSTALL THE SOFTWARE IN 3 EASY STEPS ..................3 Step 1: Download the software ....................3 Step 2: Start the installation proces .....................3 Step 3: complete the installation process ..................4 CONNECTING THE PAGER TO DAZATOOLS ...................5...
  • Page 3 Exiting the menu ......................14 Adjust the volume of the pager ..................14 Switch vibration mode on or off ..................14 Add new transmitters via the pager ................15 Remove Transmitters via the pager................16 Switch the pager On / OFF ..................... 16 9.10 Change the PIN code ......................

  • Page 4: What's In The Box

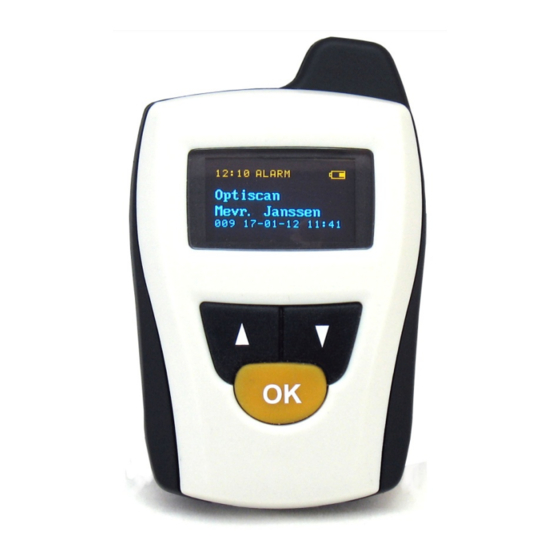

    1. WHAT'S IN THE BOX 1) THE PAGER 2) CRADLE 3) USB Cable...

  • Page 5: Before You Begin

    2. BEFORE YOU BEGIN... We recommend that you charge the pager fully before using it for the first time. This can be done with the cradle that comes with the pager. Place the bottom end of the pager in the cradle and make sure that the contact points (F) are properly connected to the cradle.

  • Page 6: Install The Software In 3 Easy Steps

    STEP 1: Download the software You can download the software for the pager free of charge from our website: http://www.daza.nl The DazaTools software can be found in the Pagers section of the Downloads page. Download the software onto your computer.

  • Page 7: Step 3: Complete The Installation Process

    STEP 3: complete the installation process Follow all of the instructions on the screen and complete the installation process. During the installation all necessary drivers are automatically installed. The DazaTools pictogram will automatically appear on your desktop once the installation process is completed.

  • Page 8: Connecting The Pager To Dazatools

    4. CONNECTING THE PAGER TO DAZATOOLS Information about how to download and install the software can be found in chapter 3: INSTALL THE SOFTWARE IN 3 EASY STEPS. 4.1 STEP1: CONNECT THE PAGER TO THE COMPUTER The USB port can be found at the bottom of the pager behind the USB port slide (H).

  • Page 9: Dazatools: Change Back-Up Location

    4.3 DAZATOOLS: CHANGE BACK-UP LOCATION After a successful installation and connection with the pager a folder will be created on your pc located in "Your Documents" with a subfolder named Daza. This folder is used to store all settings off your pager.

  • Page 10: Adding And Removing Transmitters (Dazatools)

    Once you have connected the pager to the DazaTools software you can add and remove Daza alarm transmitters. You can add a transmitter in 3 easy steps. On the ‘Transmitters’ tab you will see a list of all of the transmitters that have been added to the pager.

  • Page 11: To Remove A Transmitter

    5.4 TO REMOVE A TRANSMITTER Once you have connected the pager to the DazaTools software you can add and remove Daza alarm transmitters. remove transmitter from the pager proceed as followed: On the ‘Transmitters’ tab you will see a list of all of the transmitters that have been added to the pager.

  • Page 12: Settings

    6. SETTINGS Once you have connected the pager to the DazaTools software you can view and change the current settings in the 'Settings' tab. These settings are: • Pager name Buzzer volume (Day / Night) • Vibration mode • • Man down delay •...

  • Page 13: Man Down Delay

    6.3 MAN DOWN DELAY Man down delay: The Man down delay option only applies to certain transmitters. These are transmitters that allow for a delay between the alarm and the notification of the alarm on the pager. During this delay the alarm can be cancelled. The delay setting can be adjusted on the pager (5- to 60 seconds).

  • Page 14: Save A Backup Of The Current Configuration On The Computer

    6.5 SAVE A BACKUP OF THE CURRENT CONFIGURATION ON THE COMPUTER Save: All settings of the pager including the transmitters are stored on a file on your pc. This file has the same name as the serial number of the Pager. Back-up: It is possible to save the complete configuration of the pager on the computer as a back-up.

  • Page 15: Updates

    So we recommend that you check the Pagers section of the Downloads page on our website, http://www.daza.nl, regularly to see if a new version of the software has been released. 8.1 CHECK THE VERSION OF THE SOFTWARE ON THE PAGER...

  • Page 16: Configure Settings Via The

    9. CONFIGURE SETTINGS VIA THE PAGER As well as installing settings via the DazaTools software, in case of emergency it is also possible to install settings via the pager itself. 9.1 SWITCHING THE PAGER ON ‘OK’ button If the Pager is turned off, you can activate it by pressing the ‘OK’...

  • Page 17: Exiting The Menu

    9.4 EXITING THE MENU Navigate to the ‘Exit menu’ option. Then click once on the ‘OK’ button to exit the menu. Note! If you take no action in the menu for 5 seconds the menu will automatically close. 9.5 ADJUST THE VOLUME OF THE PAGER Adjust the volume of the pager Open the pager menu.

  • Page 18: Add New Transmitters Via The

    9.7 ADD NEW TRANSMITTERS VIA THE PAGER Select the position Open the pager menu. Navigate to the ‘ADD’ option. Press the ‘OK’ button to confirm your selection. Select the position where you want to add the transmitter. The pager will only show the positions that are available.

  • Page 19: Remove Transmitters Via The

    9.8 REMOVE TRANSMITTERS VIA THE PAGER Open the pager menu. Navigate to the ‘REMOVE’ option. Press the ‘OK’ button to confirm your selection. Select the transmitter you want to remove. Press the ‘OK’ button to confirm your selection. Note! In DazaTools you can install security settings so this option can only be accessed by entering a PIN code.

  • Page 20: Change The Pin Code

    9.10 CHANGE THE PIN CODE To change the PIN code: Open the pager menu. Navigate to the ‘Change PIN 'option. Press the ‘OK’ button to confirm your selection. Enter the current PIN code by pressing the ‘Up’ and ‘Down’ selection buttons. Choose the first number and confirm with the 'OK' button.

  • Page 21: Using The

    USING THE PAGER When an alarm is transmitted a notification will appear on the pager display. Depending on the settings, the pager will signal the alarm by emitting three short beeps. It will do this five times. The pager volume can be adjusted (see paragraphs 6.2 and 9.4). If vibration mode is activated, the pager will vibrate (see paragraphs 6.2 and 9.5).

  • Page 22: Empty Battery' Alarm

    10.3 ‘EMPTY BATTERY’ ALARM When the battery of a Daza transmitter that has been added to the pager is nearly empty the pager will automatically signal an ‘Empty battery’ alarm, which can be recognized as follows: The ‘Empty battery’ icon will be displayed above the alarm notification.

  • Page 23: Special Settings

    SPECIAL SETTINGS 11.1 ADJUST SCREEN RESOLUTION FOR DAZATOOLS When the DazaTools screen is not completely visible, please check if your screen meets the minimum requirements (1024x768 resolution). Depending on the screen settings on your computer, you may find that the DazaTools program is not properly displayed.
