Summary of Contents for Numerik Jena SCM-1000

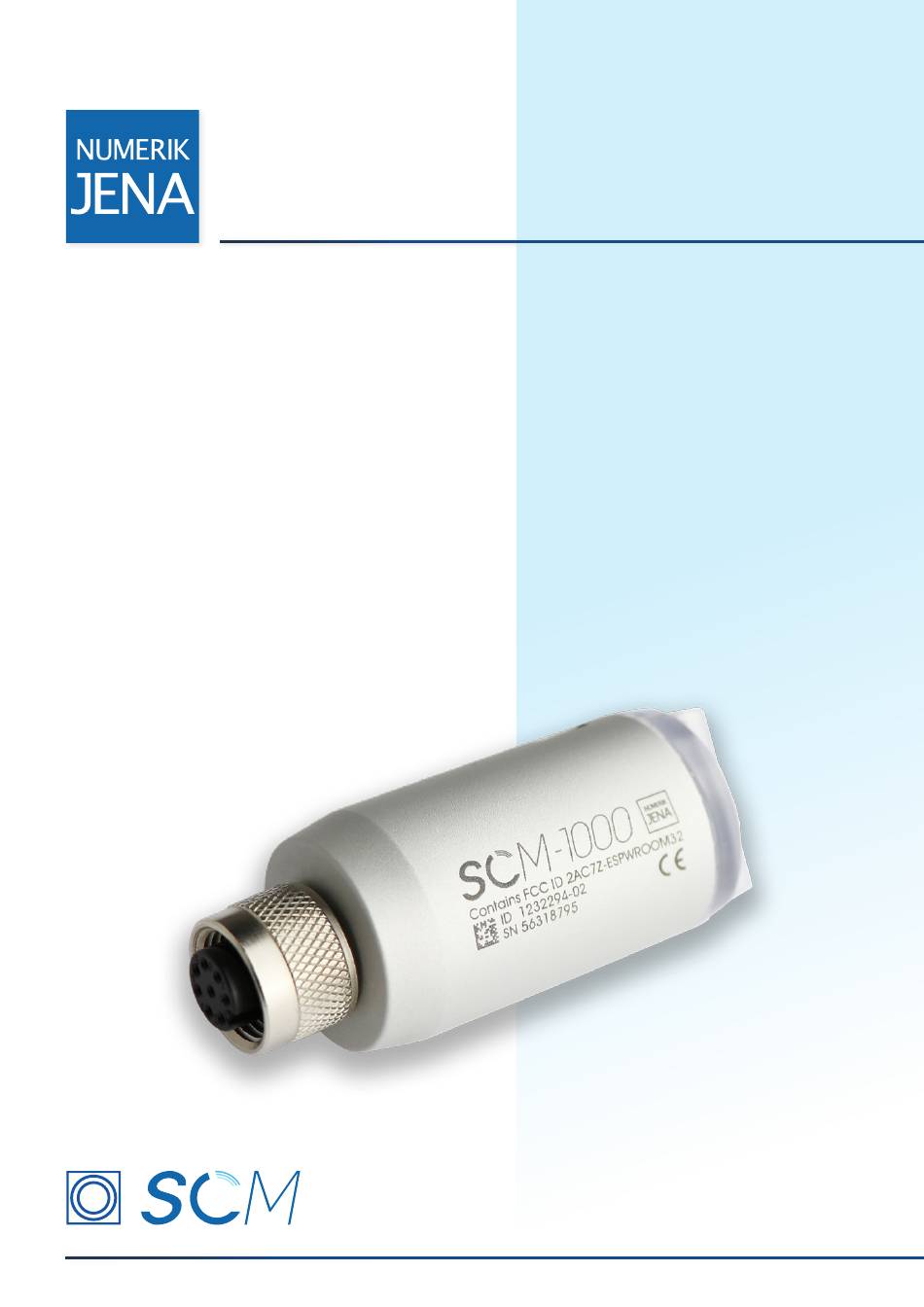

- Page 1 USER MANUAL SMART COMMUNICATION MODULE FOR LENGTH GAUGE ACANTO English Original Instruction...
-
Page 2: Table Of Contents
..................4 General Information ....................4 Notes on Legal Requirements..................5 Notes on Transport, Storage and Handling ..............6 Notes on Operation ....................6 Environmental Protection and Disposal ..............6 Scope of Delivery of SCM-1000 ................6 TECHNICAL INFORMATION ................7 3.1 Technical specification .....................7 Technical drawing.....................7 Nameplate ........................8 STATUS MESSAGES IN OPERATING MODE ..........9... -
Page 3: Features And Applications
Smart Communication Module FEATURES AND APPLICATIONS The SCM (Smart Communication Module) enables the conversion and data transfer of length gauges ACANTO using the Open Platform Communications Unified Architecture (OPC) UA IoT- protocol to transfer information to IT systems and IoT software. OPC UA is a service-oriented industrial communication standard for secure and reliable data exchange. The protocol is platform-independent and enables a seamless flow of information between devices from different manufacturers. OPC UA defines the transport of data and interfaces, security mechanisms and the semantic structure of the data, as well as services... -
Page 4: Safety Information
Any unauthorized handling leads to forfeiture of all warranty claims! • NUMERIK JENA GmbH does not assume any liability for any damages or operating errors caused by incorrect mounting and/or startup operations. • Please consider user manuals, data sheets and safety instructions of devices from other manufacturers which will be used in combination with encoders and accessories from NUMERIK JENA to ensure a reliable operation. -
Page 5: Notes On Legal Requirements
Europe Approval for radio transmission: For operation in radio mode. NUMERIK JENA GmbH hereby declares that the SCM transmitter/receiver unit is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The EC Declaration of Conformity can be requested from... -
Page 6: Notes On Transport, Storage And Handling
Smart Communication Module Notes on Transport, Storage and Handling The products from NUMERIK JENA GmbH must be transported and stored in the original packaging only! Notes on Operation • The devices and accessories from NUMERIK JENA GmbH must be operated with the supply voltage stated in the respective user manual or data sheet only. -
Page 7: Technical Information
-20 to +70 (-4 to +158) °C (°F) Shock [per 11 ms] ≤ 500 (EN 60 068-2-27) Vibration [within 55-2000 Hz] ≤ 100 (EN 60 068-2-6) Range (typical) Table 1: Technical data of the SCM-1000 Technical drawing 59,65 Illustration 1: Technical drawing (all dimensions in mm) 7 / 24... -
Page 8: Nameplate
Smart Communication Module Nameplate Product Name FCC-Declaration Identity Number Serial Number Data Matrix Code Illustration 2: Figure of the SCM-1000 nameplate 8 / 24... -
Page 9: Status Messages In Operating Mode
Blue (steady) operable Red (steady) SCM-1000 Error Length gauge Error Red (flashing) please check the length gauge Search for connected length Blue (steady) gauges Setup mode active; SCM-1000 Red (flashing) / (steady) initiated access point Table 2: LED states - overview 9 / 24... -
Page 10: Initial Setup Of The Smart Communication Module
• USB connector (Type Micro-B connector) • 8-pin M12 coupling Illustration 4: Schematic figure of the SCM-1000 with connected length gauge The power supply (see section 3) of the SCM-1000 and the connected length gauge is realized via USB. Please note that SCM and connected device are using the same power supply (Source: USB). -
Page 11: Compatible Software
= power supply) Compatible software The SCM-1000 can be used in WLAN or USB mode. For this purpose NUMERIK JENA provides the “Smart Communication App” (SCA) as free of charge software for Windows and Android. The SCA includes the following functions: •... - Page 12 5.3.1 SCM in WiFi mode (OPC UA compatible) If the SCM-1000 is used in WiFi mode, a device with an installed OPC UA client is required. For the following operating systems NUMERIK JENA GmbH provides an OPC UA compatible software free of charge:...
-
Page 13: Commissioning Of The Smart Communication Module
SCM lights red. Illustration 9: SCM with WLAN (LED lights up red) Connect the SCM-1000 to your setup device directly via the USB interface or via WiFi. For the WiFi connection, an access point is automatically established by the SCM-1000 with the factory settings (see Table 7). - Page 14 (wireless) local area network Table 8: SCM network setup data The SCA has an integrated assistant („ADD SCM“) for setting up the SCM-1000 network settings. Open the assistant and follow the instructions. Illustration 12: Schematic representation of the SCM network setup using the SCA start-up wizard...
-
Page 15: Change Of Customer-Specific Settings
Smart Communication Module When the setup is completed, the network settings made are permanently stored in the SCM (even if the power supply is disconnected) and are loaded if an ACANTO length gauge is connected. To change the network settings again, repeat steps 1 to 4. Illustration 13: Software display of the setup wizard “ADD SCM”... -
Page 16: Operation Of The Smart Communication Module
OPERATION OF THE SMART COMMUNICATION MODULE Connect the Smart Communication Module (SCM) with an ACANTO length gauge to a power supply. During operation, the SCM’s LED is permanently lit in blue. The SCM-1000 can then be used directly via USB interface or via WiFi. -
Page 17: Operation Of The Scm With The Sca
Smart Communication Module Operation of the SCM with the SCA The Smart Communication App (SCA) from NUMERIK JENA has an integrated assistant („SCM MANAGER“) to manage all SCMs in the network as well as the locally connected USB devices. In this menu measured values and information (e.g. temperature & humidity) of the SCM/ ACANTO length gauge are provided. - Page 18 Smart Communication Module Active SCM settings Setting up SCM as an access point during operation (Restart necessary by disconnecting the power supply) Reset device error Error code (Acanto internal) Figure 18: Submenu “SCM MANAGER - Settings” with SCM-specific parameters The app also provides a monitoring assistant („MONITORING“), which allows a graphical monitoring and recording of the information/measured values of the integrated devices in the network with various options.
-
Page 19: Scm Output Parameter
Smart Communication Module SCM output parameter The SCM-1000 provides the following information independently of the connected probe (Note: All parameters are measured within the module): Parameter Condition Unit Temperature Operating Range operational °C Absolute temperature 0...65 ±1.0 °C accuracy Resolution API output resolution 0.01... -
Page 20: Acanto Length Gauge Output Parameter
SCM-1000\Axes\Axis 1\Encoder 1\isActive = switch on = no error Get error status SCM-1000\Axes\Axis 1\Encoder 1\Error = error Identnummer: SCM-1000\Axes\Axis 1\Encoder 1\Nameplate\Ident Number Read device name plate Seriennummer: SCM-1000\Axes\Axis 1\Encoder 1\Nameplate\Serial Number Identnummer: SCM-1000\Nameplate\Ident Number Read SCM name plate Seriennummer: SCM-1000\Nameplate\Serial Number... -
Page 21: Application Programming Interface
If the LED does not light up in any of the possible SCM LED is not lit Please contact our support connection options, this may be a defect. Table 12: Overview of possible error sources while the SCM-1000 is connected. 21 / 24... - Page 22 Replacement of the power supply SCM & gauge displayed cable Table 13: Overview of possible error sources without an SCM-1000 connected In case further errors occur during operation, please contact our support. We are constantly interested in improving our products. 22 / 24...
- Page 23 Smart Communication Module Figure 21: SCM-1000 23 / 24...
- Page 24 NUMERIK JENA GmbH Phone: +49 3641 4728-0 Im Semmicht 4 E-Mail: info@numerikjena.de 07751 Jena www.numerikjena.de Germany Version 04 2020...
