MOTION-SENSOR SECURITY LIGHT
model no. 052-7801-8 & 052-7802-6 | contact us: 1-866-827-4985
1
IMPORTANT:
Please read this manual carefully before assembly and save it for reference.
Wiring the unit incorrectly may damage the electronic components inside this control module and can cause a fire hazard.
Doing so will void all warranty claims.
Detection method:
Sensor range:
Power source:
Load rating:
Power consumption:

ELECTRICAL INSTALLATION:

1) Place the wall switch
to the"OFF" position.
NOTE:
Shutting off a wall switch that controls the light is not
sufficient to prevent electrical shock.
WARNING:
This product must be installed in accordance
with the applicable installation code by a person familiar
with the construction and operation of the product and the
hazards involved.
3
5
2
Passive infrared sensor
10–40' (3–12 m), 180º spread
120 V AC 60 Hz
300 W max. (2 x 150 W)
4 W max. for the sensor unit only
4
6
2) Depending on which type of fuse
box you have in your home:
Place either the main (Master)
switch to the "OFF" position,
cutting off power to your entire
home, OR turn off the individual
switch that provides power
to where the fixture will be installed.
OR
3) Place either the main (Master)
switch to the "OFF" position,
cutting off power to the entire
home, OR unscrew the fuse
that provides power to where
the fixture will be installed.
Instruction Manual
For outdoor use
Retain carton for storage purposes
1. Mounting strip
2. Outlet box (not provided)
3.
Black live wire
4.
White neutral wire
5.
Gasket
Sensor
6.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 052-7801-8 and is the answer not in the manual?

Questions and answers

Summary of Contents for NOMA 052-7801-8

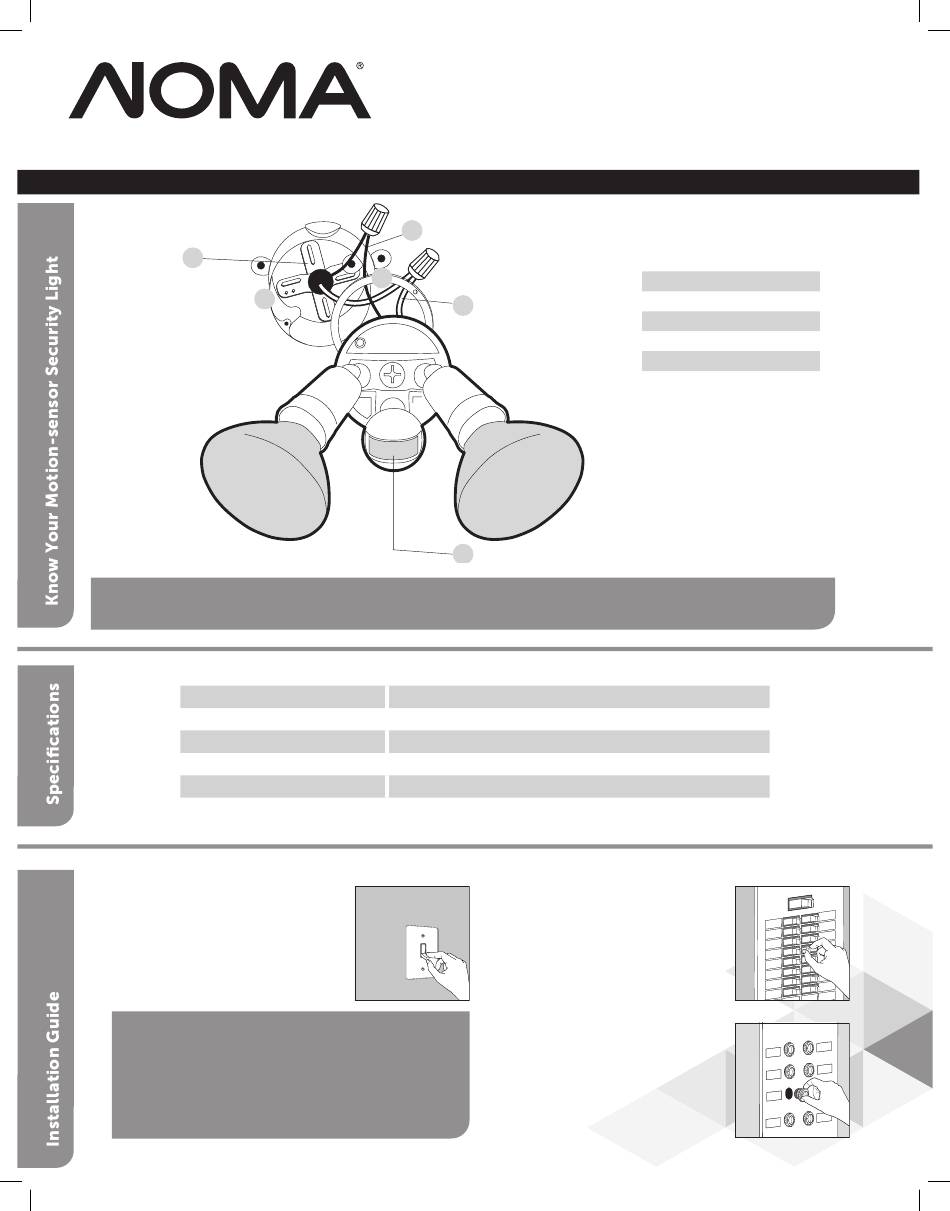

  • Page 1 Instruction Manual For outdoor use Retain carton for storage purposes MOTION-SENSOR SECURITY LIGHT model no. 052-7801-8 & 052-7802-6 | contact us: 1-866-827-4985 1. Mounting strip 2. Outlet box (not provided) Black live wire White neutral wire Gasket Sensor IMPORTANT: Please read this manual carefully before assembly and save it for reference.
