Summary of Contents for Sesamo ARIETE

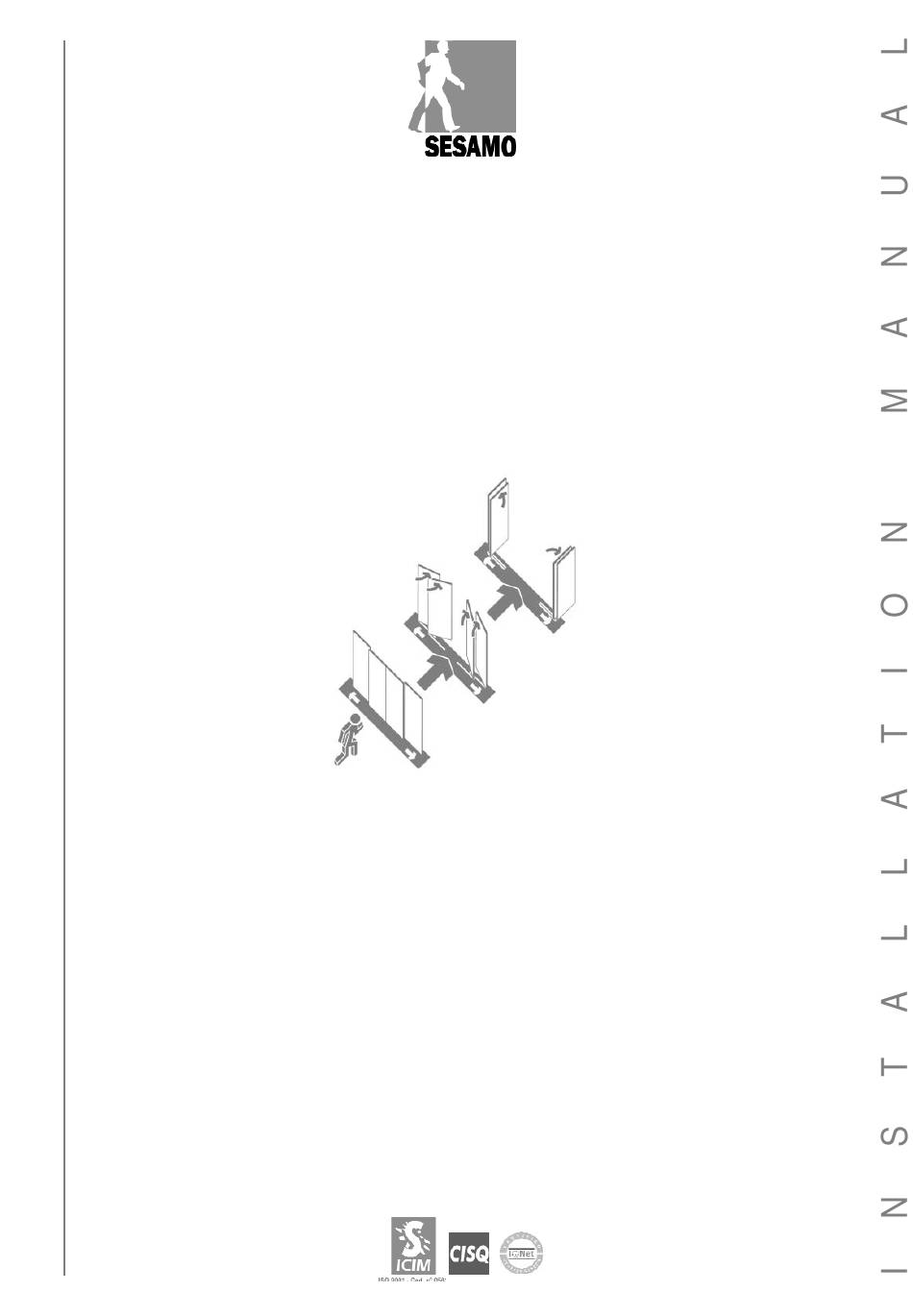

- Page 1 ARIETE Antipanic Breakaway System...
- Page 2 ARIETE Installation Manual...
-
Page 3: Table Of Contents
ARIETE system. The manufacturer declines any responsibil- individual phase of the installation must be performed in con- ity in the event that the internal parts of the ARIETE system formity with the current regulations and, in any case, accord- are tampered with or used improperly. The installer of the ing to the dictates of general good practices. -
Page 4: Operation Typology Of The Ariete Antipanic Breakaway System
Installation Manual ARIETE Ariete is available in different models according to the characteristics of the leaf to which it must be coupled and on the basis of the surface finish. In particular, it is necessary to choose the type of system using the following stock table once the width and weight of the... - Page 5 Under-cover – under-carriage distance ATTENTION: Keep the Under-sliding leaf – floor distance 13mm minimum distance of 8mm Interior between the sash and the lower ARIETE section shown in the Exterior figure. For HC refer to the manuals of the automatism installed.
- Page 6 ARIETE Installation Manual PARTIAL ARIETE Breakaway system for sliding leaves only (Fig. 4 and 5). L.I. Example: 2 sliding leaves Fig. 4 Interior Exterior SA Breakaway direction Crossbeam inspection side Emergency passageway Fig. 5...
- Page 7 ARIETE Installation Manual PARTIAL ARIETE Standard Doors (Fig.6a) SESAMO Magnum Doors (Fig.6b) Fig. 6a Fig. 6b Under-cover height Fixed leaf height Sliding leaf height HCo + HC –HAr - HT ARIETE system height 78,5mm Under-cover – under-carriage distance Under-sliding leaf – floor distance...
- Page 8 ARIETE Installation Manual FORMULAS for crossbeams with the ARIETE system Fig. 12 End overlap Width of useful passageway Leaf width Casing thickness Leaf thickness Machine quotient in rear Partial ARIETE Refer to the formulas provided in the manual of the automatism used without any modification.
-
Page 9: Preparation Of The Sliding Leaf
In the case of Standard doors: - Perform the 3 slots and the 2 holes with diameter of 6.5mm on the upright A that will host the vertical rod of the ARIETE system (Fig.14). - Prepare a steel plate of minimum thickness 4mm with length equal to L = Leaf Width –... - Page 10 Magnum sections, perform: - The 3 slots and the 2 holes of diameter 6.5mm on the upright A that will host the vertical rod of the ARIETE system (Fig. 19). - An opening on the upper crosspiece B (Fig. 20).
-
Page 11: Preparation Of The Semi-Fixed Leaf
(Fig. 24). Fig. 23 Fig. 24 ATTENTION: Use appropriately sized doors suitable to support the forces and the stresses caused by the breakaway of the leaves, in the case of emergency, by means of the ARIETE system Fig. 25... -
Page 12: Phases Of Assembly And Installation Of The Ariete System
- All the architectonic and structural parts that support the automatism (beam fastening surfaces, etc.) and all the elements that make up the installed automatism (carriages, guides, etc.) are suitable to support the forces and the stresses caused by the breakaway of the leaves, in the case of emergency, by means of the ARIETE system. - Page 13 ARIETE Installation Manual Fig. 28 Cutting of the sections Identify the correct case (Case A or Case B) referring to the various operational typologies listed below (Fig. 32-40). ATTENTION: Be very careful to cut the correct side. Cut the upper section and the lower section at the correct length Fig.
- Page 14 ARIETE Installation Manual PARTIAL ARIETE 1 Leaf opens LX P.A. 1 Leaf opens RX P.A. Fig. 32 Fig. 33 2 Leaves P.A. Fig. 36 TOTAL ARIETE 1 Leaf opens RX T.A. 1 Leaf opens LX T.A. Fig. 38 Fig. 39 2 Leaves T.A.
- Page 15 ARIETE Installation Manual Cut the floor guide section at the correct length using the Fig. 41b indicated formula (Fig. 41a-c). HA HL Fig. 41a Lg = Leaf width + 30 leaf in open position Fig. 41c Assembly of the rotation pin complex (Fig. 42a)
- Page 16 ARIETE Installation Manual Positioning of the (strickle) rotation pin complex onto the sliding leaf SESAMO Magnum Sections Thread the (strickle) rotation pin complex onto the vertical section of the sliding leaf, inserting the lower blade cover into the correct position (the 2 conical couplings of the cover...
- Page 17 If necessary, loosen the fastening screws of the strickle to the upright previously positioned (Fig. 43 and 44). In the case of SESAMO Magnum doors the screws are screwed to the lower section/leaf fastening plaques. In the case of SESAMO Standard doors the Fig.
- Page 18 ARIETE Installation Manual Positioning of the guide shoe complex onto the sliding leaf Insert the guide shoe complex into the vertical section of the sliding leaf and fasten it with two M6x8 TE flanged screws (Fig. 50). In the case of Standard sections place between the internal upright and the guide shoe rotation pin one or more steel or aluminium blades (Fig.
- Page 19 TOTAL ARIETE SESAMO Magnum Sections In the case of SESAMO Magnum sections fasten the semi-fixed release coupling to the floor, in a central position with respect to the semi-fixed leaf, with 2 6mm plugs and 2 AF 4x40 screws and work on the slots to move the coupling into contact with the hemispherical zone of the release device (Fig 56, 57).
- Page 20 (Fig.53a, b). Fastening of the sealing sections ( TOTAL ARIETE - Cut the sealing section to the length HL = H leaf – 78.5 mm (Fig. 41a, 59a).
-
Page 21: Leaf Positioning
Installation Manual Leaf positioning Leaf position TOTAL ARIETE: Both with the Standard doors as well as with the SESAMO Magnum doors the distance between the sliding leaf and the semi-fixed leaf must be 30mm (Fig 61a, b). Fig. 61a Fig. 61b... - Page 22 (Fig. 67). G < L / 2 Fig. 66 ATTENTION: Use safety glass suitable to support the forces and the stresses caused by the breakaway of the leaves, in the case of emergency, by means of the ARIETE system. Fig. 67...
-
Page 23: Magnetic Reed Installation
ARIETE Installation Manual Magnetic reed installation The magnetic reed (Fig. 68, part. A) enables the monitoring of the opening of the semi-fixed leaf and thus communicates to the control unit of the automatism the occurrence of the breakaway. The upper crossbeam of the semi-fixed leaf and the respective rabbet section must be drilled according to the scheme in Fig. -
Page 24: Installation Of The Safety Photocell (Optional - Partial Ariete)
Fig. 72b ATTENTION: The dimensioning of the KIT is based on the elements present in the Sesamo catalogue, the combination with different devices is not recommended. Installation • The preliminary operations provide for the arrangement of an adequate canalisation for the cables of the beams. The openings of the canalisations for the TX and RX beam must be located at the same height above ground, not less than 2100mm (lower heights may confuse the passage of a person with the occurrence of the breakaway). - Page 25 ARIETE Installation Manual • Fasten the plaque to the wall by means of the AF screw provided in the KIT, screwing it into the plug previously introduced into the wall. Pay particular attention to the alignment of the plaque, the bracket must be perfectly perpendicular to the floor (Fig.
-
Page 26: Testing Of The System
ATTENTION: Verify that at the moment of breakaway the control unit of the automatism registers the event, interrupting the sliding of the leaves. If this does not occur, check the electrical connections cited in the chapters regarding the magnetic reed (total Ariete) and the safety photocell. - Page 28 ARIETE Antipanic Breakaway System SESAMO srl Str. Gabannone, 8/10 • 15030 Terruggia (AL) • Italy Tel: +39 0142 403223 • Fax: +39 0142 403256 www.sesamo.org • E-mail: info@sesamo.org...
