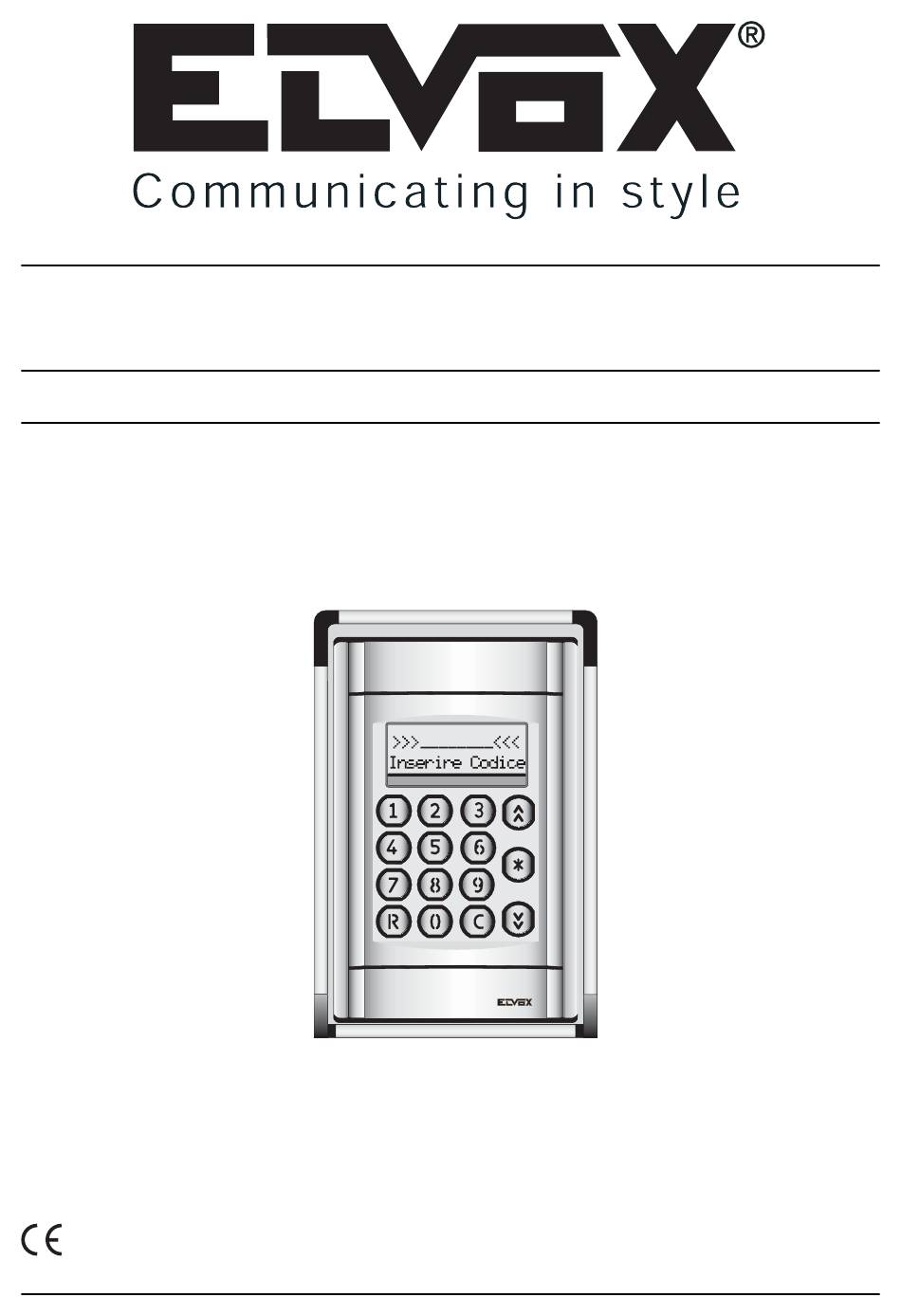

- Page 1 “KEYPAD ENCODED WITH TOUCH KEYS” (ALPHANUMERICAL) CONNECTION MANUAL Type 8017 Il prodotto è conforme alla direttiva europea 89/336/CEE e successive. Product is according to EC Directive 89/336/EEC and following norms. Cod. S6I.801.70E RL. 00 11/2007...
-
Page 2: General Operation
DESCRIPTION The control module type 8017 is a component for the modular system of panels series 8000. The entrance panels may be pre- set for the flush-mounted or surface wall-mounted installation, possible provided with rainproof cover. The entrance panel may... -
Page 3: Terminal Board Layout
TERMINAL BOARD LAYOUT: The control unit has the following terminals: - 4 terminals for the connection of 4 code reading contacts (“probes”). The terminals are marked T1 , T2, T3, T4 (the latter on a strip connector for local connection). NB: Connect the grey wire of the “probe” to ter- minal T1-2-3-4 and the black wire to an earth terminal (4). - Page 4 ” for access to programming of accessory parameters: priorities, selection of keys on which to be active, type of key. See below for these programming procedures. 6) In the standard case of memorisation, after a brief interval Type 8017 returns to point 3 in preparation to acquire new subse- quent keys.
- Page 5 For each of the 4 outputs, the following operating modes can be programmed: - Timed operation : On each reading of the key, the output is activated for the time set in the memory (from 1 to 2550 sec). When this time interval elapses, the output is auto- matically deactivated.
- Page 6 Command TX Output1-2-3-4Aux: Enables the association, for each of the 4 outputs, of a different digibus command to send on the digital line, at the same time as activation of the corresponding touch key. This enables activation of “remote” relays placed even far from the control unit (up to 1 Km directly, and more with repeaters).
- Page 7 MODE VALUE TOTAL EFFECT The output functions in timed mode (is activated and remains active only for the corresponding set time interval) As per 0 (above) but also activates output 4 (with specific time interval). In practice 2 devices are activated with time intervals that can differ greatly As per 0 but also transmits the programmed code on the serial line (for remote activations/recordings) Combination of points 2 and 1.
- Page 8 SOFTWARE FOR PROGRAMMING VIA PC: Type 8017 can be interfaced by means of the special PC software equipped with the interface type 6952. The software, named “ELVOX - DATA ORGANIZER” (configurable also for other devices) enables execution of the following main functions: Intuitive...
- Page 9 CONNECTION OF PC FOR DATA DOWNLOAD/UPLOAD: This is performed by means of the specific interface (type 6952) connected to the COM port of the PC as shown in the example below (NB: in this case the panel is type 8017). N.B. Avoid other digital...
-
Page 10: Appendix A Table
APPENDIX A TABLE CALL INTERPHONE 32 (call from an interphone to switchboard) FUNZ_F2 LOCK 36 (lock release command) FUNZ_F1 FUNZ_F3 FUNZ_F4 FUNZ_F5 FUNZ_F6 FUNZ_F77 FUNZ_F78 F_ALARM F_STOP_ALARM F_ACTIV_DEVICE F_DISACTIVE_DEVICE CALL_PANEL 33 ("audio" call from panel to interphone) CALL_SELFST_PANEL 49 ("video" call from panel to interphone) CALL_PANEL+TLC 161 (similar to above but for intercommunicating calls) CALL_PANEL+INTERC... - Page 11 N.B.: By pressing “^” key subsequently (arrow up) it is possible to modify the value according to 0 (values between 0 and 3). By means of this function it is possible to modify the working time in case module type 8017 is supplied complete of internal clock (available on request and not supplied as standard facility).
- Page 12 Tel. 049/9202511 r.a. - E-mail: filialemilano@elvoxonline.it Phone international... 39/49/9202511 Telefax Italia 049/9202603 FILIALE TOSCANA: Telefax Export Dept... 39/49/9202601 Via Lunga 4/R 50142 FIRENZE ELVOX INTERNET SERVICE Tel. 055/7322870 - Telefax. 055/7322670 E-mail: info@elvoxonline.it E-mail: filialetoscana@elvoxonline.it http://www.elvox.com E-mail export dept: elvoxexp@elvoxonline.it...
