Summary of Contents for Millipore SDS 200

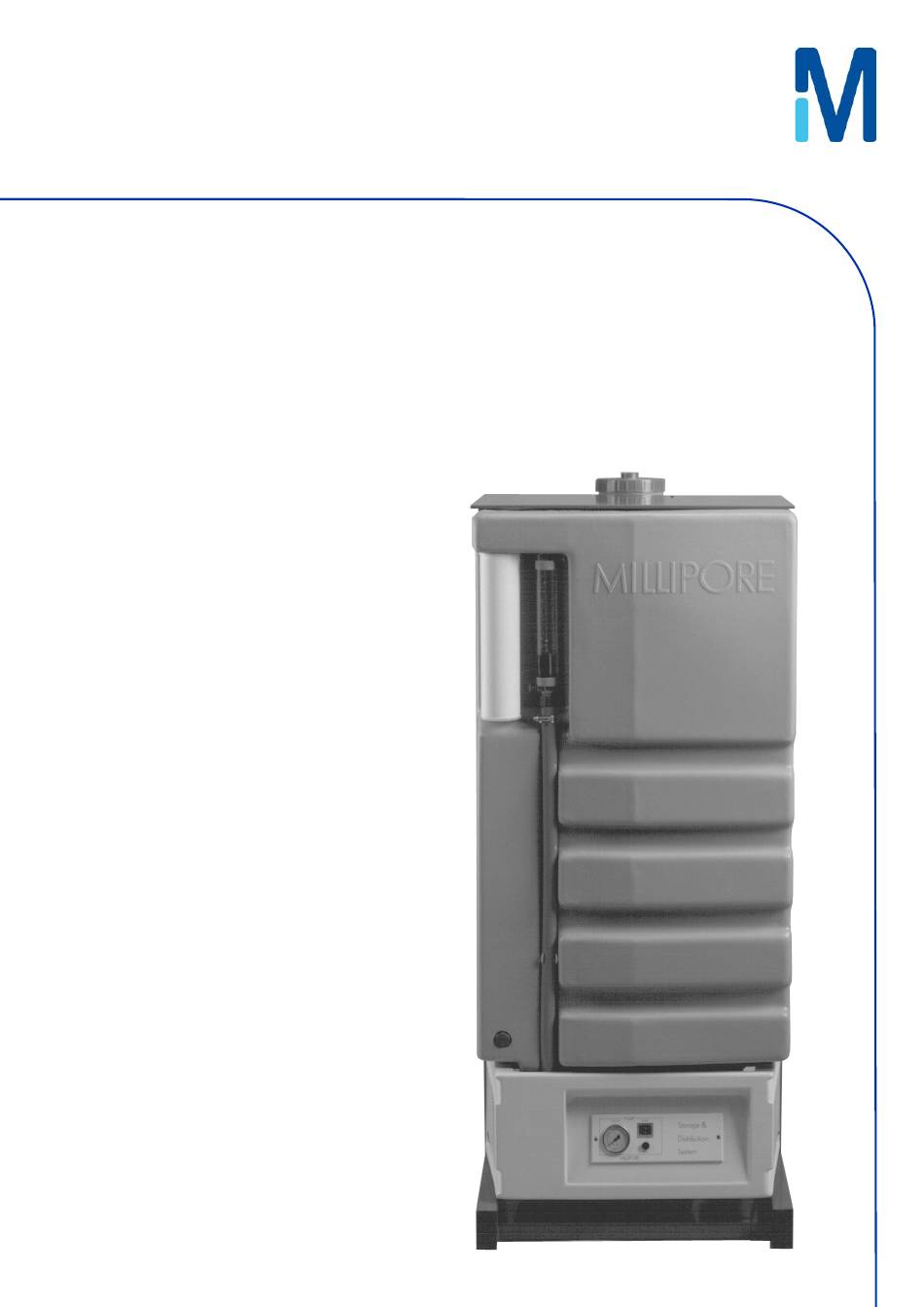

- Page 1 User Manual SDS 200 - SDS 350...
- Page 3 Copyright 2012 Millipore SAS. Printed in France. All rights reserved. This book or parts thereof may not be reproduced in any form without the written permission of the publishers. The photos are non-contractual. PF08837 - V3.0 – 12/2012 Manufacturer: MILLIPORE SAS, 67120 MOLSHEIM, FRANCE.
- Page 4 Product warranty and limitation of liability The applicable warranty and limitation of liability for the products listed in this publication may be found at http://www.millipore.com/ec/cp3/terms within the "Terms and Conditions of Sale" applicable to your purchase transaction. Recycling Directive 2002/96 EC: For European users only The symbol “crossed bin”...
-
Page 5: Table Of Contents
Table of Contents ..........................1 HAPTER NTRODUCTION ........................................1 SING THIS ANUAL Matching this Manual with your Water System ..............................1 Installation Information ......................................1 ......................................... 2 AFETY NFORMATION Safety Statement .......................................... 2 Safety Symbols ..........................................2 ........................................2 ONTACT ILLIPORE By Internet ............................................ -
Page 7: Chapter 1 Introduction
This manual is intended for use with a Millipore SAS SDS 200 or SDS 350. This User Manual is a guide for use during the normal operation and maintenance of a SDS 200 or SDS 350 Water Storage and Distribution System. It is highly recommended to completely read this manual and to fully comprehend its contents before attempting normal operation or maintenance of the SDS. -
Page 8: Safety Information
Do not open the system cabinet at any time. Electrical and mechanical components inside HAZARD the Water System could pose a hazard. A qualified Millipore SAS Service Representative should perform any work that needs to be done while the system cabinet is opened. -
Page 9: Chapter 2 Product Information
The table below shows the main components which come with the SDS. SDS WITH RELAY COMPONENTS SDS TANK ALONE SDS WITH PUMP (no pump) Distribution Pump Power relay for pump/motor Back-pressure valve SDS level sensor Level Sensor Jack connector Mono Stereo Stereo Pressure Gauge SDS 200 - SDS 350... -
Page 10: Standard Sds
Water level sensor Inlet fitting for purified water Back pressure valve (on loop return point) Isolating valve on feed line to pump Distribution pump Pump outlet Draw off valve for complete emptying of reservoir Drain tubing SDS 200 - SDS 350... -
Page 11: Chematic Of Ain Omponents
Back pressure valve A valve that opens at a specific pressure thus creating a constant pressure in a distribution loop. Distribution pump Used to pump water from the SDS to a distribution loop (standard version). SDS 200 - SDS 350... -
Page 12: The Front Panel
SDS 350 1420 mm 1020 mm 700 mm 700 mm 600 mm 600 mm SDS 200 SDS 350 Operating weight 260 Kg 430 Kg Dry weight 60 Kg 80 Kg Shipping weight 72 Kg 95 Kg SDS 200 - SDS 350... -
Page 13: Electrical Specifications
Purified water inlet to reservoir: 8 mm OD tubing ¾ inch NPT Male Distribution loop: inlet and return Drain capacity (overflow): 220 LPH at a maximum height of 200 mm from floor level Maximum length of drain tubing: SDS 200 - SDS 350... -
Page 14: Pump Performance
Product Information ERFORMANCE 30 liters/min at 3 bar pressure. Flow rate (gal/min) 115 V 230 V Pressure Pressure (bar) (psi) Flow rate (l/min) SDS 200 - SDS 350... -
Page 15: Chapter 3 Using The Sds
ETTING When using a SDS 200 or SDS 350 without pump, the default program setting is in the Water Purification System. It allows you to run the SDS without any pre-settings during the Installation procedures. The SDS is a “plug and play” system device. -
Page 16: What Is The Dist Mode
R E C I R C : 3 0 m i n / h NOTE: the SDS pump stops running automatically when the SDS is empty (below 0%) and does not restart until it is 10% full. SDS 200 - SDS 350... -
Page 17: Chapter 4 Maintenance And Alarms
At the same time than the Progard Pak. Fill the overflow with acid + pH indicator When the level of acid drops. Sanitization of reservoir Contact Millipore SAS for an adapted sanitization protocol. ANITARY VERFLOW EVICE The SDS Overflow Device should be filled with water plus a germicidal agent. This prevents bacteria from growing in the Overflow Device. -
Page 19: Chapter 5 Ordering Information
SDS-200 Tank 200L Tank only TANK00200 SDS-350 Tank 350L Tank only TANK00350 SDS tank RiOs vent filter 0.22 Aervent TANKVNT01 SDS tank Elix vent filter 0.22 Aervent, carbon and soda lime TANKVNT02 Automatic Sanitization Module TANKASMUV SDS 200 - SDS 350... -
Page 21: Chapter 6
230V ±10% with pump TANK5P350 Millipore SAS Spare Part FTPF03213 TANK50200 0.5 A T fuse 230V ±10% without pump TANK50350 Millipore SAS Spare Part FTPF00306 CONTACT MILLIPORE SAS IF THE MAIN POWER FUSE BLOWS AGAIN. ATTENTION SDS 200 - SDS 350... -
Page 22: Appendix 2 Checklist - What Inside The Shipping Box
NSIDE THE HIPPING Please use this Appendix to confirm that all items were shipped to you and are accounted for. Use the checklist below and account for each item prior to having a Millipore SAS Representative install your system. □ □...
