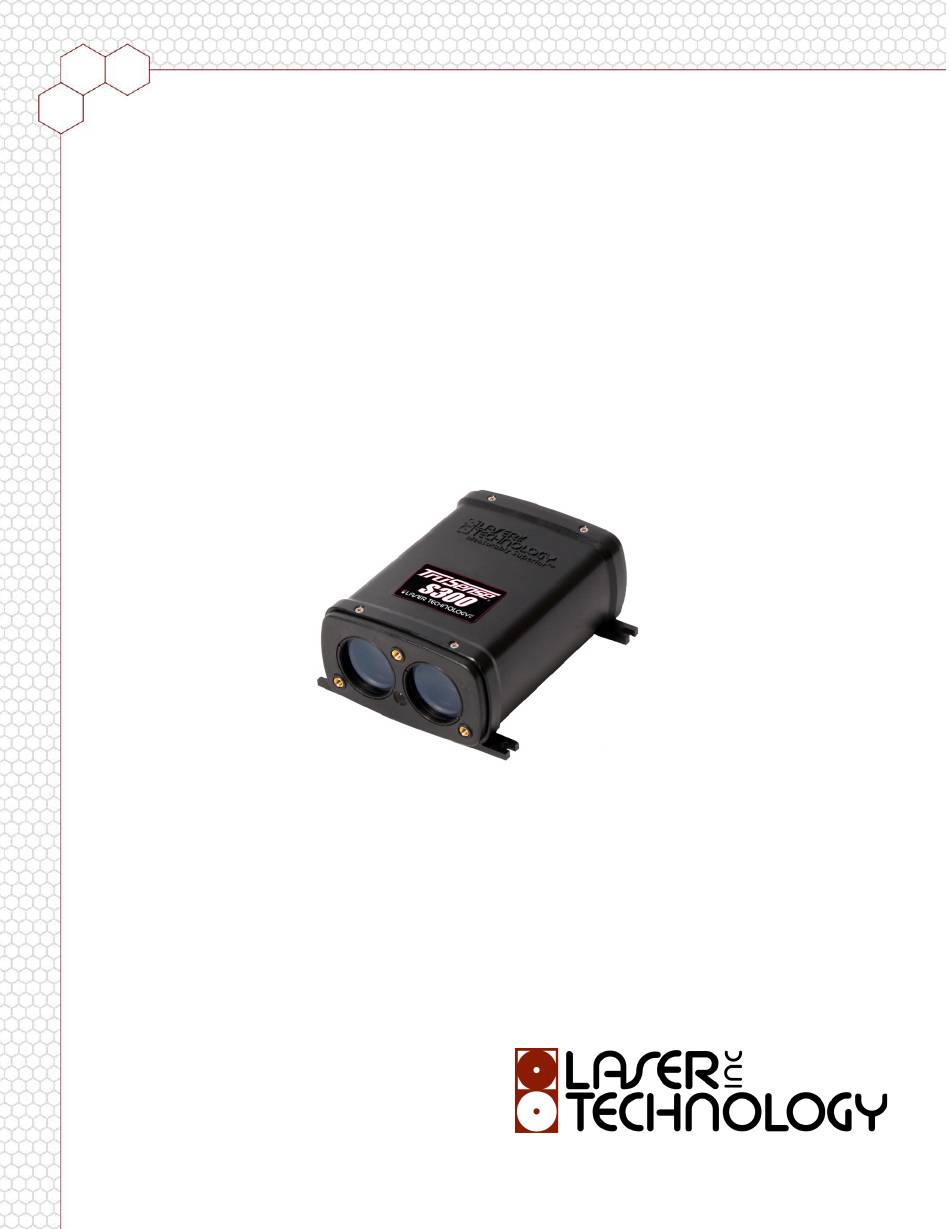

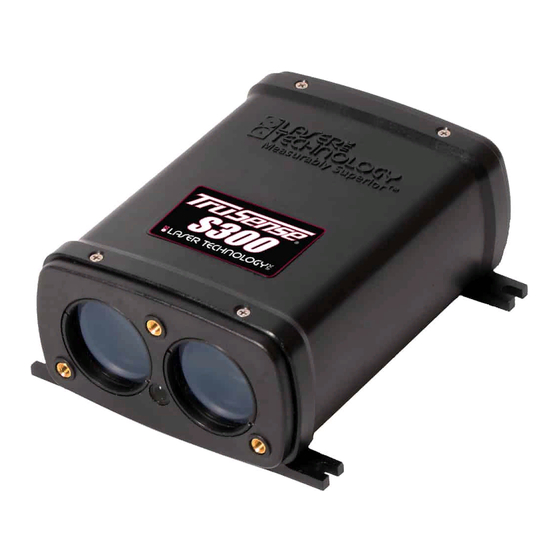

LTI TruSense S300 Series Integration Manual 1
Edition
Page 1
Laser Technology, Inc.
®
TruSense
S300 Series
User's Manual
Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
