This product manual contains important information about the safe installation
and use of this product.Please read and follow these instruction carefully and
keep this manual in a safe place for future reference.

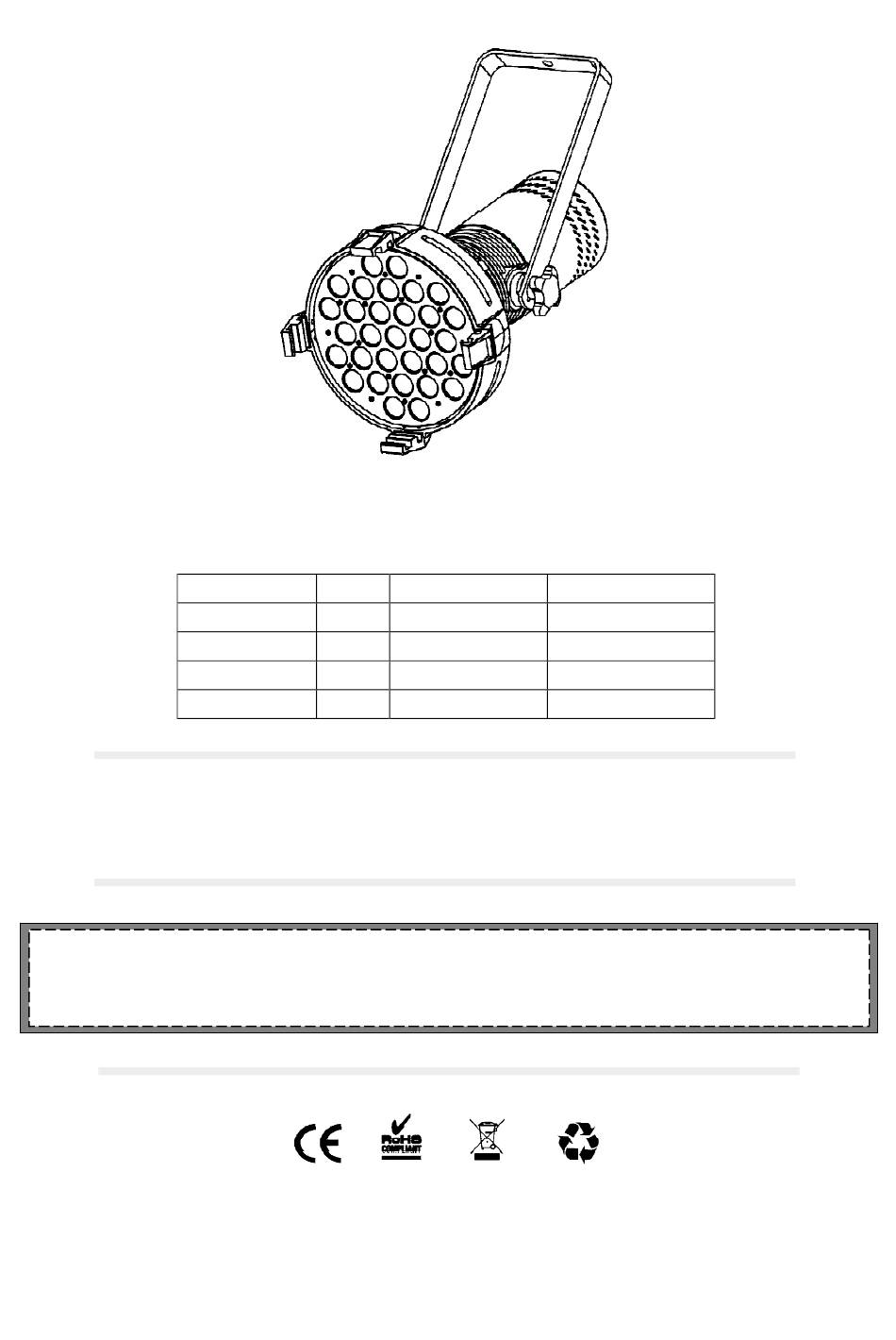

LED AUTO SHOW PAR LIGHT
Item
Power
310W
310W
370W
370W
User Manual
LED Chips
Color tempture
31 x Cree-XML
31 x Cree-XML
37 x Cree-XML
37 x Cree-XML
6000~6500K
6500~7000K
6000~6500K
6500~7000K
Advertisement
Table of Contents
Related Manuals for SUPER-CAN LD616-31106
Summary of Contents for SUPER-CAN LD616-31106
- Page 1 LED AUTO SHOW PAR LIGHT Item Power LED Chips Color tempture LD616-31106 310W 31 x Cree-XML 6000~6500K LD616-31107 310W 31 x Cree-XML 6500~7000K LD616-37106 370W 37 x Cree-XML 6000~6500K LD616-37106 370W 37 x Cree-XML 6500~7000K User Manual This product manual contains important information about the safe installation and use of this product.Please read and follow these instruction carefully and...
- Page 2 Understanding of Product Security Warning When unpacking and before disposing of the carton, check if there is any transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. Do not install the product or project the beam onto inflammable surfaces.
- Page 3 Main Technical Parameters Power supply Ø Rated Voltage: AC90~240V Ø Rated Frequency: 50~60Hz ± 10% Ø Rated Power: Item Power LD616-31106 310W LD616-31107 310W LD616-37106 370W LD616-37106 370W Ø Fuse: AC250V/5A Ø LED Type: Item Power LED Chips LD616-31106 310W...
- Page 4 Product Features Using the latest LED control technique, This newest intelligent LED Par light can realize intelligent operation and control through its special menu at the back. It’s more convenient and easy to operate.This product is designed for professional Car Exhibition, large concerts,wedding scene, small performances, slow club KTV and various performance occasion.
-
Page 5: Product Installation
Product Installation Power Connection Method Please connect power as following ： L（live wire）=brown wire E（earth wire）=yellow/green double color wire N （null line）=blue wire When connecting power, ensure that the voltage and frequency of power supply match the power requirement of the product. This equipment belong to class 1 protection equipment, therefore, the yellow-green double colors wire must be earthed correctly by qualified personnel. -
Page 6: Operation Method
Operation Method Back panel functions introduction POWER ：Power-Con input / output DMX：XLR IN/OUT MENU：Menu button/return button,enter the menu selection interface or previous menu ENTER：Confirmation button,used to confirm the selected function UP/DOWN ： Upward/downward select function or Parameter increment / decrement POWER ON / POWER OFF：Power switch FUSE：Fuse holder Menu Overview... - Page 7 Static Color Setting (STATIC) Press【MENU】menu to select【STAT】and press【ENTER】 to enter color static setting. Press【UP/DOWN】button to adjust the parameters of the brightness. After setting lighting fixture's static white, without press 【MENU】to exit, restart the lighting fixture's power supply. The setting was preserved. Exit menu, static color setting will be removed. Note: When entered this submenu, the light fixture will automatically set to the data status sent by the master, other light fixtures should be set as the slave.
- Page 8 DMX Channel Mode Design (PERS) Find【PERS】menu and press【ENTER】to enter DMX channel mode setting. Press【UP/DOWN】button to select【1CH / 2CH / 3CH】3 kinds of DMX channel modes. Press【ENTER】to confirm or【MENU】to exit.The setting will be automatically saved. Linear Dimming Speed Setting (DH) Find【DH】menu and press【ENTER】to enter linear dimming speed setting. Press【UP/DOWN】button to select【D1~D4】10kinds of dimming speed.
-
Page 9: Control Channel
Control Channel DMX Channel Table... -
Page 10: Maintenance
Maintenance Product Maintenance To prolong the life of the product,it is very important to do maintenance work. The environment is hash outdoors, or if the product is idle for a long time, damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on its LED lens cover, fan vents and housing. So it should be cleaned to maintain an optimum light output and at the same time to prevent it from corrupted by acid gas.
