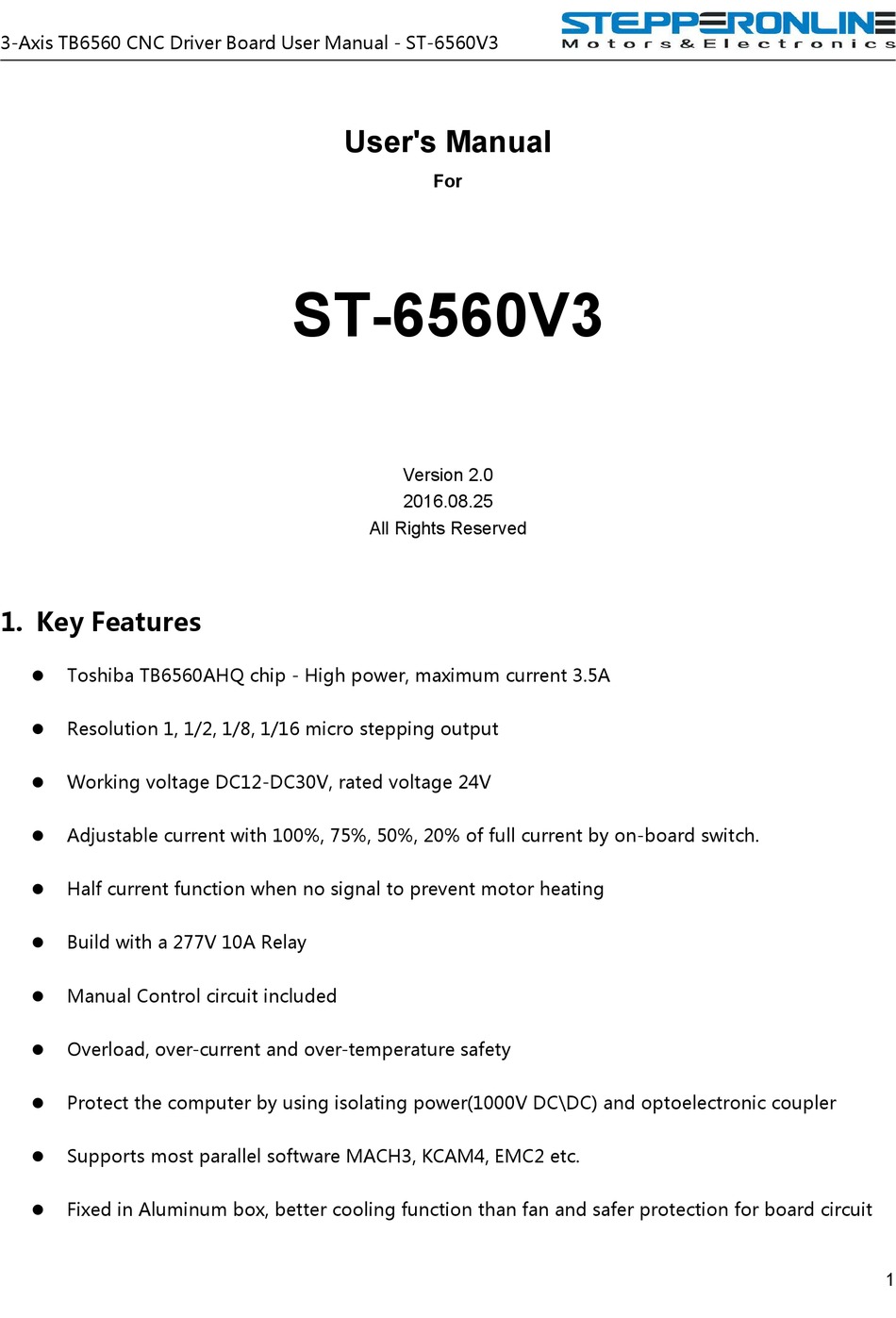

3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3
1. Key Features
Toshiba TB6560AHQ chip - High power, maximum current 3.5A
Resolution 1, 1/2, 1/8, 1/16 micro stepping output
Working voltage DC12-DC30V, rated voltage 24V
Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
Half current function when no signal to prevent motor heating
Build with a 277V 10A Relay
Manual Control circuit included
Overload, over-current and over-temperature safety
Protect the computer by using isolating power(1000V DC\DC) and optoelectronic coupler
Supports most parallel software MACH3, KCAM4, EMC2 etc.

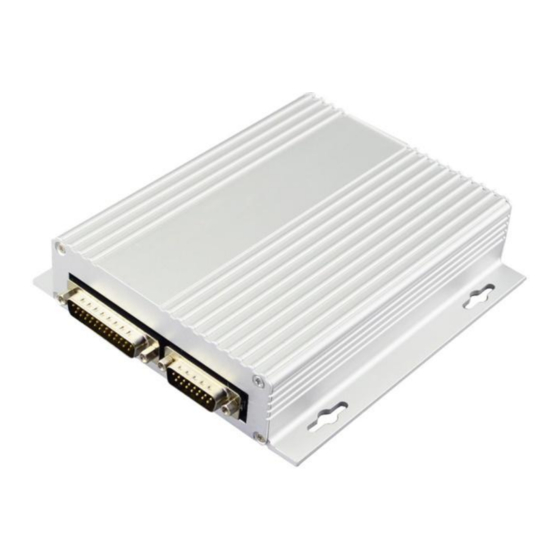

Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit
User's Manual
For
ST-6560V3
Version 2.0
2016.08.25
All Rights Reserved
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for StepperOnline ST-6560V3
Summary of Contents for StepperOnline ST-6560V3
- Page 1 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 User's Manual ST-6560V3 Version 2.0 2016.08.25 All Rights Reserved 1. Key Features Toshiba TB6560AHQ chip - High power, maximum current 3.5A Resolution 1, 1/2, 1/8, 1/16 micro stepping output ...
- Page 2 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 2. Photo of 3-AXIS CNC Board Isolated power Power light 3 axis drive module Microstep, decay, current setting 12~24v Power DB25 LPT motor X axis Parallel signal drive &optical coupling motor...
-
Page 3: Hardware Installation
3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 3. Hardware Installation 3.1 Selecting and Connecting Stepper Motors WARNING: INCORRECT WIRING OF THE STEPPER MOTOR TO THE DRIVE BOARD CAN LEAD TO IMMEDIATE DAMAGE OF DRIVE BOARD - DO NOT CONNECT OR DISCONNECT MOTORS WHILE POWER IS ON. - Page 4 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Center wire of each coil not connected (insulate termination). Remaining wires are connected to their corresponding terminal block location (i.e. A- wire is connected at A- location). c. 8 Wire Stepper Diagram 2 center wires of each coil connected (insulate connection) Remaining wires are connected to their corresponding terminal block location (i.e.
- Page 5 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Signal X axis pulse input X axis direction input Y axis pulse input Y axis direction input Z axis pulse input Z axis direction input LPT input signal 1 (corresponding IN1 on the board)
-
Page 6: Manual Control
3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 3.3 Manual Control Input Signal 0V~5V X axis pulse input X axis direction input Y axis pulse input Y axis direction input Z axis pulse input Z axis direction input All axis enable input Connect to the collector of NPN in relay, and connect to 24V through relay Connect to the base of NPN in relay, and pull-up to 5V by 4.7K resistance... - Page 7 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 4. Setting 4.1 Current adjusting and default testing Working Current--> Pause current 20%-->20% 50%-->20% 75%-->20% 75%-->50% 100%-->20% 100%-->50% EXAMPLE: 75%-->20% Working current=3.5A *75%, Pause current=3.5A *20% 4.2 Subdivision mode & Decay mode setting...
- Page 8 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 5. How to use MACH software? See Pic.1: open MACH3, choose Mach3mill,click OK. Pic.1 See Pic.2, there are common use buttons.
- Page 9 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Pic.2 See Pic.3, open config-----ports and pins Pic.3 See Pic.4, Circle 1 frequencies setting, to control the speed, and then click Circle 2 to define ports & pins.
- Page 10 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Pic.4 See Pic. 5, X\ Y\ Z\ axis “motor outputs” Pic.5 See Pic. 6, set “output signals”...
- Page 11 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Pic.6 See Pic. 7, pulse width setting: Step impulse: 5us, Direction impulse: 5us Pic.7 Pls click “load G-code”, see Pic.8 and Pic.9...
- Page 12 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Pic.8 Pic.9 After open the G-code, the Reset light is blinking which means you are in stop condition. You can solve it by clicking the Reset button(see circle 1), then click circle 2 to start“Cycle-start”.
- Page 13 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 Pic.10 If you need manual control, pls click TAB button (see Pic.11) Pic.11 6. FAQ 1. Q: For long time working, the aluminum housing very hot, it’s normal? A: Yes. It’s normal, at normal temperature, housing temperature reach 90℃ is normal.
- Page 14 3-Axis TB6560 CNC Driver Board User Manual - ST-6560V3 For further technical questions, please don’t hesitate contact us: technical@stepperonline.com.
