Summary of Contents for Fimap Disinfector

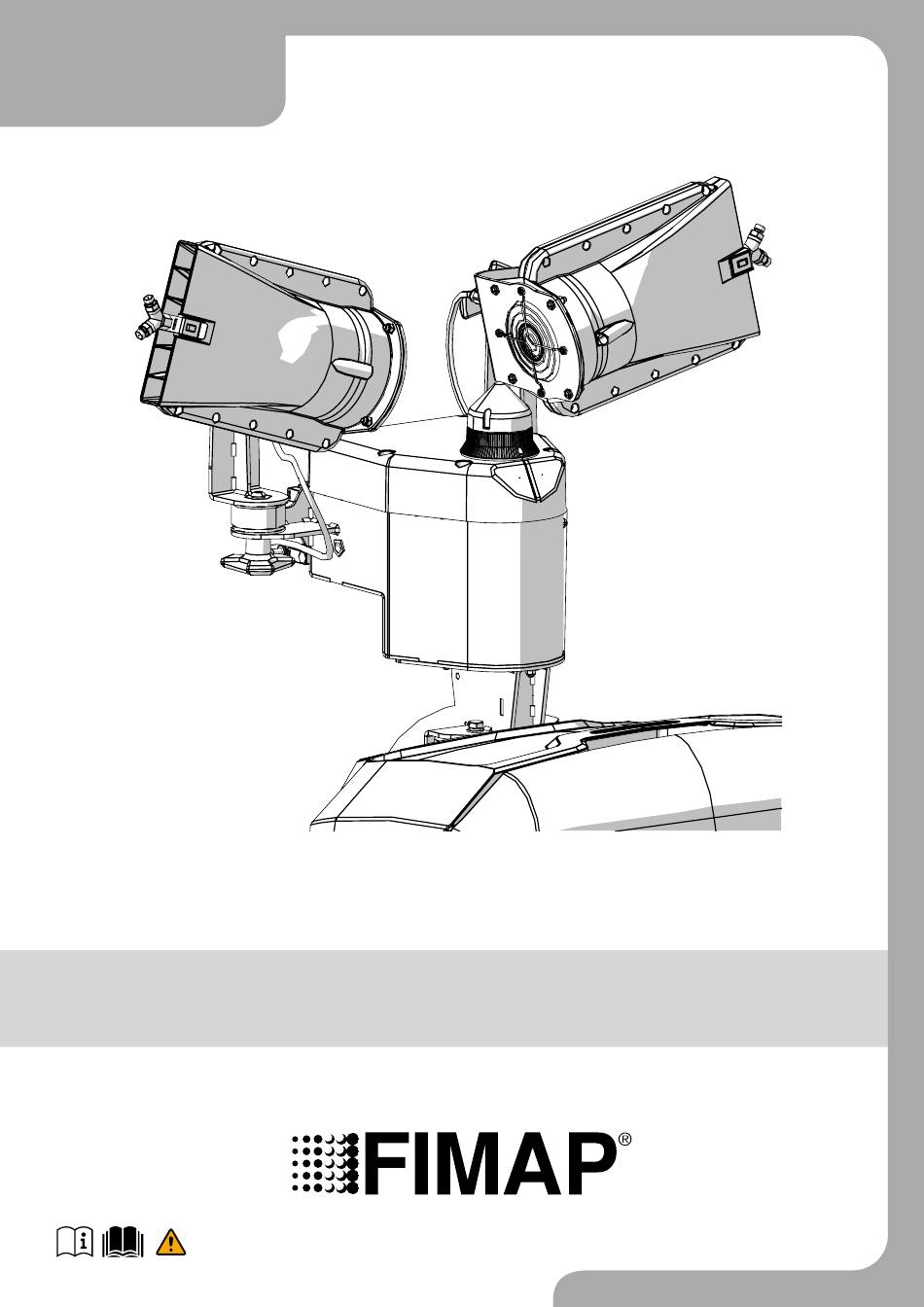

- Page 1 DISINFECTOR PROFESSIONAL SANITIZATION MACHINES USE AND MAINTENANCE MANUAL ORIGINAL INSTRUCTION DOC. 10098188 - Ver. AA - 07-2020...
-
Page 3: Table Of Contents
LOCATION OF THE MAIN MACHINE COMPONENTS ...............4 GENERAL SAFETY REGULATIONS ...................4 GENERAL DESCRIPTION ......................5 TECHNICAL DESCRIPTION ............................ 5 LABELS USED ON THE DISINFECTOR KIT ................5 PREPARATION OF MACHINE .....................5 FILLING THE SOLUTION TANK WITH WATER ...................... 5 SANITIZING SOLUTION ............................5 PREPARING TO WORK .......................6... -
Page 4: Location Of The Main Machine Components
LOCATION OF THE MAIN MACHINE COMPONENTS The main components of the disinfector kit are: 1. Lower nozzles. 2. Spray gun control switch. 3. Valve to control flow to the upper left nozzles. 4. Valve to control flow to the upper right nozzles. -
Page 5: General Description
The Disinfector kit is a device designed for the sanitization of floors which sprays special sanitizing products in areas with heavy footfall, thus reducing the presence of pathogenic material as it moves forwards. The machine with the disinfector kit must only be used for this purpose. -
Page 6: Preparing To Work
7. Close the cap correctly to prevent liquid leaking out when working. 8. Grip the canister handle to replace the canister in its compartment inside the solution tank. 9. Connect the male insert to the female insert in the cap of the detergent canister. 10. -
Page 7: Starting Work
6. When the drive pedal is pressed, the machine will start to move and spray the sanitizing product. N.B.: The sanitizing product is only dispensed when a certain speed is reached; below this speed, the disinfector kit will not be activated. -
Page 8: Additional Functions
ADDITIONAL FUNCTIONS TEMPORARY DEACTIVATION OF DELIVERY OF SANITIZING PRODUCT At the rear of the machine, there are two valves that control the flow of sanitizing solution to the upper nozzles; to prevent on of the two nozzles from working, proceed as follows: 1. -
Page 9: Routine Maintenance
ROUTINE MAINTENANCE Before carrying out any routine maintenance operations, proceed as follows: 1. Take the machine to the maintenance area. WARNING: the place designated for this operation must comply with current regulations concerning safety at work and current environmental protection regulations. 2. -
Page 10: Troubleshooting
TROUBLESHOOTING This chapter lists the most common problems linked with the use of the machine. If you are unable to resolve the problems with the information given here, please contact your nearest assistance centre. PROBLEM POSSIBLE CAUSE SOLUTION Check that the amount of sanitizing solution present in the machine water The quantity of sanitizing solution in the system is sufficient for the work to be carried out;... - Page 12 FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 S. Maria di Zevio - Verona - Italy Tel. 0039 045 6060497 - Fax 0039 045 6060440 E-mail: service@fimap.com Web: www.fimap.com...
