IMPORTANT!

Before installing and using

the machine it is compul-

sory that the installer and

users read and understand

all of the information in this

manual.

This manual is an integral

part of the machine; it must

always be available during

the normal operation of

the machine and it is impe-

rative that it is retained for

future reference until the

disposal of the machine.

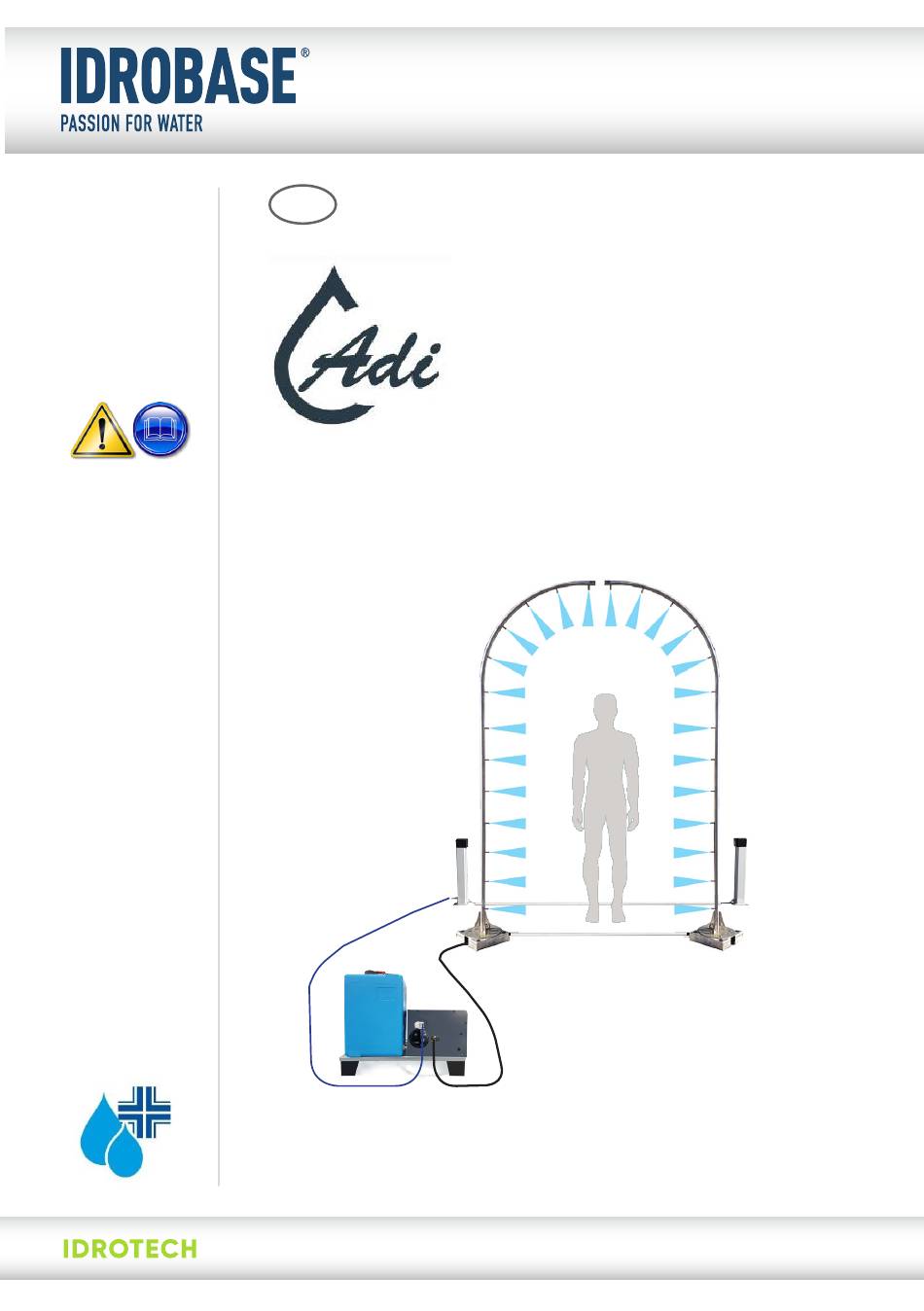

Use and maintenance manual

Arch for sanitizing people

LIB. 0143

Rev

.01

Ed.03.2020

Table of Contents

Need help?

Do you have a question about the Adi and is the answer not in the manual?

Questions and answers

Summary of Contents for IDROBASE Adi

Page 1 Use and maintenance manual Arch for sanitizing people IMPORTANT! Before installing and using the machine it is compul- sory that the installer and users read and understand all of the information in this manual. This manual is an integral part of the machine; it must always be available during the normal operation of the machine and it is impe-...
Page 2 CONGRATULATIONS ON CHOOSING ONE OF OUR PRODUCTS, THE RESULT OF TECHNOLOGICAL EXPERIENCE AND CONTINUOUS RESEARCH GOOD JOB!
Page 3 INDICE Prog. Descrizione Pag. 1 Organization of the manual Advice 2 Application fields General warnings Machine identification Warranty Return procedure Cases that release from liability the builder Safety Symbology Glossary Notes on graphic display 3 Product presentation Finality Composition 4 Data and technical characteristics Tecnical data 5 Unpacking and installation 6 Cleaning...
Page 4: Organization Of The Manual
IDROBASE GROUP SRL which is the exclusive owner. The descriptions and illustrations contained in this publication are not binding; IDROBASE GROUP SRL therefore reserves the right to make changes to organs, details, accessories supplies at any time, which it deems convenient for improvement or for any construction or commercial requirement.
Page 5: General Warnings
THE COPYRIGHT OF THIS MANUAL “INSTRUCTION FOR INSTALLATION AND USE” IS THE PROPERTY OF IDROBASE GROUP SRL. ALL OF THE INFORMATION (TEXT, DRAWINGS, DIAGRAMS, ETC.) CON- TAINED IN THIS MANUAL IS CONFIDENTIAL. NO PART OF THIS MANUAL CAN BE REPRODUCED AND DISTRIBUTED (EITHER IN PART OR COMPLETE) BY ANY MEANS OF REPRODUCTION, (PHOTOCOPIES, MICROFILM, OR OTHER) WITHOUT WRITTEN AUTHORIZATION FROM IDROBASE GROUP SRL.
Page 6: Warranty
The warranty does not cover cleaning the working parts or replacing consumable components such as pump oil, nozzle, lances, etc. IDROBASE GROUP SRL is not liable for any damage to persons or objects due to incorrect installation or improper use of the equipment.
Page 7 2 - APPLICATIONS SAFETY The ADI disinfection system is technically advanced and for correct installation, proper operation, correct use and maintenance, the staff in charge needs to be responsible and observe the following safety and behavior rules:. - DO NOT run the pump without water or circulate liquids with sand and other solid particles that affect the efficiency of the system.
Page 8 2 - APPLICATIONS FIELDS GLOSSARY The following symbols advise the operator of dangerous situations or the important operations for the correct running of the machine. WARNINGS SIGNS! THIS MANUAL MUST BE READ BEFORE USING OR CARRYING OUT MAINTENANCE OR OTHER OPERA- TIONS ON THE MACHINE.
Page 9 2 - APPLICATIONS FIELDS NOTES ON GRAPHIC DISPLAY Never remove labels from the machine. If these have deteriorated, request them from your dealer or directly from the manufacturer in order to replace them. THE MANUFACTURER IS RELIEVED FROM ANY LIABILITY IN THE EVENT OF INCIDENTS OR BREAKS DUE TO FAILURE TO COMPLY WITH THE WARNINGS.
Page 10: Product Presentation
3 - PRODUCT PRESENTATION FINALITY The ADI modular system is a system designed for the sanitization / disinfection of people in places where neces- sary, in compliance with the rules and regulations on safety and sanitation. At the passage, the system starts automatically and the person who passes between the two half arches is af- fected by spraying from head to toe without being wet.
Page 11: Tecnical Data
4 - DATI E CARATTERISTICHE TECNICHE TECNICAL DATA The table below shows the models and characteristics of the machine. Max pression Drop size Flow rate Power Wight Code Model No. nozzle [bar] [L/min] [KW] [Kg] 200W (220V- ZX.2198 10 mcr 50Hz) DIMENSIONS L [mm]...
Page 12: Unpacking And Installation
5 - UNPACKING AND INSTALLATION UNPACKING The machine is packed in a simple cardboard wrapper to protect it. The cardboard wrapping must be re- moved with appropriate means; the use of cellophane, staples and adhesive tape, in the packaging itself, can cut or injure if not handled with care.
Page 13: Standard Equipment
Always use the forklift truck to move or move the product. STANDARD EQUIPMENT • Make sure that the following elements are contained in the packaging of the purchased product: • ADI - Arco sanitation system for people with required kits; • User manual;...
Page 14: Installation And Connection
5 - UNPACKING AND INSTALLATION 5.7 INSTALLATION AND CONNECTION The first operation to be done is to identify the environment where to install the PUMPING MODULE KIT, which must be installed in a well-ventilated and sufficiently spacious place, positioning it 30 cm from the walls and which complies with current regulations.
Page 15: Preliminary Activities
5 - UNPACKING AND INSTALLATION PRELIMINARY ACTIVITIES Make sure that the tank 50 L(E) is loaded (please note that 380 drives are guaranteed with the 50 liter tank) Give power to the main switch (D) by setting it to ON. Act on the pump module switch (C) and turn it to the ON position, at this point the pump module starts.
Page 16 5 - UNPACKING AND INSTALLATION FIRST START INSTRUCTIONS transmitter receiving 1 - Fill the tank. 2 - Remove the highest nozzles of the arc (A) 3 - Operate the system by pressing the ON/OFF switch on the control panel. 4 - Occlude the photocells in order to keep the system running. 5 - Operate the system until the system has been emptied of all air present in the circuit.
Page 17 TIPICI PER SALDATURE D'ANGOLO Il presente disegno è di proprietà esclusiva di IDROBASE GROUP S.r.l. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, è vietata secondo i termini di legge. This drawing is the exclusive property of IDROBASE GROUP S.r.l. Reproduction in whole and/or partial disclosure to third parties, without our express written permission, is prohibited according to the terms of the law.
Page 18 5 - UNPACKING AND INSTALLATION ❶ ❹ ❷ ❸ 591M4A ❺ ❻ ❼ ❼ ❼ ❽ ❾ ❿ ⓫ ⓬ Italiano English DOC-L DOC-LN CSSN CLMN Français Русский DELTA-I SEM-2 SET-I TSP00 S6000 DELTA-SI SET-K TSP01 S9000 DOC-I ame.com X = 458 (DOC-L/DOC-LN) X = 958 (CSS/CSSN - CLM/CLMN) - ver.
Page 19 5 - UNPACKING AND INSTALLATION Raccomandazioni per il corretto funzionamento delle fotocellule Recommendations for the correct functioning of the photocells allineamento/alignment emittente ricevente issuer receiving • Assicurarsi che le fotocellule siano allineate. Se non viene rispettato l’allineamento delle due fotocellule (emittente e ricevente), l’impianto non viene arrestato dopo 10 secondi, ma lavora in modalità...
Page 20 5 - UNPACKING AND INSTALLATION Arch support assembly instructions 1 - Fasten the arch support to the relative steel plate using the 4 four screws provi- ded. Position the connection of the polya- mide tubing according to the direction as indicated by the arrow.
Page 21 5 - UNPACKING AND INSTALLATION ADI MOUNTING SEQUENCE 1 - Installation of arches (A-A1) on the anchor base (B-B1). 3 - Connect the arc to the pumping module (C) with the polyamide tube kit (detail 1) 4 - Position the photocell kit (D) and connect the connector (E).
Page 22: Preventive Maintenance
IMPORTANT!! The use of the ADI system requires the user to rinse at the end of the use by following the following mandatory operations: 1- empty the tank of the disinfectant product.
Page 23 6 - CLEANING DESTRUCTION AND DISPOSAL WARNING! THE DESTRUCTION OF THE PRESSURE WASHER MUST BE CARRIED OUT ONLY BY A TRAINED PERSON OR BY A QUALIFIED TECHNICIAN. When it has been decided to destroy the machine and render it unusable, drain the lubricanting oil from the high pressure pump.
Page 24: Operation And Use
The system is ready for use only after performing the operations indicated in section 5.7 INSTALLATION AND CONNECTION RANGE OF APPLICATIONS The ADI modular system is a system designed for the sanitization / disinfection of people in places where necessary, in compliance with the rules and regulations on safety and sanitation. WARNING! THE ADI SANITIZATION SYSTEM CANNOT BE USED IN ENVIRONMENTS WITH EX- PLOSIVE DUST PRESENT IN THE ENVIRONMENT IN WHICH IT OPERATES.
Page 25 7 - OPERATION AND USE SAFETY EQUIPMENT FOR THE OPERATOR During the use of the system it is mandatory to wear the following safety clothing: • Goggles, if possible a protective mask. • Boots with non-slip sole. • afety gloves. TRAINING The owner and / or supervisor will be responsible for assigning an operator to use the system and training it in accordance with the provisions of this manual.
Page 26 Turn on the ADI sanitation system by turning the main switch of the pumping module to the ON position. To turn off the ADI sanitation system, turn the main switch of the pumping module to the OFF po- sition. WARNING! CARE AND ATTENTION MUST BE TAKEN WHEN USING THE PRESSURE WASHER.
Page 27: Storage Operations
8 - USER INSTRUCTIONS STOPPING AND CLOSE OF WORK Once the work cycle is finished, stop the system and perform the following operations: Turn the ignition switch to the OFF position. Remove the plug from the socket. Eliminate any pressure that remains in the high pressure line. STORAGE OPERATIONS Wait for the machine to cool down, taking care not to leave it unattended or in the vicinity of flammable materials...
Page 28: Demolition And Disposal
10 - DEMOLITION AND DISPOSAL WARNING! THE DEMOLITION OF THE MACHINE MUST BE CARRIED OUT ONLY BY QUALIFIED PERSONNEL OR BY A SPECIALIZED TECHNICIAN. When it was decided to destroy the machine and make it unusable, empty the contents of the fuel tank, and drain the lubricating oil from the high pressure pump.
Page 29: Declaration Of Conformity
The undersigned that holds the technical documentation and is the representative of the manufacturer: IDROBASE GROUP S.R.L. Via dell’Industria, 25 35010 BORGORICCO (PD) - ITALIA DECLARES ADI - Arch to sanitizing people That the products following mentioned: serie: ZX.2198 Are in accordance with the following Directives: •...
Page 30 NOTES...
Page 31 NOTES...
Page 32 We thank you for your preference. The descriptions and illustrations contained in this publication are not binding; MANUFACTURER therefore reserves the right to make changes at any time, without obligation , to update the publication , to change bodies, details, accessories supplies for further improvement, or for any other manufacturing and / or commercial function greater safety.
