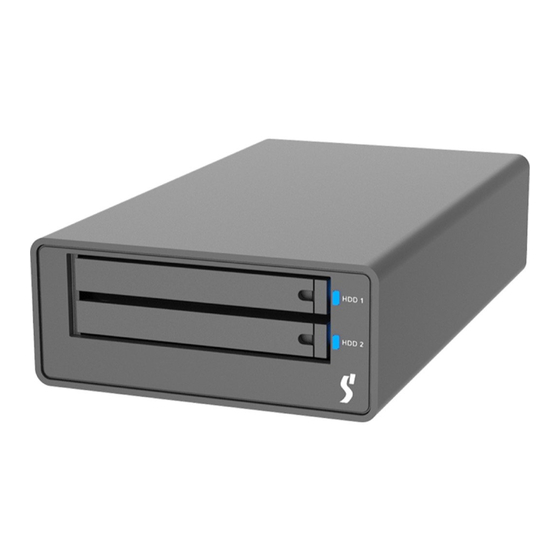

Stardom SOHORAID MR2-B31 User Manual
Hide thumbs Also See for SOHORAID MR2-B31:

Advertisement

Quick Links

SOHORAID
MR2-B31
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOHORAID MR2-B31 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stardom SOHORAID MR2-B31

  • Page 1 SOHORAID MR2-B31 User Manual...
  • Page 2: Table Of Contents

    SOHORAID MR2-B31 User Manual » MR2-B31 User Manual........1 1. Environmental Requirements ..........1 2. Product Appearance and Packaging Content ......1 3. Hardware Requirements and Precautions ......2 4. Hardware Installation ..............3 5. RAID Mode Setting ..............4 6. Description of HDD Indicators ..........5 7.
  • Page 3: Mr2-B31 User Manual

    No separate notifications will be provided by our company. If you would like to receive the latest STARDOM product information, manuals, and firmware, or have any questions regarding STARDOM products, please contact your local supplier or visit www.STARDOM.
  • Page 4: Hardware Requirements And Precautions

    9. We strongly recommend backing up important data stored on the MR2-B31 to another storage device or a remote site. STARDOM will not be held liable for the damage or loss of data you stored on the MR2-B31.
  • Page 5: Hardware Installation

    SOHORAID MR2-B31 User Manual 4. Hardware Installation Please follow the steps below to complete the hardware installation process: Step 1 Place the system on a stable surface. Ensure that the vent is not blocked and that it is installed in a well-ventilated area. (Please keep the product away from moisture and other...
  • Page 6: Raid Mode Setting

    SOHORAID MR2-B31 User Manual 5. RAID Mode Setting RAID 0 RAID 1 JBOD (default) RAID 0: Provide a big storage capacity and the data transfer efficiency, but no data porotection feature. RAID 1: Because of this Mirroring feature, your two HDDs/SSDs will keep an identical data after your wtiting works.
  • Page 7: Description Of Hdd Indicators

    SOHORAID MR2-B31 User Manual 6. Description of HDD Indicators HDD Status Light Status RAID 1 RAID 0, BIG JBOD HDD idle Blue light always on Blue light always on Blue light always on No HDD detected Red light always on...
  • Page 8: Install The Operation System Into This Device

    SOHORAID MR2-B31 User Manual 8. Install The Operation System Into This Device Install macOS (Use macOS Mojave 10.14 for example) 1. Need to have network online capabilities. If a wireless network is available, you can choose it from the Wi-Fi menu in the menu bar. This menu is also available in macOS Recovery.
  • Page 9 SOHORAID MR2-B31 User Manual 4. Install macOS. Choose Reinstall macOS from the Utilities window, and click continue. 5. Follow the onscreen instructions, select agree to the software license agreement, and then select the disk to start the installation. 6. Please allow installation to complete without putting your Mac to sleep or closing its lid. During installation, your Mac might restart and show a progress bar several times, and the screen might be empty for minutes at a time.
  • Page 10 SOHORAID MR2-B31 User Manual Install Windows (Use Windows 10 Home Edition for example) 1. The following content is an example of using the software "WinToUSB Free Edition". For related specifications and copyrights, please refer to the software official website for details.
  • Page 11 SOHORAID MR2-B31 User Manual 5. Select the USB external drive to install. 6. Select the version of the disk partition configuration according to your personal hardware specifications, then execute "Yes" to proceed to the next step. 7. Follow the default and follow the next step.
  • Page 12 SOHORAID MR2-B31 User Manual 8. Windows 10 is installed to an external hard drive. After the installation is complete, click the "End" button, and then confirm to leave. 9. Confirm that the external hard disk is inserted in the USB slot of the computer. After rebooting, enter the BIOS or UEFI adjusts to the USB external hard disk box as the first boot sequence, and saves the settings and leaves.
  • Page 13: Mr2-B31 產品使用說明

    SOHORAID MR2-B31 User Manual 關於這份手冊 感謝您使用 STARDOM 的產品。本手冊將介紹 STARDOM MR2-B31 產品。在您開始使用 STARDOM MR2-B31 產品前,建議您先閱讀過本手冊。手冊裡的資訊在出版前雖已被詳細確認,實際產品規格仍 將以出貨時為準;任何產品規格或相關資訊更新請您直接到 www.stardom.com.tw 網站查詢,本公司 將不另行通知。若您想獲得 STARDOM 最新產品訊息、使用手冊、韌體 , 或對 STARDOM 產品有任何 疑問,請您聯絡當地供應商或到 www.stardom.com.tw 取得相關訊息。 本手冊相關產品內容歸銳銨科技股份有限公司版權所有 1. 環境需求 工作溫度 : 0 ~ 40 ℃ (32 ~ 104 ℉ ) 儲存溫度...
  • Page 14: 硬體需求與注意事項

    SOHORAID MR2-B31 User Manual 正面與背面示意圖 前視圖 背視圖 A. 硬碟讀取燈 E. RESET 鈕 I. 電源插座 B. 硬碟抽取盒頂針孔 J. 電源開關 F. USB 3.2 Gen2 Type-C C. 硬碟抽取盒把手 G. RAID 切換鈕 D. 風扇 H. 風扇轉速切換按鈕 3. 硬體需求與注意事項 1. 硬碟格式化後,由電腦主機作業系統所辨識 MR2-B31 的實際總容量會與硬碟廠所標示的容量加總 後,將有所差異。 2. 當系統運作時,請勿任意移除,以免導致資料遺失。...
  • Page 15: 硬體安裝

    SOHORAID MR2-B31 User Manual 4. 硬體安裝 請參照以下步驟完成硬體安裝 步驟 1 將系統擺放於穩固平台,並確認散熱風扇口沒有被其他物體擋住,系統四周有適當的散熱空 間。 ( 擺放環境請避免接近潮濕或其他易對產品造成損傷的環境 ) 步驟 2 使用配件內附的頂針插入硬碟抽取 盒頂針孔後,抽取盒門閂將會輕彈 開啟,便可取出抽取盒。 步驟 3 安裝 2.5 吋硬碟安裝至抽取盒上。 注意:不建議使用不同廠牌,或是同廠牌不同型號的硬碟,避免影響效能。 步驟 4 硬碟安裝完成後,請將抽取盒平移放入主機內,並關上把手。 步驟 5 透過機體背面的 RAID 切換鈕,設定所要使用的 RAID 模式。 步驟 6 將相關連接線接上,最後接上電源轉接器。 步驟 7 硬體安裝完成。開啟電源後請透過作業系統進行後續格式化設定。請依照電腦作業系統指示...
  • Page 16: Raid 模式切換設定

    SOHORAID MR2-B31 User Manual 5. RAID 模式切換設定 RAID 0 RAID 1 JBOD ( 預設 ) RAID 0:一個大的獨立資料儲存容量,並可加速資料存取但無資料保護功能。 RAID 1:兩顆硬碟是鏡射關係因此擁有相同的資料,因此有一顆硬碟損毀仍然可以正常運作。 當放⼊入新硬碟取代損毀硬碟後,系統會自自動將資料重建到新的硬碟。 JBOD :可對兩顆獨立硬碟進行管理的工作,能大幅增加硬碟管理上的便利性,但無資料保護功能。 :兩顆硬碟的容量會被加總成一個大儲存容量,但無資料保護功能。 切換 RAID 設定的標準程序: 1. 請在 MR2-B31 連線到電腦後,一併打開電腦和 MR2-B31 的電源開關。 2. 在硬碟讀取燈的藍燈恆亮時,將在 MR2-B31 背板上設定 RAID 的「切換開關」調至 JBOD。 3. 使用頂針插入「重置鍵」,待硬碟讀取燈上的藍紫燈結束閃爍,並轉成恆亮藍燈後鬆開頂針。...
  • Page 17: 燈號說明

    SOHORAID MR2-B31 User Manual 6. 燈號說明 硬碟狀態燈 狀態 RAID 1 RAID 0, BIG, JBOD 硬碟閒置 藍燈恆亮 藍燈恆亮 藍燈恆亮 無硬碟 紅燈恆亮 紅燈恆亮 紅燈恆亮 資料存取 藍燈閃爍 藍燈閃爍 藍燈閃爍 硬碟損毀 紅燈閃爍 紅燈閃爍 資料重建 - 來源碟 呼吸燈(藍燈) 資料重建 - 目標碟 呼吸燈(紫燈) 7. 更換硬碟與資料重建說明 1. 使用 MR2-B31 過程當中 , 如硬碟故障而必須更換新硬碟時,請參考「章節 4_ 硬體安裝」,取出故...
  • Page 18: 外接磁碟安裝作業系統

    SOHORAID MR2-B31 User Manual 8. 外接磁碟安裝作業系統 安裝 macOS (以 10.14 Mojave 為例) 1. 需具備網路連線能力。若有無線網路可用,可以從選單列的 Wi-Fi 選單中選擇該網路。「macOS 復原」也提供這份選單使用。 2. 開啟 Mac 並立即按住 Command( ⌘ )-R,持續按住這些按鍵,直到出現 Apple 標誌或旋轉的地球。 看到工具程式視窗,即表示完成啟動: 3. 若必須在安裝 macOS 之前清除磁碟, 請從 「工具程式」 視窗選擇 「磁碟工具程式」 , 然後按一下 「繼 續」。您可能不需要清除磁碟,除非要將 Mac 賣或送給別人,或是有問題需要清除磁碟。...
  • Page 19 SOHORAID MR2-B31 User Manual 4. 安裝 macOS,在「工具程式」視窗中,選擇「重新安裝 macOS」,按一下「繼續」。 5. 按照螢幕上的指示,選擇同意軟體許可協議,然後選擇磁碟,開始安裝。 6. 請不要讓 Mac 進入睡眠或闔上上蓋,以利安裝程序順利完成。安裝期間,Mac 可能會重新啟動並 顯示進度列好幾次,而螢幕畫面也可能會一次空白幾分鐘時間。...
  • Page 20 SOHORAID MR2-B31 User Manual 安裝 Windows (以 Windows 10 家庭版為例) 1. 以下內容為使用工具軟體「WinToUSB 免費版」作為範例,相關規範與版權請到軟體官網詳閱說明。 2. 軟體安裝後,連續按兩下桌面的捷徑圖示,開啟 Hasleo WinToUSB。 3. 在界面左方選擇「鏡像到 USB」,再點選右方資料夾圖示來選擇 Windows 10 的 ISO 檔。 4. 選擇要安裝的 Windows 版本,執行下一步。 註:WinToUSB 免費版不支援 Windows 專業版與企業版。...
  • Page 21 SOHORAID MR2-B31 User Manual 5. 選擇要安裝的 USB 外接硬碟。 6. 依照個人硬體規格選擇磁碟分割配置的版本,之後執行「是」進行下一個的步驟。 7. 依照預設值,執行下一步。...
  • Page 22 SOHORAID MR2-B31 User Manual 8. Windows 10 安裝到外接硬碟,待安裝完成後點選「結束」按鈕,之後再確認離開。 9. 確認外接硬碟插在電腦的 USB 插槽,重新開機後,進入 BIOS 或是 UEFI 調整成 USB 外接硬碟盒 為第一開機順序,儲存設定後離開。 註:截圖僅為示意,實際情況依各家主機板而有所不同。 10. 接著開始進入 Windows 10 的安裝過程,請依系統指示以及個人需求完成設定。...
  • Page 23 SOHORAID MR2-B31 User Manual http://www.stardom.com.tw/...
