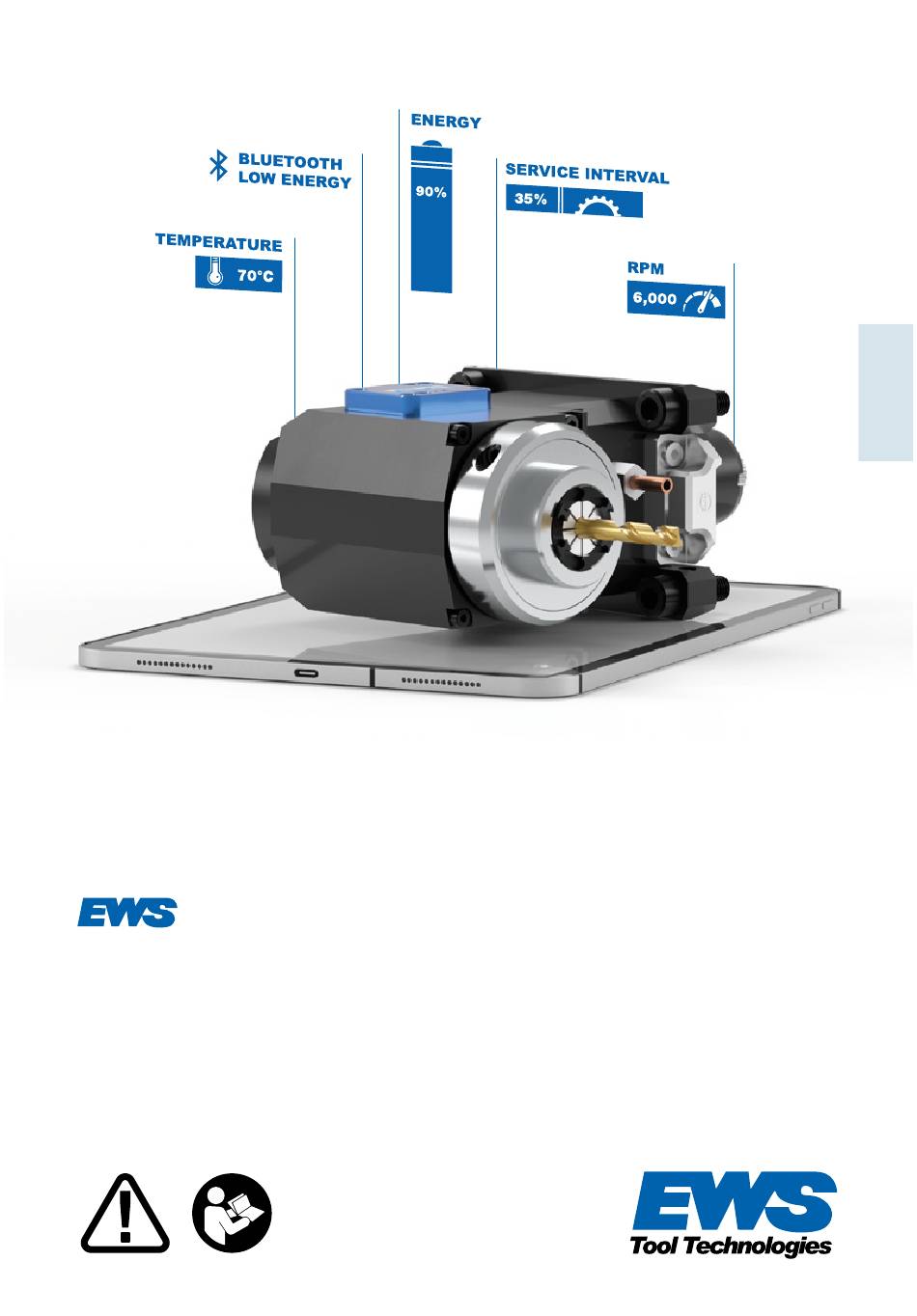

  • Page 1 OPERATING MANUAL CyberCon4 xx.xxx-CC4 Version 1.0 As of 29.03.2019...
  • Page 2 EWS Weigele GmbH & Co. KG Maybachstraße 1 D-73066 Uhingen Telephone +49(0)7161-93040-100 +49(0)7161-93040-30 Mail info@ews-tools.de www.ews-tools.de Frank Weigele Matthias Weigele Dipl.-Ing. Subject to printing and typesetting errors. © 2020 EWS Weigele GmbH & Co. KG www.ews-tools.de...

  • Page 3: Table Of Contents

    When operating driven tools on turning and milling centers, changing operating parameters arise. EWS.CyberCon4 is intended for data acquisition in the machining process of the driven tool. EWS.CyberCon4 is to be understood as an extension and may only be used in this combination and for no other purpose.

  • Page 4: Security

    The battery may only be changed by EWS service staff. Contact details under Service/guarantee. 2. FUNCTION With EWS.CyberCon4, driven tools (1) for turning and milling centers are expanded with sensors. The extension is used to monitor the operating parameters (see 4.2 Operation / operating parameters &...

  • Page 5: Installation

    Activate: Drive the driven tool with at least 500 / min for 5 seconds ■ ■ EWS.CyberCon4 is now activated and can be read in the CyberCon4 app The data can now be read out without rotation! ■ DANGER! Risk of injury with rotating parts! Always keep the machine door closed.

  • Page 6: Operation

    4. OPERATION A receiver with an active Bluetooth interface is required to operate EWS. CyberCon4 (tablet, smartphone). EWS.CyberCon4 is operated via the CyberCon4 app. The app can be installed via the Apple App Store or the Google Play Store. 4.1 REQUIREMENTS BLE (Bluetooth Low Energy 4.1)

  • Page 7: Cybercon4 App

    4.3.1 INSTALLATION OF THE APP Activate the data connections for the Internet and Bluetooth on the receiver (tablet, smartphone). You can find the app under Install the app. the name „CyberCon4“ (SYMBOL) in the Apple App Store or Google Play Store. www.ews-tools.de...

  • Page 8: Open

    4.3.2 OPEN Open the app with CyberCon4 Icon. www.ews-tools.de...

  • Page 9: Cybercon4 Operator Masks

    Control panel Bluetooth Live data Stored data Access only with premium package Bluetooth The driven tools equipped with EWS.CyberCon4 can be searched for and received under the „Bluetooth“ tab. ■ To do this, tap in the middle of the control panel...
  • Page 10 List of the driven tools found in the range with EWS.CyberCon4. Data is updated and displayed ■ regularly (depending on settings). Further data and details can be ■ read by tapping a field. Serial number driven tool Number corresponds to the...
  • Page 11 Remaining % until the service is due depending on the time used (12 months) Remaining % until service is due depending on the operating parameters used, such as speed and temperature Battery status 100% Battery status 0% Driven tool must be sent in to change the battery. www.ews-tools.de...
  • Page 12 5. Premium Package Average duty cycle in relation to the entire runtime Number of start-ups in the entire runtime Average speed in relation to the entire runtime Percentage display of temperature and speed in relation to the total runtime www.ews-tools.de...
  • Page 13 History / Cache The received driven tool holders are saved with EWS.CyberCon4 under the „Cache“ tab. ■ Data readable without Bluetooth connection ■ Further data and details can be read by tapping a field All data can be sent via email as ■...

  • Page 14: Premium Package

    Limit values for the operation of driven tools Temperature: max. 80°C Speed: see labeling of driven tool Other: see operating instructions driven tool https://www.ews-tools.de/en/downloads 5. PREMIUM PACKAGE Additional functions Premium Package: ■ Average duty cycle Number of starts ■ ■...
  • Page 15 Now select the Cyber.Con4 partner of your choice. You will only be shown the partners from whom you have received CyberCon4 tools. After agreeing to the terms of use, you can complete the purchase and use the Premium Package immediately. www.ews-tools.de...

  • Page 16: Maintenance And Care

    TIP: Annual maintenance prevents major damage. WARNING! Under no circumstances may the cover of the EWS.CyberCon4 be removed. Failure to do so exposes you to the risk of electric shock or fire. 7. STORAGE, TRANSPORT AND DISPOSAL Always store and transport the device dry at a minimum of 10 °C...

  • Page 17: Troubleshooting

    8. TROUBLESHOOTING In case of malfunctions, please report under EWS Weigele GmbH & Co. KG Telephone +49(0)7161-93040-100 Mail service@ews-tools.de In the event of other faults, please contact our service. 9. TECHNICAL DATA Supply voltage Integrated 3V lithium battery (permanently installed, not changeable) Radio frequency 2.4 GHz RF transceiver, compatible with...

  • Page 18: Service / Guarantee

    Herewith, EWS Weigele GmbH & Co. KG declares that this EWS CyberCon4 radio module complies with the essential requirements and other relevant provisions of the following guidelines: Directive 2014/35 / EU - Provision of electrical equipment Directive 2014/30 / EU - Electromagnetic Compatibility...
