Summary of Contents for Sherpa 4x4 Stallion

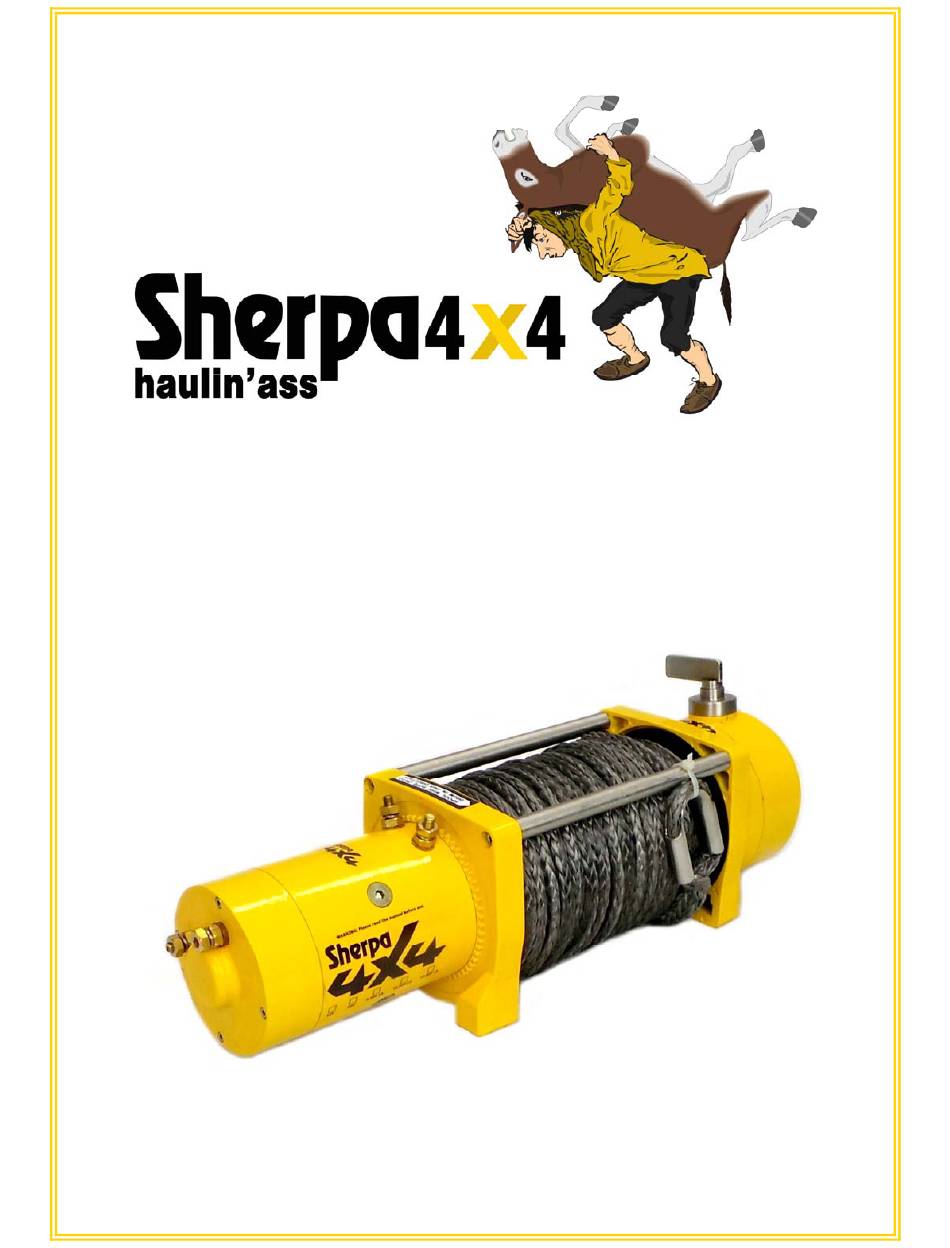

- Page 1 www.sherpa4x4.com.au | info@sherpa4x4.com.au SHERPA 4x4 WINCH OWNER'S MANUAL Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 1 ...
-
Page 2: Please Read
30 seconds, then follow by a 10 minute cool down period. This will also allow your battery to rest. Overheating your winch motor will reduce its pulling power and may lead to premature failure. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 2 ... - Page 3 19 6,310 19.8 7,040 23.5 4th 12,840 26 9,040 29 6,740 28 5,400 28 6,130 28 5th 11,040 30 8,230 45 Plan your recovery to get the most out of your winch Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 3 ...
-
Page 4: Operation Warnings
- Cable winches are provided with a red marking to identify that five (5) cable wraps remain on the winch drum. No recovery should be attempted beyond this marking. - Winch dampeners should always be used while winching. - Apply blocks behind the wheels when winching vehicles on an incline. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 4 ... - Page 5 These winches are for recovery use in vehicle, boat and non industrial applications. NEVER use the winch in hoisting applications. DO NOT use the winch to lift, support or transport personnel. DO NOT attempt to move the winch by lifting the clutch handle. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 5 ...
-
Page 6: Winch Installation
Apply a drop of thread locker to each bolt and tighten. Winches are mounted in a high vibration environment. It is highly recommended both liquid thread locker and spring washers are used on all connections. All connections should be checked for tightness after 1,000km of travel. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 6 ... - Page 7 Never mount the winch to oversized or slotted holes as this will increase the likelihood of a bolt shear failure. See over Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 7 ...
- Page 8 If you are planning on loading the winch to it’s limit, it is recommended that the load be centred onto the drum to evenly distribute the force over all 4 mounting bolts which are under a high shear stress. Uneven loading has potential to over stress the mounting bolts when in shear. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 8 ...
- Page 9 Keep in mind the outer enclosure of your control box is not waterproof and is only designed to keep the bulk of the water and dirt off the internals. The internal solenoid is IP68 rated and suitable for submersion in water. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 9 ...
- Page 10 240kg. Winching the vehicle up a slight incline is a good way to achieve tension while spooling your winch, remember to monitor winch motor and cables temperatures when performing extended winching operations. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 10 ...
- Page 11 The brake design is such that it will provide years of trouble-free service without the need to replace the brake shoes. The brake design is different to other winches and may take users time to get use to how it operates. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 11 ...
- Page 12 Note: Your winches direction of operation relative to your hand remote can be reversed by swapping cables on Terminals C and D if required. WARNING! Ensure all electrical connections are tight prior to use. Loose electrical connections may result in sparks, poor winch performance and damage to the solenoid. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 12 ...
- Page 13 Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 13 ...
- Page 14 Winches with 8.9hp motors Short Black w/ Yellow sleeve Short Red w/ Red sleeve Short Black w/ Black sleeve Long Black and thin Black Take care, failure to correctly connect the cables may result in motor damage. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 14 ...
- Page 15 Be sure battery cables are not drawn taught across any surfaces, consider cable abrasion during installation. Corrosion on electrical connections will reduce performance and may cause an electrical short. Maintain as necessary. In salty environments, use a silicon sealer to protect electrical connections from corrosion. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 15 ...
- Page 16 Dual isolators are recommended, one per battery. Under high load operations, the dual motors can pull up to 900 Amps. Due to the high amperage, Sherpa 4x4 recommends wiring to dual batteries to spread the current draw. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au ...
- Page 17 Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 17 ...
-
Page 18: Winch Operation
A safe distance must be kept during winch operation for your safety. Never winch your vehicle in gear or in park as this will damage your vehicle’s transmission. Never wrap the cable around the anchor or hook it back onto the cable/rope. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 18 ... -
Page 19: Maintenance
The safety precautions and instructions discussed in these instructions cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors, which cannot be built into this product, but must be applied by the operator. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 19 ... - Page 20 SHERPA 4x4 WINCH SERVICE RECORD * Please complete this form each time the winch is serviced. Service schedule is every 12 months. New forms available at www.sherpa4x4.com.au Winch Purchase Date: Date of last service: Date of this service: Business / Company Performing Service:...
- Page 21 Inspect motor brushes and armature for cleanliness. Report on condition, adjustments, work completed: 4) Loosen tie rods and remove gear box from winch. Clean and grease drum internals and centre shaft. Report on condition, adjustments, work completed: Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 21 ...
- Page 22 For re-assembly, install armature into motor cap whilst retracting brushes. Refit armature to motor housing as the final step. All components should be reassembled with an ATV sealant at the joints to help prevent water ingress. Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 22 ...
- Page 23 5) Inspect electrical cables and report on condition including effectiveness of cable sheathing. Also report any adjustment or work completed: 6) Inspect control box general condition and cleanliness. Check internal wires for corrosion and damage. Report on adjustments, work completed: Copyright (C) Sherpa 4x4 | www.sherpa4x4.com.au | info@sherpa4x4.com.au 23 ...
- Page 24 The winch shall be removed from vehicle prior to beginning service. Genuine Sherpa4x4 parts must be used for any spare parts that may be required during the service. Contact Sherpa 4x4 as necessary to obtain parts under warranty. Photographs of faulty parts are recommended to support warranty claims.
- Page 25 Sherpa 4x4 Product Warranty The Sherpa Product Warranty only covers against faulty parts and workmanship, not general wear and tear from normal use. Warranty Length: Sherpa 9,500Lb Steel Cable Winches 5 Years* Sherpa 9,500Lb Steel Cable Winches 5 Years*...
- Page 26 Excessive corrosion is not covered under warranty. Corrosion cases will be at the discretion of Sherpa 4x4. Ingress or water, mud and dust will not void your winches warranty however users should be able to show proof they have made efforts to maintain their winch if they are operating in environments which result in this type of ingress.
- Page 27 Additional Conditions For Sherpa 4x4 Winches Your Sherpa 4x4 Winch should be serviced every 12 Months by a suitably qualified professional. This is especially important if you operate your winch under water or in extremely muddy environments. Whilst your winch is well...
Need help?
Do you have a question about the 4x4 Stallion and is the answer not in the manual?
Questions and answers
Went to use our Serpa 25 ton winch today for the 1st time, the motor ran for about 15 seconds and that's it. Double checked all the connections which were all good, still nothing
If the Sherpa 4x4 Stallion winch motor runs for only 15 seconds and then stops, possible issues could include:
- Battery in poor condition, leading to insufficient power supply.
- Corroded electrical connections reducing performance.
- Battery cables improperly routed or abraded, causing power loss.
- Inadequate protection of electrical connections in salty environments, leading to corrosion.
Check battery condition, cable routing, and all electrical connections for corrosion or damage.
