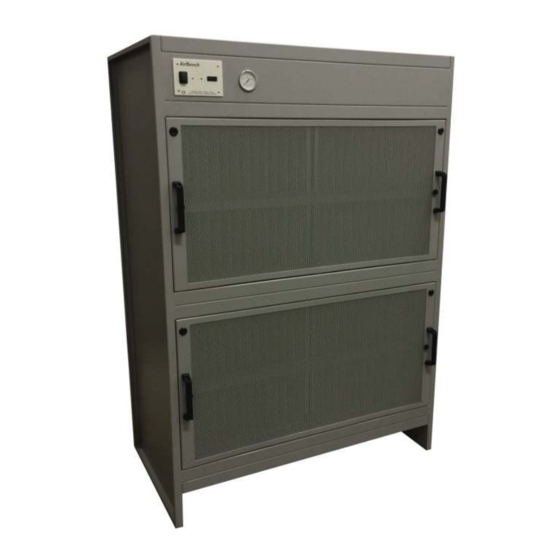

- Page 1 AIRBENCH LTD VertEx VA Operation and Maintenance This Edition: 19 November 2019 AirBench Ltd, 6b Commerce Way, Colchester CO2 8HR www.airbench.com +44 (0) 1206 791191 © Copyright AirBench Ltd 2016 Page...
-
Page 2: Table Of Contents
PRIOR TO USE GENERAL USE Maintenance FILTER CARE SPARES OTHER ROUTINE MAINTENANCE Accessories FILTER PRESSURE GAUGES HOURS RUN METER WHEELS COMPRESSED AIR INTERLINK Thorough Examination and Testing Technical ARRANGEMENT TECHNICAL DATA Declaration of Conformity © Copyright AirBench Ltd 2016 Page... -
Page 3: Cautions
It is the users’ responsibility to comply with this legal requirement. This unit is not ATEX rated. It is your responsibility under ATEX regulations to ensure the VertEx is located in an area rated suitable for the specification of the VertEx. © Copyright AirBench Ltd 2016 Page... -
Page 4: Introduction
This document provides general maintenance and operation instructions for the VertEx range. It should be read in conjunction with the Commissioning Certificate supplied with the unit. If you have any concerns or doubts about maintenance or operation of this unit, contact the manufacturer. © Copyright AirBench Ltd 2016 Page... -
Page 5: Installation
fitted lead is satisfactory. VertEx can be supplied configured for multi-unit installations. In this instance a single electrical panel with plugged connections will be provided. EARTH BONDING If in doubt consult a qualified electrician. © Copyright AirBench Ltd 2016 Page... -
Page 6: Ducted Units
These items apply only when they have been ordered with the VertEx. ENCLOSURE Enclosures are supplied flat packed for assembly at point of use. Each enclosure is supplied with installation drawings and assembly should follow the process laid out in these drawings. © Copyright AirBench Ltd 2016 Page... -
Page 7: Commissioning
We recommend keeping the commissioning certificate, Quick Start guide, and logbook with the machine at all times for operator access. If in doubt please contact the manufacturer quoting the machine serial number. © Copyright AirBench Ltd 2016 Page... -
Page 8: Operation
VertEx off using the switch on the front. Record any maintenance you have undertaken, or any that is required, in the logbook. To avoid fan overload, do not block more than 50% of the face or the air outlet. © Copyright AirBench Ltd 2016 Page... -
Page 9: Maintenance
Filters can then be removed in order. When replacing filters, they should be installed in the order in which they were fitted; which is detailed in the Commissioning Certificate. Doors can be heavy. Wear appropriate hand and foot protection. © Copyright AirBench Ltd 2016 Page... - Page 10 Carbon filters are not cleanable. They will become less effective over time and we recommend changing to a fixed schedule (for example, annually) in low use applications. Replace the filter when increased odour is noticed in the exhaust from the unit; or to a fixed schedule. © Copyright AirBench Ltd 2016 Page...
-
Page 11: Spares
Do not clean filters using compressed air. This will damage media and spread dust. Spares See the specific list for your machine shown on the commissioning certificate. When ordering, please contact the manufacturer quoting the serial number of this machine. © Copyright AirBench Ltd 2016 Page... -
Page 12: Other Routine Maintenance
At least monthly, or as routine, check the surface condition. Clear any blocked holes. FAN CHAMBER At least every 6 months, check the fan chamber. Remove any debris and clean. At least annually, check and tighten fan fixings, impeller fixings, and electrical connections. © Copyright AirBench Ltd 2016 Page... -
Page 13: Accessories
Use airline or press green button again – timer is reset for a further 5 minutes. Press red button – fan stops, airline stops. The timer can be re-set to a different interval; contact the manufacturer for details. © Copyright AirBench Ltd 2016 Page... -
Page 14: Thorough Examination And Testing
Recommended face velocities are as follows: Fume control: Minimum 0.5m/s Light dust control: Minimum 1.0 m/s Heavy dust control: 1.2 – 1.5m/s Completion of Thorough Examination and Testing should be recorded within the system logbook. © Copyright AirBench Ltd 2016 Page... -
Page 15: Technical
TECHNICAL Arrangement © Copyright AirBench Ltd 2016 Page... -
Page 16: Technical Data
VA180618 1270 2400 0.48 VA120624 1270 2400 1200 0.74 VA121224 VA180624 1870 2400 0.74 VA121824 1270 2400 1800 Data shown is for standard models. Check the Commissioning Certificate for details specific to your unit. © Copyright AirBench Ltd 2016 Page... -
Page 17: Declaration Of Conformity
- EN-60204–1:2006 (Safety of machinery, electrical equipment of machines, general requirements). - EN-60335-2-80 (Safety requirements for electric fans and regulators). We; AIRBENCH Limited, declare that “VertExes” when supplied as self contained equipment comply with the directives detailed above and therefore comply with requirements of the Low Voltage Directive.
