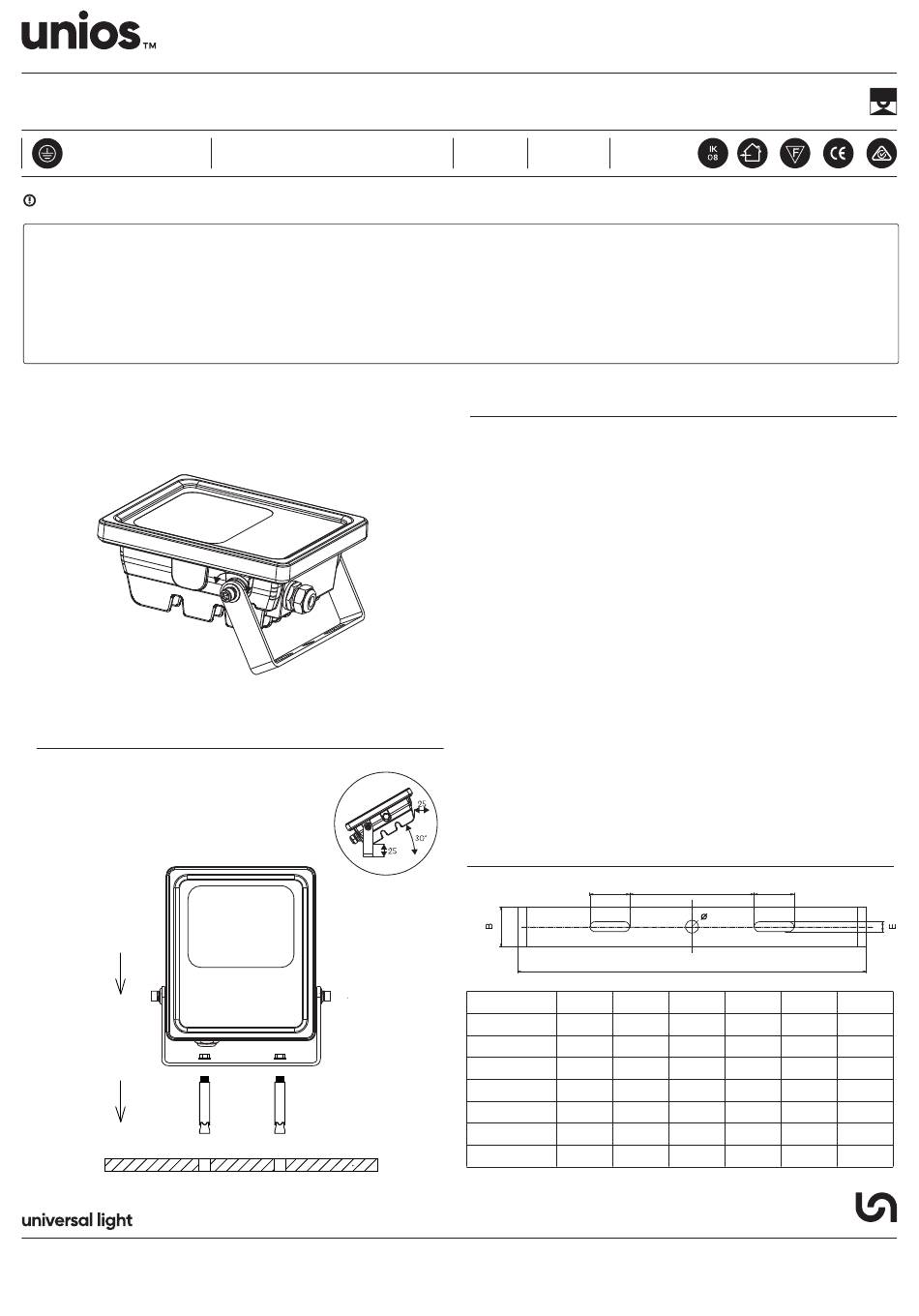

unios Diamond Instruction Manual

Diamond
Class I
220–240V ~ 50/60Hz
CAUTION – Must Be Installed By A Licensed Electrician
• Please read instructions for installation of luminaire provided below.
Safety of this luminaire and warranty will be voided unless followed.
• Installation and operation of this luminaire must be within
accordance with national safety regulations. Unios™ does not warrant
any liability when damage is caused by misuse or improper installation.
A
B
Edition 3.5.17 | Product design and technical data may be subject to change
FOR WARRANTY INFORMATION VISIT UNIOS.COM/WARRANTY
Please read these installation instructions carefully before installing this luminaire. The luminaire is designed for installation in accordance with relevant
Australian Standards (AS/NSZ 3000). Installation of this luminaire must comply with local regulations. If luminaire is not installed according to the
instructions, the warranty for the luminaire may be void.
Power
10 | 30 | 50 | 70| 100 | 150 | 200 Watts
IP Rating Material Warranty
65 Aluminium 5 Years
Please read instruction manual on both sides carefully before installing luminaire.
• This luminaire is void of warranty if any part has been modified.
Please visit unios.com/warranty for more information.
• Over-voltage protection units should be installed to prevent electronic
control gear from failing due to electrical spikes, e.g. from switching of
inductive loads.
Installation Instructions
1
Must be installed by a licensed electrician.
2
Before installing, make sure the power supply is switched off.
3
Follow the steps in the figure shown for installation:
A. Adjust luminaire to allow flexible mounting plate access by
using the hex key as show in Figure A1.
B. Fix the mounting plate onto the surface with appropriate
fasteners.
C. Once fixed, ensure that the heatsink is at least at a 30
degree angle above the horizontal plane and 25mm away
from any object before re-tightening the hex key.
D. Cable supplied must be connected to mains power in
accordance with all relevant standards.
Note: After completing above steps, ensure the luminaire is
firmly fixed to the mounting plate. The luminaire must be
cleaned following these installation instructions. Termination of
wiring and installation of the product shall be conducted such
that the luminaire's stated IP rating is not affected.
Mounting Plate
D
Model A
10W Model 124 17
30W Model 185 25
50W Model
214 30
70W Model 259 35
259 35
100W Model
150W Model 320 40
350 40
200W Model
unios.com
FLOODLIGHT
C D
F
A
B C D E
50 20 8
70 30 8
90 30 10
110 30 10
110 30 10
125 40 10
125 40 10
F
8
8
13
13
13
13
13
