Marca: Total Tools
Motor: Honda GX160
Potencia: 4.0 Kw (5.5HP)
Fuerza de Impacto: 10 kN
Altura de Salto: 65 mm
Tasa de impacto: 450 - 660 rpm
Tanque: 2.0 L
Medida de zapato: 33 x 29 cm
Motor
GX160

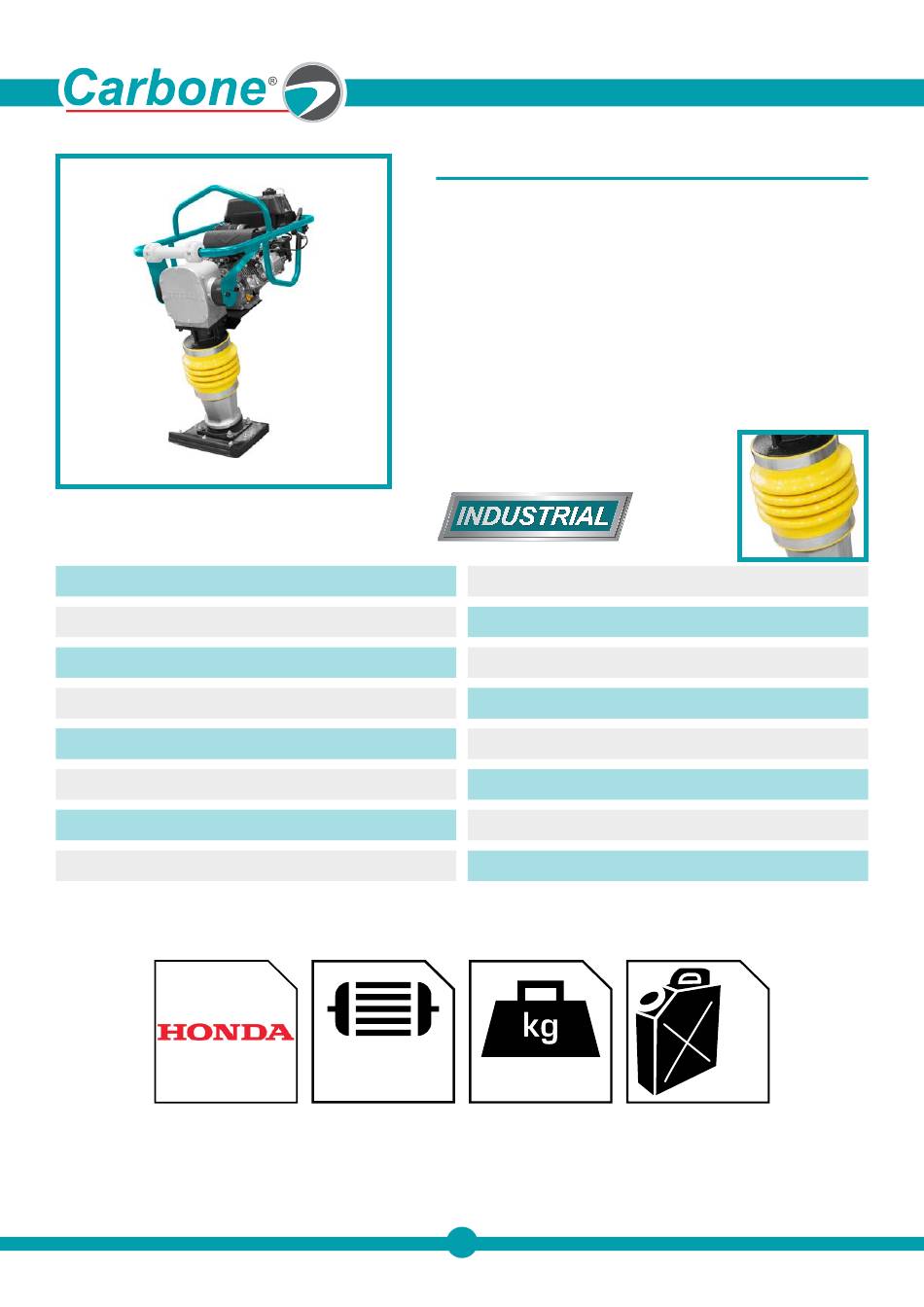

FICHA TÉCNICA

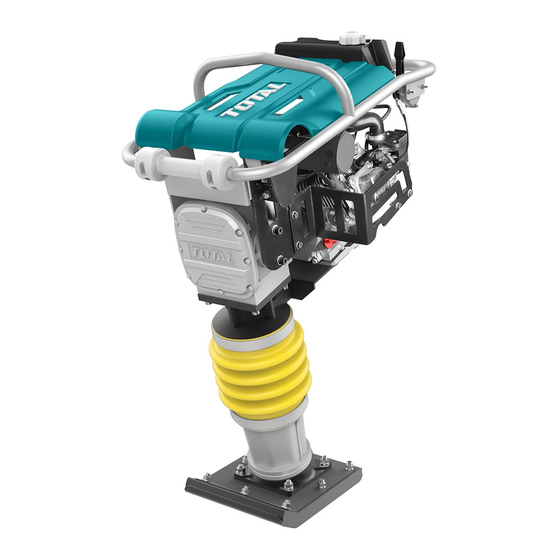

Producto: Apisonadora compactadora a gasolina
DESCRIPCIÓN:
con motor Honda GX160 de una potencia de 4.0 Kw o
5.5 HP. Su fuerza de impacto es de 10 kN, su altura de
salto es de 65 mm y su taza de impacto de 450 - 660 rpm.
Tiene un tanque de 2.0 litros, la medida del zapato es de
300 X 29 cm y su bufanda esta fabricada en Alemania de
puliuretano de alta calidad. Posee sistema de soporte de
choque para reducir la vibración en mano y brazo, Doble
sistema de filtro de aire al motor para mayor vida útil y 3
meses de garantía
CÓDIGO:
Incluye: Bufanda de poliuretano de alta calidad hecha
en Alemania, sistema de soporte de choque para reducir
la vibración en mano y brazo, Doble sistema de filtro de
aire al motor para mayor vida útil.
Garantía: 3 meses
Peso: 79 Kg.
Procedencia: Importado
Potencia
4.0 Kw
1
Herramientas Eléctricas
Apisonadora compactadora a gasolina
TP880-1
79
Detalle Bufanda
2.0L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP880-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Total TP880-1

  • Page 1 útil y 3 meses de garantía Detalle Bufanda TP880-1 CÓDIGO: Marca: Total Tools Incluye: Bufanda de poliuretano de alta calidad hecha Motor: Honda GX160 en Alemania, sistema de soporte de choque para reducir Potencia: 4.0 Kw (5.5HP) la vibración en mano y brazo, Doble sistema de filtro de...
  • Page 2 GASOLINE TAMPING RAMMER TP880-1, TP880-2, TP880-3...
  • Page 3: Emission Control System Information

    1.FOREWORD This manual provides information and procedures to safely operate and maintain this model.For your own safety and protection from injury,carefully read,understand and observe the safety instructions described in this manual. Keep this manual or a copy of it with the machine.If you lose this manual or need an additional copy,...
  • Page 4: Oxygenated Fuels

    If you are aware of any of the following symptoms,have your engine inspected and repaired by your servicing dealer. ●Hard starting or stalling after starting. ●Rough idle. ●Misfiring or backfiring under load. ●Afterburning(backfiring). ●Black exhaust smoke or high fuel consumption. Replacement Parts The emission control systems on the engine were designed,built,and certified to conform with EPA and California emissions regulations.We recommend the use of...
  • Page 5 up to 10% ethanol by volume.Gasoline containing ethanol may be marketed under the name “Gasohol”. MTBE-(methyl tertiary butyl ether) 15% by volume.You may use gasoline containing up to 15% MTBE by volume. METHANOL -(methyl or wood alcohol) 5% by volume . You may use gasoline containing up to 5% methanol by volume,as long as it contains cosolvents and corrosion inhibitors to protect the fuel system.Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems.It may also...
  • Page 6: What Is Not Covered

    (i) Carburetor and internal parts (and/or pressure regulator or fuel injection system). (ii) Air/fuel ratio feedback and control system,if applicable. (iii) Cold start enrichment system,if applicable. (iv) Regulator assembly (gaseous fuel,if applicable). (2) Air Induction System (i) Intake manifold,if applicable. (ii) Air filter....
  • Page 7 ●Diagnosis and inspection charges that do not result in warranty-eligible service being performed. ●Any non-authorized replacement part.or malfunction of authorized parts due to use of non-authorized parts. OWNER'S WARRANTY RESPONSlBlUTlES As the engine owner, you are responsible tor the performance of the required maIntenance listed in your owner’s manual.We recommends that you retain all receipts covering maintenance on your engine, but we cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled...
  • Page 8 All repair qualifying under this limited warranty must be performed by a sewice dealer authorized by us.In the event that any emission-related part is found to be defective during the warranty period,you shall notify our CORPORATION Product Support Department 3.SAFETY lNFORMATlON This manual contains DANGER, WARNING ,...
  • Page 9 after it has been turned off.These areas get hot and may cause burns. NEVER 3.1.4 use accessories or attachments that are not recommended by us.Damage to equipment and injury to the user may result. NEVER 3.1.5 leave machine running unattended. NEVER 3.1.6 tamper with or disable the function of operating controls....
  • Page 10 ALWAYS 3.1.21 close fuel valve on engines equipped with one when machine is not being operated. ALWAYS 3.1.22 operate machine with all safety devices and guards in place and in working order.DO NOT modify or defeat safety devices.DO NOT operate machine if any safety devices or guards are missing or inoperative....
  • Page 11 DO NOT 3.3.3 remove air cleaner cover,paper element,or precleaner while engine is running. DO NOT 3.3.4 alter engine speeds.Run the engine only at speeds specified in the Technical Data Section. DO NOT 3.3.5 crank a flooded engine with the spark plug removed on gasoline- powered engines.Fuel trapped in the cylinder will squirt out the spark plug opening....
  • Page 12 Graphic 1 3.5 Safety Labels The machines use international pictorial labels where needed.These labels are described below:...
  • Page 13 This molded-in label contains important safety and operating information .If it becomes illegible ,the cover must be replaced.Refer to the Parts Book for ordering information . DANGER! Engines emit carbon monoxide; operate only in well-ventilated area . Read the operator's manual for machine information ....
  • Page 14: Operating Labels

    WARNlNG! Hot surface! , performance, and minimal hand/arm vibration,grasp handle as shown. Refer to Section Proper Operation for further details . CAUTlON! Use only clean,filtered gasoline fuel . 3.6 Operating Labels The machines use international pictorial label s where needed.These labels are described below :...
  • Page 15 . c t i " " F . e l t lever:Turtle = ldle or Slow Rabbit=Full or Fast . l l u ....
  • Page 16: Technical Data

    4.TECHNICAL DATA 4.1 Rammer TP880-1 TP880-2 TP880-3 Model Air-cooled, 4-storke, single cylinder Engine Engine Type Honda GX160 Petrol,TOTAL Robin EH12-2D Power kw(hp) 4.0 (5.5) 4.8 (6.5) 3.0 (4.0) 79 (173) 79 (173) 79 (173) Operation mass(lbs) Impact Force(max)kN Jumping Stroke mm(in) 65(2.6)
  • Page 17 4.2 Sound Measurements Products are tested for sound pressure level in accordance with EN ISO 11204. Sound power level is tested in accordance with European Directive 2000/14/EC-Noise Emission in the Environment by Equipment for use outdoors. ● the sound pressure level at operator's location(LpA) = 98 dB(A). ●...
  • Page 18: Operation

    5.OPERATION 5.1 Application Rammers are designed to compact loose soils and gravel to prevent settling and to provide a firm,solid base for the placement of footings,concrete slabs,foundations, and other structures. 5.2 Recommended Fuel This engine is certified to operate on automotive unleaded gasoline.Use only fresh, clean gasoline.Gasoline containing water or dirt will damage fuel system....
  • Page 19 Note :A cold engine should be allowed to warm up at the idle position (c2) for approximately one(1)minute Failure to open the choke after the engine . attempts to start may cause flooding . CAUTION:Always open choke(b2)with throttle in idle position(c3).Opening choke with throttle not in idle position(c3)may result in rammer motion....
  • Page 20: Proper Operation

    for oil quantity and type. ● if the warning light stays on continuously,the engine will start and continue to run but the low oil shutoff switch is not functioning properly.Check the switch for proper wire connections. If the light continues to stay on,replace the switch. ●...
  • Page 21: Maintenance

    Graphic 4 6.MAINTENANCE 6.1 Periodic Maintenance Schedule Maintenance , replacement , or repair of the emission control devices and systems may be performed by any non-road engine repair establishment or individual. Daily After Every Every Every 3 Every before first 5 week or month or months or...
  • Page 22: Servicing Air Cleaner

    Change engine oil. ● Replace spark plug. ● Clean recoil starter. ● Change ramming system ● oil.* Inspect crane lifting cable ● for wear, damage, or abuse. Inspect fuel filter. ● ●Change ramming system oil after first 50 hours of operaton. Note :If engine performance is poor, check,clean and replace air filter elements as needed.
  • Page 23: Engine Oil

    Graphic 5 6.2.5 Cleaning: 6.2.5.1. Clean the air filter elements if they are to be reused. Paper air filter element:Tap the filter element several times on a hard surface to remove dirt , or blow compressed air[not exceeding 207 kPa(2.1 kgf/cm ,30 psi)] through the filter element from the inside .Never try to brush off dirt ;brushing will force dirt into the fibers ....
  • Page 24 6.3.3 Remove the oil fill plug (a) and drain plug (b) to drain oil. 6.3.4 Install the drain plug (b). 6.3.5 Fill the engine crankcase with recommended oil up to the level of the plug opening (c).Do not thread in the dipstick to check the level.See Technical Data for oil quantity and type....
  • Page 25: Oil Change

    Graphic 7 Oil change: 6.4.5 Unscrew the oil drain plug (e) located below the oil sight glass . 6.4.6 Tip the rammer back until it is resting on its handle and allow oil to drain . Note:In the interests of environmental protection ,place a plastic sheet and a container under the machine to collect any liquid which drains off .Dispose of this liquid in accordance with environmental protection legislation ....
  • Page 26: Long Term Storage

    Graphic 8 6.6 Long-Term Storage 6.6.1 Drain fuel from tank. 6.6.2 Start engine and run until remaining fuel is used. 6.6.3 Remove spark plug.Pour approximately 30 ml (1 oz.)of clean SAE 10W30 engine oil into cylinder through spark plug opening. 6.6.4 Pull starter rope slowly to distribute oil in engine....
  • Page 27 Engine overheats. Clean cooling fins and fan blades. · Engine runs,rammer does not nspect clutch for damage.Replace if necessary. ·I tamp. Broken connecting rod or crankge ar. · Low engine performance .Compression loss. · Engine runs.rammer Oil/grease on clutc h. ·...
  • Page 28 TP880-1,TP880-2,TP880-3 Exploding view...
  • Page 29 TP880-1,TP880-2,TP880-3 Spare part list Exploding view Exploding view Countersunk square neck Bolt Spring washer Flat washer External hexagon bolt Locked Nut Locked nut Tamping plate Flat washer Connecting rod pin Double-end bolt Clip bolt Paper gasket Protection frame “O” ring...
  • Page 30 TP880-1,TP880-2,TP880-3 Crank case assembly...
  • Page 31 TP880-1,TP880-2,TP880-3 Major components of vibrator assy Exploding view 52-1 Flange bolt 52-2 Crank case cover 52-3 Paper gasket 52-4 Clip 52-5 Big gear 52-6 Deep groove ball bearing 52-7 Clip 52-8 Deep groove ball bearing 52-9 Clip 52-10 Crank Case...
  • Page 32 TP880-1,TP880-2,TP880-3 Cylinder assembly...
  • Page 33 TP880-1,TP880-2,TP880-3 Major components of vibrator assy Exploding view 53-1 Inner hexagon bolt 53-2 Inner hexagon bolt 53-3 Spring washer 53-4 Foot plate 53-5 “O” ring 53-6 Inside cylinder 53-7 Protection sleeve 53-8 Oil Lever gague 53-9 Copper gasket 53-10 Hexagon Oil...
  • Page 34 GASOLINE TAMPING RAMMER www.totaltools.cn TOTAL TOOLS CO.,LIMITED MADE IN CHINA T1217.V04...
