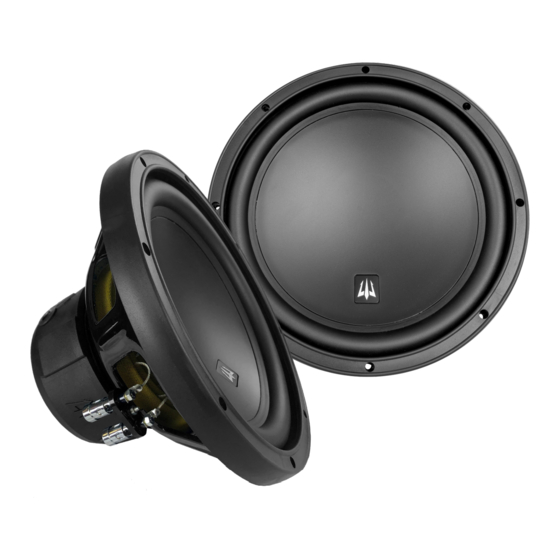

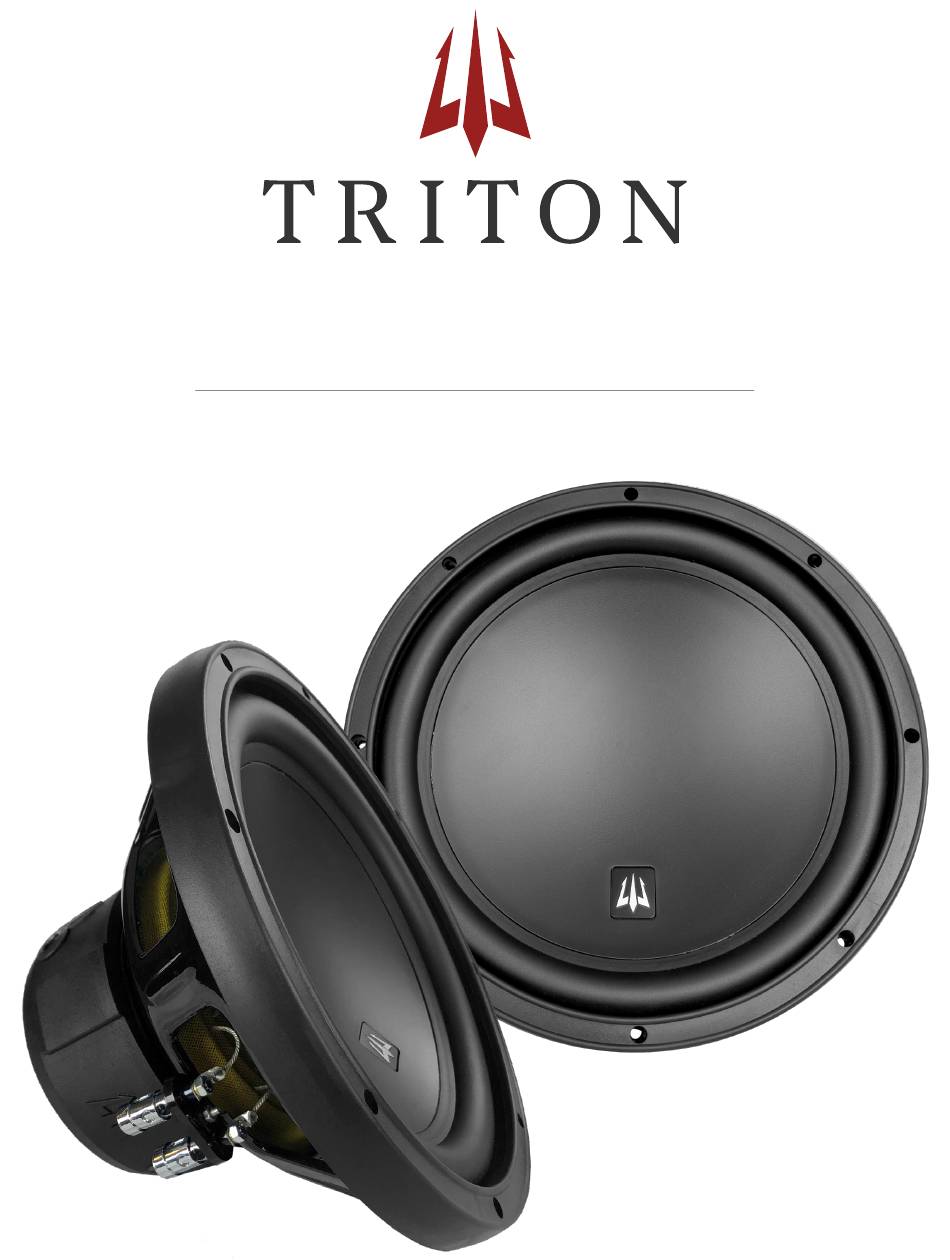

- Page 1 SQ SERIES SUBWOOFERS SQ8S4, SQ8D4, SQ10S4, SQ10D4, SQ12S4, SQ12D4...
- Page 2 To make sure your new loudspeakers perform their best, we strongly recommend you have your new Triton loudspeakers professionally installed. Please use your new Triton loudspeakers responsibly. Listening to very loud music for extended periods of time can cause permanent hearing loss.
- Page 3 Specifications Model SQ8S4/D4 SQ10S4/D4 SQ12S4/D4 Size (Inches) 8” 10” 12” Impedance 4 Ω 4 Ω 4 Ω Frequency Response 45Hz+20% 28Hz-500kHz 24Hz-500kHz Voice Coil 1.5”/ 38.1mm 2”/ 50.5mm 2”/ 50.5mm Magnet 48 oz. 66 oz. 66 oz. 28Hz 24Hz Vas - ft3/Liter 1.84ft3/ 52 Liters 4.13ft3/117 Liters Xmax...
- Page 4 III. Installation - Sealed Enclosures Sealed enclosures provide excellent performance with SQ Series Subwoofers. They are the simplest enclosures to design and build, and provide the most control over the subwoofer’s performance. This type of box is usually associated with smooth, tight clean bass. Remember to glue and screw all joints, using enough glue to make sure all joints are airtight.
- Page 5 V. Wiring Options There are many ways to wire multiple subwoofers together in order to maximize an amplifier’s output. Please check your amplifier manufacturer’s specifications to verify your amplifier’s capability before attempting these configurations. Using a lower-than-recommended impedance on your amplifier can damage the amplifier and subwoofer.
