2030

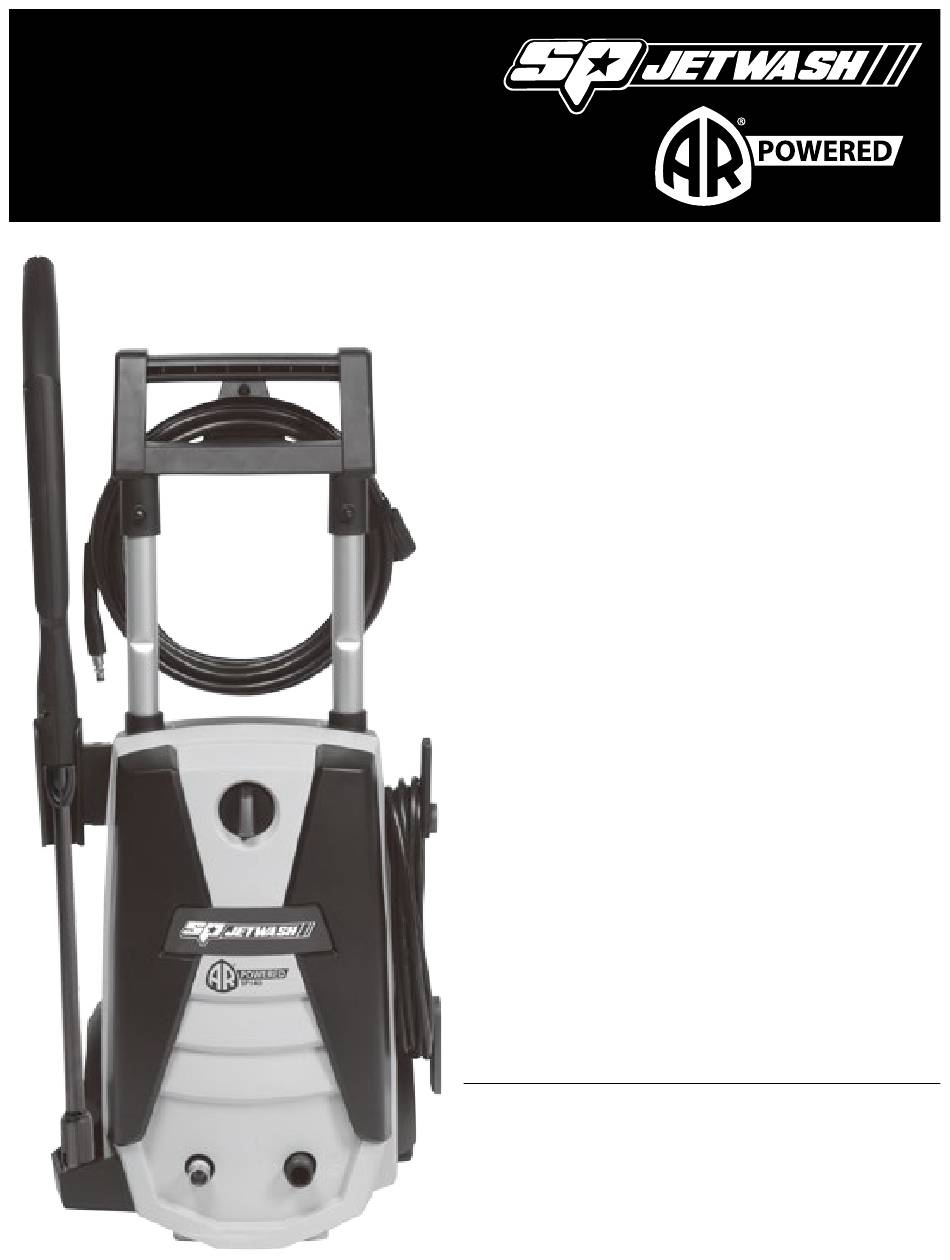

Electric Pressure Washer

MAX

P S I

ASSEMBLY, CARE AND

USE INSTRUCTIONS

Model SP140

READ CAREFULLY

IMPORTANT:

AND

ATTACH RECEIPT TO MANUAL FOR FUTURE

REFERENCE

Questions, problems, missing parts?

Before returning to your retailer, contact our

customer service department,

8:30 am - 5:00 pm, Monday - Friday.

service@austechindustries.com.au

RETAIN THESE INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the SP Jetwash SP140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Austech SP Jetwash SP140

Page 1 2030 P S I Electric Pressure Washer ASSEMBLY, CARE AND USE INSTRUCTIONS Model SP140 READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE Questions, problems, missing parts? Before returning to your retailer, contact our customer service department, 8:30 am - 5:00 pm, Monday - Friday.
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Product Specifications ...................... 2 Package Contents ......................3 Hardware Contents ......................3 Safety Information ......................4 Assembly Instructions ....................... 6 Operating Instructions ..................... 10 Care and Maintenance ....................13 Troubleshooting ....................... 15 Limited Warranty ......................16 INTENDED APPLICATION This pressure washer is intended for: DOMESTIC CLEANING APPLICATIONS...
Page 3: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS OFF/O ON/I PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Pressure Washer Unit Rotary Brush Spray Gun Holster Transparent Water Filter Nozzle Cleaning Wire Turbo Nozzle Lance High Pressure Hose Spray Gun Nozzle Tray Spray Gun Trigger Lock Variable Spray Nozzle Screw Lance...
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before power tool carefully and only when you are alert. attempting to assemble, operate, or install the product. 10. Watch your balance and footing while using your pressure washer.
Page 5 SAFETY INFORMATION SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Store the pressure washer indoors to 30. NEVER permanently engage the trigger prevent the water in the unit from expanding under mechanisms on the spray gun. freezing conditions. When the water freezes and 31.
Page 6: Assembly Instructions
PREPARATION PREPARATION PREPARATION Before beginning assembly of product, make sure all Tools Required for Assembly (not included): Phillips parts are present. Compare parts with package contents screwdriver list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product. Estimated Assembly Time: 5 minutes ASSEMBLY INSTRUCTIONS Power Unit Assembly...
Page 7 ASSEMBLY INSTRUCTIONS High Pressure Hose Assembly Screw high pressure hose (D) clockwise onto bottom left, when facing the unit, front of pressure washer unit (A). Pull back collar and insert o-ring post into water outlet far enough so collar can thread onto outlet threads until hand tight.
Page 8 ASSEMBLY INSTRUCTIONS Lock Unlock Variable Spray Locking Spray Gun (before Lance installation) Nozzle Lance and Turbo Nozzle To lock the trigger of the spray gun (J), aim the gun Lance Installation away from you and push the lock button from right to While the spray gun (J) is in the locked position, insert left.
Page 9 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Garden Hose Adapter Installation Remove plastic shipping cover on water inlet, front right side when facing the unit (A). Install the transpar- You will need a quick connect hose adapter (not ent water filter (H) by hand tightening clockwise. supplied) fitted to the end of your garden hose (L).
Page 10: Operating Instructions
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • Turn the tap on fully to ensure good water supply. • Make sure the “ON/OFF” switch is in the “OFF” position. The power switch has international symbols for ‘on’ and ‘off’: On (|) Off (O). •...
Page 11 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • When using the detergent, fill it with a properly formulated detergent or cleaner with water ratio according to instructions on the container. Fan Spray Pencil Stream • DO NOT use thick gel-like detergents, as they will clog the power washer and can cause damage.
Page 12 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Operation Tips • If you hear the motor run intermittently when the trigger is not being squeezed, that is normal. The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power washer if not being used after five minutes.
Page 13: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE Detergents Cleaning the Transparent Water Filter • Use detergents designed for pressure washers. • The screens inside the transparent water filter should • This system applies detergent under low pressure. be cleaned periodically. Rinse it with clean water, and The cleaning power of the detergents is enhanced then place it back in the adapter.
Page 14 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS CARE AND MAINTENANCE Storage • When your pressure washing session has been • Remove high pressure hose from spray gun. completed, turn off the power switch located on the • Remove lance from the gun. Place the gun in the front of the pressure washer.
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM CORRECTIVE ACTION Unit will not turn on. 1. Check the power cord is plugged directly into an outlet. 2. Do not use an extension cord. 3. Make sure the power switch is turned on. Note: When power switch is turned on, the pressure washer will turn on by itself for 1-2 seconds and shut off.
Page 16: Limited Warranty
2.1 In order to make a claim under this Limited Warranty, the purchaser must deliver the equipment or any part thereof to an Austech Industries authorised repair agent and pay all costs of transportation and all costs incidental to making a claim under this Limited Warranty.
