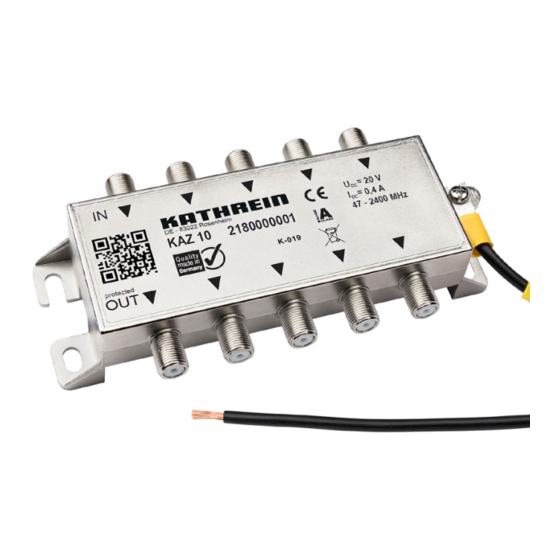

Kathrein KAZ 10 Manual

Surge Protection Device, 5-way
About This Guide
This document is part of the product.
► Do not install or use the device until you have read and understood
this document.
► Keep this document for reference throughout the service life of the
device. Pass this document on to any new owner or user.
For the most up-to-date version of this document, go to
www.kathrein-ds.com.
Storage and Transport
► Transport and store the device in its original packaging.
► Make sure there is no water condensation build-up.
Scope of Delivery
● KAZ 10
● Pre-assembled equipotential bonding wire
● Mounting screws and rawlplugs
● Instructions for use
Features
■ Protection of system components in DVB-S/C/T reception and distri-
bution systems
■ Deployment of KAZ 10 increases the surge discharge capability of
KAZ 11 and KAZ 12
■ Fulfils categories C2/C3/B2/D1 according to EN 61643-21
Remote feeding for DC voltages from 0...+20 V / max. 0.4 A
■
■ Passage for 22 kHz and DiSEqC™ signals
■ Impedance: 75 Ω
For indoor installation only
■
■
Installation and Safety Instructions
KAZ 10 2180000001
Danger to life from electric shock and fire hazard due
to electric current!
► Connection and installation of the device may only be
carried out by a qualified electrician. National regula-
tions and safety regulations must be complied with
(see also EN 60728-11).
► Before installation, the equipment must be checked
for external damage. Should there be damage or
another defect, the equipment must not be installed.
► The use of the device is permissible only under the
conditions listed and shown in these installation
instructions. In case of loads which exceed the indi-
cated values, the equipment and any electrical equip-
ment connected to it can be destroyed.
► Make sure that the maximum operating voltage of
the system does not exceed the highest continuous
voltage U
I
► The device is designed for a clean and dry environ-
ment. Do not expose the device to any mechanical
and/or thermal stress that exceeds the limits of the
specified technical data.
► The device must be installed so that it is inaccessible
to children.
► The equipment must be provided with an equipoten-
tial bonding wire (Cu, at least 4 mm
To increase the protective effect, it is recommended to
use KAZ 11 as a fine protection directly before the device
to be protected as well as KAZ 12 as a coarse protection at
the house entry point (see Fig. 4).
Intended Use
► This device is intended solely for installation in DVB-S/C/T reception
and distribution systems. It may only be installed by trained specia-
lists.
► Any use other than that specified or failure to observe these applica-
tion notes will invalidate the warranty or guarantee.
► The manufacturer accepts no liability for accidents caused by the
user opening the unit.
► Opening the unit and attempting to repair it yourself voids all
warranty claims.
and the maximum remote supply current
DC
.
DC
).
2
Other Measures
► With remotely-fed antenna amplifiers, no additional protective circuit
is necessary. With mains-fed devices, an additional protective device
for the mains feed is required (e.g. S-Protector, NSM-Protector or
DEHNsafe). The PE connection of the mains feed must be connected
with the grounding connection of the KAZ 10 surge protector at low
resistance.
► If cable systems require the use of a gas discharge arrester at the
building transfer point (BTP), a decoupling distance of at least 1 m
between the BTP and the KAZ 10 is required to ensure coordina-
tion of the two protective measures. The use of an upstream gas
discharge arrester (e.g. KAZ 12) increases the surge current capabi-
lity of the KAZ 10 surge protector.
► Equipotential bonding is performed according to Fig. 3. Additio-
nally, the ground terminals must be connected with short cables
(Cu, 4 mm ).
2
Connecting the KAZ 10
1. Connect the OUT side of the KAZ 10 to the inputs of the devices to
be protected (multi-switch, amplifier, ...). Use short coaxial cables
with F connectors. Make sure that each system component is
always connected to the equipotential bonding and, if necessary,
insert additional grounding blocks (e.g. EMU 21).
2. The lateral mounting brackets (see 1 Fig. 1) allow you to mount the
surge protector on a flat surface.
3. Connect the cables coming from the satellite antenna (see 2 Fig. 1),
and any existing terrestrial antennas to the IN side of the surge
protector.
4. Connect the housing via the lateral earthing screw (see 3 Fig. 1) to
the local equipotential bonding by the shortest possible route.
IN
DE - 83022 Rosenheim
KAZ 10 218000001
47 - 2400 MHz
K-019
protected
OUT

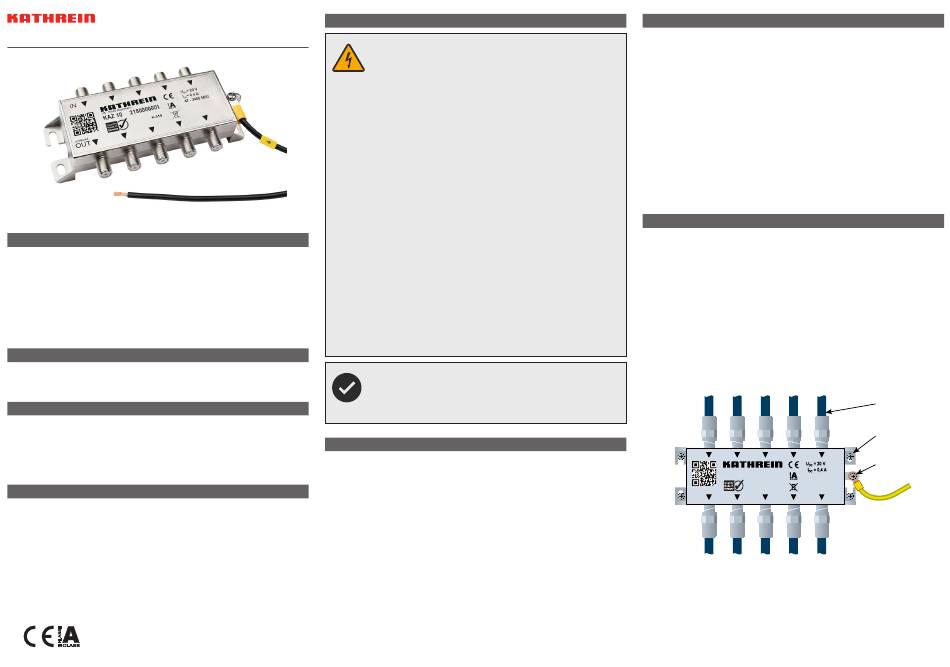

Fig. 1: Connecting the KAZ 10
2
1
3
