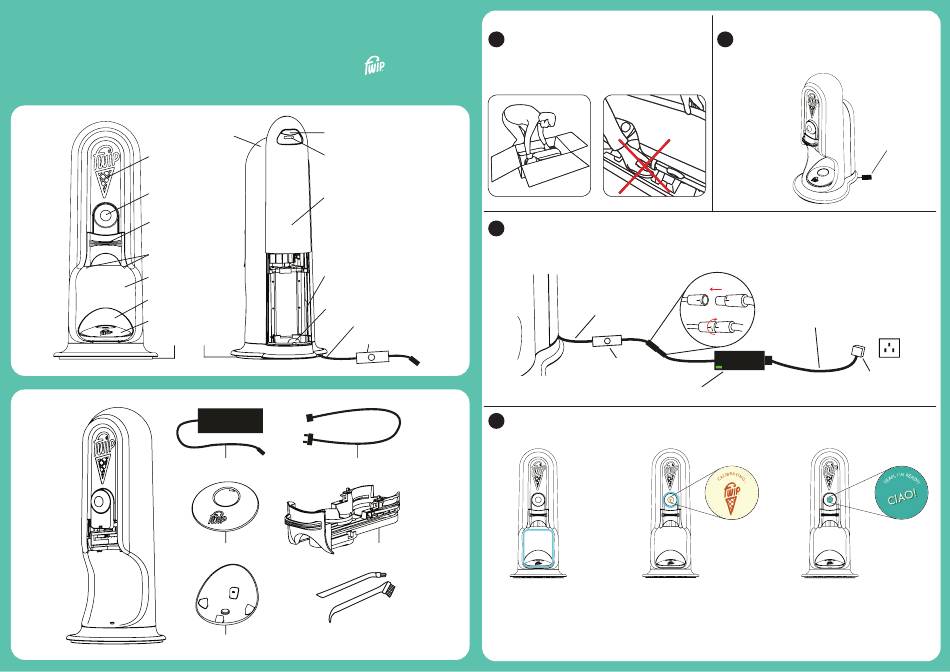

FWIP Portobello Quick Start Manual page 2

Plug & Play
Your quick & easy guide to getting started with thefwipPortobello -
welcome to the world of freshly fwipped ice cream.
1. Dome Cover
2. Interactive LED
Light Display Cone
3. LED Button
4. Drawer
5. Dispensing Lights
6. Dispensing Area
7. Lower Drip Tray
8. Upper Drip Tray
9. Base (Swivel or Fixed)
10. Bin Handle
11. 'Bin Full' Light
12. Bin Lid
13. Serial Number
14. Bin Tray
15.Power Cable
16. ON/OFF Switch
17. Mains Power Block 18. Mains Power Cable
(UK & EU Plugs)
Upper Drip Tray Drawer
2 x Cleaning Brushes
Lower Drip Tray
Carefully lift me out of my case like a baby,
1
holding my side, supporting my back and
don't grab my handle - I could fly out!
Connect the ON/OFF switch (16) to the mains power block (17) with a 'twist & lock' motion. Plug
3
the mains power cable (18) into the mains power block (17) and insert the plug directly into the wall
socket. Press the ON/OFF switch (16) to turn me on and check for the green light on the power
block (17).
15.Power Cable
16. ON/OFF Switch
17. Mains Power Block
4
Wait for up to 30 seconds while I calibrate, please don't play with my button, my lights will come
on in this order:
I'll light up my The ring light around
dispensing area (6) my button (3) will shine
Note: The machine cannot calibrate if there is a capsule in the machine, the drawer is open or if the
bin lid is removed. Please fix any issues and press my button (3) to restart calibrating.
Place me where I can shine when I serve.
2
Please make sure that the ON/OFF switch (16)
is not trapped underneath me.
A
Twist & Lock
B
18. Mains Power Cable
Then my button (3) will
shine for you to show that
dark blue I'm ready to be used!
16. ON/OFF Switch
Plug
