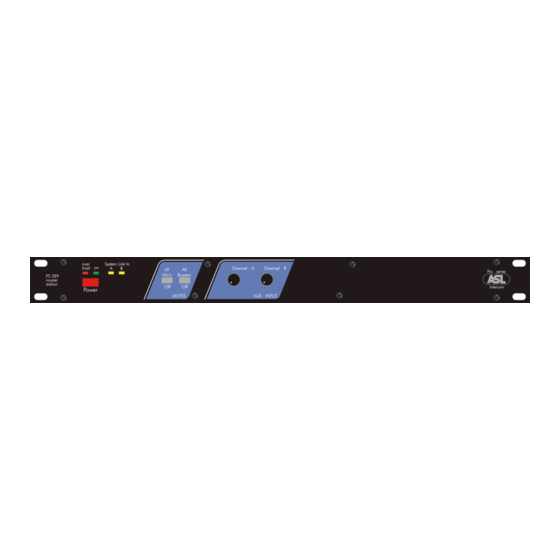

Summary of Contents for ASL INTERCOM PS 289

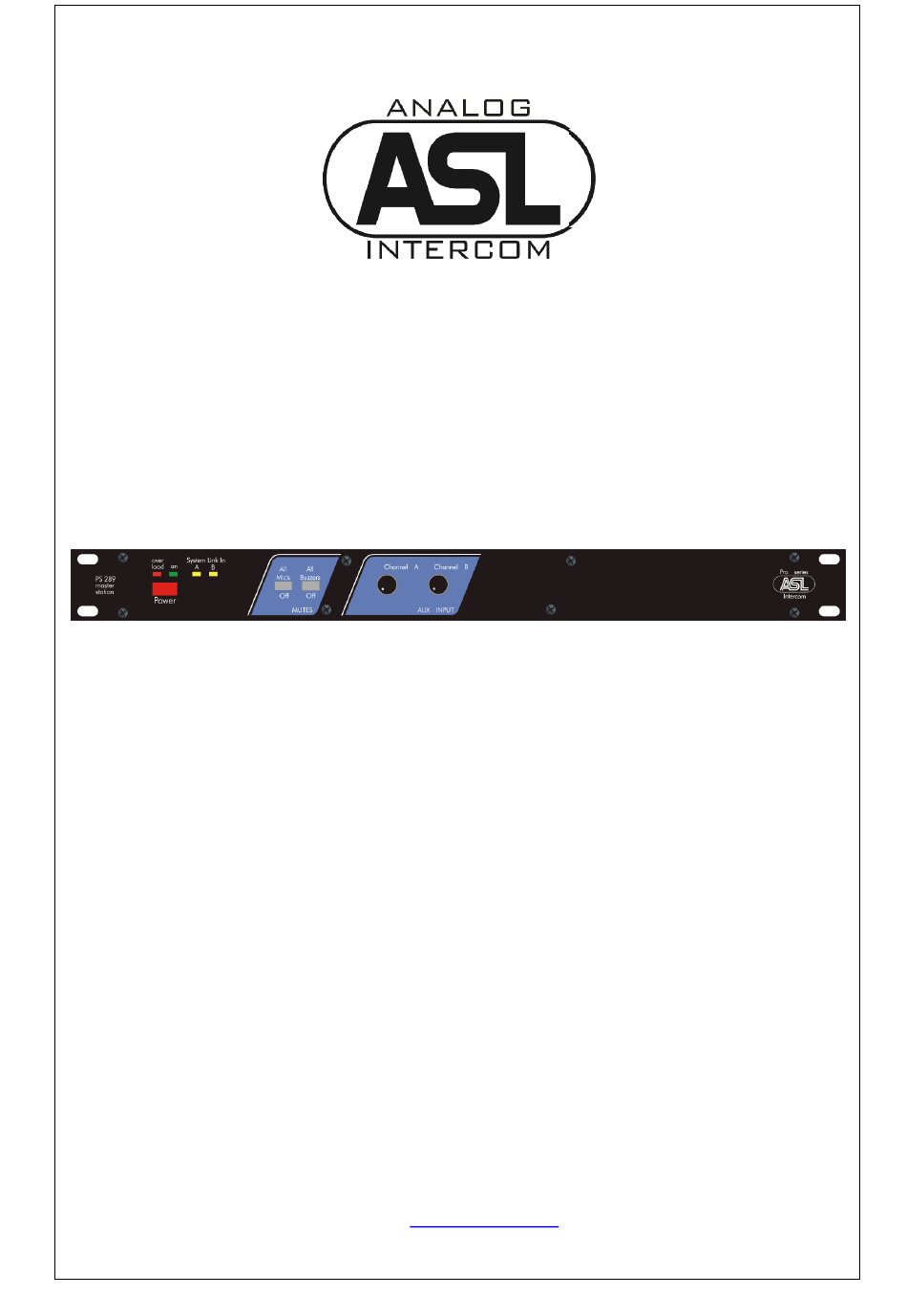

- Page 1 PS 289 DUAL CHANNEL POWER SUPPLY USER MANUAL Issue 2011 © ASL Intercom BV DESIGNED AND MANUFACTURED BY: ASL INTERCOM B.V. ZONNEBAAN 42 3542 EG UTRECHT THE NETHERLANDS PHONE: +31 (0)30 2411901 FAX: + 31 (0)30 2667373 E-MAIL: info@asl-inter.com WEB:...
-
Page 2: Table Of Contents
REAR PANEL CONTROLS AND CONNECTORS 10.0 PS 289 BLOCK DIAGRAM ..............6 11.0 PARTY LINE, TECHNICAL CONCEPT ..........7 12.0 CABLING ....................7 13.0 EARTHING CONCEPT ................8 14.0 POSSIBLE SYSTEM CONFIGURATION ..........8 PAGE 2 User Manual PS 289 / Issue 2011 © ASL Intercom BV... -
Page 3: Safety Instructions
ASL dealer, with shipping prepaid. A note must be included stating the faults found and a copy of the original suppliers invoice. PAGE 3 User Manual PS 289 / Issue 2011 © ASL Intercom BV... -
Page 4: Mechanical Installation
The power supply module is mounted on the Adequate ventilation must be provided by allowing bottom of the PS 289. After a period of time it will sufficient space around the sides and rear of the feel hot to the touch on top and bottom. This is normal and should be no cause for alarm. -
Page 5: Front Panel Controls And Connector
0 dBu defined as 775 mV into open circuit Circuit breaker delay time: 0.2 sec. ASL reserves the right to alter specifications Automatic reset time: 3.0 sec. without prior notice PAGE 5 User Manual PS 289 / Issue 2011 © ASL Intercom BV... -
Page 6: Rear Panel Controls And Connectors
In case 100/240 V AC power is not available, the With this switch the pin 1 of the AUX input XLR is PS 289 can be powered by a DC supply (12 – 28 lifted from ground when in “Lift” position. -
Page 7: Party Line, Technical Concept
PAGE 7 User Manual PS 289 / Issue 2011 © ASL Intercom BV... -
Page 8: 13.0 Earthing Concept
13.0 EARTHING CONCEPT 14.0 POSSIBLE SYSTEM CONFIGURATION PAGE 8 User Manual PS 289 / Issue 2011 © ASL Intercom BV...
