HELUKABEL 11017443 Manual

Version: 2 / 08.11.2019
Intended Use

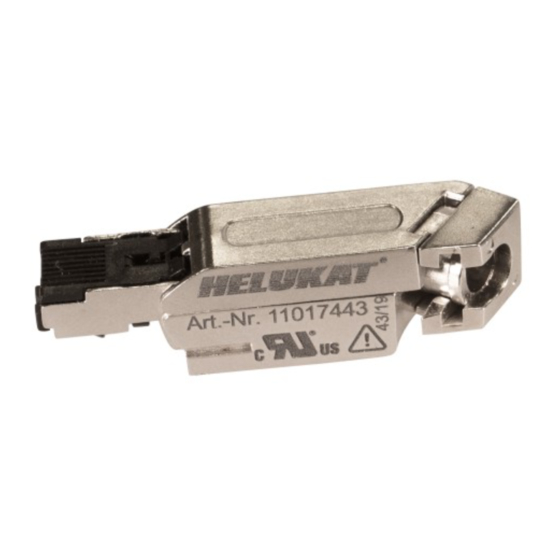

The field-assembled RJ45 connector for PROFINET, Modbus, and EtherCAT is easy and quick to install. With a
PROFINET cable of up to 100 m length, Ethernet components such as a PROFINET station can be connected. In
addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 100 Mbps.
Features
- Color-coded contact elements help to avoid connection errors
- Transmission rates up to 100 Mbps
- No loose individual parts
- Tool-free installation
- EasyConnect® RJ45 connection (IDC) for industrial applications
- For PROFINET, Modbus, and EtherCAT
- 145° cable outlet

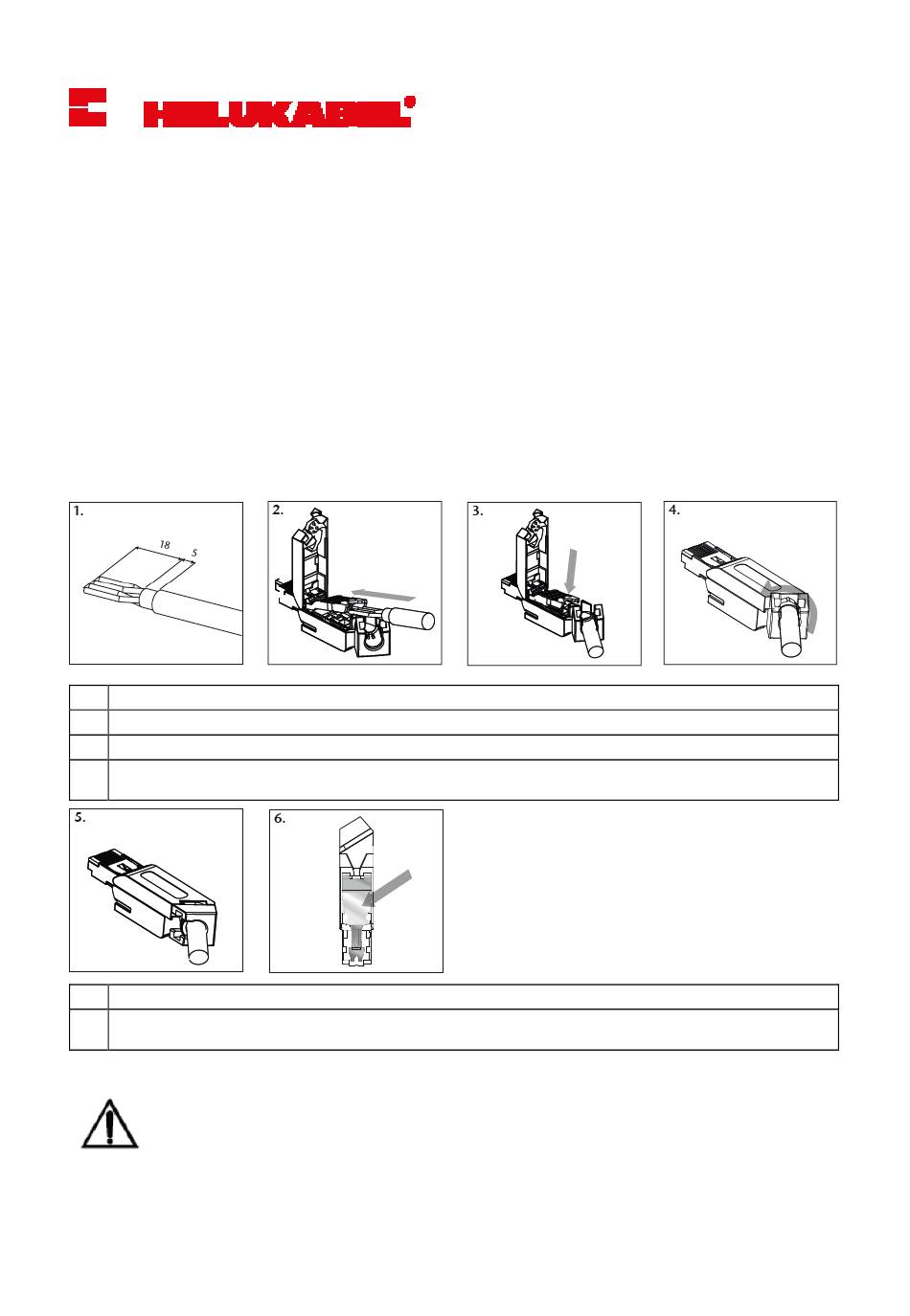

Assembly instructions
1. Lay out the stripped wires in accordance with the color coding of the RJ45 connector
2. Insert the wires into the contacts of the RJ45 connector as far as the limit stop
3. Press down on the contacts up to the limit stop to complete the connection
4. Close the housing cover and turn the sealing piece in the direction of the arrow. For a better lever for
proper sealing of the plug, insert a small screwdriver into the hole of the sealing piece
5. The connector is correctly locked when the screw cap is securely tightened
6. Release: Completely insert plug and mechanically relieve. Then push the release spring down at the
marked position
Attention: If the device is used in a manner not specified by the manufacturer, the protection provided
by the device may be affected. Pay special attention to the correct contact during cable installation and when
plugging in and unplugging the plug. If you have problems, always read the latest documentation first. Connected
circuits shall meet the requirements of Limited energy circuits acc. UL61010-1
®
HELUKABEL GmbH
Daten-, Netzwerk- & Bustechnik / Data, Network & Bus Technics
Dieselstraße 8-12 | D-71282 Hemmingen
PROFINET-Connector, RJ45, 145°
BT-beipack-163
2019-11-08
