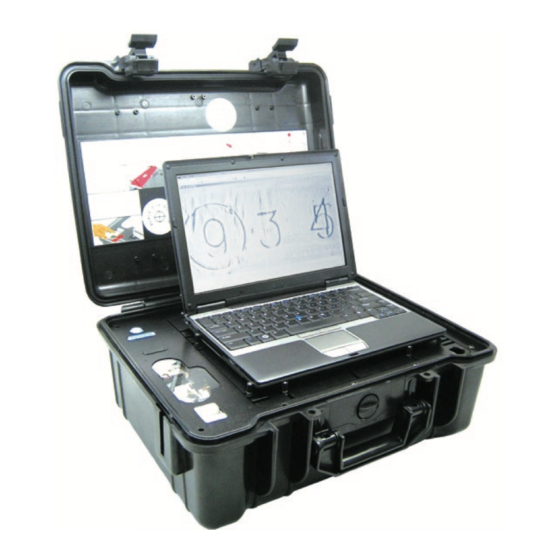

REGULA 7505M Operating Manual

Magneto-optical devices for identification and detection of vehicle units numbers falsification
Hide thumbs
Table of Contents

Advertisement

Quick Links

Certified Quality
Management System
MAGNETO-OPTICAL DEVICES
for identification and detection of vehicle units numbers falsification
REGULA, model 7505M
Operating Manual
2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7505M and is the answer not in the manual?

Questions and answers

Summary of Contents for REGULA 7505M

  • Page 1 Certified Quality Management System MAGNETO-OPTICAL DEVICES for identification and detection of vehicle units numbers falsification REGULA, model 7505M Operating Manual 2014...

  • Page 3: Table Of Contents

    1 .2 .2 Magnetic Copying Accessories Set (MCAS) . . . . . . . . . . . . . . . . . . . . . . . . . 13 1 .2 .3 Spectral Luminescent Magnifier Regula model 4177 (SLM) . . . . . . . . . . . . . . 15 1 .2 .4 Personal Computer (PC) .

  • Page 4: Introduction

    INTRODUCTION The Operating Manual (OM) is the main operational document for the device Regula 7505M (hereinafter referred to as “the device”) designed for identification and detection of falsifications of VINs (vehicle identification numbers) and vehicle documents . OM contains information about device design, principles of operation and properties of the device and its components .

  • Page 5: Description And Operation

    Description and Operation 1.1.1 Device Function Regula 7505M is designed for non-destructive investigation of metal surface and for document examination to control their authenticity and detect falsification of VINs and vehicle documents . The device is a set of hardware and software products enabling visualization (video imaging)

  • Page 6: Technical Specifications

    (nominal value =12/24/48 V) into DC voltage of PC power supply . Power Consumption: USB-device for Magneto-Optical Visualization not more than 2,5 W Spectral Luminescent Magnifier Regula 4177 not more than 2 W Reliability: Time to failure not less than 10 000 hours...

  • Page 7: Device Composition

    Universal handle with a hinge Extension handles Container for alcohol (10 g) Brush — Marker — Accessories bag Body-case Carrier bag for accessories Body-case Spectral luminescent magnifier Regula 4177 Body-case Regula 4177 Peripheral VIN examination tools Body-case Regula 7516 Folder with documents Transportation —...

  • Page 8: Structure And Operation

    Block of Electronics manages OMB resources (electric drive, inductor, illuminator, video camera and indicators) . Operation of Regula 7505 USB-devices is carried out with the help of a Personal Computer (PC) via special software . A PC displays newly obtained and stored examination data which are...
  • Page 9 Spectral Luminescent Magnifier (SLM) is used for optical examination of documents (category “B” objects) . It enables the user to examine objects in visible light (white, blue, yellow and green), in infrared (IR), ultraviolet (UV) and oblique light, as well as IR and UV luminescence .

  • Page 10: Means Of Measurement, Tools And Accessories

    Regula 7515M 13 — combination magnetic scanner 8 — carrier bag for accessories 14 — test-object 9 — spectral luminescent magnifier Regula 4177 15 — magnetic tape strip 10 — body-case for magnetic copying accessories set View of the device with the lifted PC panel 1.1.5...

  • Page 11: Marking

    After the original digits were altered, the following operations were performed on the test-object: grinding, spackling, dressing, priming, two-layer spray-on painting with aerosol motor enamel using the technique of cold drying in accordance with the repaired coating type . Figure 2 Photographic image of the investigated test-object surface 1.1.6 Marking...
  • Page 12 Technical characteristics Examined object material ferromagnetic Width of magnetic tape 25,4 and 12,6 mm Maximum length of magnetic tape not limited Examined width of magnetic tape not less than 20 mm Physical size of image point (frame format 1280x1024) 16 μm Acceptable thickness of non- for detailed research (spatial resolution 80 μm) not more than 0,1 mm...

  • Page 13: Magnetic Copying Accessories Set (Mcas)

    Status indicators of the USB-device for MOV: “device is passive” “MT in the bunker” (special software is not operating with the device); (insertion or extraction of MT); “device is active” “MT in the tract” (special software is operating with the device); (stitching is in process) .
  • Page 14 Design MCAS casing is designed as a leather waist carrier pouch (Figure 1b, pos . 10) intended for carrying accessories for magnetic copying . MCAS casing is placed in a special niche under the front panel of the device body-case . Main elements of the loaded MCAS casing are shown in Figure 1b: 10 —...

  • Page 15: Spectral Luminescent Magnifier Regula Model 4177 (Slm)

    Specifications of Regula 4177 are given in this Operating Manual . 1.2.4 Personal Computer (PC) Function A PC with special software manages various USB-devices of Regula 7505M (MOV, SLM, op- tical input), displays operative and stored information, provides conditions for its processing, examination and documenting . Technical specifications The device can operate both with a stationary PC and with a 12’’...

  • Page 16: Spare Parts And Repair Kit (Sprk)

    The software performs the following functions: operating “Regula 7505M”, input of images from scanners, automatic panoramic stitching of images of VINs, processing images, comparing images with specimens, recording images with different formats, documenting examination results . The description of Videoscope/Nuca (EYER) is given in this Operation Manual .

  • Page 17: Intended Use

    INTENDED USE Intended Use of the Device 2.1.1 Operating Limitations IT IS STRONGLY PROHIBITED TO: use ungrounded mains sockets, use faulty mains sockets and power supply sources, use power supply sources different from the ones described in paragraph 1 .1 .2, switch on the device with visible damage of protective isolation, of cables conductors and of power supply cords, switch on the device when protective shrouds are removed .

  • Page 18: Intended Use Of The Device Components

    Check the device components and prepare them for operation in accordance with paragraphs 2 .2 .1–2 .2 .3 . Prepare the PC and its peripherals for operation in accordance with the corresponding technical description . In case a PC is purchased by the User (see requirements listed in paragraph 1.2.4), the following operations should performed to install the PC correctly: Install the OS and necessary programs in conformity with their technical description .
  • Page 19 Operational check-up Take out test-object #1 intended for testing the USB-device for MOV (see paragraph 1 .1 .5) from the Spare Parts and Repair Kit (SPRK) and make its magnetic copy in conformity with paragraph 2 .2 .2 .3 . Perform magnetic copy stitching in the PC in conformity with paragraph 2 .2 .1 .3 .
  • Page 20 For plastic MT (1’’ and ½’’). Put the MT with its working surface (of brown colour) facing down (facing MOV) . It should be noted that when using ½’’ MT, it is inserted into a paper cartridge beforehand . It means that the ½’’ MT is put with its working surface (of brown colour) facing down while the paper cartridge is located on top of MT .

  • Page 21: Magnetic Copying Accessories Set (Mcas)

    measuring geometrical sizes of symbols images and their arrangement . Soft- ware applications allow measuring linear and angular sizes of images; analyze the investigation results . Documenting investigation results Saving initial magneto-optical visualization file of the number platform . Processed images can also be saved .
  • Page 22 Figure 5   а) magnetic tape extraction from the bunker of the cutter 1 — lever; 2 — blade; 3 — magnetic tape; 4 — case; 5 — bunker with magnetic tape reserve; 6 — site for magnetic tape pulling out .  ...
  • Page 23 Cut plastic MT using paper scissors . When cutting, it is recommended to trim MT edges so that they are rounded in shape . Cut paper cartridges for ½’’ plastic MT from printed stencils using paper scissors . Cut along the lines .
  • Page 24 As a result of being damaged and worn out, plastic MT loses particles of the working layer . Consequently the quality of copying worsens and the USB-device for MOV becomes dirty . If the defects of MT working layer are visible, the MT is to be withdrawn from use . Figure 7 Magnetic tapes inspection and maintenance Non-observance of the recommended form of MT strip edges can result in stitching...
  • Page 25 To renew ethyl alcohol operative reserve – take the container for alcohol from the box (Figure 7d), remove the cap, unscrew the head and pour about 5 ml of alcohol . Screw the head of the container and establish the cap on its place . 2.2.2.3 Intended Use of the Device Intended use of the device is possible after the requirements given in paragraph 2 .2 .1 are observed and the procedures described in paragraph 2 .2 .2 .2 are performed .
  • Page 26 Figure 8 1 — demagnetizer drive button 2 — frame-handle 3 — rotary concentrator plug 4 — rotary concentrator 5 — flat concentrator 6 — MT strip 7 — rotary concentrator screw Magnetic tapes inspection and maintenance Magnetic Copying Fix one end of the demagnetized magnetic tape strip with a magnetic clamp (Figure 9, pos .
  • Page 27 Figure 9 а) Making magnetic copy of a vehicle number platform using the Compact Magnetic Scanner with rotary concentrator b) Making magnetic copy of a vehicle number platform located in hard to reach place 1 — CMS 2 — magnetic clamp 3 —...

  • Page 28: Spectral Luminescent Magnifier Regula Model 4177

    1 — compact scanner 2 — magnetic clamp 3 — MT strip 4 — investigated surface 5 — spring clip Spectral Luminescent Magnifier Regula model 4177 2.2.3 Technical characteristics of SLM are specified in “REGULA Spectral Luminescent Magnifier” Operating Manual .

  • Page 29: Technical Maintenance Of The Device And Its Components

    TECHNICAL MAINTENANCE OF THE DEVICE AND ITS COMPONENTS USB-device for Magneto-Optical Visualization (MOV) Daily technical maintenance of the device provides the following procedures: external examination (visually check integrity of controls, indication and switching, isolation and USB-cable), check-up for PC battery charging that is performed by OS or with the help of “Videoscope”/ NUCA (EYER) software in the menu “Operation / Device operation / Power sources”, cleaning the front panel and controls from dust and oily films with soft tissue or a wad wetted in ethyl alcohol (rate of alcohol application –...

  • Page 30: Spectral Luminescent Magnifier Regula Model 4177

    Technical maintenance of the device when putting it for storage: pack the components of the device into the industrial packaging . Spectral Luminescent Magnifier Regula model 4177 Daily technical maintenance of this device includes visual inspection (integrity of the case,...

  • Page 31: Routine Repairs

    ROUTINE REPAIRS Safety measures Safety measures during routine repairs should comply with the requirements described in paragraph 2 .1 .1 of the present Operating Manual . All repairs shall be carried out with PC power supply cables disconnected from the mains. General Instructions The list of possible problems and troubleshooting is given in Table 2 .
  • Page 32 still holding the pinch roller fork, take the protruding end of the magnetic tape and extract the jammed piece (Figure 11) . If two edges of the magnetic tape are sticking out – it can be extracted in any direction . In case length of the tape is less than 200 mm or it is rolled in the tape drive none of magnetic tape edges will stick out .

  • Page 33: Storage

    STORAGE The device is to be stored in the manufacturer’s packing . Climatic storing conditions: temperature: from +5 ˚C to +40 ˚C, relative air humidity: up to 80 % at +15 ˚C, atmospheric pressure: 100 +/- 4 KPa (750 +/- 30 mm Hg) . When preparing the device for storage, it is recommended to perform maintenance works as described in paragraph 3 .2 .

  • Page 34: Acceptance Certificate

    ACCEPTANCE CERTIFICATE Magneto-optical device for identification and detection of vehicle identification numbers falsification Regula 7505M . Serial number ___________ is produced and approved as disposable for service in conformity with mandatory requirements of state standards and current technical documentation .

  • Page 35: Act Of Sale

    ACT OF SALE (to be completed by the seller) Magneto-optical device for identification and detection of vehicle identification numbers falsification Regula 7505 . Serial number ___________ is sold to: Buyer’s Name: ______________________ Seal: Date of sale: ________________________ Device Price: ________________________...
  • Page 36 1-314 Volokha Street, Minsk, 220036, Republic of Belarus Phone: +375 17 286-2825 Fax:+375 17 210-2397 e-mail: mail@regula .by, http://www .regulaforensics .com...
