parkell TurboPIEZO Instructions For Use Manual

This manual, in whole or in part, should not be considered a substitute for formal training in Electrosurgery.
Appropriate professional education is STRONGLY RECOMMENDED prior to using this device clinically.

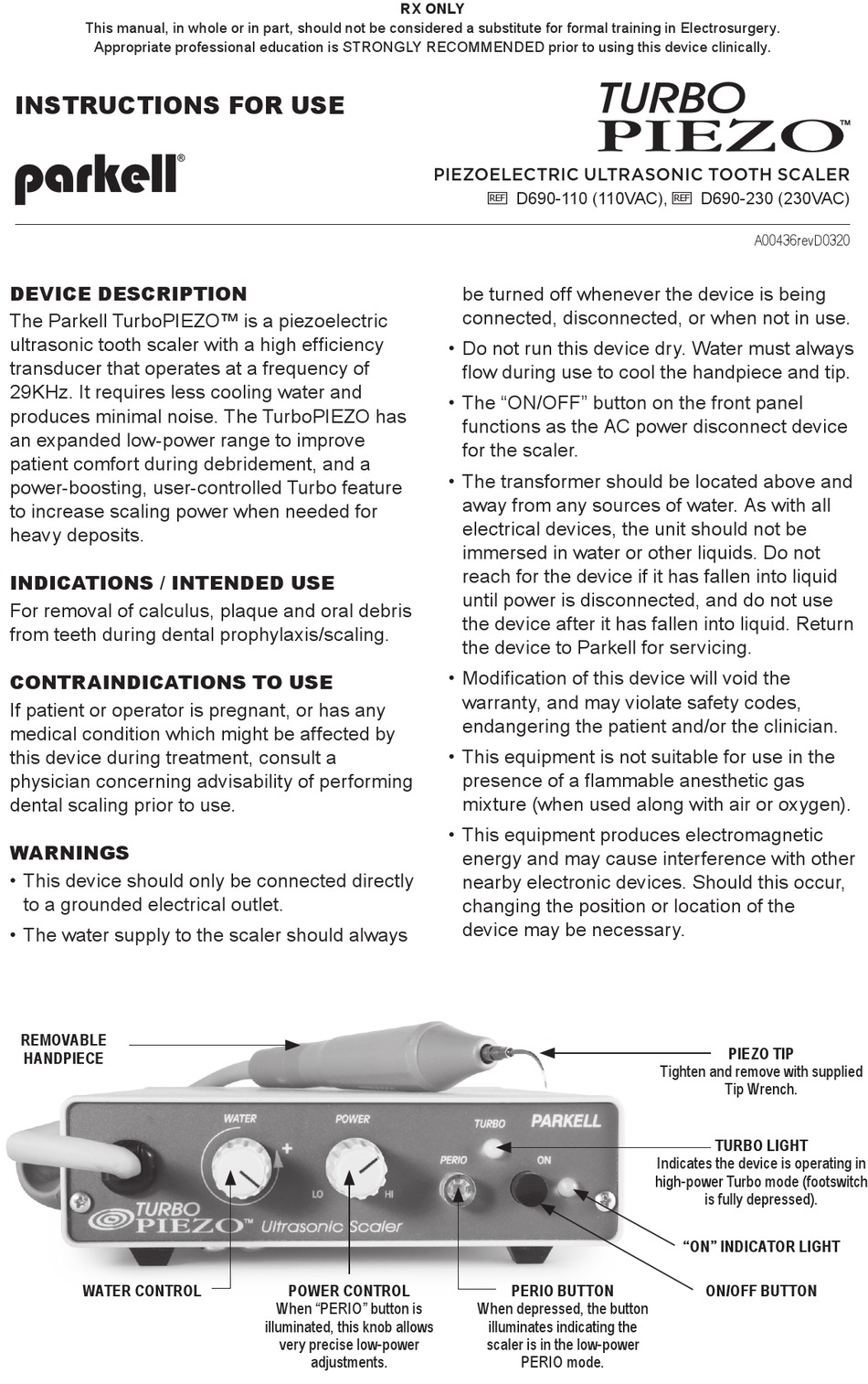

INSTRUCTIONS FOR USE

DEVICE DESCRIPTION

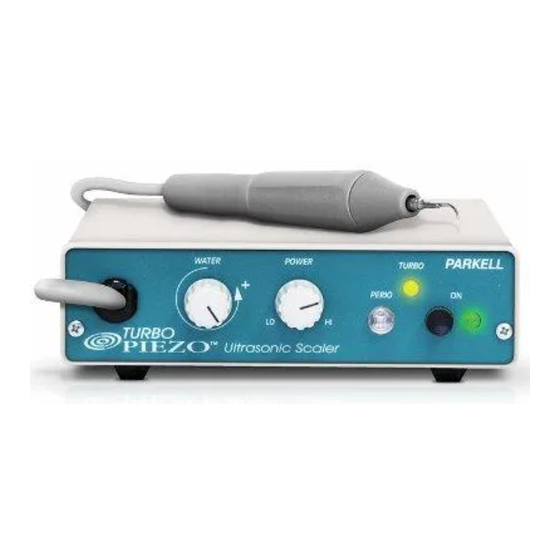

The Parkell TurboPIEZO™ is a piezoelectric
ultrasonic tooth scaler with a high efficiency
transducer that operates at a frequency of
29KHz. It requires less cooling water and
produces minimal noise. The TurboPIEZO has
an expanded low-power range to improve
patient comfort during debridement, and a
power-boosting, user-controlled Turbo feature
to increase scaling power when needed for
heavy deposits.

INDICATIONS / INTENDED USE

For removal of calculus, plaque and oral debris
from teeth during dental prophylaxis/scaling.

CONTRAINDICATIONS TO USE

If patient or operator is pregnant, or has any
medical condition which might be affected by
this device during treatment, consult a
physician concerning advisability of performing
dental scaling prior to use.

WARNINGS

• This device should only be connected directly
to a grounded electrical outlet.
• The water supply to the scaler should always
REMOVABLE
HANDPIECE
WATER CONTROL
RX ONLY
POWER CONTROL
When "PERIO" button is
illuminated, this knob allows
very precise low-power
adjustments.
PIEZOELECTRIC ULTRASONIC TOOTH SCALER
h D690-110 (110VAC), h D690-230 (230VAC)
be turned off whenever the device is being
connected, disconnected, or when not in use.
• Do not run this device dry. Water must always
flow during use to cool the handpiece and tip.
• The "ON/OFF" button on the front panel
functions as the AC power disconnect device
for the scaler.
• The transformer should be located above and
away from any sources of water. As with all
electrical devices, the unit should not be
immersed in water or other liquids. Do not
reach for the device if it has fallen into liquid
until power is disconnected, and do not use
the device after it has fallen into liquid. Return
the device to Parkell for servicing.
• Modification of this device will void the
Warranty, and may violate safety codes,
endangering the patient and/or the clinician.
• This equipment is not suitable for use in the
presence of a flammable anesthetic gas
mixture (when used along with air or oxygen).
• This equipment produces electromagnetic
energy and may cause interference with other
nearby electronic devices. Should this occur,
changing the position or location of the
device may be necessary.
PERIO BUTTON
When depressed, the button
illuminates indicating the
scaler is in the low-power
PERIO mode.
A00436revD0320
PIEZO TIP
Tighten and remove with supplied
Tip Wrench.
TURBO LIGHT
Indicates the device is operating in
high-power Turbo mode (footswitch
is fully depressed).
"ON" INDICATOR LIGHT
ON/OFF BUTTON
