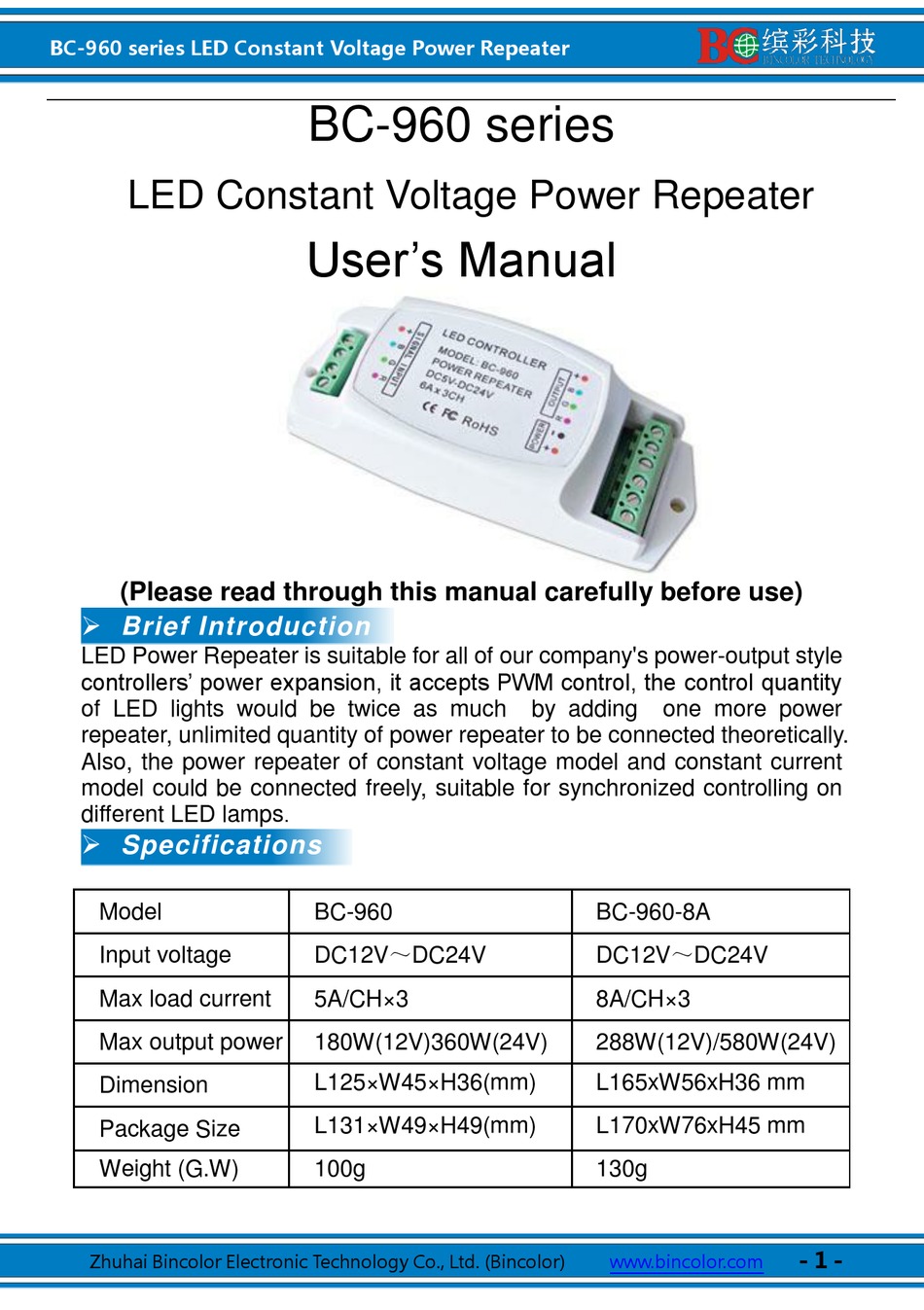

BC-960 series LED Constant Voltage Power Repeater
LED Constant Voltage Power Repeater
(Please read through this manual carefully before use)
Brief Introduction
LED Power Repeater is suitable for all of our company's power-output style
controllers' power expansion, it accepts PWM control, the control quantity
of LED lights would be twice as much
repeater, unlimited quantity of power repeater to be connected theoretically.
Also, the power repeater of constant voltage model and constant current
model could be connected freely, suitable for synchronized controlling on
different LED lamps
Specifications
Model
Input voltage
Max load current
Max output power
Dimension
Package Size
Weight (G.W)
Zhuhai Bincolor Electronic Technology Co., Ltd. (Bincolor)
BC-960 series
User's Manual
.
BC-960
DC12V～DC24V
5A/CH×3
180W(12V)360W(24V)
L125× W45×H36(mm)
L131× W49×H49(mm)
100g
by adding
one more power
BC-960-8A
DC12V～DC24V
8A/CH×3
288W(12V)/580W(24V)
L165xW56xH36 mm
L170xW76xH45 mm
130g
www.bincolor.com
- 1 -
