Summary of Contents for Toolots ZEUS200 BD

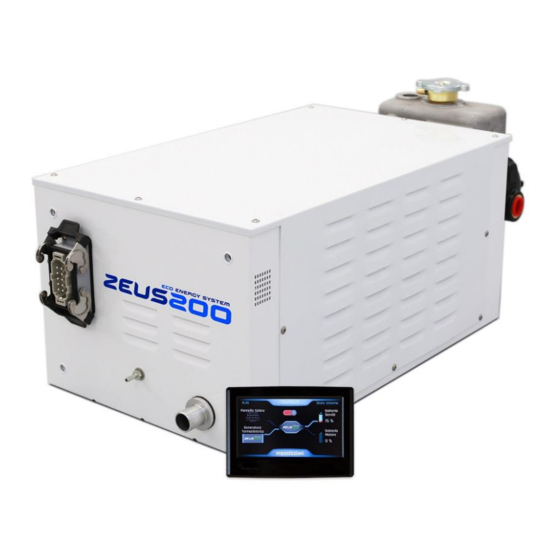

- Page 1 Thermoelectric Generator USER MANUAL ZEUS200 BD Power Supply: Diesel IMPORTANT You can obtain the 3 (three) year warranty extension by registering the product for free on support.mobiltech.it More information can be found in chapter 5 of this manual.
-
Page 2: Table Of Contents
Zeus200 User Manual SUMMARY Introduction ......................... 2 Usage rules ........................2 Basic operating principles and general indications ............3 Fuel quality ........................4 System control ........................5 Main Menu - Home ......................6 2.1.1 Solar panel management ..................7 2.1.2 Thermoelectric generator management .............. -
Page 3: Basic Operating Principles And General Indications
Zeus200 User Manual ▪ The use of components other than the original ones is not allowed ▪ The product does not require user maintenance. Maintenance operations must be performed by qualified personnel only ▪ In case of doubt, contact the manufacturer or a qualified installer 1.2 Basic operating principles and general indications The basic operating principle of the system is shown below: Zeus200 generator is able, using the boat fuel, to charge and maintain charged both the engine... -
Page 4: Fuel Quality
Zeus200 User Manual recharged when the primary is charged or the secondary is under the minimum working level • The primary battery is recharged using the parameters related to the temperature of the containment compartment. It is possible to force a priority charging of the secondary battery •... -
Page 5: System Control
Zeus200 User Manual 2 System control The system is completely manageable through the functions of the control panel, divided into several menus. In the figure below the menu structure is shown HOME SETTINGS MODE LANGUAGE SERVICE TIMER Timer 1 Automatic Italian Timer 2 Manual... -
Page 6: Main Menu - Home
Zeus200 User Manual 2.1 Main Menu - Home The Home Menu is shown in the following picture. Timer1 Timer2 Engine Automatic/Manual battery mode forcing Solar Primary panel battery management management Engine Thermoelectric battery generator management management termoelettrico Active energy Battery source actually Setup Menu... -
Page 7: Solar Panel Management
Zeus200 User Manual 2.1.1 Solar panel management Pressing the solar panel icon, the screen display the Menu related to the energy supplied by the solar panel Energy Instantaneous produced in power the last 48 hours Back to Home The graph shows the trend of the energy delivered by the solar panel over the last 48 hours. Touching the graph area, a zoom is performed in order to view the progress of the energy generation more accurately. -
Page 8: Service Battery
Zeus200 User Manual 2.1.3 Service battery Pressing the service battery icon, the service battery menu is shown Percentage Battery of charge data Back to Home The battery data is displayed on the left: ➢ Type ➢ Actual voltage ➢ Battery compartment temperature The percentage of service battery charge is displayed on the right side of the screen 2.1.4 Engine battery Pressing the battery icon, the engine battery menu is shown. -
Page 9: Settings Menu
Zeus200 User Manual 2.2 Settings Menu The following figure shows the Settings menu Pressing the "Home" area returns to the system main screen 2.2.1 Timer Menu The following figure shows the Timer menu, that can be activated only if the automatic operation mode is selected Timer 1 Timer 2 Clock... -
Page 10: Mode Menu
Zeus200 User Manual 2.2.2 Mode Menu The following figure shows the menu related to the different modes of system operation. Battery automatic Automatic Mode selecion Engine Manual Mode battery forcing Back to Settings Menu ➢ Mode - Automatic: this mode operates as follows: Type Power on Filter... -
Page 11: Language Menu
Zeus200 User Manual 2.2.3 Language Menu The following figure shows the menu related to the different languages for which the system can be configured. 2.2.4 Service Menu Control Unit Generator Menu Menu Communication between display Software and power unit Update Communication between power unit and... -
Page 12: Update Menu
Zeus200 User Manual 2.2.5 Update Menu In this menu is possible to update the software of the different components of the system, using the SW update package available on the manufacturer site, www.mobiltech.it The update is performed by inserting a memory card with the new software package into the MicroSD slot. -
Page 13: System Messages And Fault Table
Zeus200 User Manual 3 System messages and fault table The following table shows the most common causes of errors, together with the possible cause and possible solutions. Error Possible cause Possible solution System does not power on - No power supply - Check the fuse on the charging unit - Verify that all cables are correctly... - Page 14 Zeus200 User Manual Error Possible cause Possible solution Display shows - Fault or lack of - Contact an authorized center for “Fuel Pump error” connection to the fuel verification pump Display shows “External pump - Obstruction of the - Check and clean the water inlet error”...
-
Page 15: Technical Data
Zeus200 User Manual 4 Technical data 12V – mod. Z200BD12 Power Supply 24V – mod. Z200BD24 Operating temperature -20°C / +40°C Dimensions and weight Generator: 670x330x305 mm 36,5Kg Battery types Free acid, Pb Seal, LiFePO4 Fuel consumption From 0,2 lt/h to 0,6 lt/h Electrical consumption Max (45 sec during power on): up to 12A Standby: with display on: 190mA... -
Page 16: Possible Checks
Zeus200 User Manual 6 Possible checks Date Hours of operation Date Hours of operation Stamp and Signature Stamp and Signature Date Hours of operation Date Hours of operation Stamp and Signature Stamp and Signature Date Hours of operation Date Hours of operation Stamp and Signature Stamp and Signature Date...
