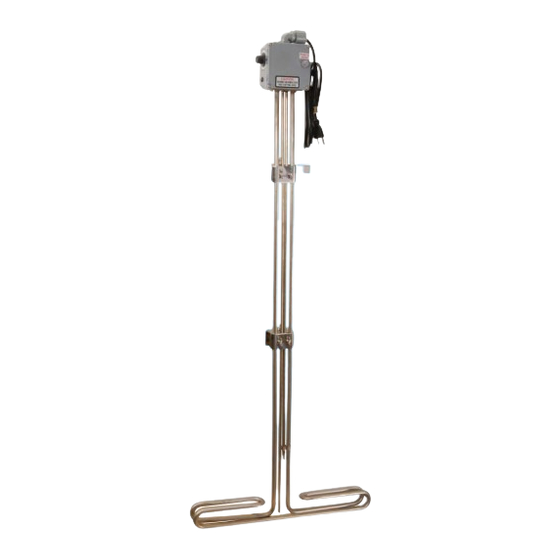

ELECTRIC IMMERSION BAPTISMAL WATER HEATER
Especially Designed For Easy, Low Cost Installation In Baptistries
1.) The unit can be suspended in the middle, end or side of the Baptistry. Heater must be securely held in position
to prevent the electrical box from making contact with the water.
2.) Fill baptistry to required baptismal water depth. The heater must be immersed in water when it is turned
on or it can overheat and burn out, cause bodily harm, or can become a fire hazard.
NEVER TURN HEATER ON UNLESS BAPTISTRY IS FULL OF WATER.
3.) Plug heater into appropriate 120V receptacle (see wiring diagram on back of this sheet) and set desired
baptistry temperature on thermostat dial. The signal light glows only when heating element is energized.
When the desired temperature is reached the signal light will be off.
4.) Prior to the Baptismal Service the baptistry heater should be turned off, unplugged and removed from the baptistry.
There should be no body contact with the baptismal water while the heater is in the water. This will
guarantee protection from the danger caused if an electrical short circuit were to occur in the baptistry
heaters electrical system.
Model SS-1.5-42HL
120 Volts — Single Phase
¢
Immersion section of heater made of 316 Stainless Steel
¢
All heat confined to the formed horizontal of the heater
section for optimum heat efficiency
¢
Cold riser extends to the top of container where control
housing is located
¢
3-conductor cord set with polarized plug included for easy
installation and wiring at no extra charge
¢
Adjustable vapor-proof thermostat control with temperature
range of 55°F to 115°F (+/-3°)
¢
Hi-Limit cut switch set to 125°F (+/-4°)
¢
Stainless Steel mounting bracket also supplied for easy
mounting
¢
Pilot light and on-off switch provided
The SS-1.5-42 (1.5KW) will heat 25 GPH (30°
A 100 gallon baptistry can be heated in 4-1/2 to 5 hours, or one-half
this time with a 15°
Two 1.5KW Little Giant Baptistry Immersion Heaters would
heat the water in one-half the time.
Installation And Operating Instructions
See Wiring Diagram and Important Safety Information On Back
Design Features
Baptistry Heat-Up Times
Temperature Rise.
F
Temperature Rise).
F
Advertisement
Table of Contents
Related Manuals for Little Giant SS-1.5-42HL
Summary of Contents for Little Giant SS-1.5-42HL
- Page 1 A 100 gallon baptistry can be heated in 4-1/2 to 5 hours, or one-half this time with a 15° Temperature Rise. Two 1.5KW Little Giant Baptistry Immersion Heaters would heat the water in one-half the time. Installation And Operating Instructions 1.) The unit can be suspended in the middle, end or side of the Baptistry.
- Page 2 Some water contains minerals such as magnesium, lime, and calcium. These minerals will coat the heated portion of the element causing it to burn out or rupture. Little Giant is not responsible for this type of failure and the one year warranty is cancelled.
