AIRLOGS BAGS TRACKING
User Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Airbeacon and is the answer not in the manual?

Questions and answers

Summary of Contents for airlogs Airbeacon

  • Page 1 AIRLOGS BAGS TRACKING User Manual...

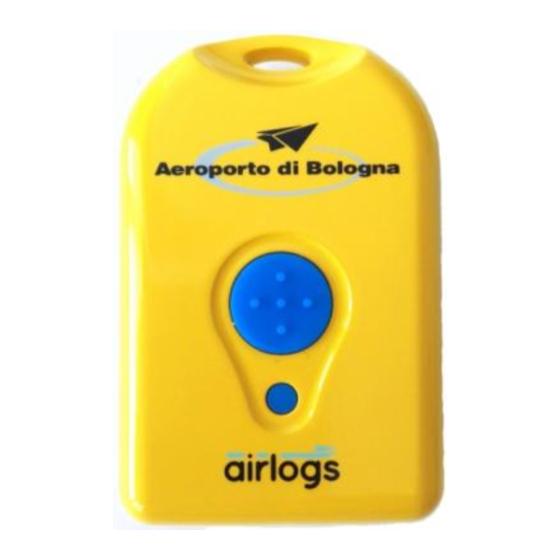

  • Page 2 The blue button in the center is the switch to turn on e off the device. To turn on the Airbeacon you have to keep press the blue button for at least 3 seconds; during the turning on of the Airbeacon the blue light under the button is lighting in a continuous way for 3 seconds.
  • Page 3 2 APP A IRLOGS RACKING First of all you need to download the Airlogs Bag Tracking APP from the store and to install on your smartphone:  Android device: Play Store https://play.google.com/store/apps/details?id=it.airlogs.airbeacon&hl=it  iOS device : APP Store 2.1 User Registration After APP installation you need to register to the service, using the function Register.
  • Page 4 To confirm the registration you need to approve the Terms of Service and the Privacy Policy. The new user will be active after the confirmation of the verification email. 2.2 APP functionality After user registration and email confirmation it is possible to login to the service by clicking on Login button in the Home Page and by entering username and password.
  • Page 5 The other function available are User, to manage your personal data, and Settings, to manage the APP parameters. 2.2.1 Airbeacon linking First of all yoou need to link the Airbeacon to the user: the function is in the Settings area.
  • Page 6 You can use the “Edit name” function to change the name of the Airbeacon linked to the user. If you no longer want to use an Airbeacon you can use the “Unlink” function and the system will no longer track the Airbeacon.
  • Page 7  Light blue colour: the Airbeacon is detected by the user smartphone; the current distance of the Airbeacon depends on different factors. The maximum detection distance in open spece is about 50 meters. By clicking on one Airbeacon you can see the position on the map of the last detection.
  • Page 8 The map is centerd on the last detected location; you can navigate the map with the usual modes. By clicking on the button you can return on the initial position of the map. 2.2.3 Detection history By clicking on History button you can see the history of the detected position. There is a calendar in which you can see on green colour the date in which there are at least one detection.
  • Page 9 For simplicity reason the detection are detailed with a minimum time interval of 10 minutes. By clicking on one detection, you can see its location on the map. From map visualization it is possible to navigate forward and backward in time from one detection to another using the light blue arrow near time indication.
  • Page 10 By clicking on “Edit data” you can update all the personal information except the username. If you change the email address, a verification message will be sent to the new email; you need to confirm the new address in order to make effective the change.
  • Page 11 To change the password you need to enter the current password and enter and confirm the new one.
  • Page 12 UNCTIONALITY As well as with the APP, it is possible to register and to check the Airbeacon position using the web at: www.airbeacon.it. You can choose between two option::  Register  Login 3.1 Register By clicking on Register you can enter a new user.
  • Page 13 3.2 Login By clicking on Login you need to need to enter username and password to access to the service. Please use “Forgot your username” and “Forgot your password” to recover the username and to reset the password.
  • Page 14 3.3 Airbeacon Detections Analisys The main page show the list of the Airbeacon linked to the user. Please remember that it is possible to link an Aribeacon to an user only using the function on the APP (v. 2.2.1 Airbeacon linking).
  • Page 15 For each Airbeacon you can see the date and time of the last detection and the battery charge status. By clicking on “See position on the map” you can see the last position on the map. By clicking on the “History” button you can see the detail of the past position of the selected Airbeacon.
  • Page 16 It is possible to zooming on the map using the button +/- in the right bottom of the page. As you increase the zoom level then on the map is shown a red circle around the Airbeacon position: more small is the circle more accurate is the localization.
