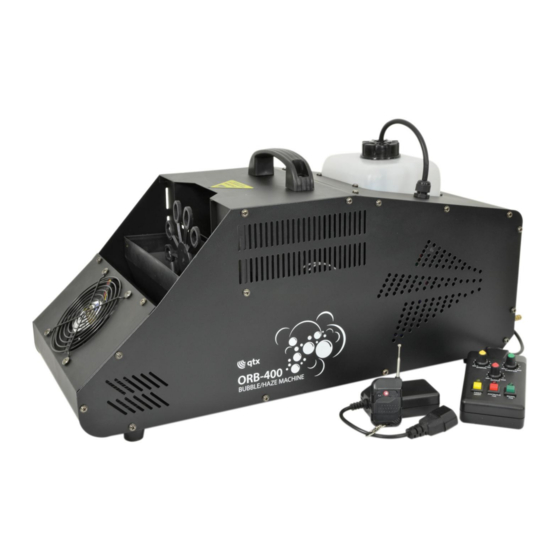

- Page 1 ORB-400 BUBBLE/HAZE MACHINE Item ref: 160.462UK User Manual...
- Page 2 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the ORB-400 bubble/haze machine for stage and events special effects. This product is designed to produce bubbles, haze or a combination of both for atmospheric special effects. Please read these instructions in full to gain the best results from this item and avoid damage to the unit through misuse.
- Page 3 Rear Panel Wireless remote control connection for bubble effect (IEC female) Mains power on/off rocker switch Haze remote timer control connection (5-pin DIN) Mains inlet (IEC male) and fuse holder Bubble fluid drain tap Setting up The ORB-400 requires haze fluid and bubble fluid to create each effect. It is recommended to use one of each from the range of qtx haze and bubble fluids for best results.
- Page 4 Remote timer control Timer button (latching) - activates the timer control Continuous button (latching) – overrides timer control for constant haze Manual button (non-latching) – overrides timer control for haze on demand Timer indicator – illuminated when timer function is active Ready indicator –...
- Page 5 Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines Errors and omissions excepted. Copyright© 2013. AVSL Group Ltd. 160.462UK User Manual...
- Page 6 160.462UK User Manual...
