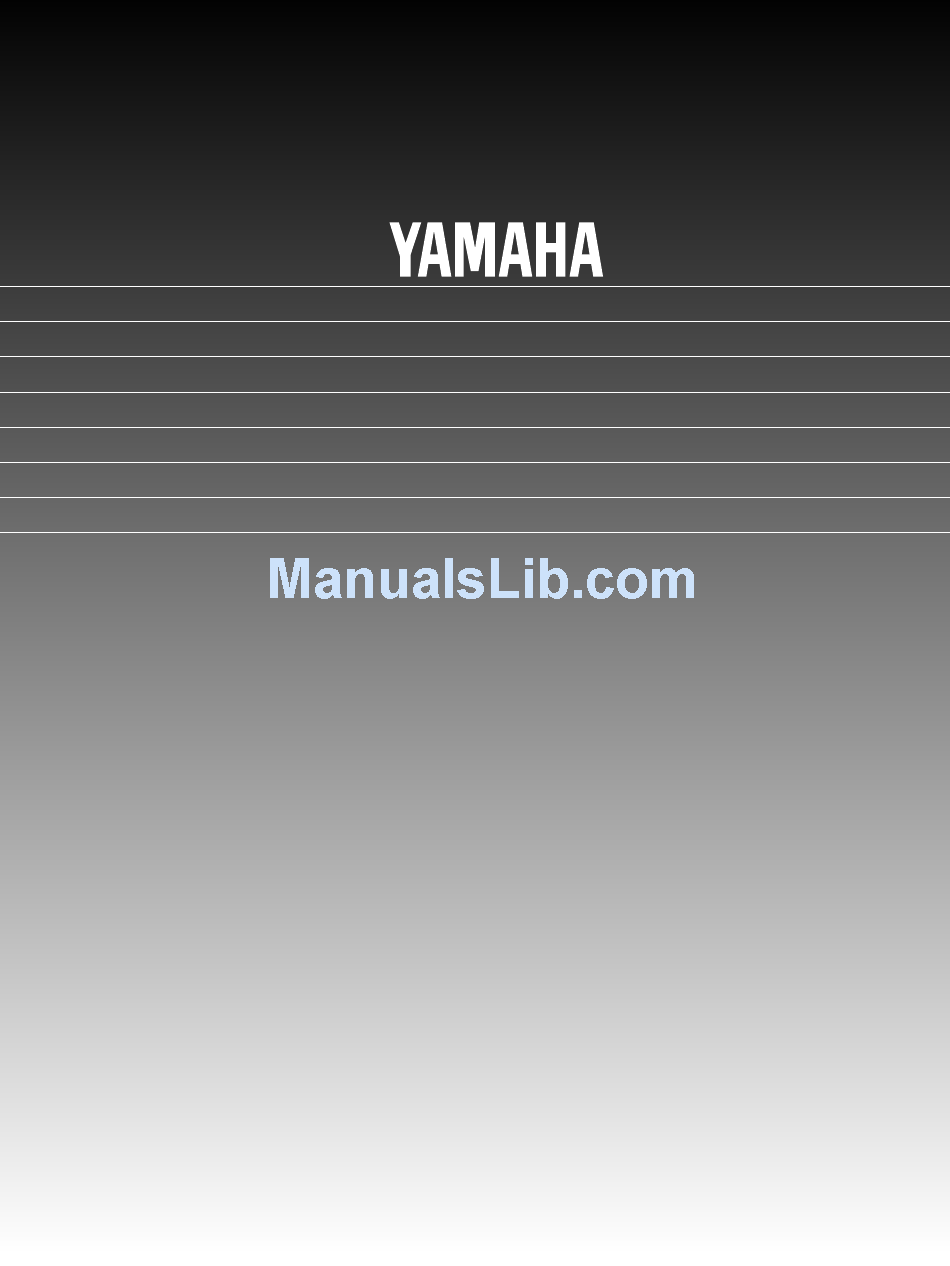

TX - 1 0
Natural Sound AM/FM Stereo Tuner
Syntonisateur AM/FM stéréo de la série "Natural Sound"
"Natural Sound" MW/UKW-Stereo-Tuner
Natural Sound AM/FM stereotuner
Sintonizzatore stereo AM/FM a suono naturale
Sintonizador estéreo de AM/FM de sonido natural
Natural Sound Stereo Tuner
OWNER'S MANUAL
MODE D'EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
MANUALE DI ISTRUZIONI
MANUAL DE INSTRUCCIONES
GEBRUIKSAANWIJZING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Yamaha TX-10

Summary of Contents for Yamaha TX-10

  • Page 1 TX - 1 0 Natural Sound AM/FM Stereo Tuner Syntonisateur AM/FM stéréo de la série “Natural Sound” “Natural Sound” MW/UKW-Stereo-Tuner Natural Sound AM/FM stereotuner Sintonizzatore stereo AM/FM a suono naturale Sintonizador estéreo de AM/FM de sonido natural Natural Sound Stereo Tuner OWNER’S MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG...

  • Page 2: Supplied Accessories

    SUPPLIED ACCESSORIES ACCESSOIRES FOURNIS MITGELIEFERTE ZUBEHÖRTEILE MEDFÖLJANDE TILLBEHÖR ACCESSORI IN DOTAZIONE ACCESORIOS INCLUIDOS BIJGELEVERDE ACCESSOIRES Indoor FM Antenna Antenne FM intérieure UKW-Innenantenne FM inomhusantenn Antenna FM per interni Antena FM interior FM Binnenantenne Audio connection cord Câble de connexion audio Audio-Anschlußkabel Audio anslutningssladdar Cavo di collegamento audio...

  • Page 3: Table Of Contents

    Thank you for selecting this YAMAHA stereo tuner FEATURES • 40 Station Random Access Preset Tuning • Automatic Preset Tuning • Multi-Status Station Memory • Direct PLL Synthesizer Tuning • Preset Station Shifting Capability • Multi-Functions for RDS Broadcast Reception (U.K.

  • Page 4: Antenna Connections

    ANTENNA CONNECTIONS Each antenna should be connected to the designated terminals correctly, referring to the following figure. Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may result in improvement.
  • Page 5 Connecting the indoor FM antenna *If you connect an outdoor FM antenna to this unit, do not connect the indoor FM antenna to this unit. Connecting the AM loop antenna * The AM loop antenna should be placed apart from the main unit. The antenna may be hung on a wall. * The AM loop antenna should be kept connected, even if an outdoor AM antenna is connected to this unit.

  • Page 6: Connections To The Amplifier

    (“R”) LINE OUT terminals are connected to the corresponding (left and right) input terminals of the amplifier or other component. * When connecting with the YAMAHA amplifier AX-10, Connection cord (included) * This unit has a remote control sensor. It receives signals connect this unit’s LINE OUT terminals to the TUNER...

  • Page 7: Automatic Tuning

    Normally, if station signals are strong and there is no interference, quick automatic-search tuning (AUTOMATIC TUNING) is possible. However, if signals of the station you want to select are weak, you must tune to it manually (MANUAL TUNING). AUTOMATIC TUNING <...

  • Page 8: Manual Tuning

    MANUAL TUNING < > U.K. and Europe models Follow steps 1 and 2 on the previous page. TUNING MODE AUTO/ MAN’L MONO If “PRESET” is being illuminated on the display, press the KEY MODE button to turn it off. < U.K.

  • Page 9: Manual Preset Tuning

    MANUAL PRESET TUNING This unit can store station frequencies selected by tuning operation. With this function, you can recall any desired station by only selecting the preset station number where it is stored. Up to 40 stations (8 stations x 5 pages) can be stored. <...

  • Page 10: Automatic Preset Tuning

    AUTOMATIC PRESET TUNING You can also make use of an automatic preset tuning function for FM stations only. By this function, this unit performs automatic tuning and stores FM stations with strong signals sequentially. Up to 40 stations are stored automatically in the same way as in the manual preset tuning method on page 9.

  • Page 11: Exchanging Preset Stations

    EXCHANGING PRESET STATIONS You can exchange the places of two preset stations with each other as shown below. < > U.K. and Europe models Example) If you want to shift the preset station on E1 to A5, and vice versa. Recall the preset station on E1 (by following the method of “To recall a preset station”...

  • Page 12: Receiving Rds Stations (U.k. And Europe Models Only)

    RECEIVING RDS STATIONS RDS (Radio Data System) is a data transmission system gradually being introduced by FM stations in many countries. Stations using this system transmit an inaudible stream of data in addition to the normal radio signal. RDS data contains various information, such as AF (Alternative Frequencies for the same program station), PI (Program Identification), PS (Program Service station name), PTY (Program Type name), etc.
  • Page 13 To turn the unit into the PS mode or PTY mode Press the FREQ/PS/PTY button. Whenever pressed, the mode changes into the PS mode, PTY mode and returns to usual mode in turn. * When an RDS station is received, the display is automatically turned into the PS mode. Do not press the FREQ/PS/PTY button until the display is turned into the PS mode.
  • Page 14 Calling a preset RDS station by the station name (PS SEEK) You can call a desired RDS station stored in this unit by only inputting the name of the station in the PS mode. By this operation, this unit searches all preset stations for the station. You do not have to input a full name, even only the first letter can be used for calling.
  • Page 15 Calling a preset RDS station by the program type (PTY SEEK) By designating a program type, the unit automatically searches all preset stations for RDS stations of that program type. * There are 15 program types to classify RDS stations. For details, refer to page 12. Turn the unit into the PTY mode.
  • Page 16 Calling the best quality RDS station which broadcasts the This function automatically searches for and calls another RDS station of the best reception quality which broadcasts the same program now you are listening to. This function utilizes AF (Alternative Frequencies for the same program station) and PI (Program Identification) of RDS data service. The search is carried out among the RDS network stations.

  • Page 17: Troubleshooting

    If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for help. SYMPTOM Crackling sounds from time to time (especially in weak signal areas).

  • Page 18: Specifications

    SPECIFICATIONS FM SECTION Tuning Range ...87.5 to 108 MHz 50 dB Quieting Sensitivity (IHF) [Except Europe model] 75 ohms Mono ...1.55 µV (15.1 dBf) 75 ohms Stereo ...21 µV (37.7 dBf) Usable Sensitivity [Europe model] (DIN) 75 ohms Mono (S/N 26 dB) ...0.9 µV 75 ohms Stereo (S/N 46 dB)...24 µV Image Response Ratio [Except Europe model] ...45 dB...
  • Page 19 YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, D-2084 RELLINGEN BEI HAMBURG, F.R. OF GERMANY YAMAHA ELECTRONIQUE FRANCE S.A. 17 RUE DES CAMPANULES, LOGNES 77321 MARNE LA VALLEE CEDEX 2, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B.
