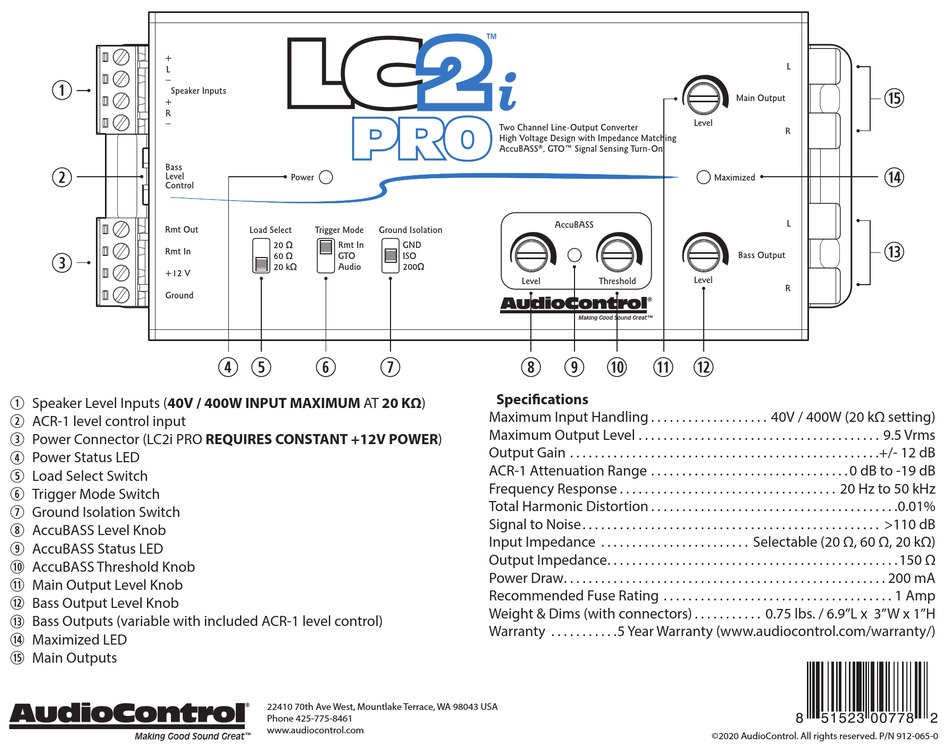

Speaker Level Inputs (40V / 400W INPUT MAXIMUM AT 20 KΩ)
q
ACR-1 level control input
w
Power Connector (LC2i PRO REQUIRES CONSTANT +12V POWER)
e
Power Status LED
r
Load Select Switch
t
Trigger Mode Switch
y
Ground Isolation Switch
u
AccuBASS Level Knob
i
AccuBASS Status LED
o
AccuBASS Threshold Knob
1)
Main Output Level Knob
1!
Bass Output Level Knob
1@
Bass Outputs (variable with included ACR-1 level control)
1#
Maximized LED
1$
Main Outputs
1%
r
t
y
u
22410 70th Ave West, Mountlake Terrace, WA 98043 USA
Phone 425-775-8461
www.audiocontrol.com
i o 1)
1!
Specifications
Maximum Input Handling . . . . . . . . . . . . . . . . . . . 40V / 400W (20 kΩ setting)
Maximum Output Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5 Vrms
Output Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+/- 12 dB
ACR-1 Attenuation Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 dB to -19 dB
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz to 50 kHz
Total Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.01%
Signal to Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >110 dB
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . Selectable (20 Ω, 60 Ω, 20 kΩ)
Output Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Ω
Power Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mA
Recommended Fuse Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Amp
Weight & Dims (with connectors) . . . . . . . . . . . 0.75 lbs. / 6.9"L x 3"W x 1"H
Warranty . . . . . . . . . . .5 Year Warranty (www.audiocontrol.com/warranty/)
1@
8
51523 00778
©2020 AudioControl. All rights reserved. P/N 912-065-0
