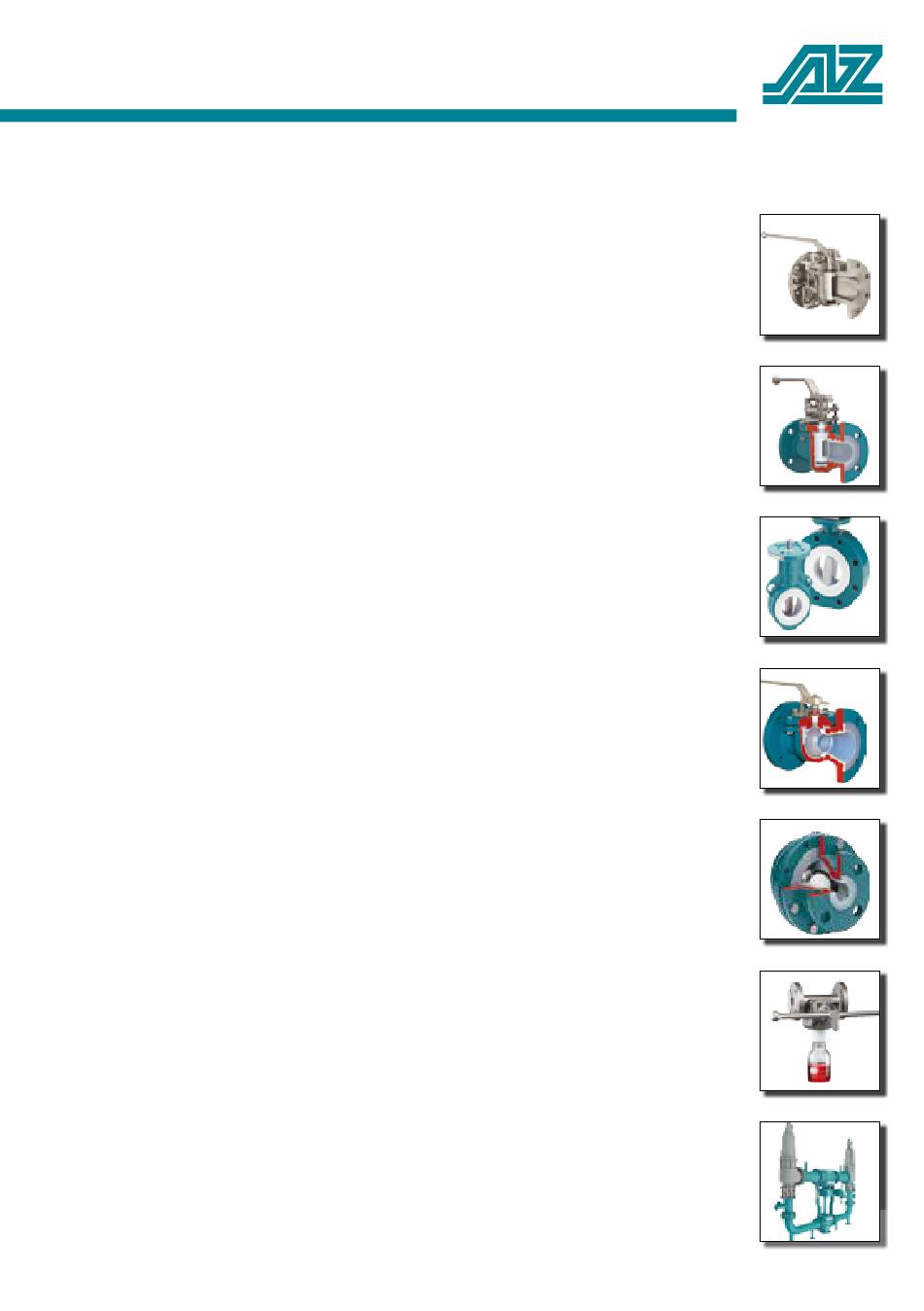

Storage, operating and
maintenance instructions
for AZ plug valves and
Standard valves
Plug - Valves metallic
with PTFE Sleeve 2 - 7 way
Plug - Valves FEP/PFA - lined,
2 - 3 way
Butterfly - Valves
FEP/PFA - lined
Ball - Valves
FEP/PFA - lined
Ballcheck - Valves metallic
with FEP/PFA - lined
Sampling - Systems for
liquid, liquid gas and gas
Special - Valves
and customized
ARMATUREN
totraumfrei & wartungslos
1
Advertisement
Table of Contents
Summary of Contents for AZ F-2-STD-A
- Page 1 Plug - Valves metallic with PTFE Sleeve 2 - 7 way Storage, operating and maintenance instructions Plug - Valves FEP/PFA - lined, for AZ plug valves and 2 - 3 way Standard valves Butterfly - Valves FEP/PFA - lined Ball - Valves...
-
Page 2: Table Of Contents
Content : 1. General information 2. Marking 3. Safety instructions 4. Transport and storage 5. Installation and start-up a) Mounting Instruction b) Statement on Directives 2014/68/EU and 2006/42/EG c) Installation in explosive areas (directive 2014/34EU, ATEX) 6. Handling and operating mode 7. -
Page 3: General Information
1. General information These storage, operating and maintenance instructions apply for all AZ plug valves and other AZ products based on the plug valve design. AZ valves are high performance valves which can also be used under extreme conditions. Due to this, the valves should be handled carefully in order to avoid damages which could be hazardous to human health and/or the environment. -
Page 4: Marking
CE-identification tag plate. This tag plate also includes the test centre identification number, the fitting serial number along with its coded year of manufacture (the first two digits stand for the year of manufacture) and the permissible operating condi- tions (T 0035 www.az-armaturen.co.za... -
Page 5: Safety Instructions
AZ Armaturen GMBH accepts no liability for damage caused by unauthorized modification of any item and/or the use of non-genuine AZ spare parts. National legislation for accident prevention and/or the site specific advice of the end user must always be considered. -
Page 6: Transport And Storage
(actuated valves with fail safe position “closed”), the valves can be stored in closed position, but storage in a half open position has to be avoided at all times. AZ valves are delivered with the end connections covered by protection caps. These caps protect... -
Page 7: A) Mounting Instruction
ARMATUREN totraumfrei & wartungslos the valve ends from mechanical damage and the internals from environmental influences (e. g. dust, dirt etc.). The protective caps shall only be removed when the valve is to be installed. The valves shall be stored indoors in order to protect them from de- structive influences like dirt, moisture and frost. - Page 8 In order to avoid valve damage caused by line impurities (swarf-, dirt, welding residues) the pipeline must be emptied and cleaned before installation of the valves. Prior to installation, ensure that the valve is in open position and the valve end protection caps are removed. Check the sealing surface of flanged valves for damage.
-
Page 9: B) Statement On Directives 2014/68/Eu And 2006/42/Eg
The automated valve may only be commissioned after the pipeline has fully been installed. c) Installation in explosive areas (directive 2014/34/EU (ATEX) AZ valves has undergone a hazard analysis according to directive 2014/34/EU (ATEX). Result: • According to DIN EN 13463-1:2000 AZ-valves don’t have an own potential ignition source and therefore they are not cov- ered by the scope of application of code 2014/34/EU (ATEX). - Page 10 PFA material. A static eliminator device has to be assembled in order to connect the plug with the body (grounding). • AZ valves can be operated manually (e.g. hand lever, gear box) as well as mechanical or electrical (e.g. pneumatic, hydraulic or electric actuator). •...
-
Page 11: Maintenance Instructions
7. Maintenance instructions Under normal conditions and in the case of the use according to the regulations, frequent maintenance work on AZ valves is not necessary. After an extended period of operation, AZ recom- mends checking the function of the valve by repeated open-close strokes. - Page 12 8. Malfunction / defects and fault clearance Malfunc- Possible reason Fault clearance tion Leakage • The allowed valve operating • Check if the valve in the pas- limits (pressure / tempera- closes completely. • Adjustment of the sageway ture) have been exceeded. •...
- Page 13 ARMATUREN totraumfrei & wartungslos 9. Adjusting instructions Adjusting instructions in case of leakage for AZ plug valves type: ISO-STANDARD DN15-100 NPS ½“-4“ / ISO-EXTRA DN15-80 NPS ½“-3“ Plug should be in an open position Both adjusting bolts shall be turned ¼ to ½ rotations clock- wise one after another.
- Page 14 Adjusting instructions in case of leakage for AZ plug valves type: STANDARD DN125-600 NPS 5“-24“ / EXTRA DN100-600 NPS 4“-24“ 1. Plug should be in an open position 2. All adjusting bolts shall be turned ½ to 1/1 rotations clockwise one after another.
-
Page 15: Pressure Tests
1.1 times of the value specified on the type plate (also refer to section 2 “Marking”). For test pressures higher than “1.1 x PN” there is the risk of damage to the PTFE (polytetrafluorethyle- ne) seal. Higher pressure tests only after authorisation by AZ. Pressure Strength test... - Page 16 AZ-Armaturen GmbH Waldstraße 7 D-78087 Mönchweiler Telefon: +49 (0) 7721 7504-0 Telefax: +49 (0) 7721 7504-13 info@az-armaturen.de www.az-armaturen.de ARMATUREN totraumfrei & wartungslos...
