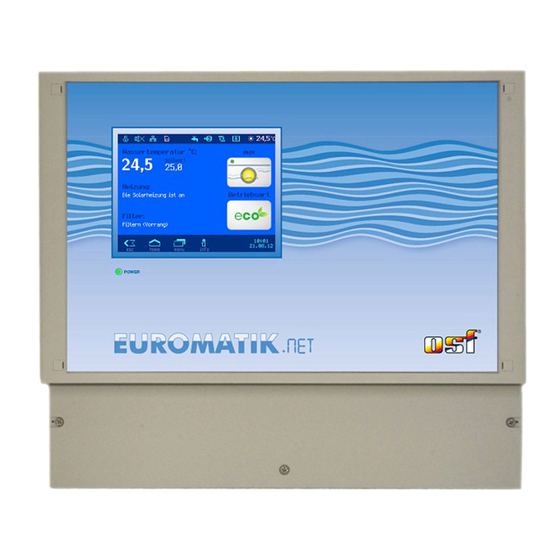

OSF Euromatik.net Installation And Operation Manual

Installation and Operation Manual
Swimming pool controller with Internet connection and energy savings feature

Technical Specifications of the Controller

Dimensions:
Operating voltage:
Power consumption of the controller:
Contact rating:
Protection class:
Ambient conditions:
Level sensors

Technical Specifications of the Servo Drive (Option)

Dimensions:
Operating voltage:
Protection class:
6-way valves that can be used: 
With an appropriate adapter
Static water pressure:
Water column above the valve:
 The valves are subject to change without notice by the respective manufacturers
365mm x 320mm x 144mm
Pump:
Heater:
Dosing equipment:
Supplementary output:
0-40°C, max. 95% r.H. non condensing
220mm x 110mm x 115mm
Connectable pumps
230V alternating-pump
(rated current max. 8A)
400V three-phase pump
(rated current max.8A)
Speck ECO-Touch pump
Speck ECO-Touch-Pro pump
Speck Badu-90-ECO-VS pump
Speck Badu-90-ECO-Motion pump
Pentair IntelliFlo pump
Pentair SuperFlo pump
Zodiac FloPro VS pump
UWE PMM pump
400V/50Hz
approx.15VA
max. 3,0 kW (AC3)
max. 0,4 kW (AC1)
max. 0,4 kW (AC1)
max. 3A (AC1)
IP 40
12V AC
24V/50Hz
IP 54
Praher 1½" and 2"
Speck 1½" and 2"
Midas 1½" and 2"
Hayward 1½"
Astral 1½"
Astral 2"
max.0,3 bar
max. 3,0 m
