Ediseja 21 PEU 016 User Manual

Usb to 16x serial port extender unit
Hide thumbs Also See for PEU 016:
Table of Contents

Advertisement

Quick Links

Download this manual
Device:
PEU 016
USB to 16x Serial Port
Document:
Code:
User manual PEUMU016
PEU 016
Extender Unit
User Manual
PEU 016
Date:
17.08.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEU 016 and is the answer not in the manual?

Questions and answers

Related Manuals for Ediseja 21 PEU 016

Summary of Contents for Ediseja 21 PEU 016

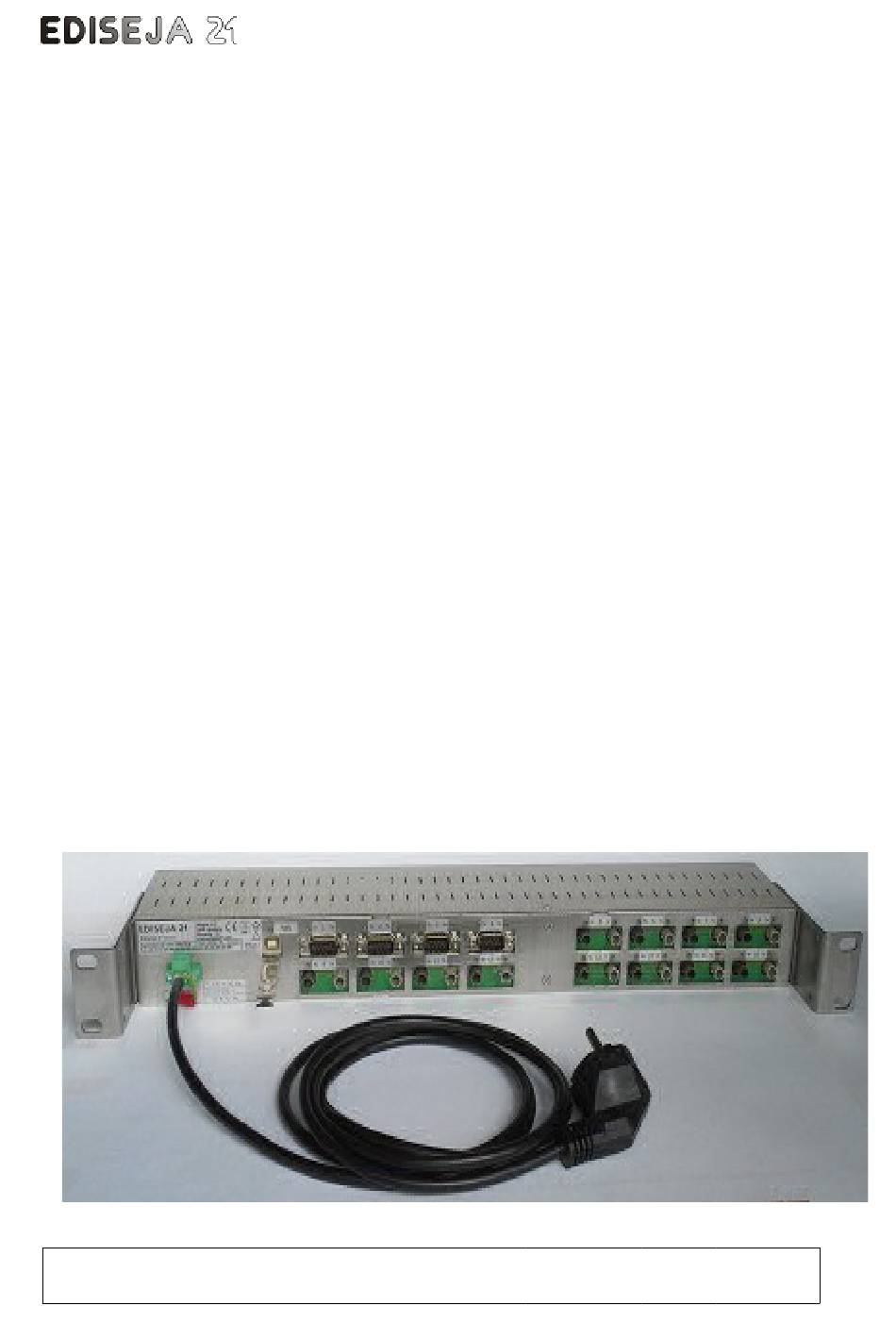

  • Page 1 PEU 016 USB to 16x Serial Port Extender Unit User Manual PEU 016 Device: Document: Code: Date: PEU 016 User manual PEUMU016 17.08.2020...

  • Page 2: Table Of Contents

    PEU 016 - USB to 16x Serial Port Extender Unit Content PREFACE.......................3 PEU 016 SYSTEM..................5 2.1 DESCRIPTION........................5 2.2 TYPICAL APPLICATION..................... 5 2.3 APPEARANCE........................5 SCHEMATIC....................6 INSTALLATION....................7 4.1 DEVICE OPENING AND 19" RACK HOLDING BRACKET POSITION CHANGE....7 4.2 FIBER OPTIC LOGIC SETTINGS..................8 4.3 USB DRIVERS INSTALLATION..................

  • Page 3: Preface

    PEU 016 - USB to 16x Serial Port Extender Unit PREFACE Liability statement We have checked the contents of this manual to ensure that the descriptions of both hardware and software are as accurate as possible. However, deviations may occur so that no liability can be accepted for any errors or omissions contained in the information given.
  • Page 4 PEU 016 - USB to 16x Serial Port Extender Unit Caution indicates that minor personal injury or property damage can result if proper precautions are not taken. This particularly applies to damage on or in the device itself. General information These paper contain the information that is necessary for the proper and safe operation of the described devices.

  • Page 5: Peu 016 System

    PEU 016 SYSTEM DESCRIPTION Port extender unit (PEU 016) is system for extending computer serial ports. It adds 16 serial ports to the operating system from single USB port. It galvanicaly separates RS232 to prevents ground loops and increases computer's electromagnetic immunity (EMI). Besides RS232 it additionaly provides RS485 and multimode fiber optic ports for connection to protection relays, voltage regulators, ect.

  • Page 6: Schematic

    PEU 016 - USB to 16x Serial Port Extender Unit SCHEMATIC Picture 3: PEU 016 schematic Page: Device: Document: Code: Date: PEU 016 User manual PEUMU016 17.08.2020...

  • Page 7: Installation

    PEU 016 - USB to 16x Serial Port Extender Unit INSTALLATION DEVICE OPENING AND 19" RACK HOLDING BRACKET POSITION CHANGE Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage.

  • Page 8: Fiber Optic Logic Settings

    PEU 016 - USB to 16x Serial Port Extender Unit FIBER OPTIC LOGIC SETTINGS Fiber optic port can operate with the positve logic (light OFF in idle state) or with the negative logic (light ON in idle state). User can set the logic with jumper settings on each fiber optic port inside the device. To do so, unplug ALL cables from the device.

  • Page 9: Dll Drivers (For Advanced Users)

    PEU 016 - USB to 16x Serial Port Extender Unit Download the file, unzip it and run that exe file. (Currently named CDM21228_Setup.exe). Wait until installation is complete, reboot PC if it is instructed so. Connect PEU 016 to power supply.

  • Page 10: Mounting

    PEU 016 - USB to 16x Serial Port Extender Unit MOUNTING Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage. Only qualified personnel may work with described devices after being familiar with warnings and safety notices in this paper and other safety regulations.

  • Page 11: Commissioning & Maintenace

    PEU 016 - USB to 16x Serial Port Extender Unit COMMISSIONING & MAINTENACE COMMISSIONING Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage. Only qualified personnel may work with described device after being familiar with warnings and safety notices in this paper and other safety regulations.

  • Page 12: Technical Data

    PEU 016 - USB to 16x Serial Port Extender Unit TECHNICAL DATA Power supply 110 V-220 V Rated voltage 230 V 88 V-370 V Permissible voltage range 85 V-264 V Input current max 0,1 A 47 - 63 Hz Frequency range Voltage dips >...
  • Page 13 PEU 016 - USB to 16x Serial Port Extender Unit Communication ports - RS485 (interface 5) Isolation 500 V DC DB9 female Connector type Communication ports - Multimode Fiber Optic (interface 6, 6N, 7 & 7N) multimode fiber optic Type...

  • Page 14: Dimensions

    Picture 8: Dimensions top side - 19" rack mount deepened for 35 mm The prescribed bending radius of the optical fibre cables must be observed so this type of enclosure ensures additional depth between front side of PEU 016 and cabinet door. Bend USB cable holder if it is still too long.
  • Page 15 PEU 016 - USB to 16x Serial Port Extender Unit Picture 10: Dimensions top side - surface mount Device: Document: Code: Date: Page: PEU 016 User manual PEUMU016 17.08.2020...

  • Page 16: Ordering

    Example: PEU 016 / 5 . U . x . 2 . 2 . 5 . 5 . 6 . 6 . 6N . 6N . 6N . 6N . 6N . 6N . 7. 7N . N . N...
