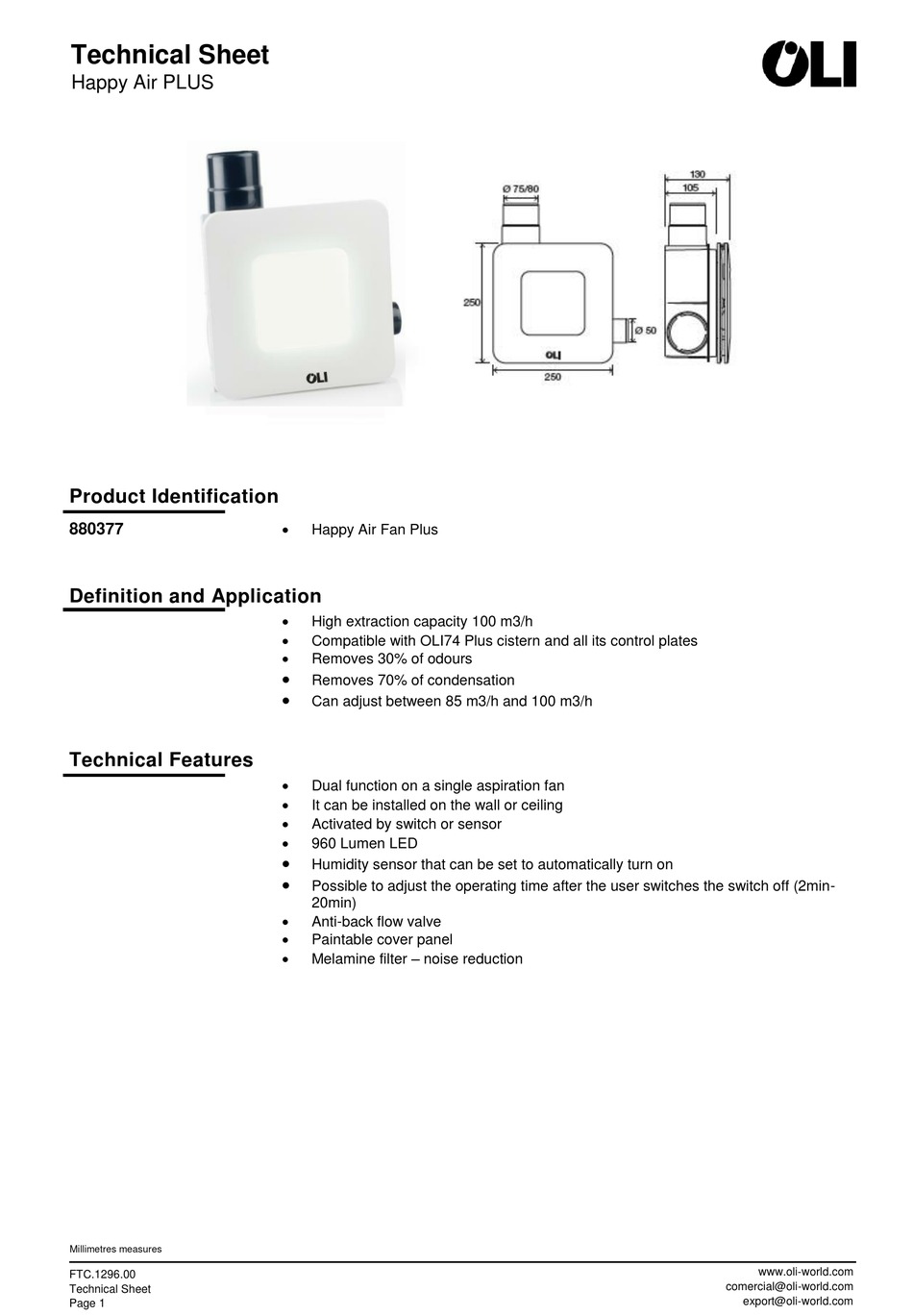

Technical Sheet
Happy Air PLUS
Product Identification
880377
Definition and Application
Technical Features
Millimetres measures
FTC.1296.00
Technical Sheet
Page 1

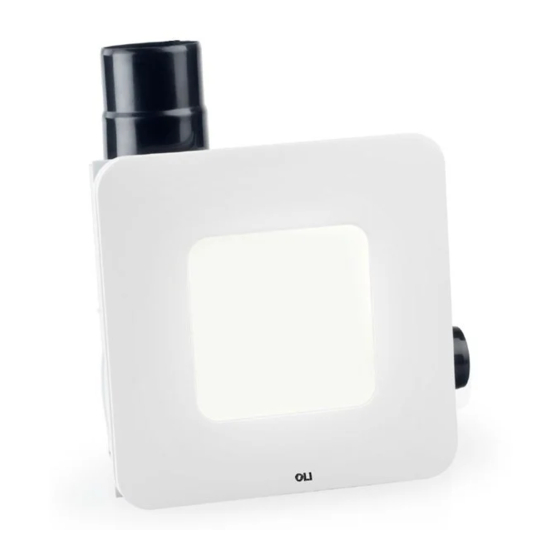

Happy Air Fan Plus
High extraction capacity 100 m3/h
Compatible with OLI74 Plus cistern and all its control plates
Removes 30% of odours
Removes 70% of condensation
Can adjust between 85 m3/h and 100 m3/h
Dual function on a single aspiration fan
It can be installed on the wall or ceiling
Activated by switch or sensor
960 Lumen LED
Humidity sensor that can be set to automatically turn on
Possible to adjust the operating time after the user switches the switch off (2min-
20min)
Anti-back flow valve
Paintable cover panel
Melamine filter – noise reduction
www.oli-world.com
comercial@oli-world.com
export@oli-world.com
Advertisement
Table of Contents
Summary of Contents for OLI Happy Air PLUS
- Page 1 Technical Sheet Happy Air PLUS Product Identification 880377 Happy Air Fan Plus Definition and Application High extraction capacity 100 m3/h Compatible with OLI74 Plus cistern and all its control plates Removes 30% of odours Removes 70% of condensation ...
- Page 2 Technical Sheet Happy Air PLUS Technical Data Frequency: 50hz Power Supply: 220V The extractor fan operates at 220V/50Hz Active current: 0.14 A Power: 31W Insulation: IP35 Performance Data Capacity 85m3/h- 12W 34dB ...
- Page 3 Technical Sheet Happy Air PLUS Main Pipelin Measuring Millimetres measures www.oli-world.com FTC.1296.00 comercial@oli-world.com Technical Sheet export@oli-world.com Page 3...
- Page 4 Technical Sheet Happy Air PLUS Two installation systems: Configuration A – One Happy Air in every flat Configuration B – Two Happy Air in every flat According to following conditions Contemporaneous utilization factor: 100% (all Happy Air systems work at the same time) ...
- Page 5 Technical Sheet Happy Air PLUS Warranty Two (2) years warranty according to the general selling terms, starting from the purchase date of the product. If the product is not correctly installed the warranty is not valid Observations ...
- Page 6 Technical Sheet Happy Air PLUS This product is artistically made in conformity to applicable CEE rules and is manufactured to allow rooms and similar air change, wherever the product is installed. Please follow all these indication to ensure performance, mechanical and electrical reliability and keep always this instruction leaflet. Do not use this product for different application unless indicated by us.
