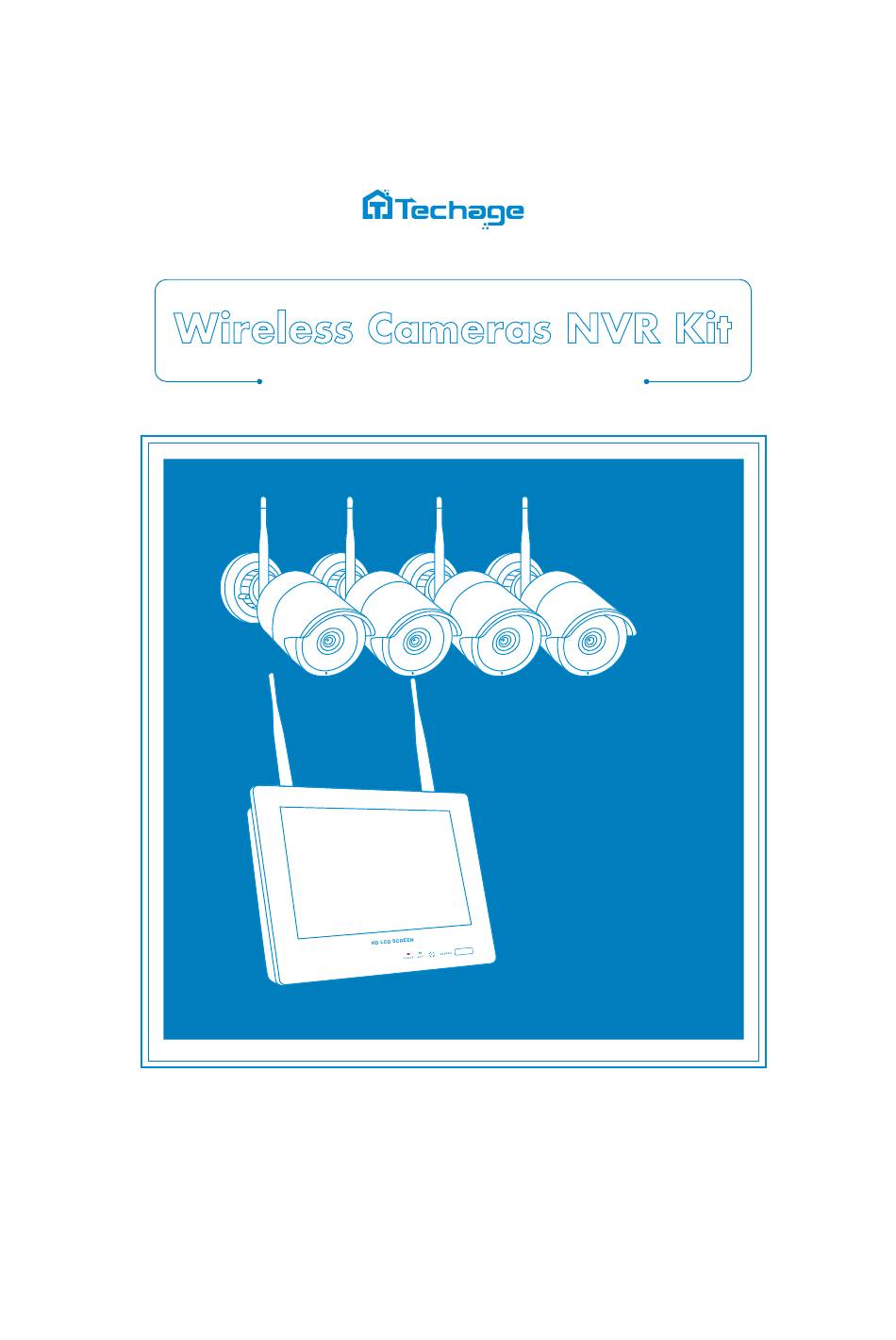

- Page 1 Wireless Cameras NVR Kit Security Expert for Your Home and Business Quick User Guide www.techage.com...
-
Page 2: Table Of Contents
Table of Contents 01. Connect Your System 02. View on Smartphone 03. View on PC Client Software 04. View on PC via IE from LAN and WAN 05. Add Camera by Matching Code 06. Record Video and Audio 07. Playback Video and Audio 08. - Page 3 Http//:techage.com/support.php You can find FAQ answers, videos and documents needed here. If you need customer support, email us and we will respond within 24h: support@techage.com. This quick user guide is subject to change without previous notice due to hardware and software upgrade.
-
Page 4: Connect Your System
3. Speaker: For two way video talk or alert voice play. 4. Microphone : For picking up Audio. (For different cameras, the position may be different) Connect Your System Power supply Power supply HDMI Mouse Router TV Monitor Power supply Display Device for Remote View IP Camera support@techage.com... - Page 5 According to the wireless signal transmission character of antenna, the antennas of cameras should overlap or parallel to NVR WiFi wireless signal, as pictures shown below: should overlap or parallel to NVR WiFi wireless signal, as pictures shown below: Correct Wrong support@techage.com...
- Page 6 3.2 Use an extension cord antenna to extend the wireless distance 3.2 Use an extension cord antenna to extend the wireless distance Antenna Extension Cord IP Camera Window Wall Installation method of an extension cord antenna Installation method of an extension cord antenna support@techage.com...
- Page 7 4.1 Use standard Network cables to connect the cameras to the Router 4.2 After connecting the camera to the router, please right click the mouse > Video Manage > Refresh > Auto Add. The camera will be added to NVR, and the screen will display the camera video. support@techage.com...
-
Page 8: View On Smartphone
DHCP or manually allocate IP for the NVR. If the setting still doesn't work, please ask your network administrator for help. (Ex.: Port 80 needs to be opened on the router.) Step 2: Download the App Search "IP PRO" in App store or Google Play. Or Scan the QR Code to download the App for free. support@techage.com... - Page 9 A: Install the free "IP PRO" App. B: Tap Register and input your User name, Password, Email to create a new account. C: Login the App, Tap “+” icon on the right upper corner of the screen > Add>Choose the “DVR/NVR” support@techage.com...
- Page 10 4. Password: Enter the NVR’s password (Default: No password required, just leave it blank) 5. Tap Complete. Tips: If you’ve set a password on your NVR system, please update your password on APP to view. E: Tap the channel Number, then you shall see the live video of different channels. support@techage.com...
- Page 11 If your camera has both microphone and speaker, it supports the two way video talk. You can click the and long press the to talk to people nearby the cameras or let them get out. CAM 1 CAM 1 2019/08/31 14:36:26 SAT 2019/08/31 14:36:26 SAT support@techage.com...
-
Page 12: View On Pc Client Software
View on PC Client Software Step 1: Download EseeCloud.exe from CD or download it from http://techage.com/download.php After opening the EseeCloud software, click on Login directly. Step2.1: Choose add device by Cloud ID. Tap “+Add” on the right upper corner. Cloud ID: Cloud ID Username: admin Password: Enter the NVR’s Password (default: No password required, just leave it blank) -
Page 13: View On Pc Via Ie From Lan And Wan
Step2. Enter the NVR’s IP address in your IE browser in format http://IP Address, for example: http://192.168.1.188 (If the default web port 80 has been changed e.g. to 100, you will need to add the new port number when you input the IP address in the browser, for example: http://192.168.1.188:100). support@techage.com... - Page 14 (If you have Internet Explorer version 9 or 11, change ALLOW ACTIVEX FILTERING to DISABLE. Other versions of IE browser do not have this option.) ③ Change the following ACTIVEX controls to PROMPT: Download signed ACTIVEX controls Download unsigned ACTIVEX controls Initialize and script ACTIVEX controls not marked as safe for scripting support@techage.com...
-
Page 15: Add Camera By Matching Code
2. How to add camera by matching code. 2.1 Power on the camera which has no video shown on the NVR. And plug off the network cable from the NVR that connected to the router. Connect the NVR with the camera as shown below. support@techage.com... -
Page 16: Record Video And Audio
NVR. Use a phillips screwdriver, screw the provided screws into the holes and assemble the cover. Tips: New HDD has to be formatted before recording. Right click the mouse > System setup > General setup > HDD Setup > Select the Hard Drive (format) > Format > Yes > OK. support@techage.com... - Page 17 > Copy to > All > Ok. If you want to do different record settings for different channels. Choose the Channel NO. and then change the record setting according to your preference and apply the changes. support@techage.com...
-
Page 18: Playback Video And Audio
Step1: Right click the mouse > System setup > Channel Setup > Video Detection (on the left) You can set Motion Detection Sensitivity Level, Alarm Duration Time and how to notify you when motion detected, like Buzzer, Email Notice or App Alarm. support@techage.com... -
Page 19: Backup Videos To Usb Storage
Click “More Parameter”. You can search online and find the SMTP setup details for the email you want to use. Find Gmail setup for the system as below. Please ensure to activate the IMAP in your Gmail setting. xxx@gmail.com xxx@gmail.com xxx@gmail.com support@techage.com... - Page 20 NOTE...
- Page 21 NOTE...
- Page 22 NOTE...
- Page 23 All rights reserved. No part of this publication may be reproduced by any means without written permission from Techage. The information in this publication is believed to be accurate in all respects. Techage cannot assume responsibility for any consequences resulting from the use thereof.
