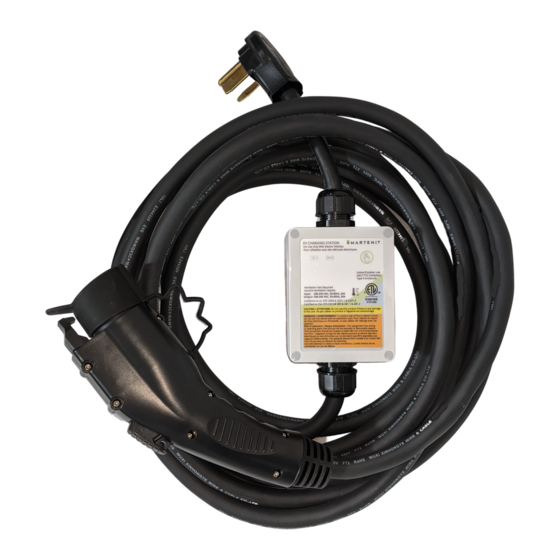

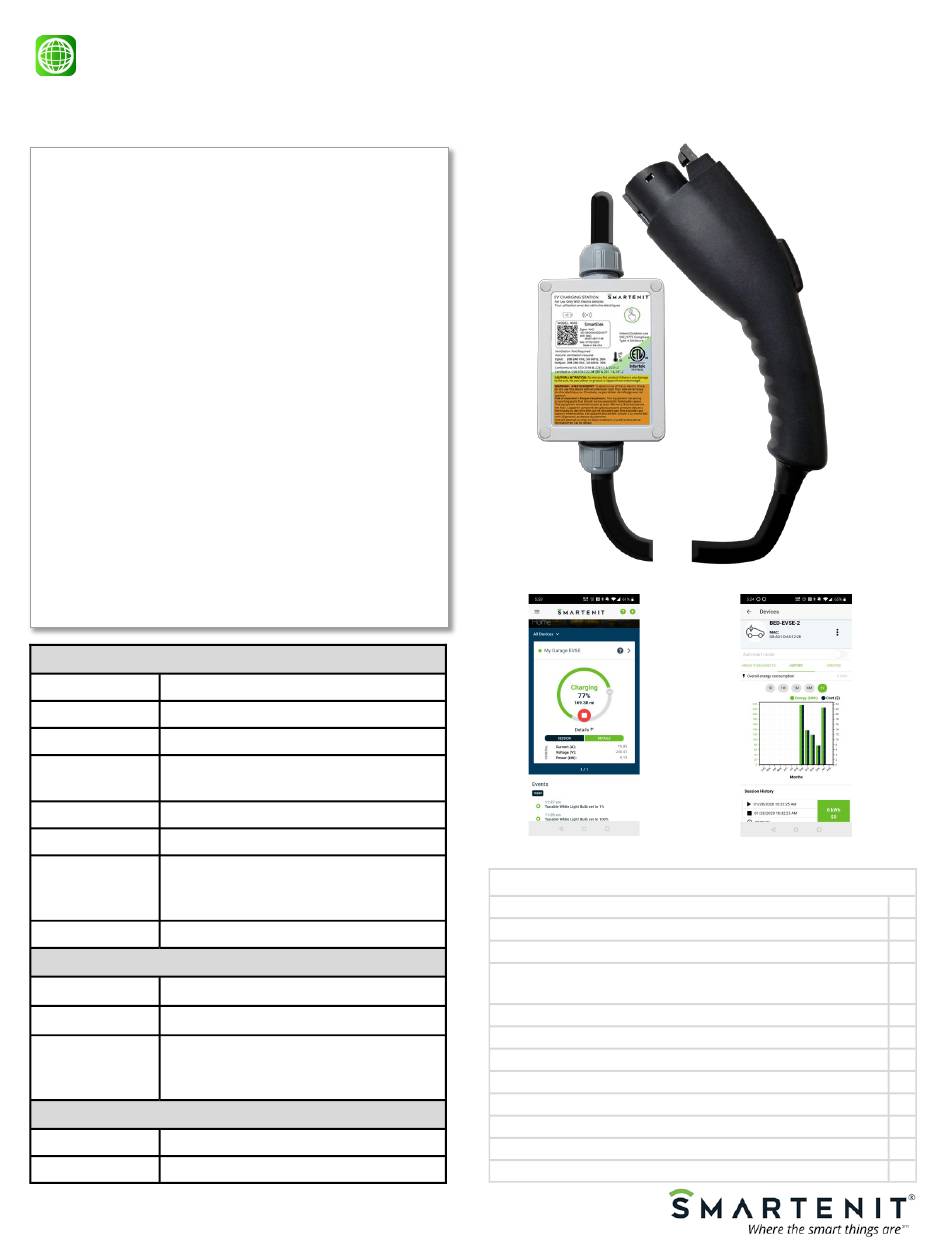

SmartElek Model #4500 IoT Connected 30A L1/L2 EVSE (EV Charging Station)
About this Product (Small and Mighty!)
SmartElek is an easy to use, maintenance-free, smart
and connected Level 1 / Level 2 EV charger. As well
as simple and reliable plug and go operation,
SmartElek provides unparalleled smart functionality.
Connectivity to IoT/Home Automation networks uses
built-in Zigbee and Wi-Fi radios. Connected function-
ality allows for monitoring and controlling EV charg-
ing sessions, from plug-in, authorization and charg-
ing start, through plug-out or end of charge.
Zigbee operation requires our Harmony G2 or other
compatible hub. Wi-Fi connectivity is done through
the Smartenit ElekNet cloud service without a hub.
High precision built-in metrology measures the ener-
gy delivered to the EV as well as other parameters
including power, voltage, current, frequency, power
factor, etc.
Install with the safety guidelines, tips and sugges-
tions in this guide and use our mobile or web app to
get the benefits of this Internet of Things EVSE.
Electrical Specifications
In/Out Voltage
208-240 VAC 50/60Hz
Output Current
30A Continuous
Operating Power < 0.25 Watts
Relays
Two independent latching relays rated
50A @ 277VAC
Input Cable
1 ft. 10-3 with NEMA 14-50 plug
Vehicle Cable
24 ft. with J1772 plug rated NEMA 3S
Metrology
Supports EN 50470-1, EN 50470-3, IEC
62053- 21, IEC 62053-21, IEC 62053-22,
and IEC 62053-23
Radio Frequency Wi-Fi, Zigbee, and BLE: 2.4G band
Mechanical Specifications
Size
4.5" L X 3.5" W X 2.25" H
Weight
14.5 Oz. (exclusive of EV cable and plug)
Indoor/Outdoor
Indoor or outdoor enclosure rated NE-
Mounting
MA 4X. Charging Plug is NEMA 3S.
Mounting plate provided
Environmental Specifications
Temperature
-30 to +40
Humidity
5 to 80 %RH non-condensing
© 2019, 2020 Smartenit, Inc.—Rev 0.7 8/28/2020
SmartElek and ElekNet are trademarks of Smartenit, Inc.
Zigbee is a registered trademark of the zigbee alliance
0
0
C (-22 to +104
F)
About this product
Specifications
Important Safety instructions
Instructions pertaining to a risk of fire or electrical
shock
Additional safety instructions
Moving and storage instructions
Maintenance / cleaning instructions
Installation instructions
Operation instructions
EVSE setup with Mobile App
Wi-Fi Setup with Mobile App
EVSE operation with Mobile App
1
Product Guide
Plug to EV
Table of Contents
1
1
2
2
3
3
3
4
5
6
7
8
Advertisement
Table of Contents
Summary of Contents for Smartenit SmartElek 4500
- Page 1 Zigbee operation requires our Harmony G2 or other compatible hub. Wi-Fi connectivity is done through the Smartenit ElekNet cloud service without a hub. High precision built-in metrology measures the ener- gy delivered to the EV as well as other parameters including power, voltage, current, frequency, power factor, etc.
-
Page 2: Important Safety Instructions
À utiliser pour charger uniquement des véhicules électriques équipés d'un port de charge SAE J1772. - This product contains no user serviceable parts. For support write to support@smartenit.com or contact your local dealer. Do not attempt to repair or service the EVSE. -
Page 3: Additional Safety Instructions
JAMAIS de solvants inflammables, de tampons abrasifs ou de poudre de nettoyage à récurer. © 2019, 2020 Smartenit, Inc.—Rev 0.7 8/28/2020 SmartElek and ElekNet are trademarks of Smartenit, Inc. Zigbee is a registered trademark of the zigbee alliance... -
Page 4: Installation Instructions
EVSE without the use of a tool. © 2019, 2020 Smartenit, Inc.—Rev 0.7 8/28/2020 SmartElek and ElekNet are trademarks of Smartenit, Inc. Zigbee is a registered trademark of the zigbee alliance... - Page 5 Tap 9 times Metering reset with- Red / Flashing Fault—Unplug to reset Settings out leaving network © 2019, 2020 Smartenit, Inc.—Rev 0.7 8/28/2020 SmartElek and ElekNet are trademarks of Smartenit, Inc. Zigbee is a registered trademark of the zigbee alliance...
-
Page 6: Mobile App Setup
Operating SmartElek With WebApp and Mobile Apps Smartenit offers both a WebApp and a Mobile App to monitor and control the SmartElek EVSE. The operation and functionality of the apps is the same independently of the connectivity method employed (Zigbee, Wi-Fi, Cellular, Bluetooth). - Page 7 IoT service. that will be used subsequently to be used with the application. by the app. © 2019, 2020 Smartenit, Inc.—Rev 0.7 8/28/2020 SmartElek and ElekNet are trademarks of Smartenit, Inc. Zigbee is a registered trademark of the zigbee alliance...
- Page 8 Note the level is ap- selected session. proximate based on user input. © 2019, 2020 Smartenit, Inc.—Rev 0.7 8/28/2020 SmartElek and ElekNet are trademarks of Smartenit, Inc. Zigbee is a registered trademark of the zigbee alliance...
