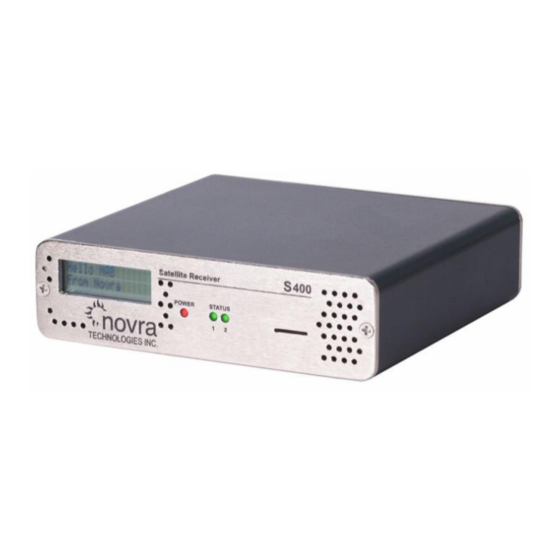

- Page 1 S400 PRO Receiver User Manual Revision 1.0 CAUTION: Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Confidential and Proprietary 1 of 36 Version: 1.0...
- Page 2 ________________________________ Disclaimer While reasonable effort has been made in the preparation of this document to assure its accuracy, Novra Technologies Inc. assumes no responsibility for errors or omissions that may appear in this manual. Novra reserves the right to change the contents of this manual at any time without notice.
-
Page 3: Table Of Contents
Model Naming Convention ....................4 Introduction ..........................5 Principles of Operation ..................... 5 Getting Started ......................... 6 Typical S400 PRO Installation ..................6 What Information do I Need – Basic Configuration? ............7 S400 PRO Startup ......................9 Dashboard ........................10 3.5.1 Status Bar ........................ -
Page 4: Conventions
Interface (CI) slot, making it compatible with many commercially available conditional access encryption systems 1.3 Model Naming Convention This manual uses the S400 PRO naming convention when referring to any one of the applicable S400 PRO models (see Section 1.2 above). Confidential and Proprietary 4 of 36 Version: 1.0... -
Page 5: Introduction
2.1 Principles of Operation The S400 PRO is a satellite receiver that enables the reception of IP data carried on a DVB-S2 or DVB-S compliant satellite signal. The unit is also capable of receiving an IP unicast stream for distribution. -
Page 6: Getting Started
Technologies Inc. expects that end users, who wish to control the LNB with the receiver, already have good understanding of satellite technology. CAUTION: Nothing should be inserted between the S400 PRO and the satellite dish except for a surge suppressor. Cable TV Splitters, TVs, VCRs, and FM receivers are not designed for connection to this portion of the network. -
Page 7: What Information Do I Need - Basic Configuration
6) The IP Address to be assigned to your S400 PRO Receiver’s DATA interface (LAN1) Default value is: 192.168.1.2 7) The IP Address to be assigned to your S400 PRO Receiver’s M&C interface (LAN2), if DHCP is not available Default is to set value via DHCP If your network’s DHCP server is set to assign addresses in the 192.168.1.xxx... - Page 8 8) The IP address of the Default Gateway for the receiver. 9) Is the receiver supposed to filter multicast traffic using IGMP? NOTE: IGMP is an Internet standard that is used to control multicast traffic on the LAN based on the client’s interest in the stream. For proper operation, all components of your network should support IGMP Confidential and Proprietary 8 of 36...
-
Page 9: S400 Pro Startup
3.3 S400 PRO Startup 1- Plug in the RF and network cables and then the power. When the S400 PRO has completed its startup (approximately 45 seconds) you should be able to read its IP address from the LCD panel. -
Page 10: Dashboard
You can now proceed with configuring your S400 PRO. In order to make any changes to the configuration of your S400 PRO, you must login in the top right hand corner of the GUI display. The default password is “password”. -
Page 11: Tuner Status Summary
Tuner Status Summary The main section of the dashboard status page shows the status of either tuner 1 (RF1) or tuner 2 (RF2). Each tuner has the following details DVB Mode : DVB-S or DVB-S2 Carrier Freq. L.O. – Local Oscillator ... -
Page 12: Configuring The S400 Pro
NOTE: You can only change the S400 PRO settings if you login! The default password is “password”. This chapter discusses how to configure the S400 PRO. It covers the interfaces, services and system settings of the S400 PRO. 4.1 Interfaces The Interfaces menu allows the user to configure both satellite tuners, if equipped, and both Ethernet interfaces. -
Page 13: Tuner 1 (Rf1)
ModCod: For multi-stream DVB-S2 operation, the S400 PRO should be configured to receive 1 stream. This is accomplished by entering the ModCod of the signal you wish to receive in the ModCod drop down box. - Page 14 Reset: By pressing this button, any changes on this page will be undone. No changes will be sent to the S400 PRO. Apply: Select this button to send all of the settings on this screen to the S400 PRO. Please wait NOTE:...
-
Page 15: Tuner 2 (Rf2)
Tuner 2 (RF2) - Optional The main difference between tuner 1 and 2 is that tuner 2 does not have its own lnb control. Also it may not be available on your S400 PRO version. Contact your reseller for possible upgrades. Confidential and Proprietary 15 of 36 Version: 1.0... -
Page 16: Data (Lan1)
(as shown below). 1. MAC Address: The LAN1 Ethernet Interface MAC address is shown. 2. Obtain an IP Address Automatically (DHCP): This option will force the S400 PRO to use DHCP to automatically obtain its IP address. -
Page 17: M&C (Lan2)
M&C (LAN2) The Lan2 Ethernet settings of the S400 PRO may be modified by selecting the M&C (LAN2) Interface menu and changing the appropriate fields (as shown below). 1. MAC Address: The LAN2 Ethernet Interface MAC address is shown. 2. Obtain an IP Address Automatically (DHCP): This option will force the S400 PRO to use DHCP to automatically obtain its IP address. -
Page 18: Services
5. Default Gateway: This is the IP address of the router that the receiver should use whenever it wants to send traffic to a non-local address. 6. Primary/Secondary DNS: These DNS entries allow the S400 PRO to send traffic to services on the Intra/Internet by name (eg. NTP, SNMP, etc…). -
Page 19: Forward All
Forward all This is the simplest mode of service forwarding available on the S400 PRO. This can be used for analyzing a full satellite transport stream or simply to forward it on to other devices on the network. To use this mode, select the checkbox “Forward Entire Stream” and then specify the following options. - Page 20 TTL: The time to live value for the output UDP packets Reset: By pressing this button, any changes on this page will be undone. No changes will be sent to the S400 PRO. Apply: By pressing this button, the updates are sent to the receiver.
-
Page 21: Dvb Mpeg Forwarding
DVB Mpeg Forwarding The S400 PRO can be used to forward DVB PID bundles (Raw PID Groups) that represent a valid SPTS (Single Program Transport Stream). For each SPTS, the user specifies the stream details listed below. The user can specify up to 64 unique SPTS for a single transponder. To save your work please click on the Apply button as the data is entered. - Page 22 New: Start a new PID bundle Save: Declare a PID bundle, which makes it appear on the list to the right. Note: This bundle is not yet on the S400 PRO, click “Apply” to have it saved to the S400 PRO active service list.
-
Page 23: Dvb Mpe/Ule Ip Forwarding
The S400 PRO also supports DVB MPE for typical IP over satellite applications such as file delivery or IP streaming services. The S400 PRO allows the user to specify up to 64 DVB MPE or ULE PIDs. MPE PIDs and SPTS PID bundles can be defined simultaneously. MPE PIDs are added by simply entering the decimal PID number in the “New PID”... -
Page 24: System Configuration
About : System Information about the device and its operating system. Configuration: Options to save and restore S400 PRO configurations Date/Time: Options on setting the date and time of the S400 PRO Password: Changing the password for your S400 PRO... -
Page 25: About
About Various details about the internals of your S400 PRO that may be useful for support and diagnostics. Name: Name of S400 PRO Unit Version: Version of operating system Uptime: How long the S400 PRO has been running since its last power up. - Page 26 Serial Number: Serial Number of this S400 PRO Unit Second Tuner Licensed: Status of license to use the second tuner (RF2) Version: S400 PRO release version Last config change: Date/time of last change to the S400 PRO configuration parameters. Confidential and Proprietary 26 of 36...
-
Page 27: Configuration
Backup Current Configuration. Apply Factory Default: Use this option to return your S400 PRO to the same configuration it had at the factory. Note: This includes the IP address of the M&C (LAN1) interface (192.168.1.2)! -
Page 28: Date/Time
Manual: Use this option if you want to enter your date and time manually. This would be used if your S400 PRO does not have Internet access. Note: On the next reset/reboot, your S400 PRO will revert back to its factory date/time if in Manual Mode. -
Page 29: Upgrade
Click the “Reset” button to reset the software services in your S400 PRO. Click “Reboot” to perform a full restart of the S400 PRO. Contact your S400 PRO support service if you are having issues with your S400 PRO application. -
Page 30: Troubleshooting
5 Troubleshooting This section can help you resolve most of the common problems when installing the S400 PRO. 1) I connected the receiver and when I start my browser with the IP address of the S400 PRO there is no response Make sure the S400 PRO is connected to the same LAN that your computer (running web browser) is connected to. -
Page 31: Specifications
6 Specifications 6.1 Receiver Characteristics RF Tuner Receiving Frequency: 950 to 2150 MHz Frequency Acquisition: ± 50% Symbol Rate up to ±10 MHz Input Signal Level: -70 dBm to -25 dBm Multi-standard Demodulation DVB-S QPSK: 300 Ksps to 45 Msps (auto selection) DVB-S2 QPSK: 600 Ksps - 45 Msps (auto selection) - Page 32 Ethernet 100 Base-T LAN Interface: RJ-45 CAUTION: Nothing should be inserted between the S400 PRO and the satellite dish except for a surge suppressor. Cable TV Splitters, TVs, VCRs, and FM receivers are not designed for connection to this portion of the network. They will not work and if they are connected, even for a brief moment, they will probably never work again because the power on the coax will destroy the input of the misplaced unit.
-
Page 33: Minimum System Requirements
Your computer must operate a modern browser such as Chrome, Explorer, Safari, or Firefox. 6.3 Supplied Equipment Please confirm you have received all the equipment listed below. Novra S400 PRO Receiver Cross-over cable or Ethernet cable Power supply (120 Vac to 12 Vdc North America; OR 220 Vac to 12 Vdc European) -
Page 34: Appendix
So LNBs convert satellite frequencies to the lower, easier to transport, band of frequencies referred to as L-Band. It is L-Band frequencies that the S400 PRO receiver tunes to. Older systems used a unit called an LNA (Low Noise Amplifier). This unit amplifies the RF frequency and then transmits the signals down a special (expensive) cable to the receiver. - Page 35 2.0 million bits per second (2.0 Mbps). The important point to remember is that satellite systems send and receive symbols which are then converted into data. The S400 PRO takes the resulting data and forwards it to your computer in bursts called "packets."...
- Page 36 The S400 PRO uses the PID numbers that come with each Internet data, video, audio and specialized data signal to separate them all. (See PID.)
