Please do not open cover as it contains high voltage. This product is not
Any damage caused by misuse of the product will void the warranty.

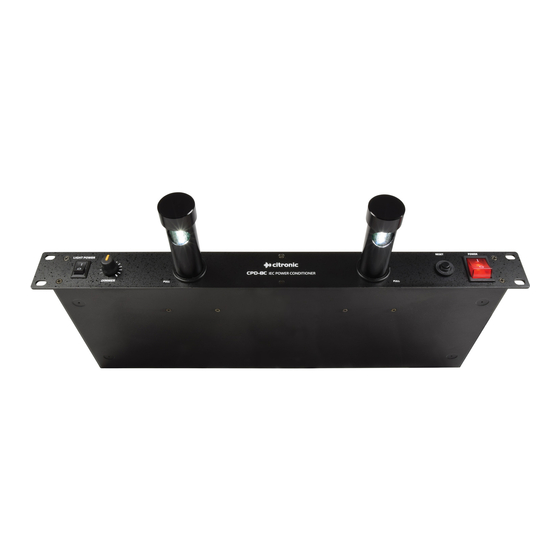

Protect your electronic equipment with this 19" rack mountable power conditioner featuring an
RFI/EMI filter. The filter works by preventing noise from florescent lights, certain dimmers and
similar sources of electronic pollution contaminating the AC line and leaking into sensitive audio,
video or computer circuits. In addition; the front panel features two LED lamps with dimmer control
for illuminating your rack.
• 19" 1U rack mountable
• 8 rear mounted IEC power outlets
• 2 front mounted LED lamps
with dimmer control
Specifications
Power supply
230Vac, 50Hz
Max. output current 10A
Outputs
8 x IECs
LED type
2 x 3W LEDs
Dimensions
482 x 178 x 44mm
Weight
2.6kg
serviceable or repairable by the end user.
Please refer to qualified personnel for service or repair.
Please read this manual thoroughly before use.
19" 8-WAY IEC POWER CONDITIONER
• Surge and voltage spike protection
• 10A capacity with circuit breaker
CPD-8C
Item ref: 776.498UK
User Manual
776.498UK User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Citronic CPD-8C
- Page 1 CPD-8C 19” 8-WAY IEC POWER CONDITIONER Item ref: 776.498UK User Manual Please do not open cover as it contains high voltage. This product is not serviceable or repairable by the end user. Please refer to qualified personnel for service or repair.
- Page 2 Front Panel 1. On/Off power switch for rack lamps 2. Dimmer switch for LED rack lamps 3. LED rack lamps, pull out to use 4. 10A circuit breaker, press to reset 5. On/Off power switch Rear Panel 6. Power in 7.
